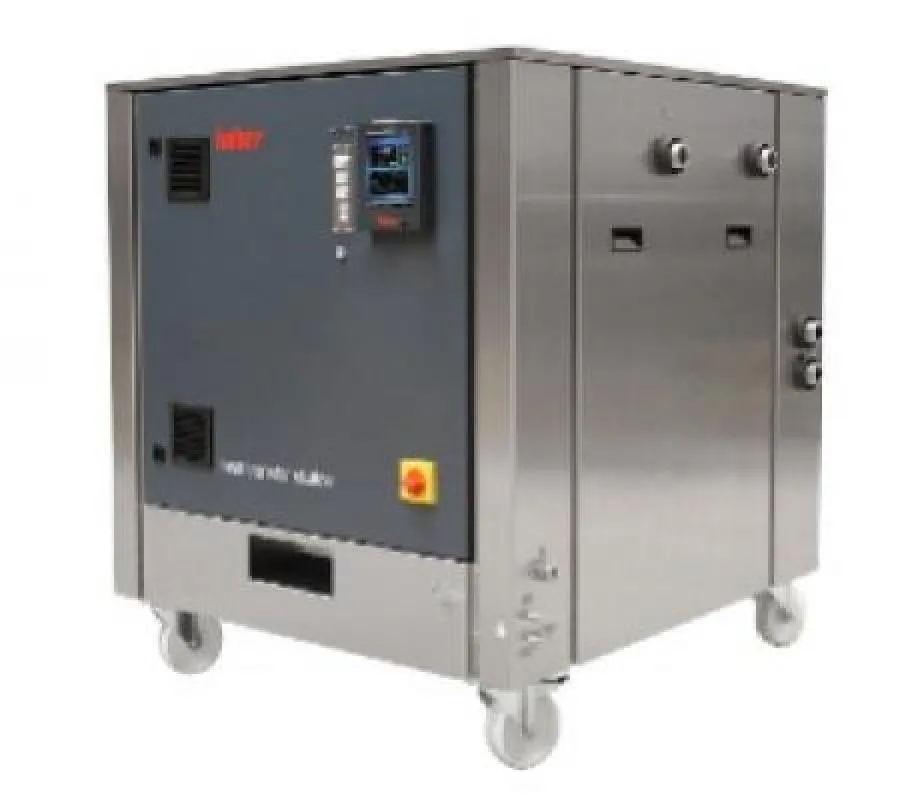

Huber HTS 30-H24 Heat Transfer Unit FOB: London, UK.

Huber HTS 30-H24 Heat Transfer Unit FOB: London, UK

**Unit was in working environment. is pre-owned, but in very good condition. Buyer can expect a working unit with 30 day warranty**

Please Note:
Power supply requirement (3 phase) 400V 3~ 50Hz, max. current (3 Phase) 5 A, Fuse (3 phase) 3x10 A

Plug type:

Heat Exchanger Unit with circulation pump (stainless steel). Housing, atmospheric open expansion tank and external plate heat exchanger (copper soldered), made of stainless steel. With digital level indicator. For externally closed applications. With adjustable overtemperature protection according to DIN 12876.
Pilot ONE: The new Pilot ONE controller with pioneering technology and advanced control functions brings numerous advantages to routine work. The extensive features list includes a brilliant 5,7 TFT touchscreen display, USB and network connections, an integrated technical glossary and language support in 13 languages (EN, DE, FR, IT, ES, RU, CN, PT, JP, CZ, PL, KO, TR). The Pilot ONE has a convenient navigation system with easily remembered icons and menu categories which are color sorted to make routine work simpler. Thanks to a favorite's menu and One-Click operator guidance all important information is always just a few keystrokes away. Software wizards also help you to set up, ensuring correct settings. The USB port allows connection of the system to a PC or notebook. Together with the Spy software, requirements such as remote control or data transmission are easily achieved in a cost-effective manner. Network integration is easy with the internet port.
The range of functions can be expanded very easily via E-grade at any time by entering a unit specific upgrade code:
E-grade "Exclusive": TAC (True Adaptive Control) - self optimizing internal and cascade control, selectable temperature
control mode (Internal/Process), programmer with 3 programs (max. 15 steps), ramp function (linear), 5 point calibration,
scalable graphic display, favorite's menu, display resolution 0,01 K.
E-grade "Professional": Programmer with 10 programs (max. 100 steps), ramp function for temperature gradients (linear
and non-linear), 2nd set point, user menus (Administrator level), calendar start.
3-2-2 warranty - registration required.
Cooling power at: 22kW / 30kW
primary side:
inlet 10C / flow 50 l/min / 100 l/min
secondary side:
outlet 20C / recirculation 160 l/min / 160 l/min
Secondary (HTS to application):
Medium: water
Temperature range: 5...90C
Primary (cooling water customer side):
Medium: water
Temperature range: 0...90C
max. consumption
at pressure differential 0,2 bar 26 l/min
at pressure differential 0,5 bar 46 l/min
at pressure differential 1,0 bar 68 l/min
at pressure differential 1,5 bar 61 l/min
at pressure differential 2,0 bar 92 l/min
at pressure differential 2,5 bar 105 l/min
at pressure differential 3,0 bar 116 l/min
Technical data according to DIN 12876
Operating temperature range ( secondary side ) (3)...(95) C
Temperature stability 0,1 K
temperature set point / display 5,7" color Touchscreen
Internal temperature sensor Pt100
Sensor external connection Pt100
Interface digital Ethernet, USB (Host u.
Device), RS232
Alarm message optic, acoustic, relay
Safety classification I / NFL
Cooling power with Water
at 20C 30 kW
Circulation pump G
max. delivery 240 l/min
max. delivery pressure 4,7 bar
Delivery at 1,1 bar 223 l/min

Technical data according to DIN 12876
Delivery at 1,5 bar 211 l/min
Delivery at 2,0 bar 196 l/min
Delivery at 2,5 bar 180 l/min
Delivery at 3,0 bar 160 l/min
Delivery at 3,5 bar 139 l/min
Delivery at 4,0 bar 109 l/min
Delivery at 4,5 bar 70 l/min
Pump connection G1 1/4 male
max. permissible kin. viscosity 50 mm/s
Cooling water connection G1 1/4 male
max. cooling water differential pressure 4 bar
max. cooling water pressure 6 bar
min. filling capacity 26 l
Volume of expansion 44 l
Overall dimensions WxDxH ** 940x1050x1130 mm
Net weight 270 kg
Power supply requirement (3 phase) 400V 3~ 50Hz
max. current (3 Phase) 5 A
Fuse (3 phase) 3x10 A
Degree of Protection IP20
min. ambient temperature 5 C
max. ambient temperature 40 C
