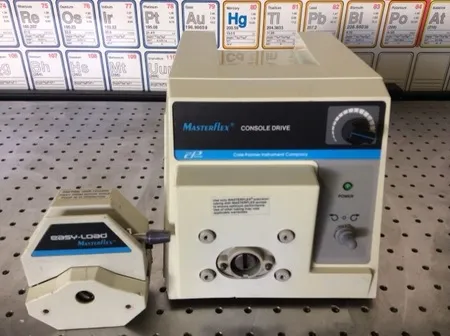

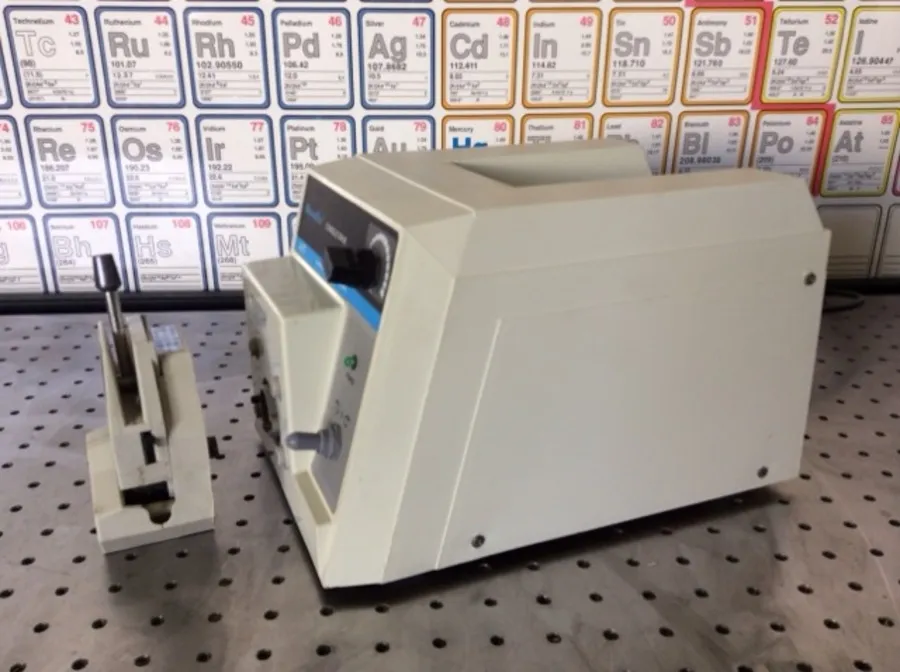

Cole Parmer MasterFlex Console Drive Peristaltic Pump Model: 7520-50

Product Information

The Cole Parmer MasterFlex Console Drive is a precision digital peristaltic pump offering a maintenance-free high-accuracy motor and graphical interface that simplifies setup and operation. Equipped with a brushless, maintenance-free motor, it offers 0.1% speed control accuracy with a 6000 to 1 turndown ratio. The pump's remote control capability via a DB25 female connector allows for speed control input 0 to 20 mA, 4 to 20 mA, or 0 to 10 V, and pumping direction, start/stop/purge, and tachometer output. Its graphical LCD displays four operating modes and allows for easy dispensing control. Additionally, the menu-driven interface offers seven language options for programming and operation. This peristaltic pump is ideal for applications such as precise volume dispensing, timed dispense cycles, or continuous run in laboratory and research settings.

• Maintenance-free high-accuracy motor
• Graphical LCD with four operating modes
• Brushless motor with 0.1% speed control accuracy
• Remote control via DB25 female connector

• Motor Type: Brushless, maintenance-free
• Speed Control Accuracy: 0.1%
• Turndown Ratio: 6000 to 1
• Operating Modes: Continuous run, timed dispense, copy dispense, volume dispense
• Dispense Volume Range: 0.001 to 9999 mL
• Dispense Cycles Range: 1 to 9,999 cycles
• Remote Control Interface: DB25 female connector
• Interface Languages: Seven language options
• Voltage: Not specified
• Hertz: Not specified

Metric: 9.07185 kg
Imperial: 20 lbs

Metric: 20 cm x 16 cm x 16 cm
Imperial: 7.87402 in x 6.29921 in x 6.29921 in

8413.91.9080

Peristaltic pumps; Other, suitable for use solely or principally with machines of heading 8409 to 8412
