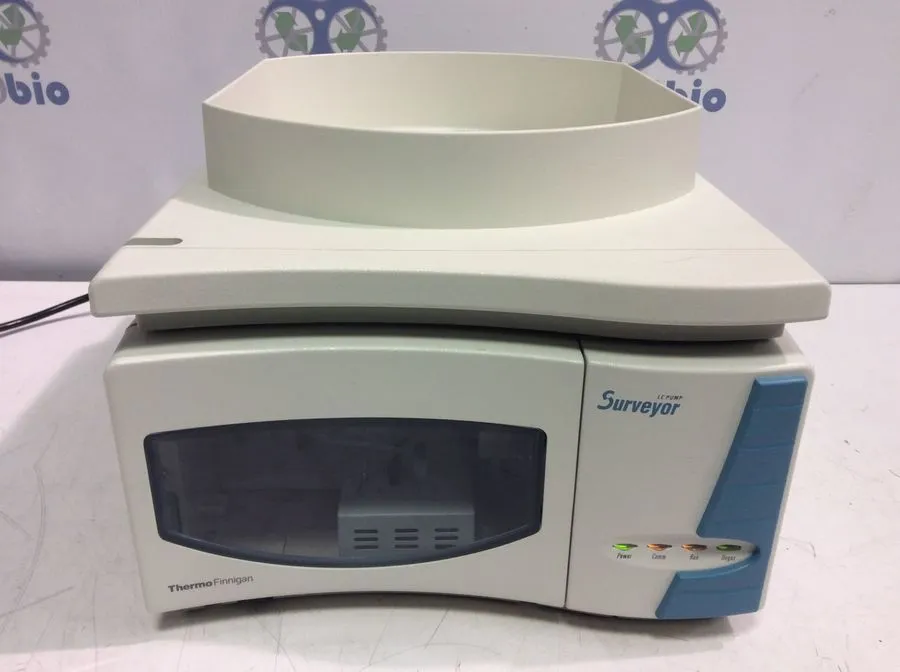

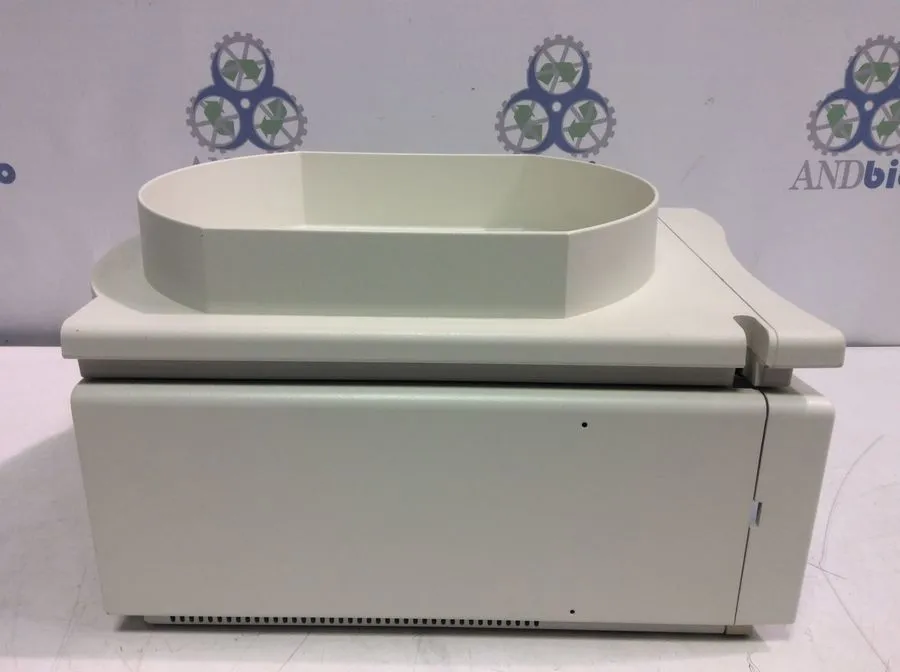

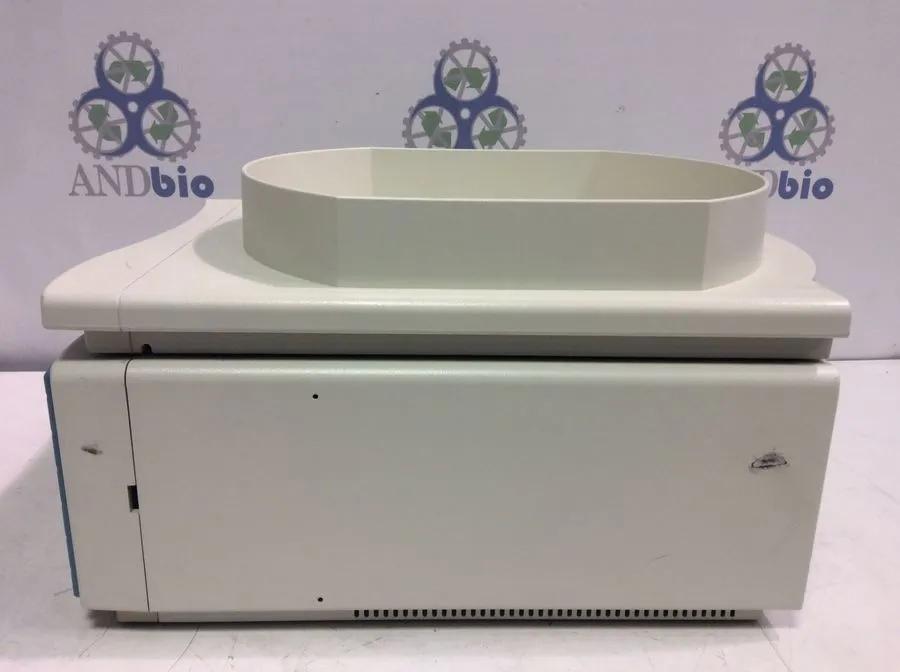

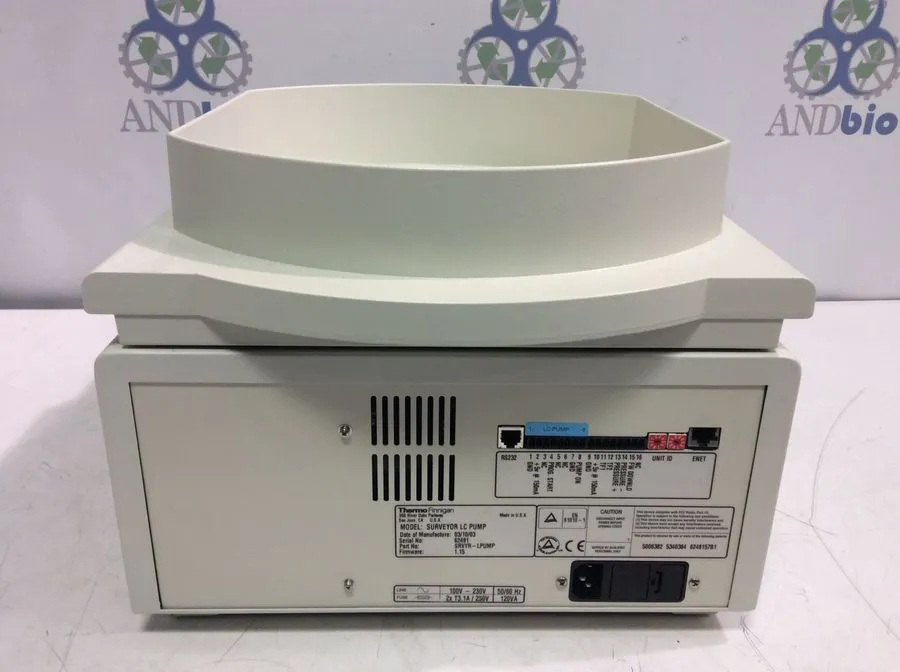

Thermo Finnigan Surveyor LC Pump SRVYR-LPUMP
- Make Thermo Finnigan
- Hertz 50Hz/60Hz
- Model Surveyor LC Pump SRVYR-LPUMP

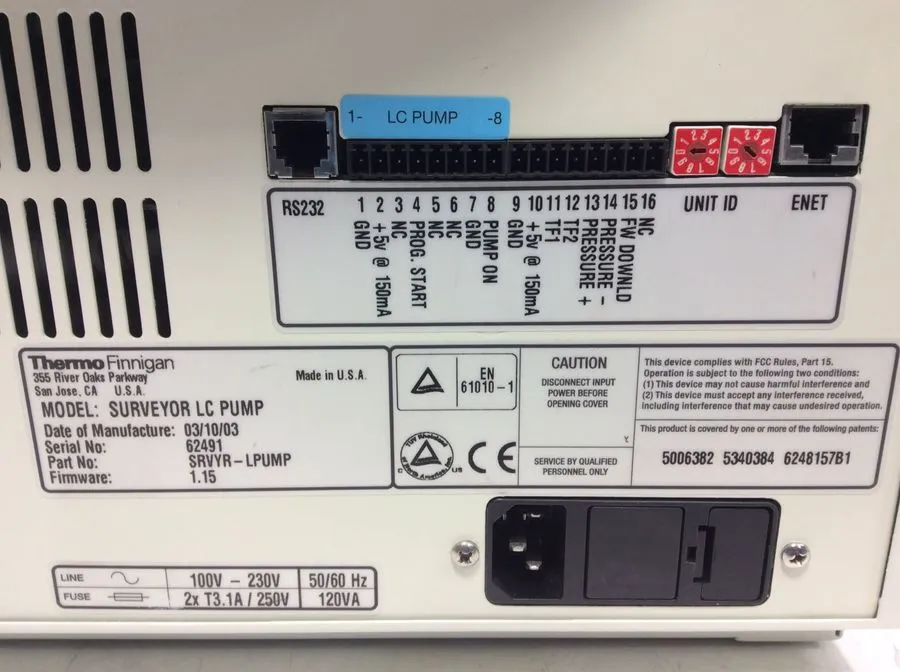

- Serial 62491
- Weight 40.0 Lb
- Voltage 230V
- Includes Power cord included |
- Warranty AS-IS
- Dimensions 24.0in x 24.0in x 24.0in
- Shipping Type FedEx Ground
- Item Condition Good
- Manufacturing Date Does Not Apply
Product Information
Thermo Finnigan Surveyor LC Pump is a dual-piston, quaternary, low pressure mixing pump with a built-in vacuum degasser and pulse dampener. It provides precise flow rates from 0.001 to 9.999 mL/min and runs gradients from 0.200 to 2.000 mL/min. The integral vacuum degasser efficiently degasses solvents with only 500 L of volume, and the pulse dampener produces stable flow rates with just 400 L of gradient delay volume. It is a module of the Surveyor high-performance liquid chromatograph (HPLC). The instrument is in good working order and removed from a working environment, making it ready for use. Its testing confirms passing all initializing self and basic functionality tests. This pump is frequently used in pharmaceutical, biotechnology, and molecular biology research laboratories, with its typical applications being liquid chromatography and mass spectrometry. It is designed for utmost precision in flow rates, pressure ranges, solvent capacity, and compositional accuracy. Additional product information can be found [here](https://assets.thermofisher.com/TFS-Assets/CMD/Instructions/SurveyorLCPump-Hardware.pdf).
Key Features- Dual-piston, quaternary, low pressure mixing pump

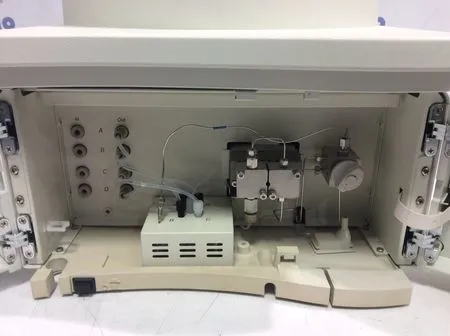

- Built-in vacuum degasser and pulse dampener
- Flow rates from 0.001 to 9.999 mL/min
- Good working condition
- Ideal for liquid chromatography and mass spectrometry applications
- Minimum Flow Rate: 0.001 mL/min isocratic, 0.100 mL/min gradient
- Maximum Flow Rate: 9.999 mL/min
- Flow Rate Accuracy: 2% or 2 L/min when water is pumped at 0.100 to 5.000 mL/min, 10 to 400 bar, 20 C
- Pressure Range: 0 to 400 bar (0 to 5800 psi)
- Solvent Capacity: Quaternary
- Piston Volume: 48 L primary piston, 24 L secondary piston
- Gradient Delay Volume: 785 L
- Degasser Type: Vacuum membrane
- Pulse Dampener: 400 L
- Dimensions: 18 x 36 x 47 cm (h x w x d)
- Weight: 12 kg (26.4 lbs)
- Power Requirements: 100/120 Vac or 220/240 Vac, 50 to 60 Hz, 500 VA max
- Operating Temp: +10 C to +40 C
- Storage Temp: 40 C to +70 C
- Operating Humidity: 5 to 95% relative, non-condensing
Metric: 12 kg
Imperial: 26.4 lbs
Metric: 47 cm x 36 cm x 18 cm
Imperial: 18.5 in x 14 in x 7.1 in
902720
Harmonized Code Details902720 - Liquid chromatographs and parts thereof; liquid chromatograph-mass spectrometer systems and parts thereof
