Sogevac SV65 BI FC Vacuum Pump

Product Information

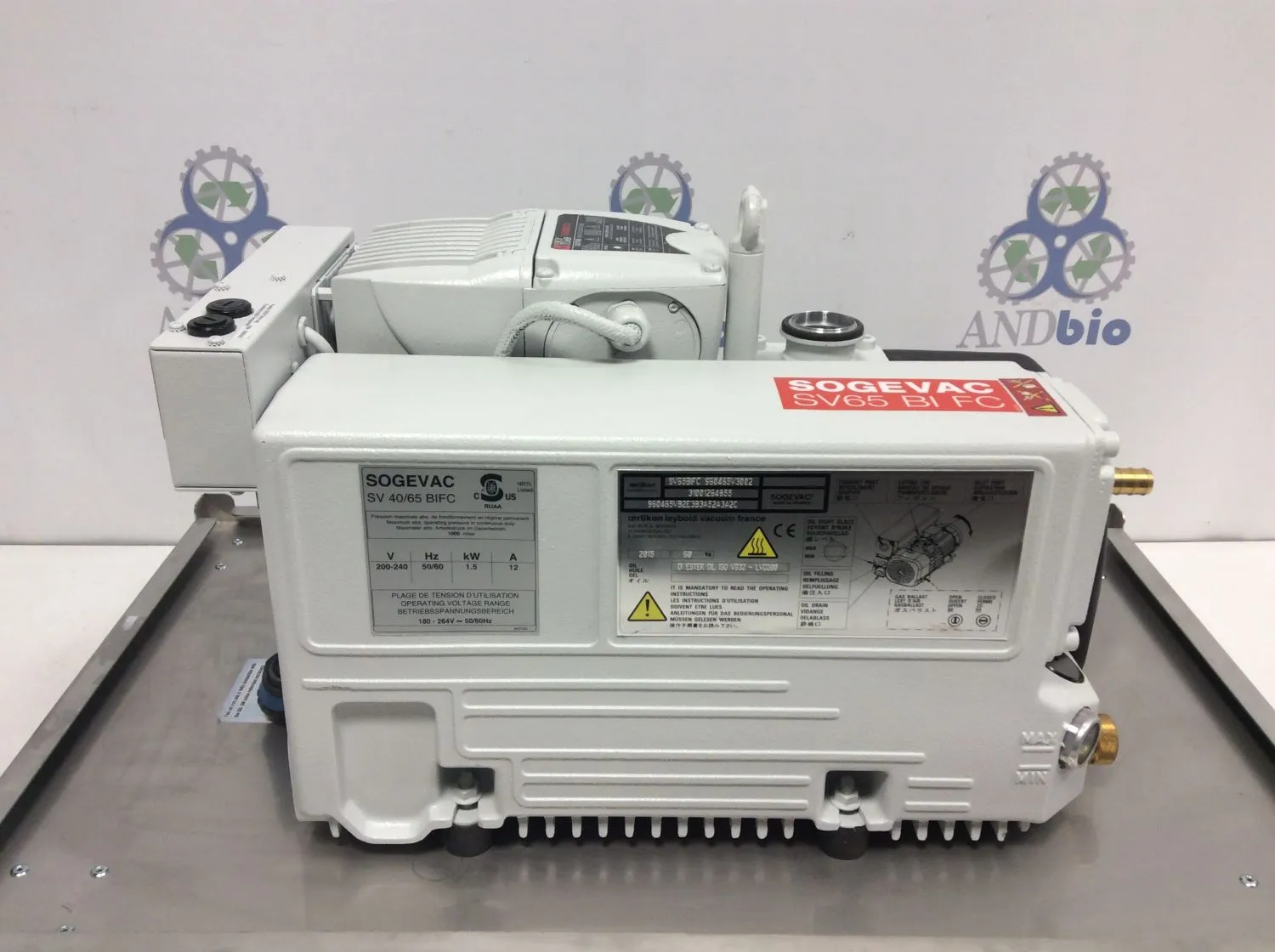

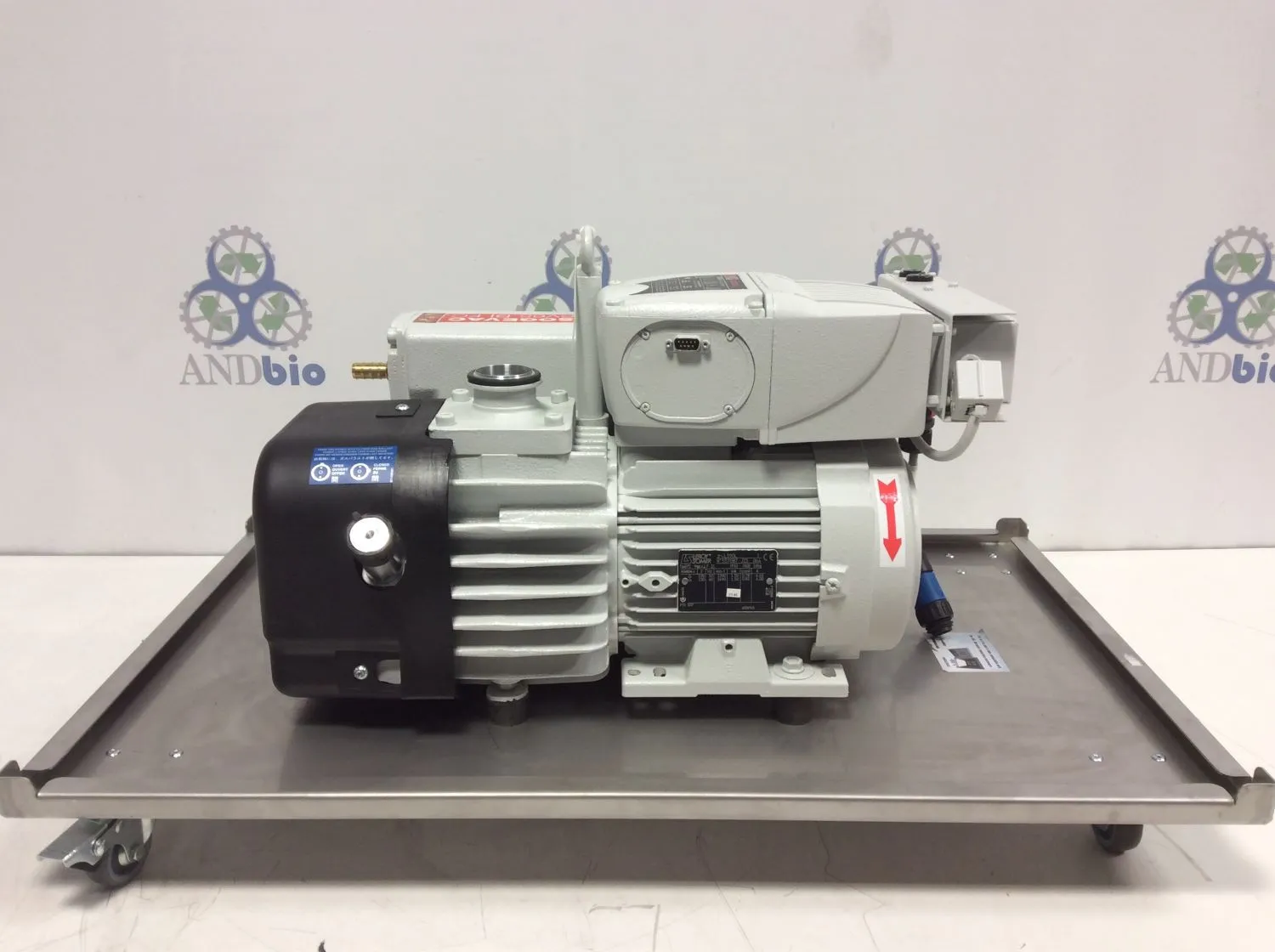

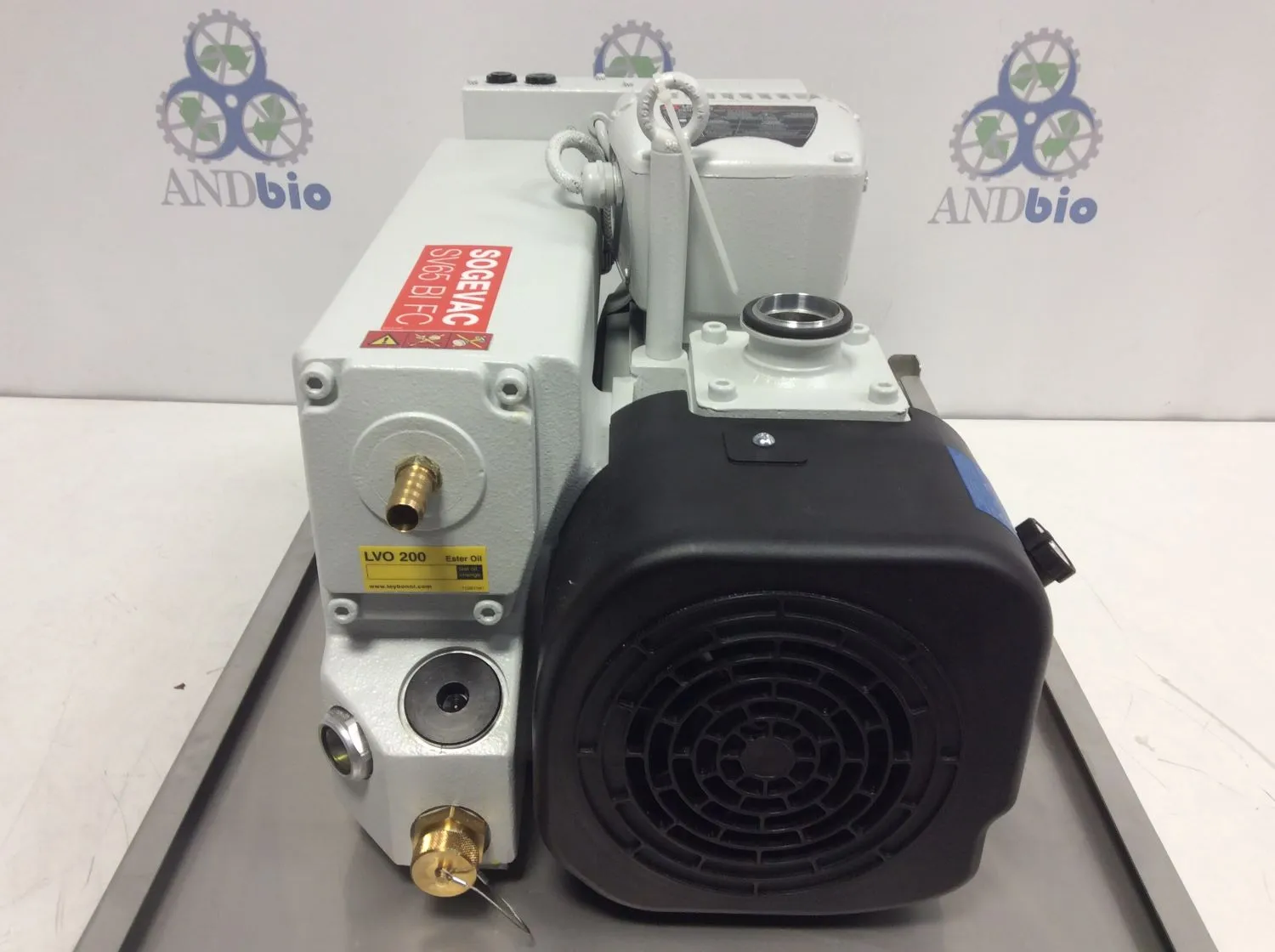

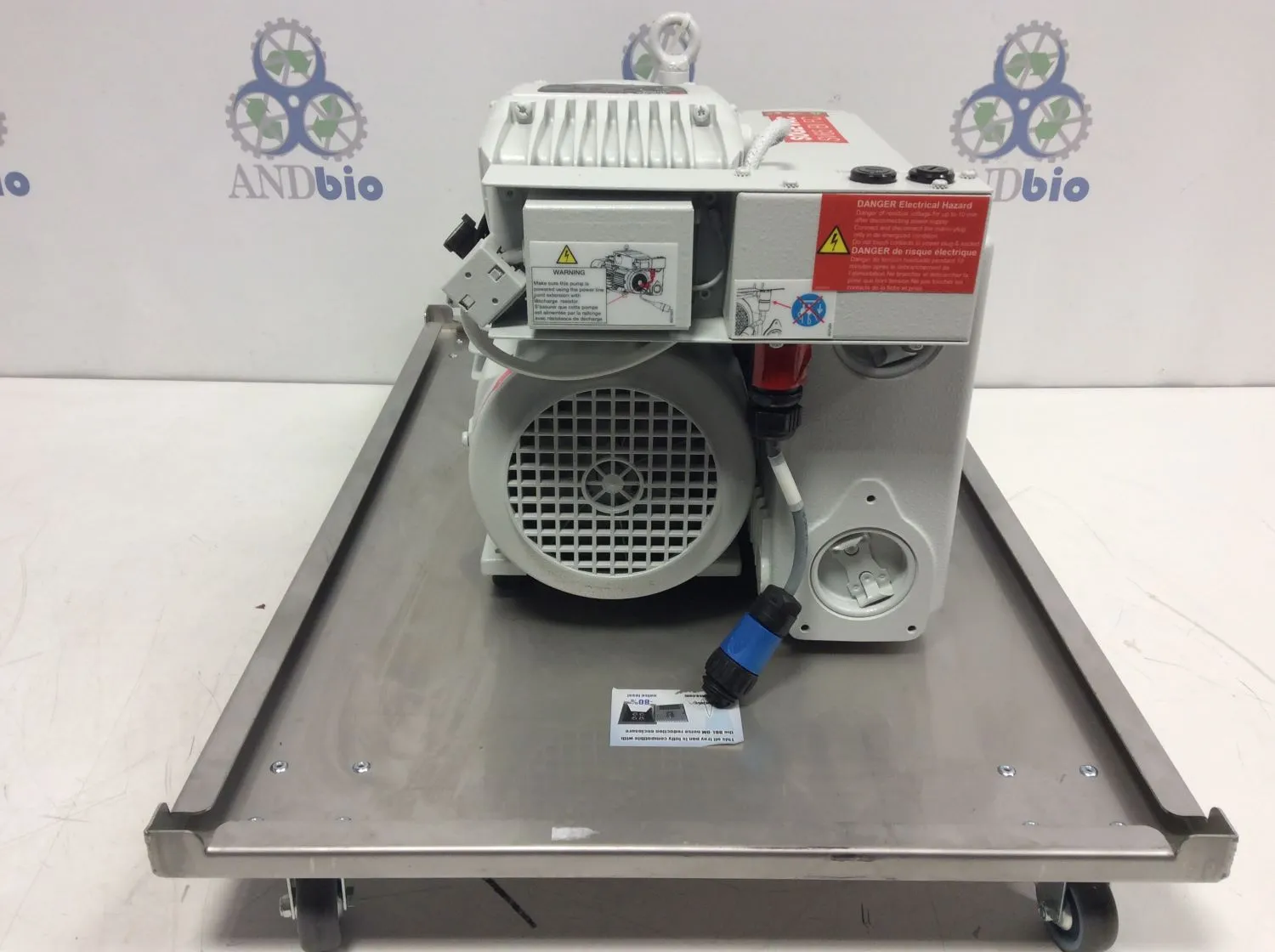

Meet the Sogevac SV65 BI FC Single Stage Oil Sealed Rotary Vane Vacuum Pump, capable of achieving an ultimate pressure of 1.1 Torr. This used unit is fully functional and in outstanding condition. It allows for continuous operation from atmospheric pressure to ultimate pressure, providing a high pumping speed at low pressures. With low noise levels and vibrations, it's integrated with an exhaust filter and offers efficient air cooling. Its compact design and maintenance-friendly features make it ideal for various applications, including vacuum packaging, vacuum processing, central vacuum systems, freeze drying, and more. Please note that due to shipping regulations, all vacuum pumps will be shipped without pump oil.

• Ultimate Pressure: 1.1 Torr
• Pumping speed (50/60 Hz): 22.7 / 27.7 cfm
• Maintains Low Noise Level at all Working Pressures
• Integrated Exhaust Filter, Efficient Air Cooling
• Continuous Operation from Atmospheric Pressure to Ultimate Pressure
• Compact Design, Maintenance-Friendly

• Ultimate Pressure: 1.1 Torr
• Pumping Speed (50/60 Hz): 22.7 / 27.7 cfm
• Low Noise Level and Low Vibrations
• Integrated Exhaust Filter, Better Than 99.9% Efficiency
• No Oil Loss Thanks to Integrated Oil Return Line
• Efficient Air Cooling, Standard Exhaust Gas Free of Oil Mists
• Compact Design with Optimum Size-to-Performance Ratio
• High Water Vapor Tolerance
• For Use in Various Applications
• Dimensions: Approx. 30 x 40 x 24 cm
• Weight: Approx. 150 lbs

Metric: 68.04 kg
Imperial: 150.0 lbs

Metric: 30 cm x 40 cm x 24 cm
Imperial: 11.81 in x 15.75 in x 9.45 in

841410

This code classifies vacuum pumps used in laboratories, enticing a duty-free classification that facilitates smooth international shipping and trade. The SV65 BI FC Vacuum Pump's specifications align with the parameters under this harmonized code.
