Sogevac SV65 BI FC Vacuum Pump - Used

Product Information

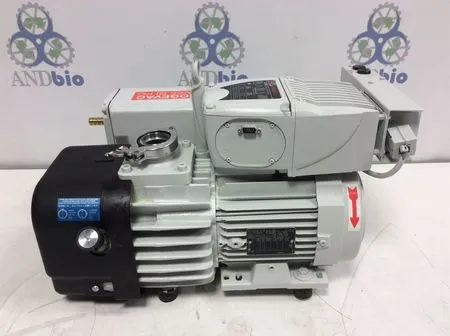

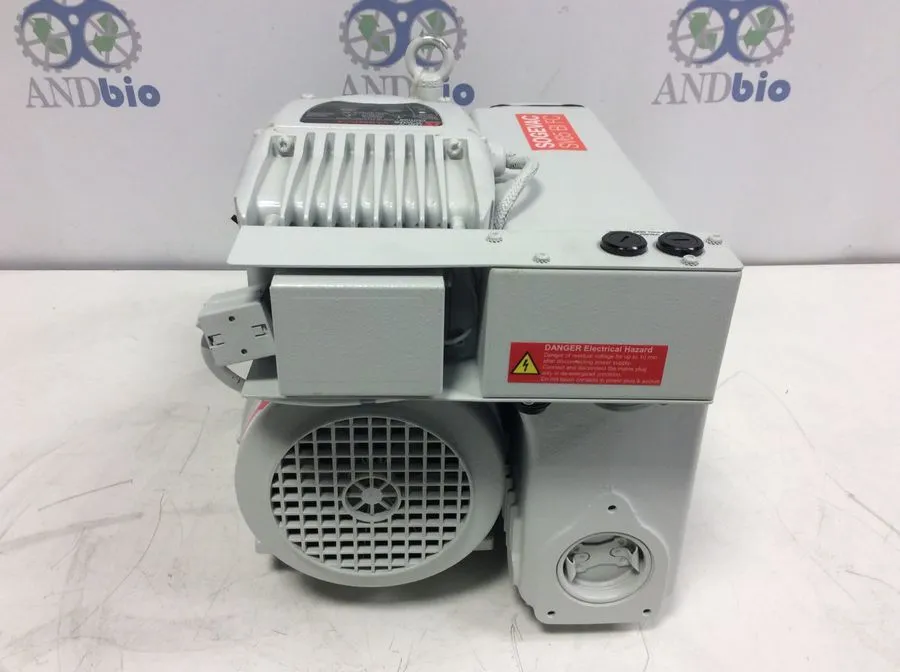

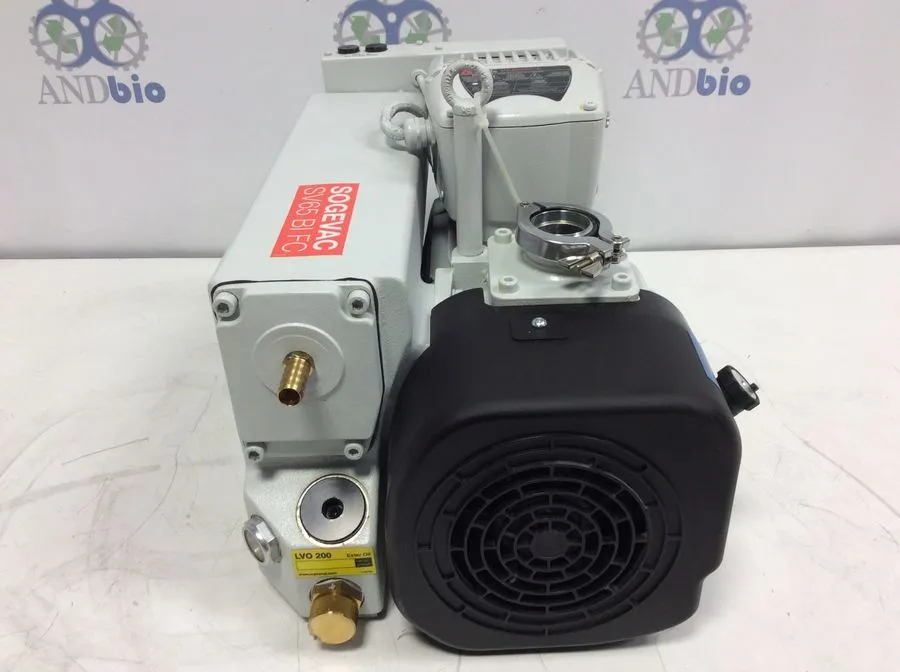

Sogevac SV65 BI FC Single Stage Oil Sealed Rotary Vane Vacuum Pump 1.1 Torr Used - unit is in great working condition with some slight cosmetic wear from standard use, please see photos for details. Includes everything pictured. Unit will be tested before shipping. SPECIFICATIONS: Pumping speed (50/60 Hz): 34.7 / 41.8 cfm Ultimate pressure: < 0.5 mbar Mains connection: 200-240V, 1-ph, 12A, 50/60 Hz Inlet connection: KF-40 The new SOGEVAC SV65B pumps allow space saving in your developments with minimum customer design constraints. It can also replace almost any pump in the field without requiring special adaptations. Improved SV 65 BI FC lubrication circuits and mechanical tolerances provide a constant low noise level at all working pressures. This provides a new standard in work area comfort to those operating your system. All lubrication circuits as well as the gas ballast system have been integrated into the pumps major components allowing limited sealings and a reduced number of parts. As a result, improved product reliability and durability is gained with prolonged maintenance intervals. The new SOGEVAC B pumps carry on with the proven and user-friendly maintenance concept of the former generation. All maintenance points are located on the front of the pump. Enhancements include an unambiguous angle mounted oil-sight glass offering visibility from two sides and a unique system that allows an easier exhaust demister replacement. Oil capacity 2 liters. ADVANTAGES: Continuous operation from atmospheric pressure to ultimate pressure High pumping speed also at low pressures Low noise level Low vibrations Integrated exhaust filter, better than 99.9% efficient No oil loss owing to the integrated oil return line Exhaust gas free of oil mists Efficient air cooling (standard) Low space requirement, easy to install Rugged Maintenance-friendly Compact design Optimum size-to-performance ratio High water vapor tolerance For use in various applications Wide range of accessories available for adaptation to differing problems APPLICATIONS: Vacuum packaging Vacuum processing Central vacuum systems Degassing Drying / Filling Freeze Drying Impregnation Leak testing Laser Handling / Lifting Please note: Due to shipping regulations, all vacuum pumps will be shipped without pump oil. Oiled vacuum pumps SHOULD NOT be run without oil. Please contact us if you would like to include a quart of vacuum pump oil with your order for an additional $15/qt charge.

• Pumping speed (50/60 Hz): 34.7 / 41.8 cfm
• Ultimate pressure: < 0.5 mbar

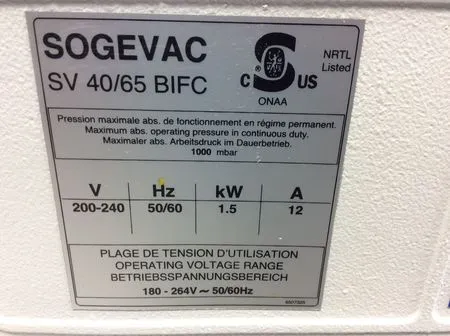

• Mains connection: 200-240V, 1-ph, 12A, 50/60 Hz
• Inlet connection: KF-40
• Integrated exhaust filter, better than 99.9% efficient
• Oil capacity 2 liters

• Pumping speed (50/60 Hz): 34.7 / 41.8 cfm
• Ultimate pressure: < 0.5 mbar
• Mains connection: 200-240V, 1-ph, 12A, 50/60 Hz
• Inlet connection: KF-40
• Oil capacity: 2 liters
• Integrated exhaust filter efficiency: >99.9%
• Applications: Vacuum packaging, vacuum processing, central vacuum systems, degassing, freeze drying, impregnation, leak testing, laser, handling/lifting
• Shipping: Vacuum pumps are shipped without pump oil due to regulations. Additional $15/qt charge for including oil.

Metric: 68.04 kg
Imperial: 150 lbs

Metric: 30 cm x 40 cm x 24 cm
Imperial: 11.81 in x 15.75 in x 9.45 in

8414101000

This code is used for vacuum pumps. Sogevac SV65 BI FC Vacuum Pump falls under this category due to its technical specifications and applications, making it suitable for classification under this harmonized code.
