MJ Research CFD-3220 DNA Engine Opticon 2 Continuous Fluorescence Detector

Product Information

Meet the MJ Research DNA Engine Opticon 2 Continuous Fluorescence Detector Model CFD-3220. Used - unit is fully functional and in overall excellent cosmetic condition. This DNA engine delivers superior thermal accuracy, well-to-well thermal uniformity, and a host of intuitive controls for experimental initiation, run status, and data analysis. Sensitive optics detect fluorophores with emission spectra in the 515-545nm range, enabling accurate and efficient experimentation. With superior thermal range and accuracy, this Opticon unit is perfect for a myriad of applications including quantitative PCR, gene expression analysis, and genome analysis.

• Superior thermal accuracy and well-to-well thermal uniformity
• Intuitive Opticon Monitor software for experimental setup, run initiation, and data analysis
• Long-lived LEDs for exciting fluorescent dyes in the 450-495nm range

• Fluorescence Excitation Range: 470 - 505nm
• Fluorescence Detection Range: Ch1: 523 - 543nm; Ch2: 540 - 700nm
• Linear Dynamic Range of Starting Copy Number: Up to ten orders of magnitude
• Detection Limit of Template Starting Copy Number: Down to single copy detection
• Sample Volume Range: 10-100l (20l recommended)

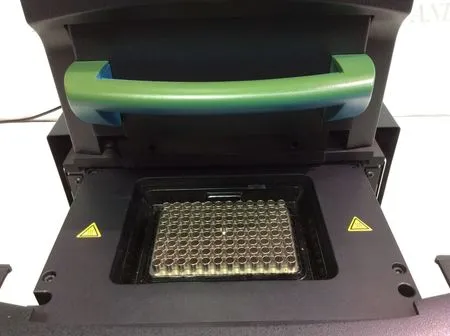

• Sample Capacity: 96-well microplate, or 12 x 0.2ml 8-strip tubes
• Thermal Uniformity: 0.4CV within 30 seconds of arrival at 90C
• Thermal Accuracy: Average temp within 0.3C of programmed value at 90C, NIST traceable
• Speed of Ramping: Up to 3C per second
• Thermal Range: 4 C to 105C

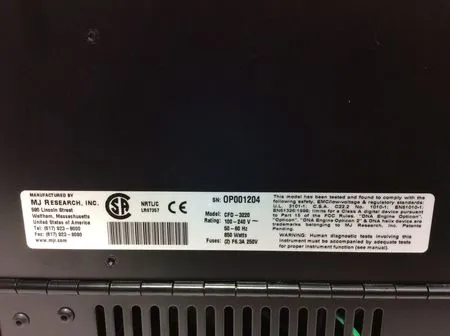

• Power: 100-240 Volt AC, 50-60 Hz

Metric: 24.9 kg
Imperial: 55.0 lbs

Metric: 47 cm x 34 cm x 60 cm
Imperial: 18.5 in x 13.4 in x 23.6 in
