BIO-RAD PTC-200 DNA Engine Peltier Thermal Cycler

Product Information

The BIO-RAD PTC-200 DNA Engine Peltier Thermal Cycler is a robust, reliable and Peltier thermocycler with a polished design. The Hot Bonnet heated lid affords control over pressure and height, accommodates various plastic wares and enables oil-free cycling. Interchangeable sample blocks, heat pump assemblies and NIST-traceable accuracy enhance functionality. Features include thermal control via block-in sample probe or calculated methods, and a sleek design suited for various lab applications.

• Hot Bonnet heated lid
• Interchangeable sample blocks and heat pump assemblies
• NIST-traceable accuracy
• Thermal control via block-in sample probe or calculated methods
• Sleek and robust design for various lab applications

• Thermal range: 5 to 105C, but no more than 30C below ambient temperature
• Thermal Accuracy: 0.3C of programmed target at 90C, NIST-traceable
• Thermal Uniformity: 0.4C well-to-well within 30 seconds of arrival at 90C
• Ramping Speed: Up to 3C/sec for all single- and dual-block Alpha units
• Sample Capacity: Varies with installed Alpha unit
• Line Voltage: 100-240 VAC rms, Frequency: 50-60 Hz single phase, Power: 850 W maximum
• Fuses: Two 6.3 A, 250 V, 5 x 20 mm

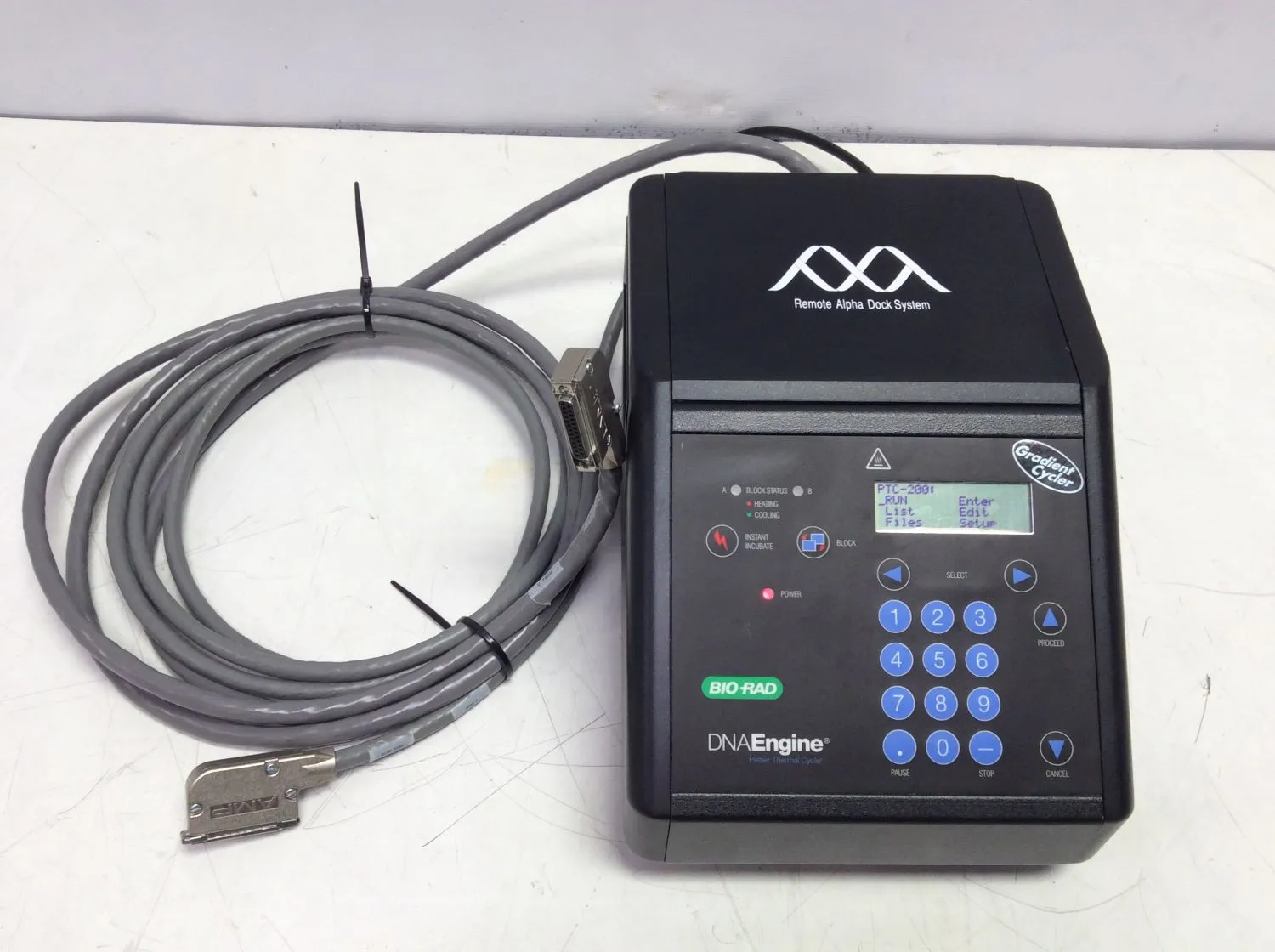

• Displays: One 20 x 4 LCD alphanumeric display

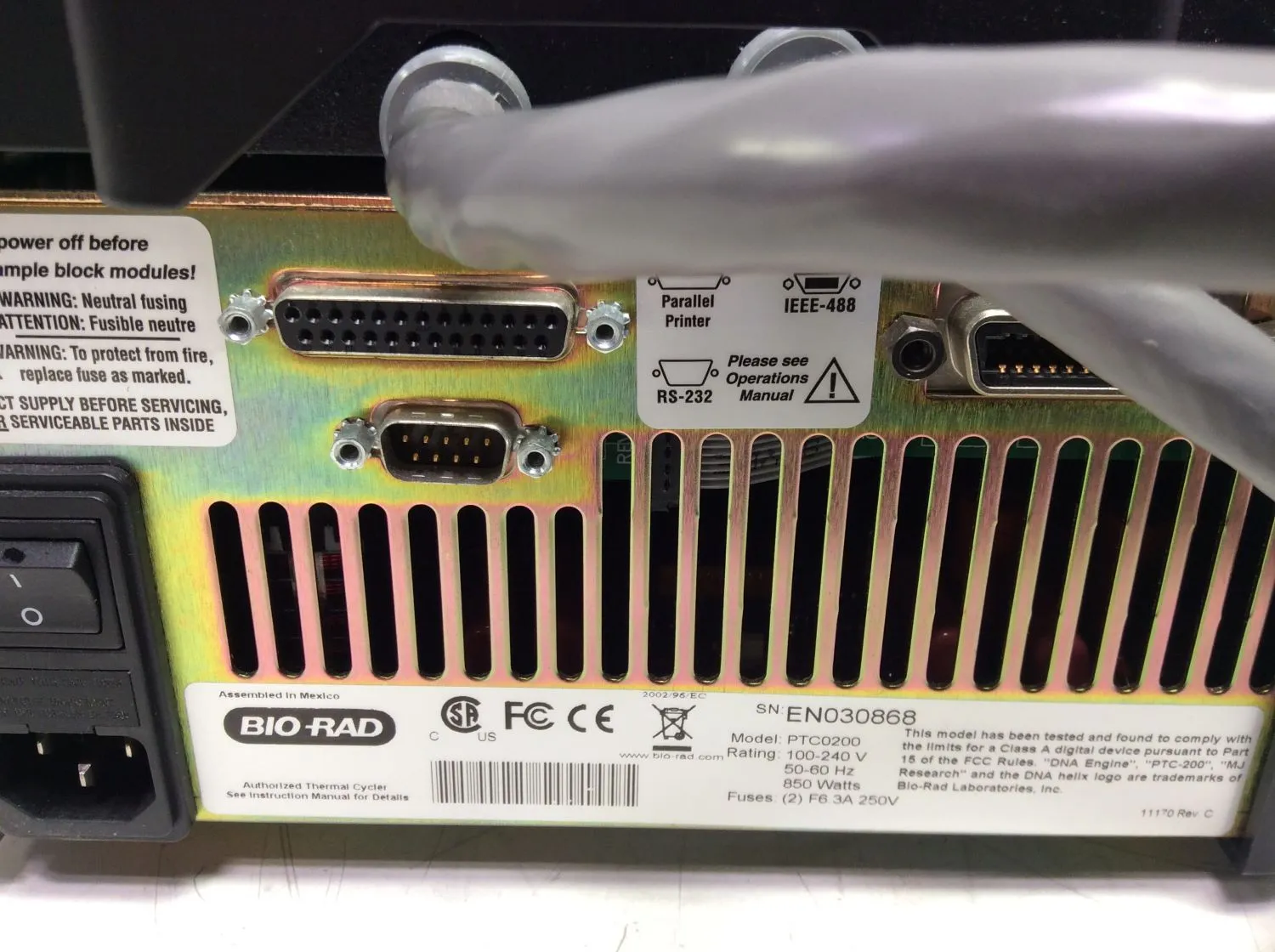

• Ports: One 25-pin 8-bit parallel interface printer port, One 9-pin RS-232 serial port for printer or remote use, One IEEE-488 bidirectional general purpose interface bus
• Memory: 400 typical programs in up to 12 individual folders

Metric: 9.07 kg
Imperial: 20 lbs

Metric: 20 cm x 14 cm x 14 cm
Imperial: 7.87 in x 5.51 in x 5.51 in
