Chemyx Fusion 100T Syringe Pump - Used Lab Equipment

Product Information

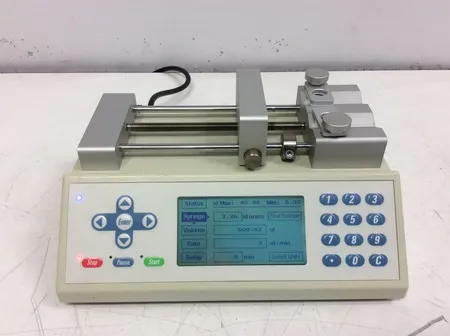

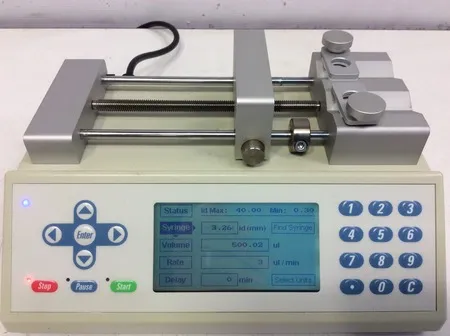

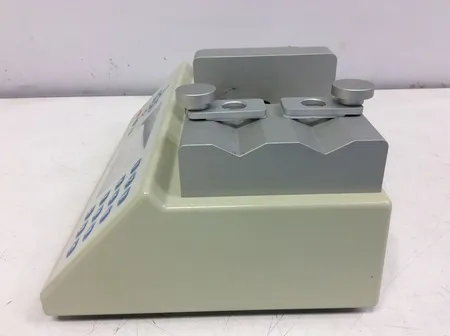

"Chemyx by Thermo Scientific Fusion 100T 20w Digital Lab Syringe Pump. Used - unit is in working condition, please see photos for details. Includes everything pictured. The Fusion 100 syringe pump delivers pulseless, reproducible micro-flow rates for a variety of laboratory applications including microfluidics, mass-spec calibration, reactor injection, and animal drug infusion. It features RS232 and USB connectivity for integration into laboratory workflow and automation software, such as LabVIEW or Matlab."

• Pulseless, reproducible micro-flow rates
• Connectivity for integration into laboratory workflow and automation software
• Wide range of flow and volume-delivery capabilities
• Standard two-syringe clamp holds syringes from 0.5 μL to 60 mL

• Mode: Infuse Only
• Minimum Flow Rate: 100 pL/min (with 0.5 μL syringe)
• Maximum Flow Rate: 128 mL/min (with 60 mL syringe)
• Linear Force: 9.1 kg (20 lb)
• Max Syringe Volume: 60 mL
• Step Resolution: 0.098 microns
• Height: 11 cm (4.4 in.)
• Length: 24 cm (9.5 in.)
• Depth: 17 cm (6.8 in.)
• Weight: 3 kg (7 lb)
• Screen: 10.8 cm (4.25 in.) diagonal
• Ports: RS232 (DB9 or USB-B) and TTL (USB-B) COM Ports
• Power: 110/220 VAC
• Operation Temp: 4°C to 40°C (40°F to 104°F)
• Storage Temp: -10°C to 70°C (14°F to 158°F)
• Humidity: 20% to 80% RH, non-condensing
• Compliance: CE, RoHS, REACH, FCC, IC
• Computer Control: Windows: XP, VISTA, 7, 10, Mac OS X v10 or later, Most Linux distributions, MATLAB and LabVIEW controller programs; Python coming soon
• Accuracy: Reproducibility

Metric: 10 kg
Imperial: 22.0462 lbs

Metric: 24 cm x 14 cm x 17 cm
Imperial: 9.45 in x 5.51 in x 6.69 in

901890

The most likely harmonized code is 901890 for other instruments and appliances used in medical, surgical or veterinary sciences. This code includes syringes, needles, catheters, cannulae.
