Barnstead Titer Plate Shaker Model 4625 - Used Laboratory Equipment

Product Information

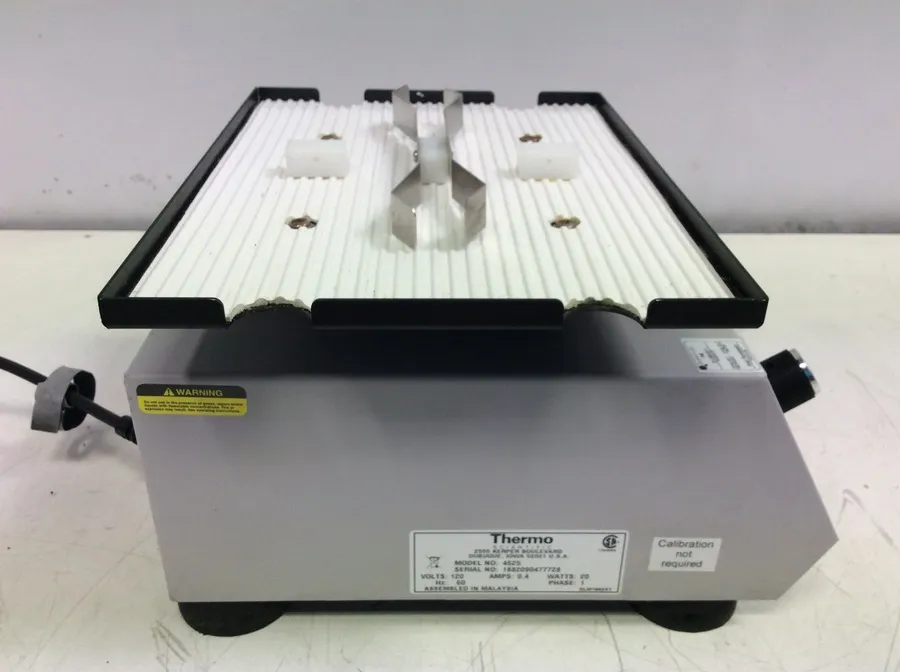

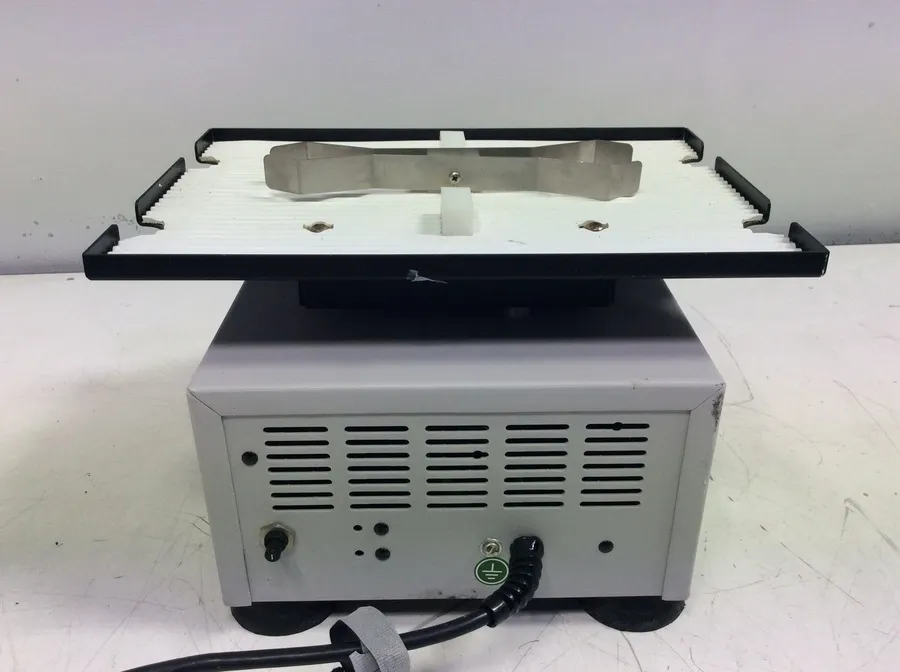

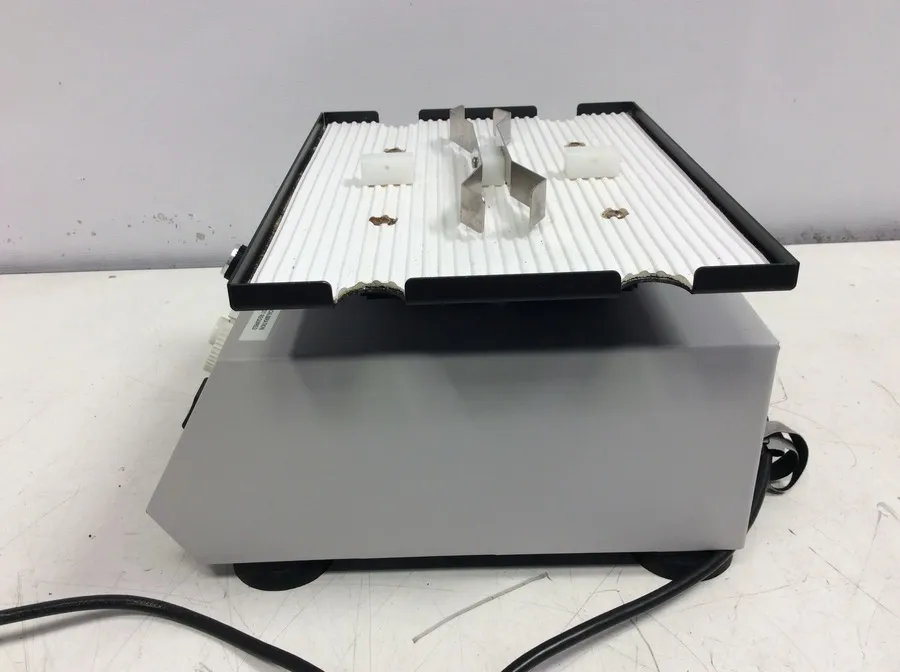

As the Barnstead Titer Plate Shaker Model 4625, our heavy-duty unit is designed to generate an accurate 0.120-inch orbital shaking motion. Operating at speeds ranging from 40 to 1100 rpm, it can produce a gentle rotation to vigorous agitation based on specific user requirements. This durable model offers versatility through its rocker switch, allowing users to select either a constant shaking motion or a timed cycle up to 5 minutes for accurate, repetitive runs. The ribbed platform provides a non-skid surface and retaining springs to securely hold the titer plates in place, preventing accidental dislodging. The rubber feet at the corners ensure stability on counters and prevent walking. A high torque, full ballbearing construction, and ceramic permanent magnets feature in the continuous-duty rated, high-efficiency DC motor, enabling user-replaceable brushes. The shaking speed ranges from 40 to 1100 rpm, and the timer can be set for up to 5 minutes. The orbital shaker's dimensions are 11" W x 11" D x 7" H, whereas its environmental operating conditions include a temperature range of 15C to 40C and a voltage tolerance of 10% of the normal rated line.

• Sturdy design with ribbed platform for non-skid surface
• Continuous-duty rated, high-efficiency DC motor with user-replaceable brushes
• Speed range of 40 to 1100 rpm, with a maximum shaking speed to accommodate specific user requirements

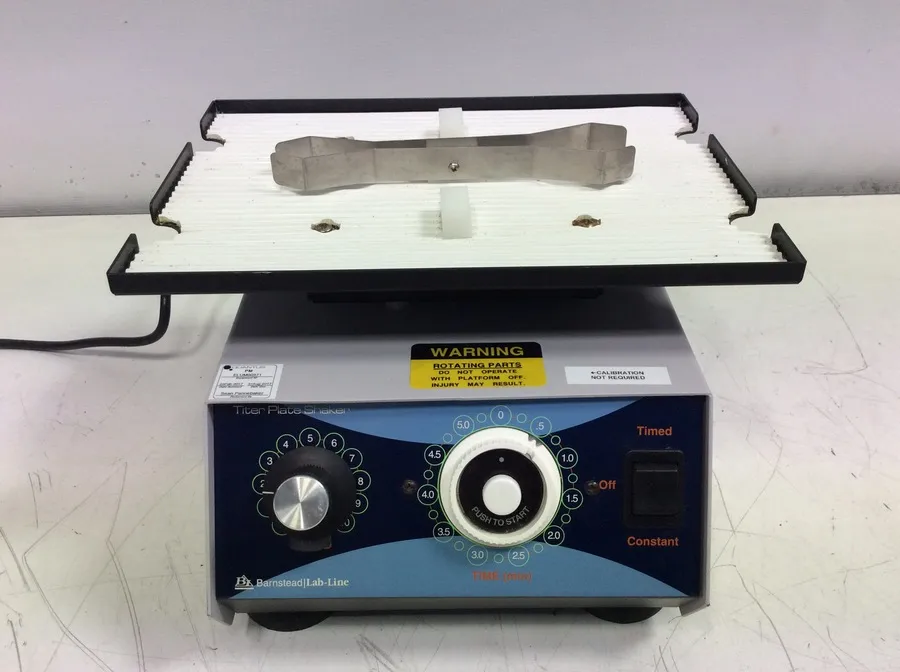

• Rocker switch for selecting constant shaking motion or a timed cycle up to 5 minutes

• Power Requirements: 120 VAC, 60 Hz, 120 Watts, 1Amp
• Shaking Speed Range: 40 to 1100 rpm
• Timer Range: Up to 5 minutes in 1-minute increments or continuous run operation
• Shaker Motion: 0.120-inch orbit
• Dimensions: 11" W x 11" D x 7" H (28 x 28 x 18 cm)
• Environmental Operating Conditions: Pollution Degree: 2, Installation Category: II, Altitude: 2000 Meters MSL, Humidity: 80% maximum, non-condensing, Voltage Tolerance: 10% of normal rated line, Temperature: 15C to 40C

Metric: 15.875 kg
Imperial: 35 lbs

Metric: 28 cm x 28 cm x 18 cm
Imperial: 11 in x 11 in x 7 in

9817.00.50

Laboratory apparatus and instruments; not specified or included elsewhere in chapter 98
