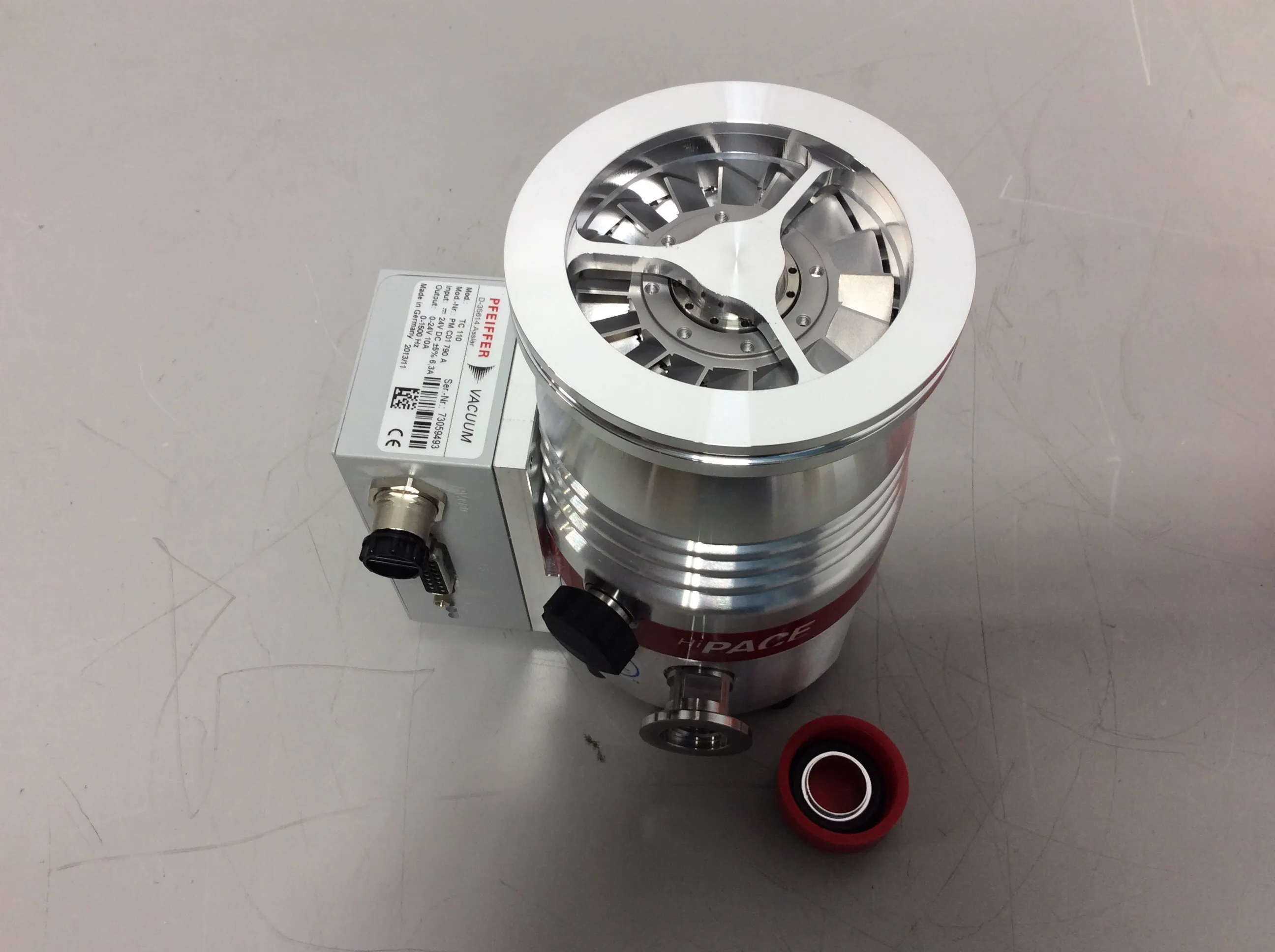

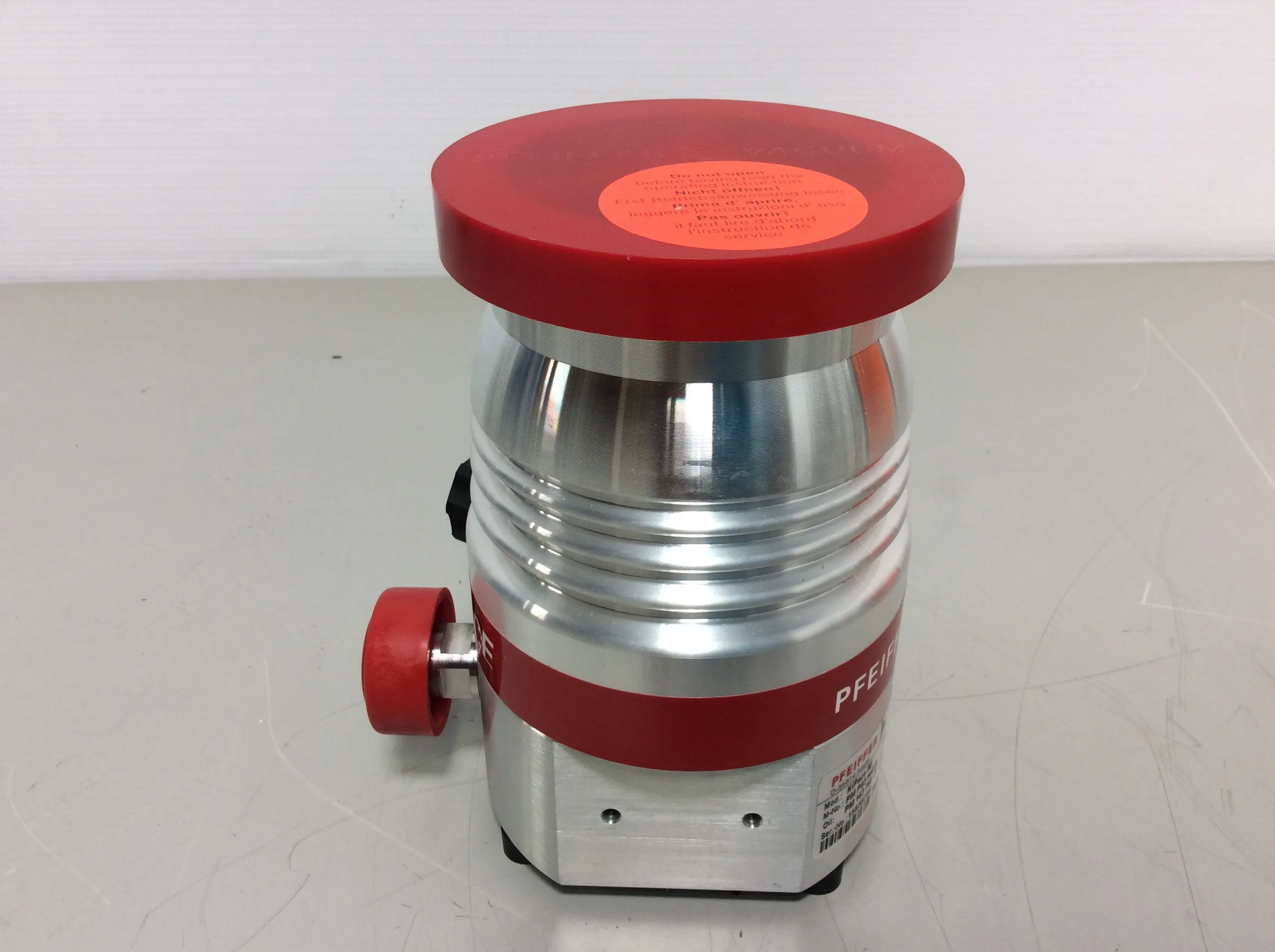

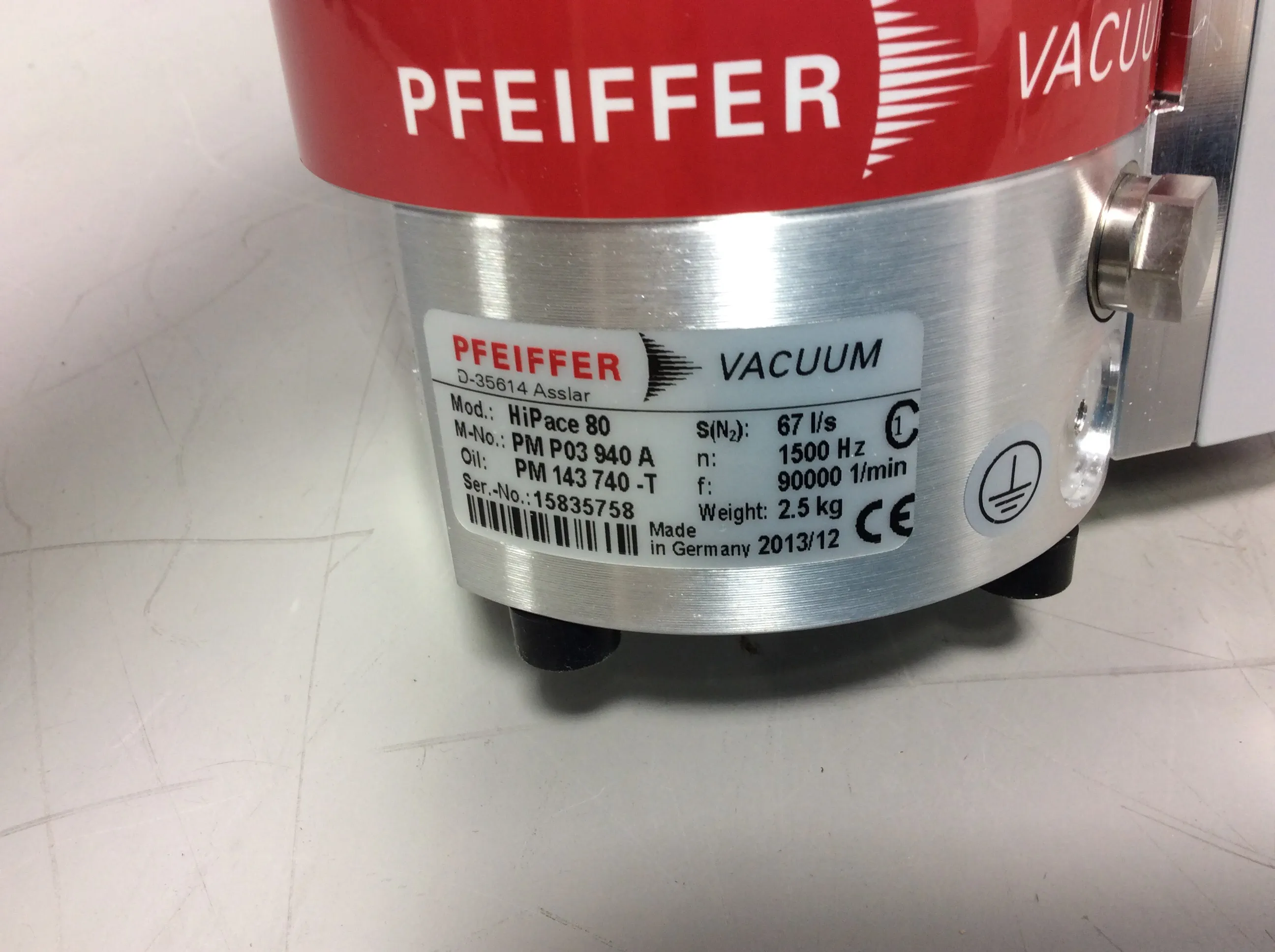

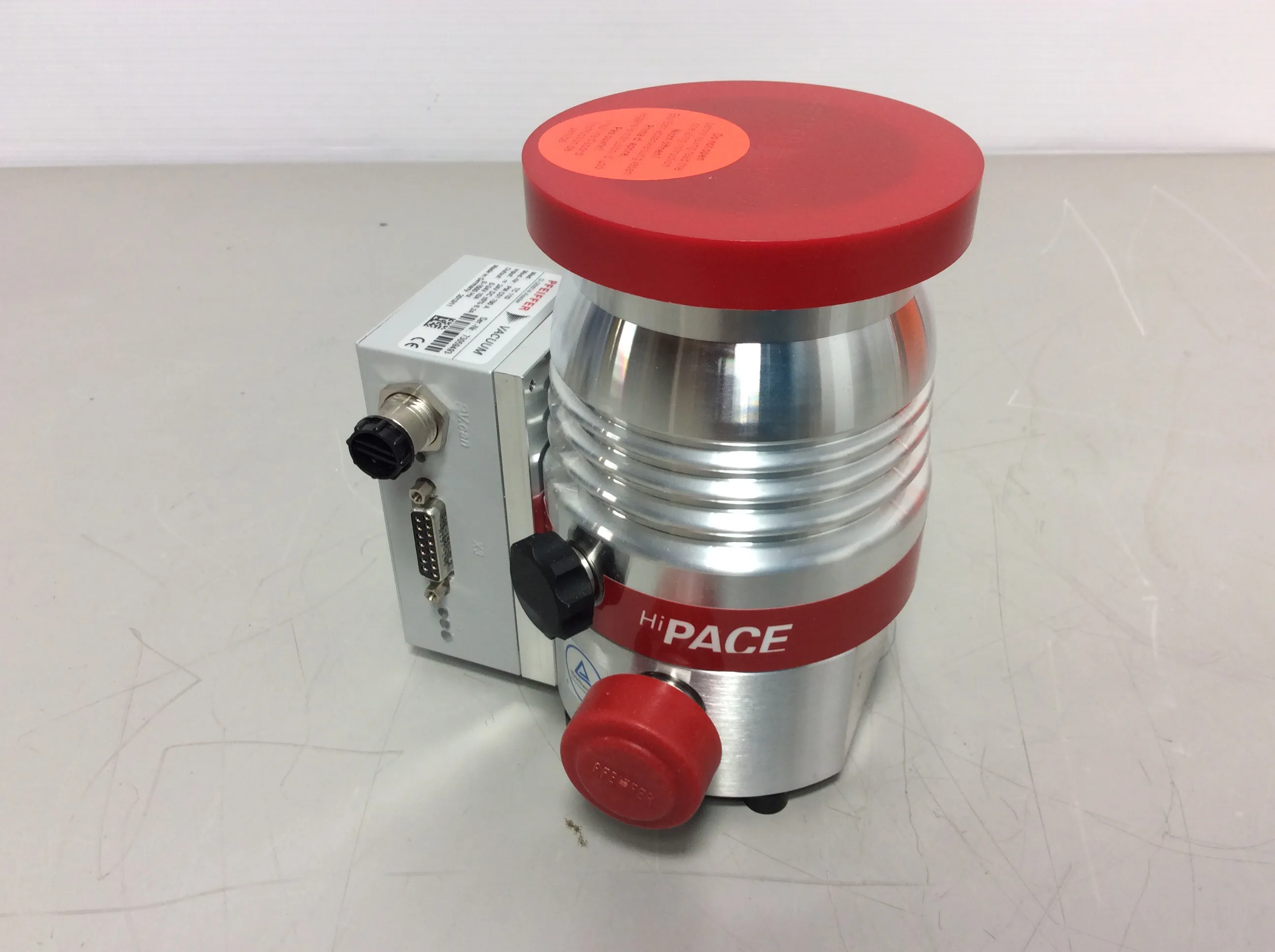

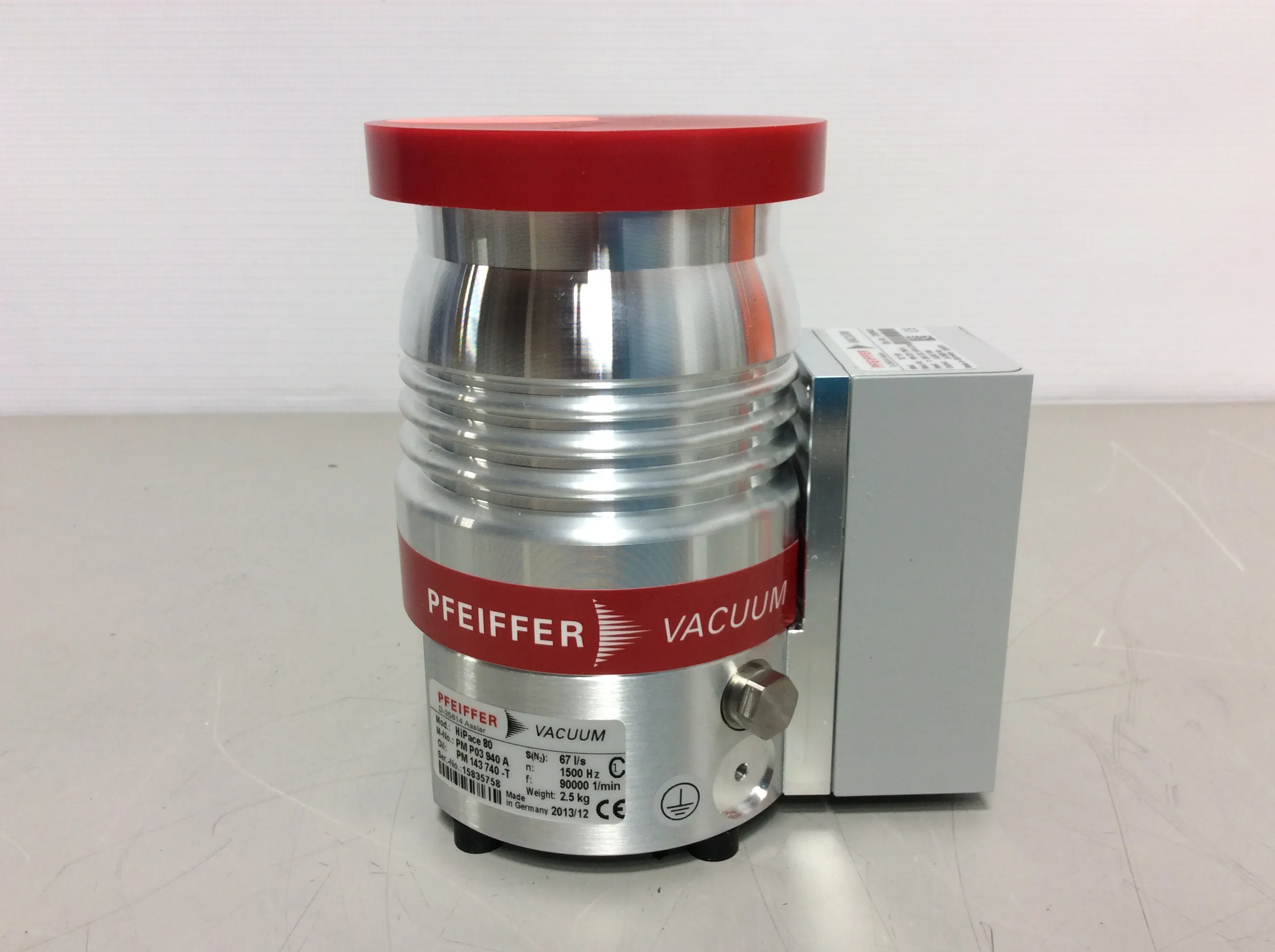

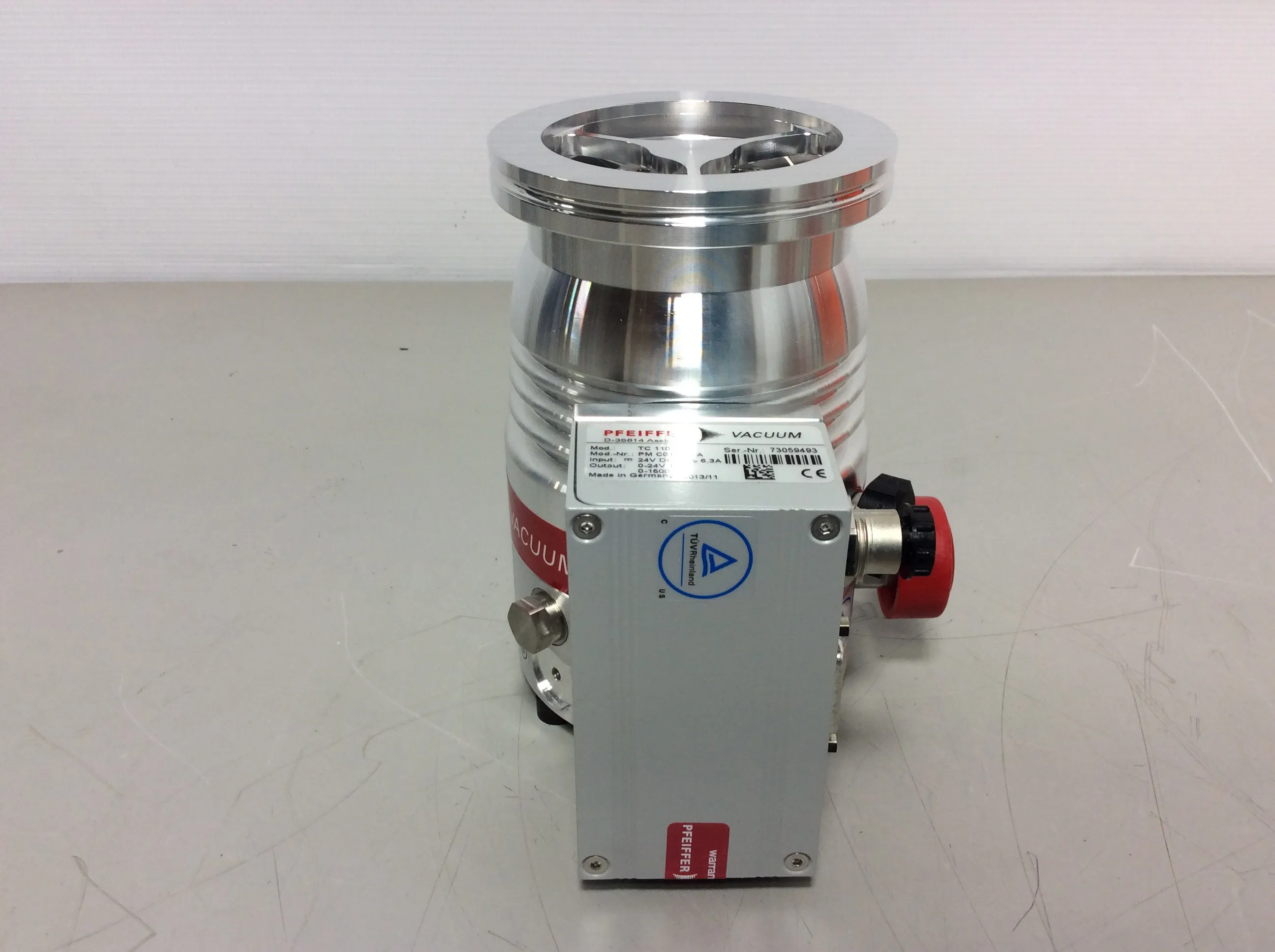

Pfeiffer HiPace80 Turbomolecular Pump & TC 110 Pump Controller

Product Information

Introducing the Pfeiffer Vacuum HiPace80 Turbomolecular Pump & TC 110 Pump Controller! This outstanding piece of equipment is in new other (see details) condition, offering the perfect solution for laboratories. The HiPace80 Pump is a small yet powerful turbopump with a pumping speed of up to 67 l/s for N 2, making it ideal for applications such as high vacuum systems, mass spectrometry, and electron microscopes. The TC 110 Pump Controller serves as the integrated component of the turbo pump, responsible for driving, monitoring, and controlling the entire system.

• Pumping speed of up to 67 l/s for N 2
• Small yet powerful turbopump
• Integrated TC 110 Pump Controller

• Pumping Speed: 67 l/s for N 2
• Cooling Method: Optional Air/Water, Standard Convection
• Compression Ratio: Ar > 1E11, H2 1.4E6, He 1.3E8, N2 > 1E11
• Weight: 2.4 kg (5.29 lbs)
• Dimensions: 16 x 16 x 16 cm (6.3 x 6.3 x 6.3 in)

Metric: 2.4 kg
Imperial: 5.29 lbs

Metric: 16 cm x 16 cm x 16 cm
Imperial: 6.3 in x 6.3 in x 6.3 in

841410

This code corresponds to vacuum pumps, including vacuum and compressor pumps for laboratory use. The HiPace80 Pump & TC 110 Controller fall under this category due to their application in laboratory processes and research.
