BIO-RAD 200/2.0 Power Supply - Used Laboratory Equipment

Product Information

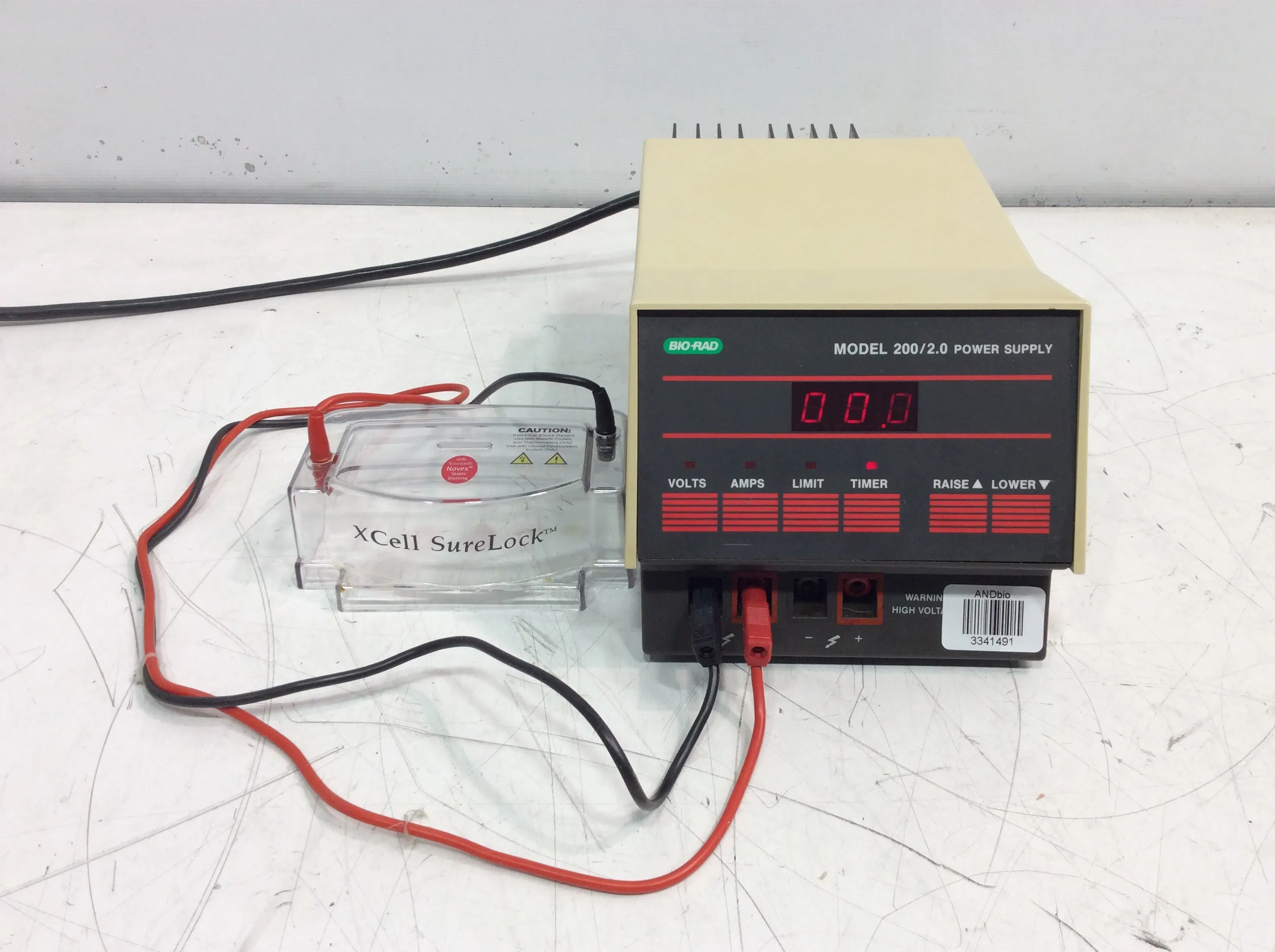

" Bio-Rad 200/2.0 Power Supply Bio-Rads Model 200/2.0 microprocessor controlled power supply provides constant voltage to dual output jacks under a variety of operating conditions. Voltage is continuously adjustable from 5 to 200 volts, producing up to 200 watts of power. Current limits can be set from 0.01 to 2.0 amperes to control the current generated. Although the power supply is especially useful in blotting applications, it is also useful for nucleic acid electrophoresis and for applications using the Mini-PROTEAN II vertical electrophoresis cell. 3-digit LED display to show operating and limit parameters 3-speed adjustment buttons to quickly adjust running parameters Two operating modes: standard, to run electrophoresis manually; and time, to run for a set time period Constant current operation using the continuously adjustable current limit function Automatic switching to constant current operation when the current exceeds the current limit Automatic no-load sensing Continuous monitoring of load resistance, power output, and volt-hours during the run Specifications Output voltage 5-200 volts DC, continuously adjustable Output current 0.01-2.0 A, continuously adjustable Output terminals Floating dual output jacks in parallel Set limits Current: 0.01-2.0 A, 0.01 A steps, fully adjustable; Power: 200 watts maximum output Automatic crossover upon reaching limit. Timer Control: 0.1-99.9 hours, 0.1 H steps, continuously adjustable Set Point Resolution: Voltage: 1 V, 5-200 VDC; Current Limit: .01 A, .01-2.0 A; Time Set: + 0.1 H, 0.1-99.9 hours Readout Accuracy Voltage: + 1 V; Current Limit: + .05 A; Timer: 2 seconds per hour Overload and Short Protection: Fuse No Load Detection: LED display and alarm Operating Temperature: 0-35 C Operating humidity 0-95%, in the absence of condensation Line voltage (frequency): 100/120 V model: 90 - 132 VAC (47-63 Hz); 220/240 V model: 198 - 264 VAC (47-53 Hz) Line Regulation: 3% or less Load Regulation: 5% or less RMS Ripple and Noise: Less than 5% at 100 VDC and 1 A. Less than 7% at any load (not exceeding current limit) Drift: 1 volts Condition: This instrument is in good working order and was removed from working environment. Unit has great condition. Testing we performed: Basic functionality test passed. System consists of: Power cord, Item(s) as shown Documentation: Manual:https://www.manualslib.com/manual/807665/Bio-Rad-200-2-0.html#manual For equipment and items shipping via freight, please contact us with your zip code to obtain shipping quote. Please do not hesitate to contact us if you have any questions. "

• Constant voltage to dual output jacks
• Adjustable voltage from 5 to 200 volts
• Adjustable current limits from 0.01 to 2.0 amperes
• Two operating modes: standard and time
• Overload and short protection with LED display and alarm
• Good working condition, removed from working environment

• Output Voltage: 5-200 volts DC, continuously adjustable
• Output Current: 0.01-2.0 A, continuously adjustable
• Output Terminals: Floating dual output jacks in parallel
• Current Limits: 0.01-2.0 A, 0.01 A steps, fully adjustable
• Power: 200 watts maximum output
• Timer Control: 0.1-99.9 hours, 0.1 H steps, continuously adjustable
• Operating Temperature: 0-35°C
• Operating Humidity: 0-95%, in the absence of condensation
• Line Voltage (Frequency): 100/120 V model: 90 - 132 VAC (47-63 Hz); 220/240 V model: 198 - 264 VAC (47-53 Hz)
• RMS Ripple and Noise: <5% at 100 VDC and 1 A, <7% at any load (not exceeding current limit)

Metric: 6.80389 kg
Imperial: 15 lbs

Metric: 40.64 cm x 40.64 cm x 40.64 cm
Imperial: 16 in x 16 in x 16 in

902730

This code applies to power supplies incorporating a meter and a source of electrical power; the meter measures or displays voltage, current, power factor, or other electrical function. This classification is determined based on the provided product information and the primary function of the equipment.
