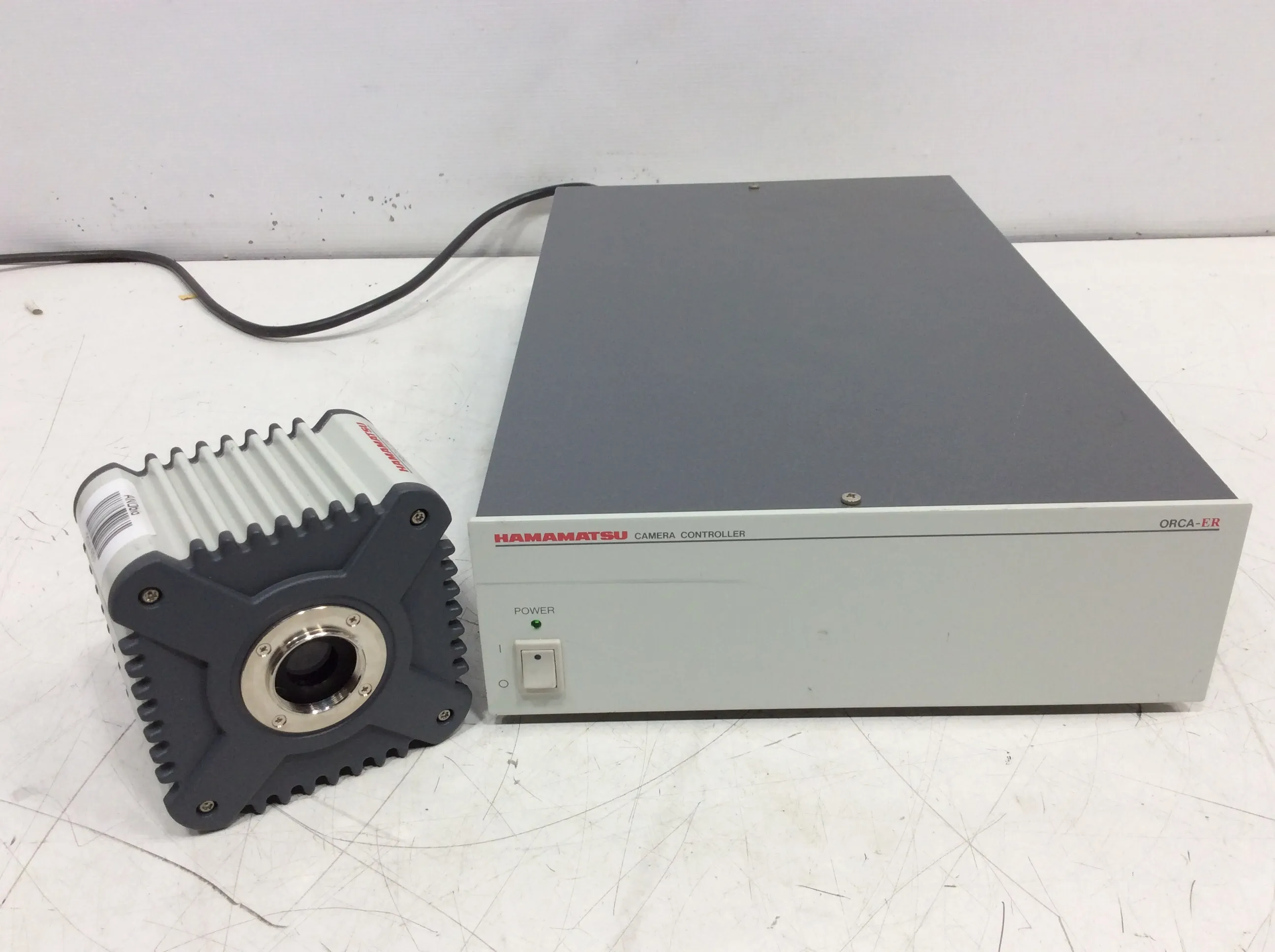

Hamamatsu ORCA-ER Digital Camera C4742-95 & Controller

Product Information

Introducing the Hamamatsu ORCA-ER, a high-performance B/W CCD digital camera with advanced progressive scan interline CCD chip and high sensitivity in the VIS-NIR region. Featuring a hermetic vacuum-sealed, Peltier-cooled head that reduces dark noise and thermal drift, this camera is ideal for scientific and industrial applications. From its high resolution of 1.37 million pixels to fast electronic shuttering and low noise integration, the ORCA-ER delivers exceptional imaging capabilities. This used camera has been meticulously tested and is backed by a 30-day warranty for 100% parts and labor.

• High resolution of 1.37 million pixels
• Progressive scan interline CCD with micro-lens
• Exposure time up to 10 seconds
• Fast electronic shuttering, with low noise integration
• Hermetic vacuum-sealed, Peltier-cooled head

• Imaging Device: Progressive scan interline CCD with micro-lens
• Effective No.of Pixels: 1344 (H) 1024 (V)
• Cell Size: 6.45 x 6.45 µm (square format)
• Effective Area: 8.67 x 6.60 mm (2/3-inch format)
• Pixel Clock Rate: 14.75M Hz/pixel
• Frame Rate: 8.8 frame/sec; 2 x 2 binning: 16 frame/sec; 4 x 4 binning: 27 frame/sec; 8 x 8 binning: 41 frame/sec
• Readout Noise (r.m.s.): 8 electrons
• Full Well Capacity: 18,000 electrons
• Cooling Method: Forced air Peltier cooling, with hermetic vacuum sealing
• Cooling Temperature: -30°C at 20°C ambient temperature
• Dark Current: 0.03 electron/pixel /sec
• A/D Converter: 12 bit
• Exposure Time: 10 sec to 4,200 sec
• Sub Array: Yes
• Contrast Enhancement: Analog Gain (10 times max.) and Offset function
• External Trigger: Yes
• Lens Mount: C-mount
• Interface: IEEE1394-1995
• Line Voltage: 100V/117V/220V/240V AC, 50/60Hz
• Power Consumption: Approx. 90VA
• Ambient Storage Temperature: -10°C to +50°C
• Ambient Operating Temperature: 0°C to +40°C
• Ambient Storage/Operating Humidity: 70% max. (no condensation)
• Unit TESTED

Metric: 13.61 kg
Imperial: 30 lbs

Metric: 15 cm x 15 cm x 15 cm
Imperial: 5.91 in x 5.91 in x 5.91 in
