Fluke 2620A Hydra Series II Data Acquisition Unit, 21 Channel Analog Input. NO Module Included

Product Information

Fluke 2620A Hydra Series II Data Acquisition Unit is a multi-channel data acquisition unit able to measure ac and dc voltages, temperature via thermocouples and RTDs, resistance, and frequency. It features 21 measurement channels and is easily carried by hand. The unit has an RS-232 or IEEE-488 computer interface and comes with a removable Universal Input Module for convenient reconfiguration. The Hydra 2620A is ideal for applications requiring real-time data collection and can be used as a 20-channel panel meter. This instrument has been tested to be in good working order and comes with a 30-Day Warranty.

• Multi-channel measurement capability
• 21 measurement channels

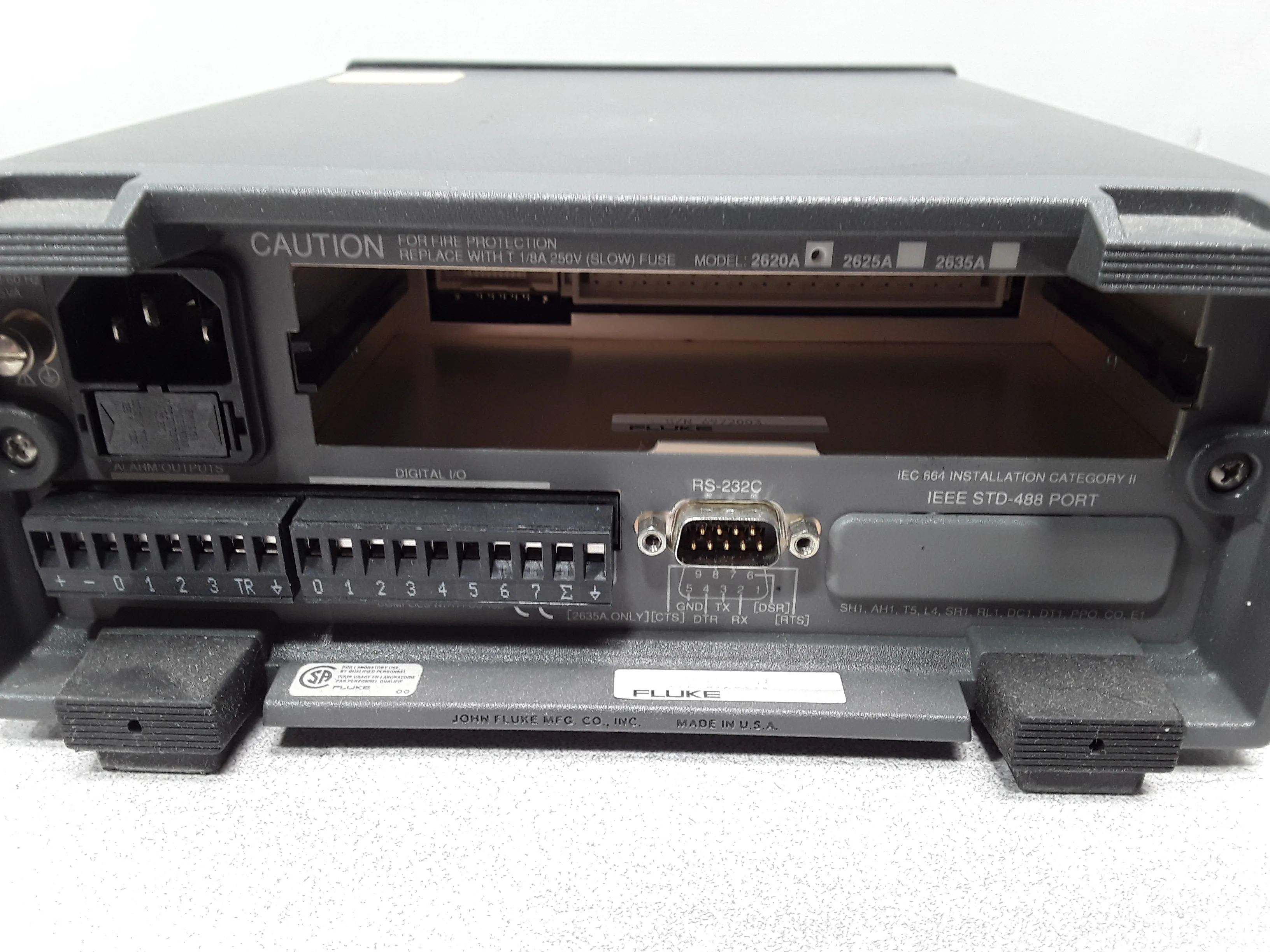

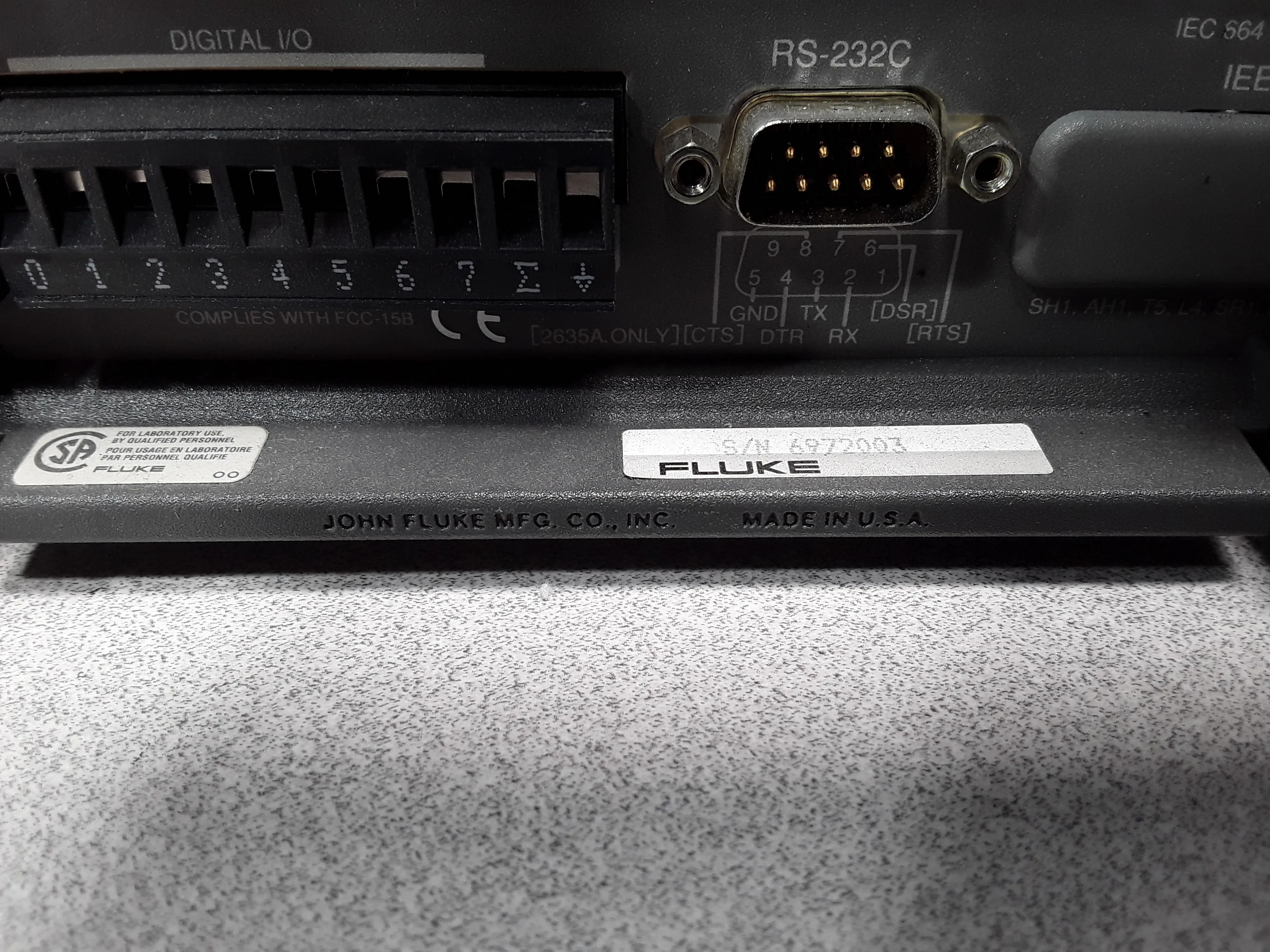

• RS-232 and IEEE-488 computer interface
• Compact and portable design
• Removable Universal Input Module

• Channel Scanning: Continuous, interval time, single scans, or triggered scans
• Measurement Input Function and Range: Volts dc and ac, Frequency, Resistance, Temperature Measurement
• RS-232 and IEEE-488 interface
• Power: 90 to 264 Vac, 50 or 60 Hz operation; or 9.0 to 16 Vdc
• Weight: 7 lb
• Size: 93 mm H x 216 mm W x 312 mm D

Metric: 3.175 kg
Imperial: 7 lbs

Metric: 312 cm x 216 cm x 93 cm
Imperial: 122.8 in x 85 in x 36.6 in

903180

Measuring or checking instruments, appliances and machines, not specified or included elsewhere in this chapter; profile projectors.
