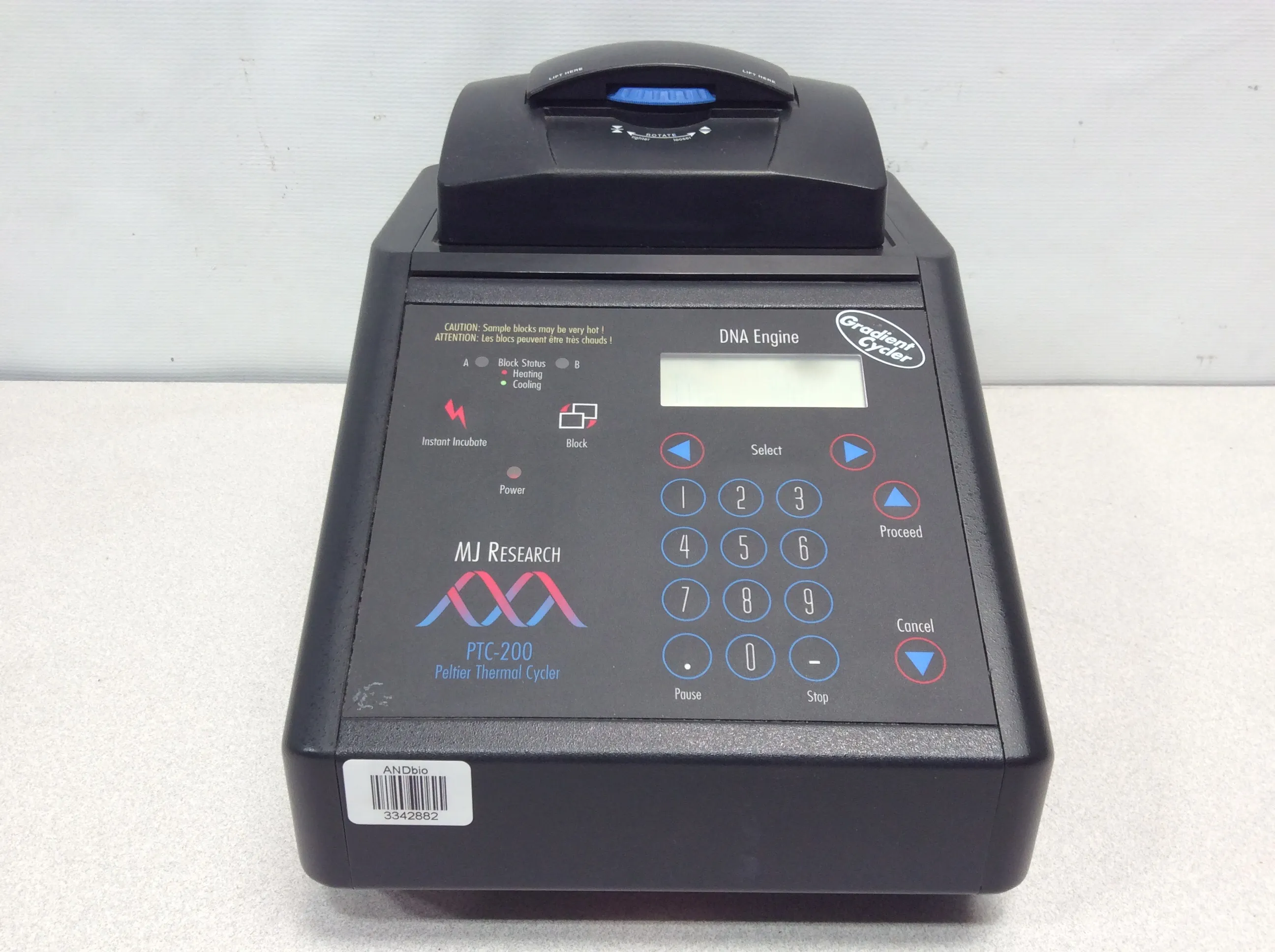

MJ Research PTC-200 Peltier Thermal Cycler

Product Information

Greetings fellow scientists! This MJ Research PTC-200 Peltier Thermal Cycler w/ Alpha Unit Block Assembly is a reliable and robust equipment. It boasts a polished design featuring a Hot Bonnet heated lid that controls pressure and height, accommodating various plastic wares and enabling oil-free cycling. Moreover, it facilitates repeated cycling using Peltier-effect heat pumps and interchangeable sample blocks. The ability to achieve thermal control using both block-in sample probe or calculated methods is an amazing feature. This good-conditioned unit is perfect for PCR and other applications. Reach out for additional product information or quote.

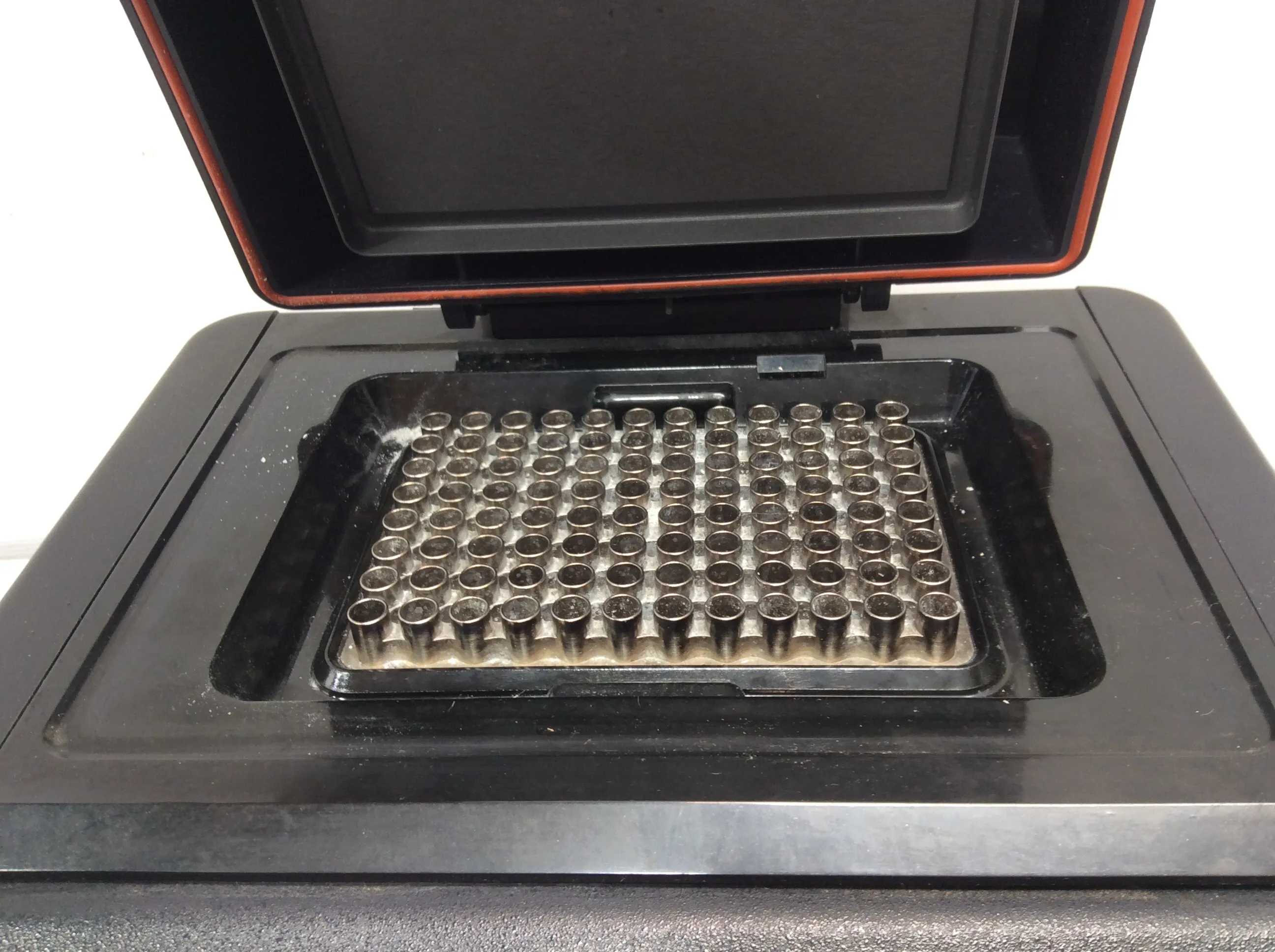

• Interchangeable sample blocks and heat pump assemblies
• Oil-free cycling capability
• Thermal control via block-in sample probe or calculated methods

• Thermal Range: 5 to 105°C (4 to 100°C for the Slide Chambers Alpha unit)
• Thermal Accuracy: 0.3°C of programmed target at 90°C, NIST-traceable
• Thermal Uniformity: 0.4°C well-to-well within 30 seconds of arrival at 90°C (for most Alpha units)
• Ramping Speed: Up to 3°C/sec for all single- and dual-block Alpha units; up to 1.2°C/sec for the Slide Chambers Alpha unit.

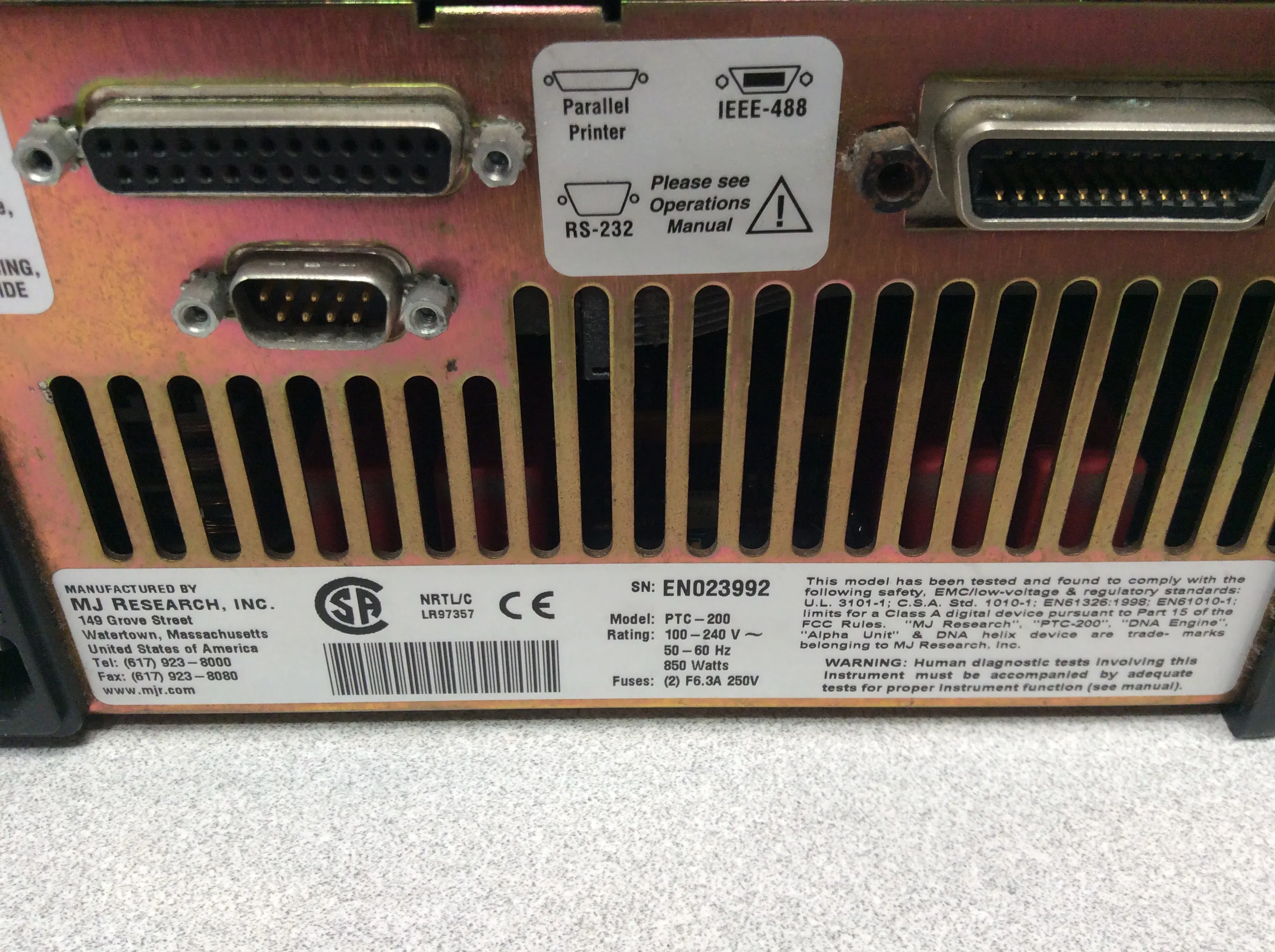

• Line Voltage: 100-240 VAC rms (no adjustment needed among voltages within these ranges)
• Frequency: 50/60 Hz single phase
• Power: 850 W maximum
• Memory: 400 typical programs in up to 12 individual folders
• Gradient Specifications: Accuracy of +0.3°C, lowest programmable temp: 30°C, highest programmable temp: 105°C

Metric: 17.235 kg
Imperial: 38.0 lbs

Metric: 35.56 cm x 25.4 cm x 33.02 cm
Imperial: 14.0 in x 10.0 in x 13.0 in

841989

The harmonized system code 841989 for machinery, plant or laboratory equipment applies to this product. This code is used for the regulation of the international trade in goods and is the most appropriate for this laboratory equipment based on its features, specifications, and applications.
