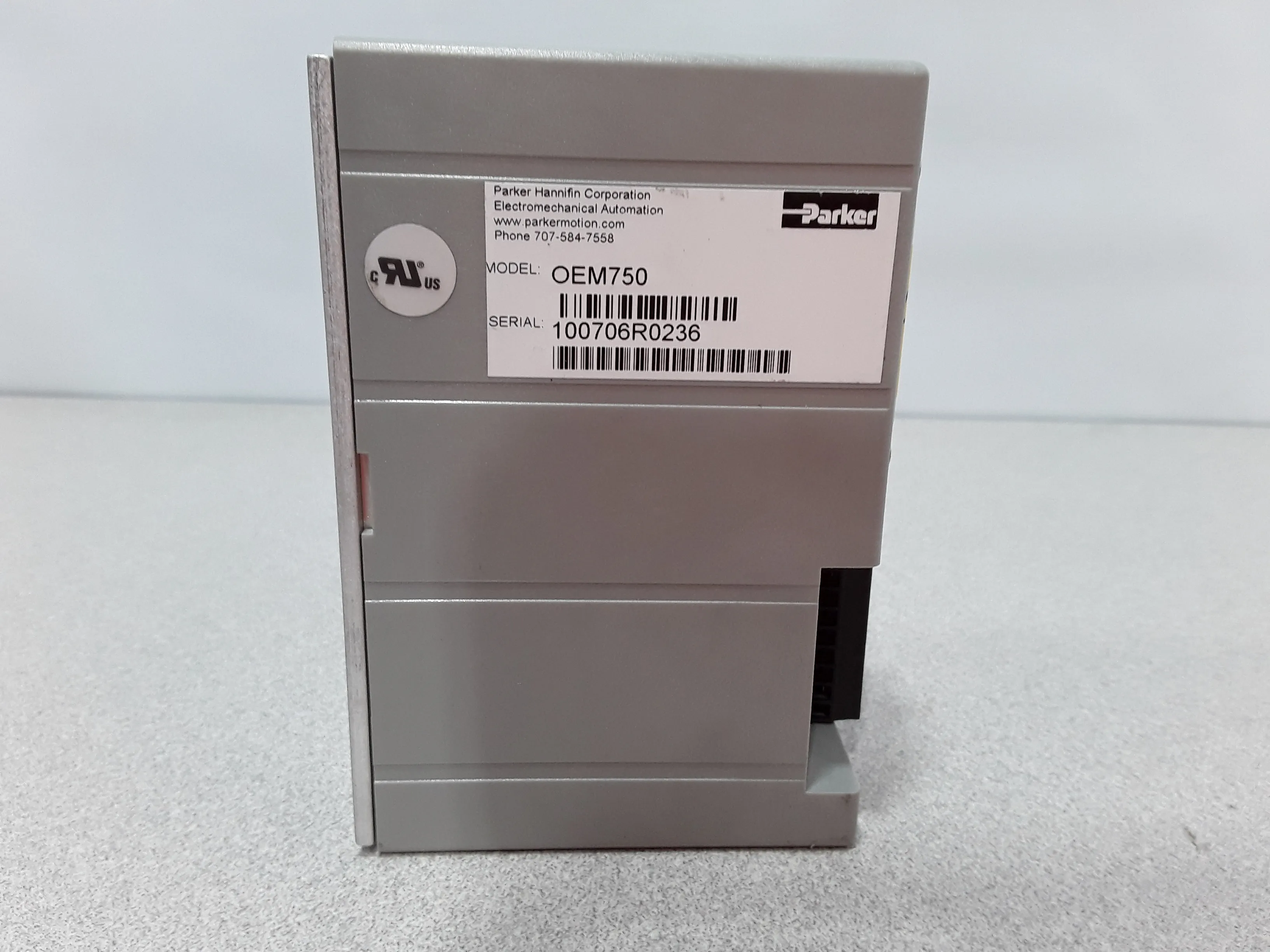

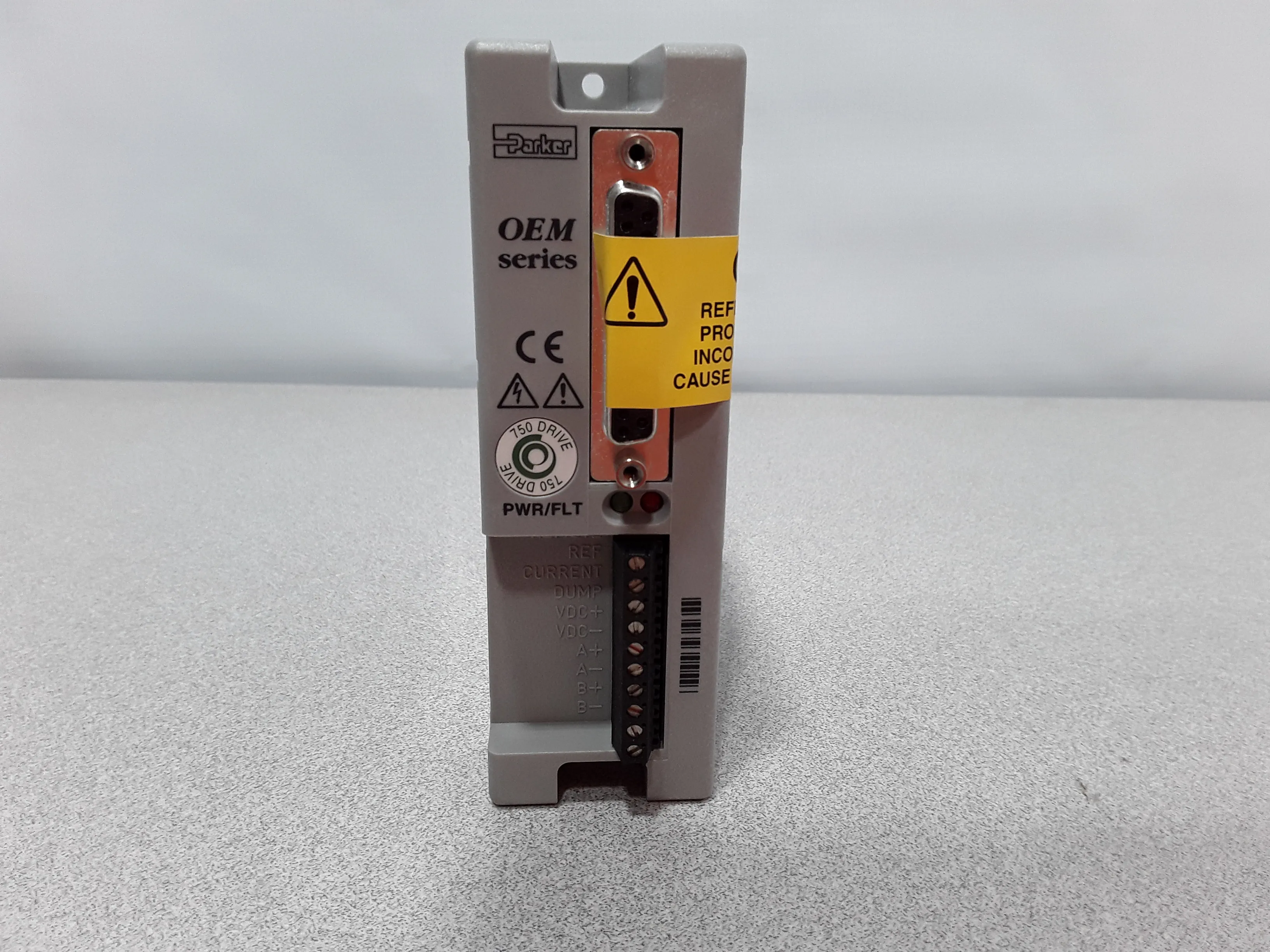

Parker Hannifin OEM750 Compact Microstepping / Servo Drive

Product Information

Parker Hannifin OEM750 Compact Microstepping / Servo Drive is a state-of-the-art drive designed for use with motor inductance of 0.2 mH-80 mH. Its three-state current control makes it more efficient than two-state drives, allowing the motor to run cooler. The drive offers selectable resolution up to 50,800 steps/rev and features auto standby to reduce motor current at rest. With a peak current output of 7.5 Amps, it is compatible with a variety of motors. The drive is in good working order and removed from a working environment. It is suitable for a wide range of applications such as robotics, CNC machines, and automated systems. The Parker Hannifin OEM750 Compact Microstepping / Servo Drive brings cutting-edge technology to the laboratory, enabling precise motor control for various experiments and processes.

• State-of-the-art compact microstepping/servo drive
• Selectable resolution of up to 50,800 steps/rev
• Auto standby feature to reduce motor current at rest
• Provides 0.2 Amps to 7.5 Amps of current (peak)
• Compatible with a variety of motors

• Compatible Motor Inductance: 0.2 mH-80 mH
• Current Output: 0.2A - 7.5A (peak)
• Resolution: Up to 50,800 steps/revolution
• Power Supply: 24-75 VDC
• Condition: New other (see details)
• Warranty: 30-Day Warranty, 100% Parts and Labor

Metric: 0.454 kg
Imperial: 1.0 lbs

Metric: 4 cm x 2 cm x 5 cm
Imperial: 1.57 in x 0.79 in x 1.97 in

850440

850440 - Other static converters
