Cascade Tek TFO-1 Forced Air Lab Oven

Product Information

Beckman Coulter Biomek FX Lab Automation Workstation Here is a Beckman Coulter Biomek FX Lab Automation Workstation for sale. This instrument has been tested by our in-house service technician and is ready for use. Predecessor to: TFO-3 Condition: This instrument is in good working order and was removed from a working environment. The unit is in great condition with some cosmetic wear from normal use. Testing we performed: Passes all initializing self and basic functionality tests. System consists of: Computer with software User manuals Item(s) as shown All cables (power and data) as shown Power cord Documentation: Small lab oven for drying, curing, and burn-in. Made in the USA. Cascade TEK's Model TFO-1 benchtop forced air oven is designed to meet both manufacturing and laboratory requirements. Features Programmable Watlow ramp and soak controller can store and execute different drying profiles. Independent overtemp protection fail-safe Rear access port allows for feedthru, power cable connections into the oven Adjustable shelves included Specifications Capacity: 1.6 cubic feet (45 cubic liters) Interior Dimensions (WxDxH): 13 x 14.63 x 14.75 (33.02 x 37.16 x 37.47) Exterior Dimensions (WxDxH): 22.5 x 21 x 32 (57.15 x 53.34 x 81.28) Temperature Range: Ambient +5C to 300C Temperature Uniformity: +/-3C at 150C Temperature Time to 150C: 16 minutes Temperature Recovery Time: 2 minutes (after the door is open for 30 seconds) Air Flow: 120 feet per minute Controls: Watlow EZ programmable control with ramp & soak capabilities. Built-in, independent overtemperature controller. DB25 pin RS-485 serial comm port. Power: 120V / 1Ph / 50/60 Hz / 15 Amp Heater Wattage: 1500 Watts Standard Door Gasket: Silicone 235C Max Shelves: 2 Adjustable Access Port: 2.75 Rear Weight: 127 lbs. (195 lbs. shipping) For additional product information, please contact us.

• 1.6 cubic feet (45 cubic liters) capacity
• Temperature range of Ambient +5C to 300C

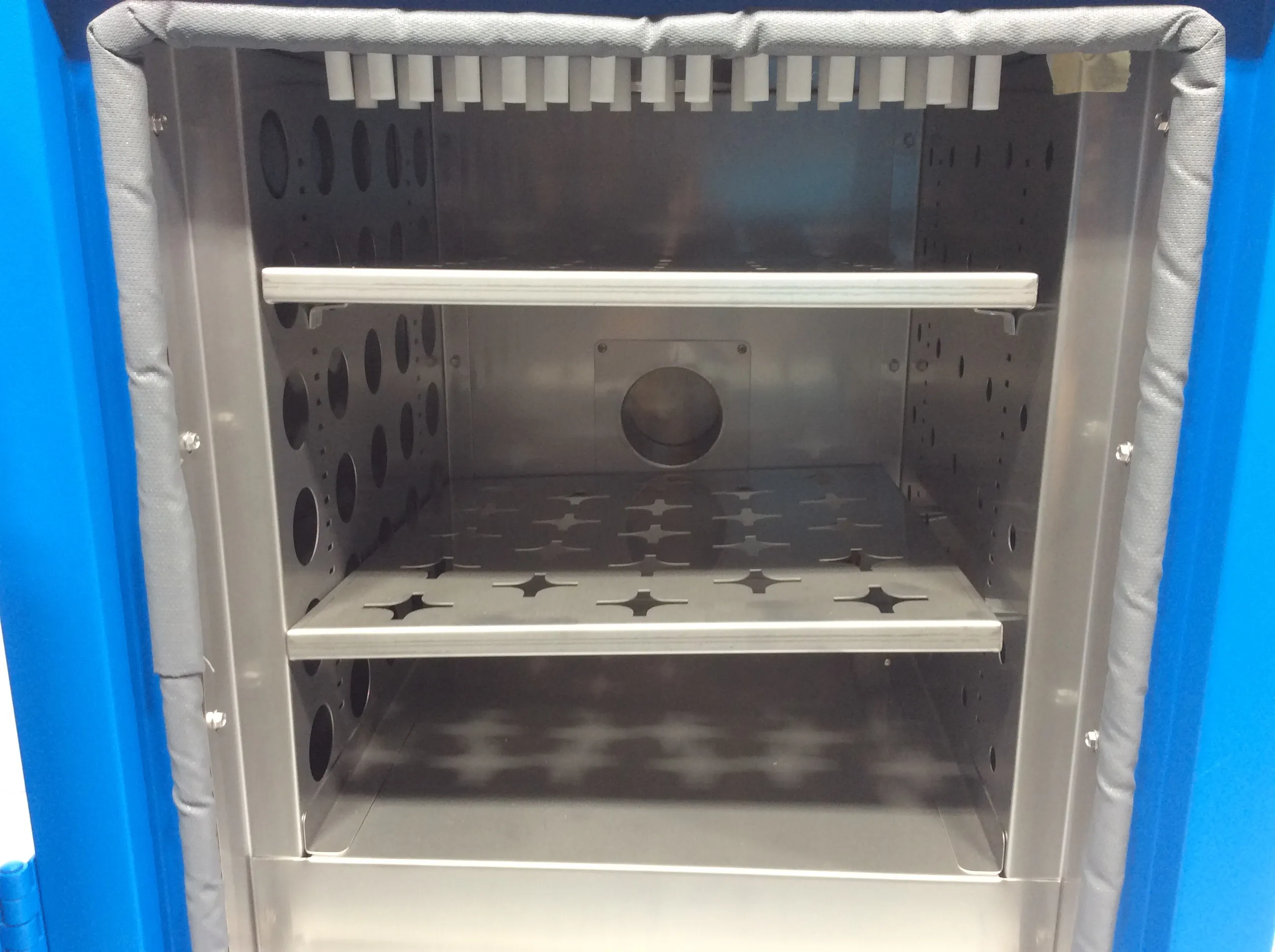

• Adjustable shelves and rear access port for convenient use

• Capacity: 1.6 cubic feet (45 cubic liters)
• Interior Dimensions (WxDxH): 13 x 14.63 x 14.75 inches (33.02 x 37.16 x 37.47 cm)
• Exterior Dimensions (WxDxH): 22.5 x 21 x 32 inches (57.15 x 53.34 x 81.28 cm)
• Temperature Range: Ambient +5C to 300C
• Temperature Uniformity: +/-3C at 150C
• Temperature Time to 150C: 16 minutes
• Temperature Recovery Time: 2 minutes (after the door is open for 30 seconds)
• Air Flow: 120 feet per minute

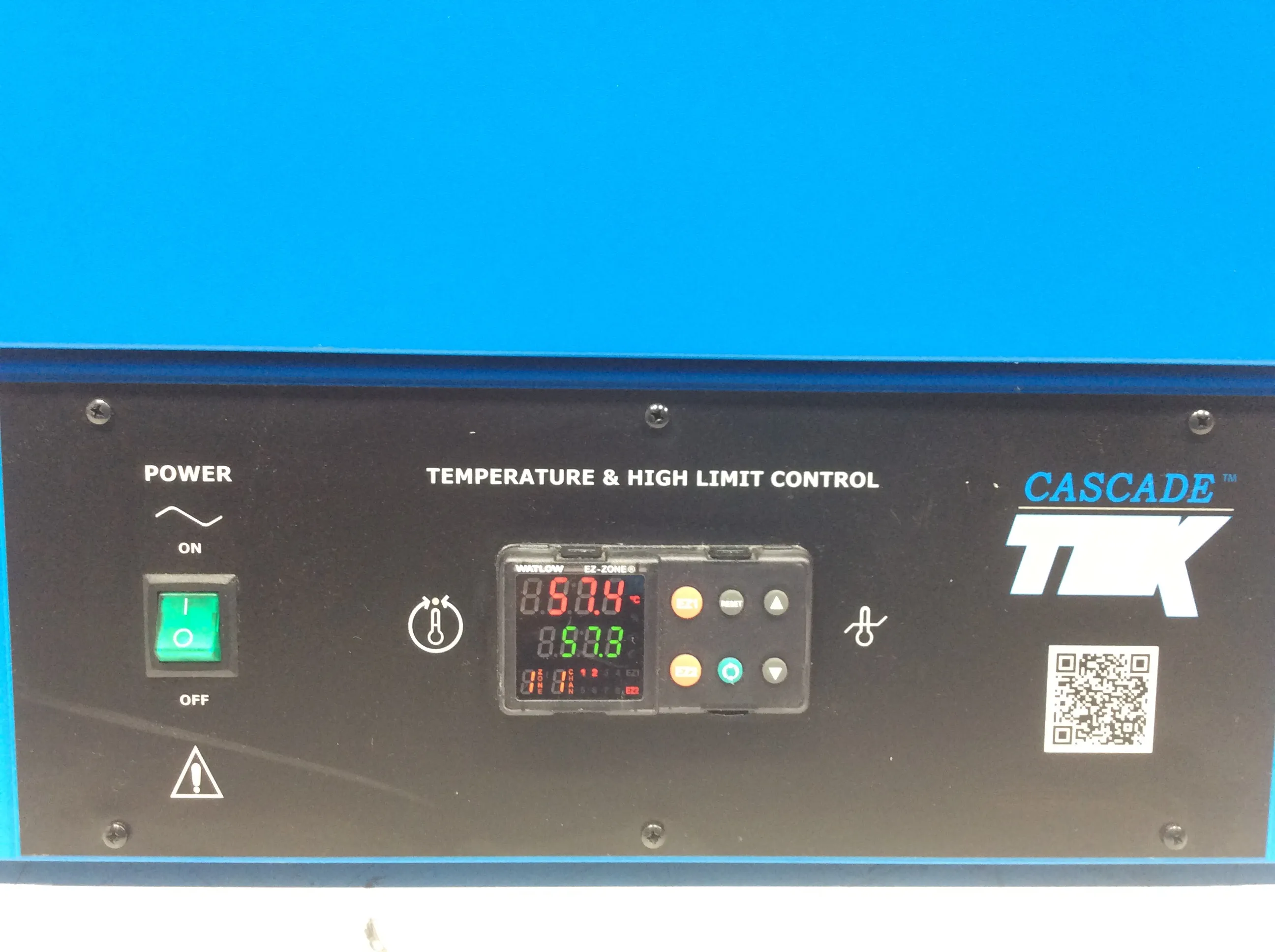

• Controls: Watlow EZ programmable control with ramp & soak capabilities, built-in, independent overtemperature controller, DB25 pin RS-485 serial comm port

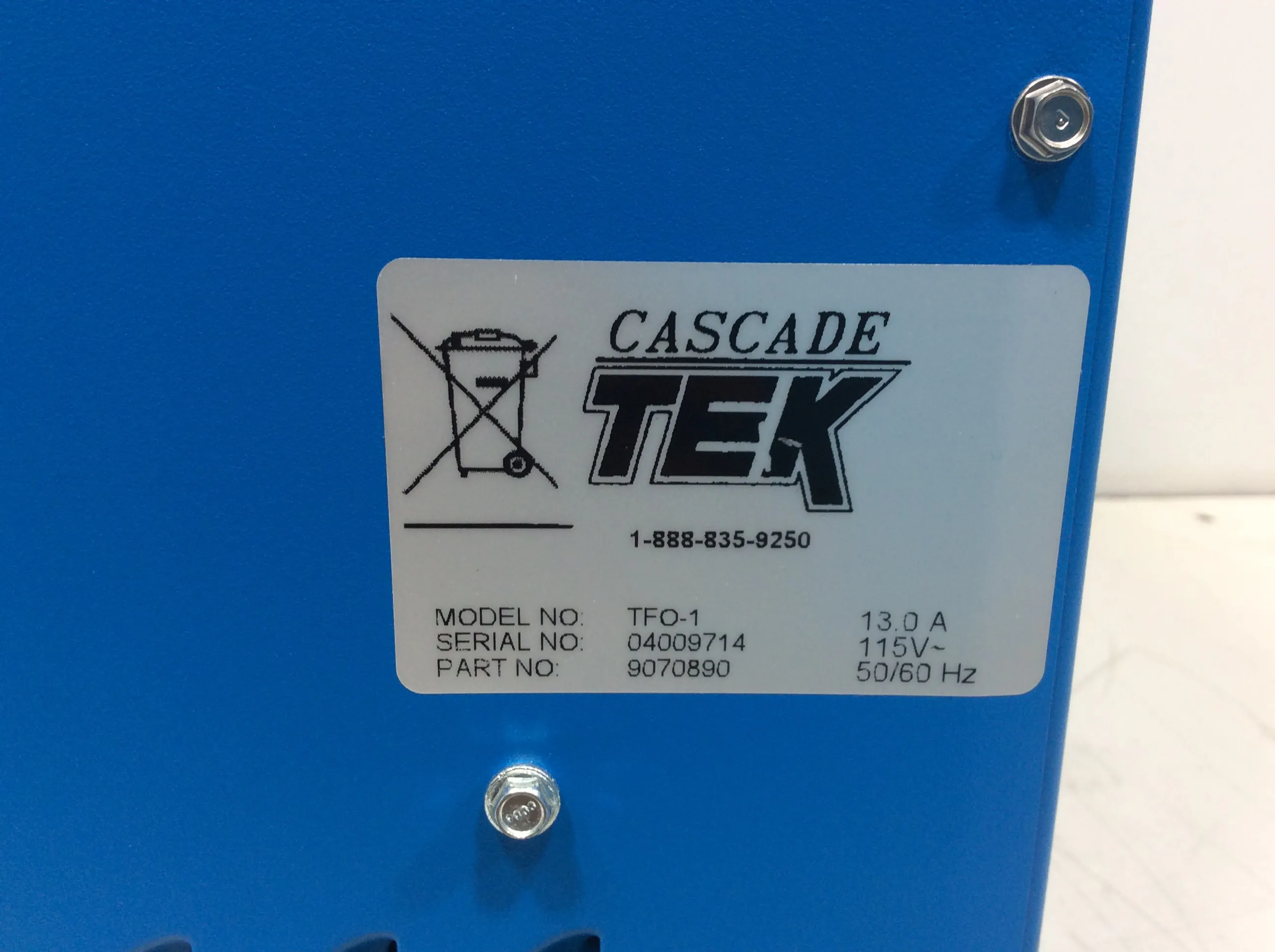

• Power: 120V / 1Ph / 50/60 Hz / 15 Amp
• Heater Wattage: 1500 Watts
• Standard Door Gasket: Silicone 235C Max
• Shelves: 2 Adjustable

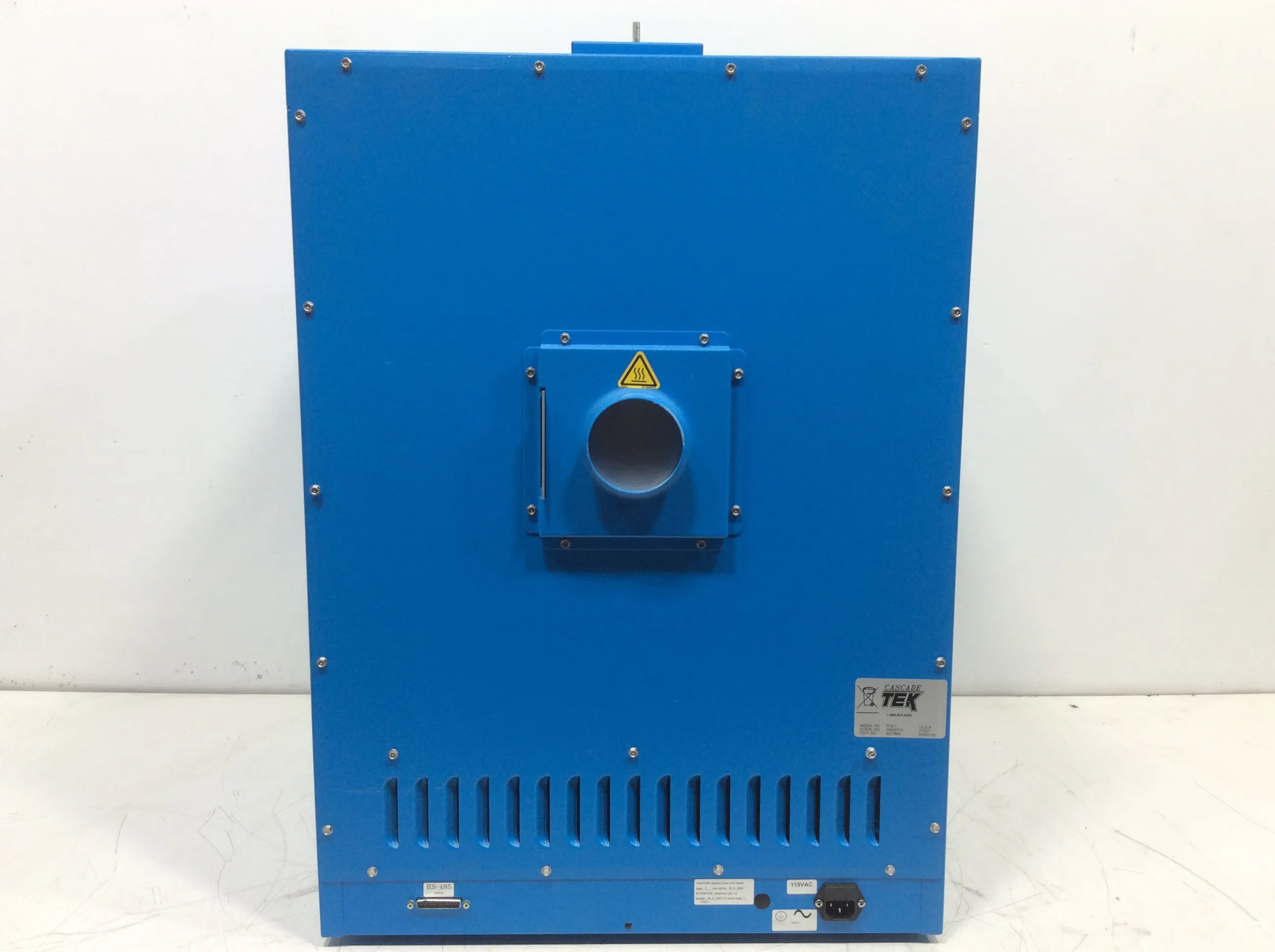

• Access Port: 2.75 Rear
• Weight: 127 lbs. (195 lbs. shipping)

Metric: 57.606 kg
Imperial: 127 lbs

Metric: 57.15 cm x 53.34 cm x 81.28 cm
Imperial: 22.5 in x 21 in x 32 in

851410

This code specifies an electric oven for laboratory, technical uses, with an external volume not exceeding 140 liters. It includes both industrial and laboratory types of ovens for a variety of uses, from drying and baking to specific temperature-related testing.
