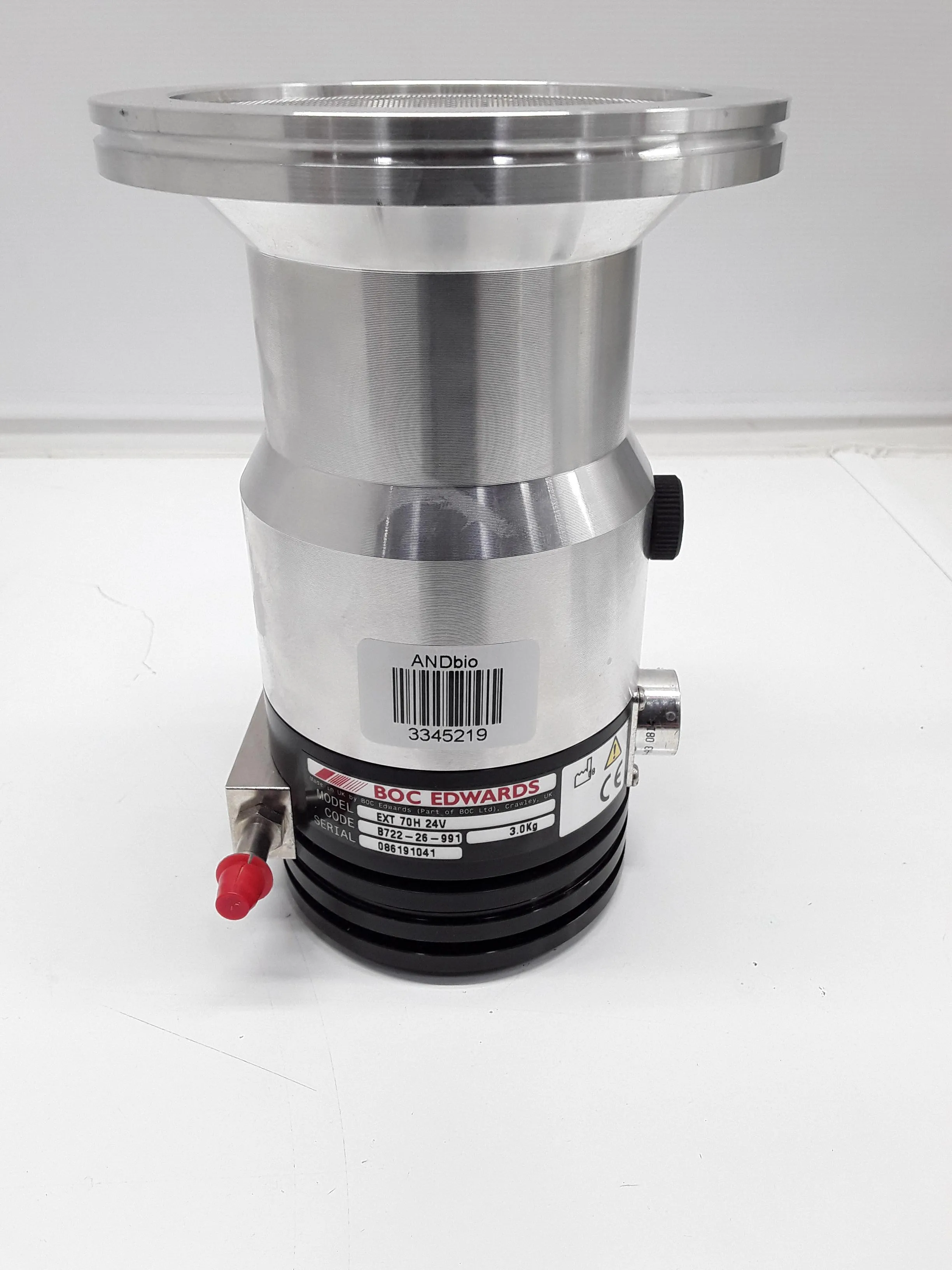

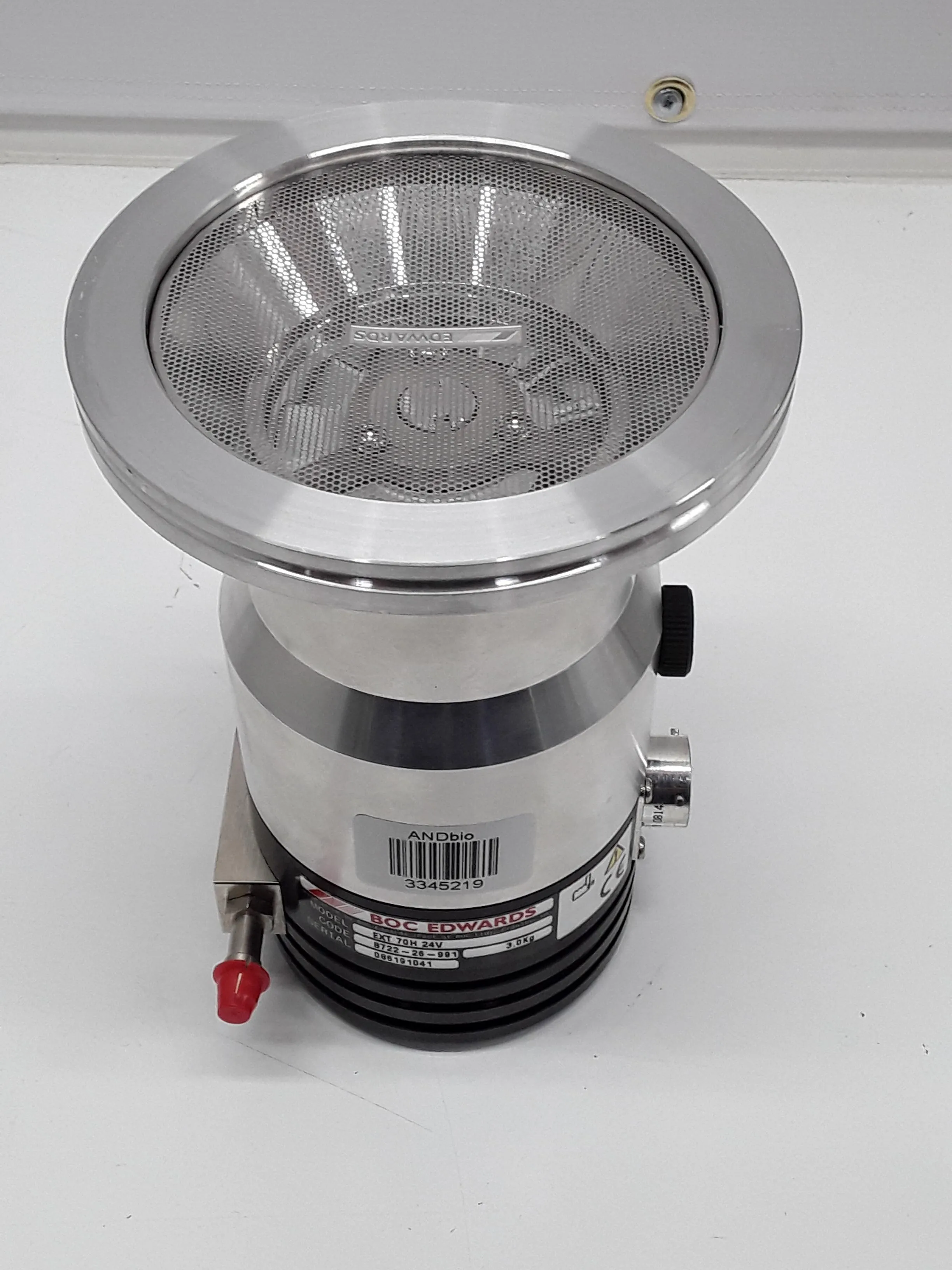

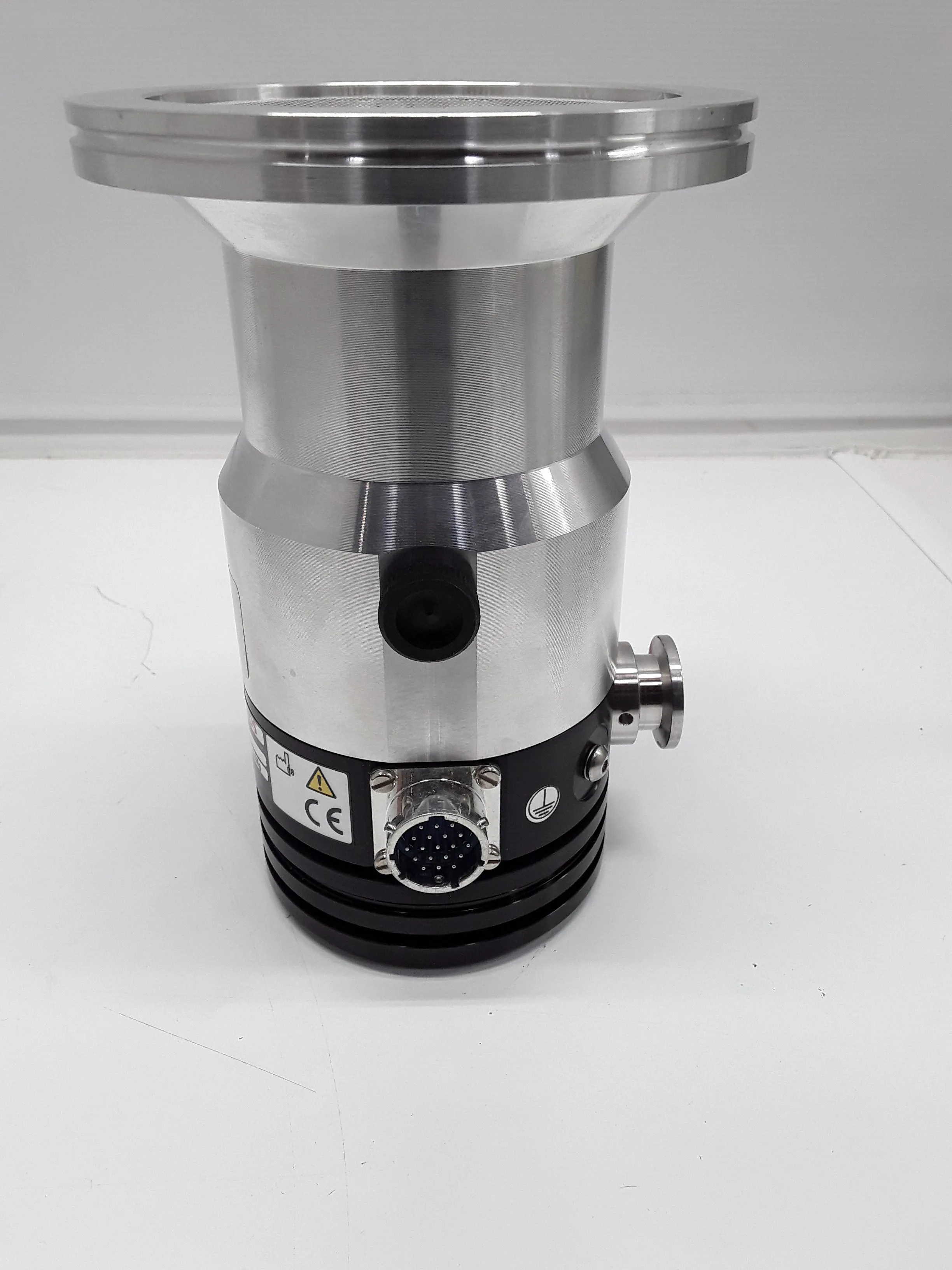

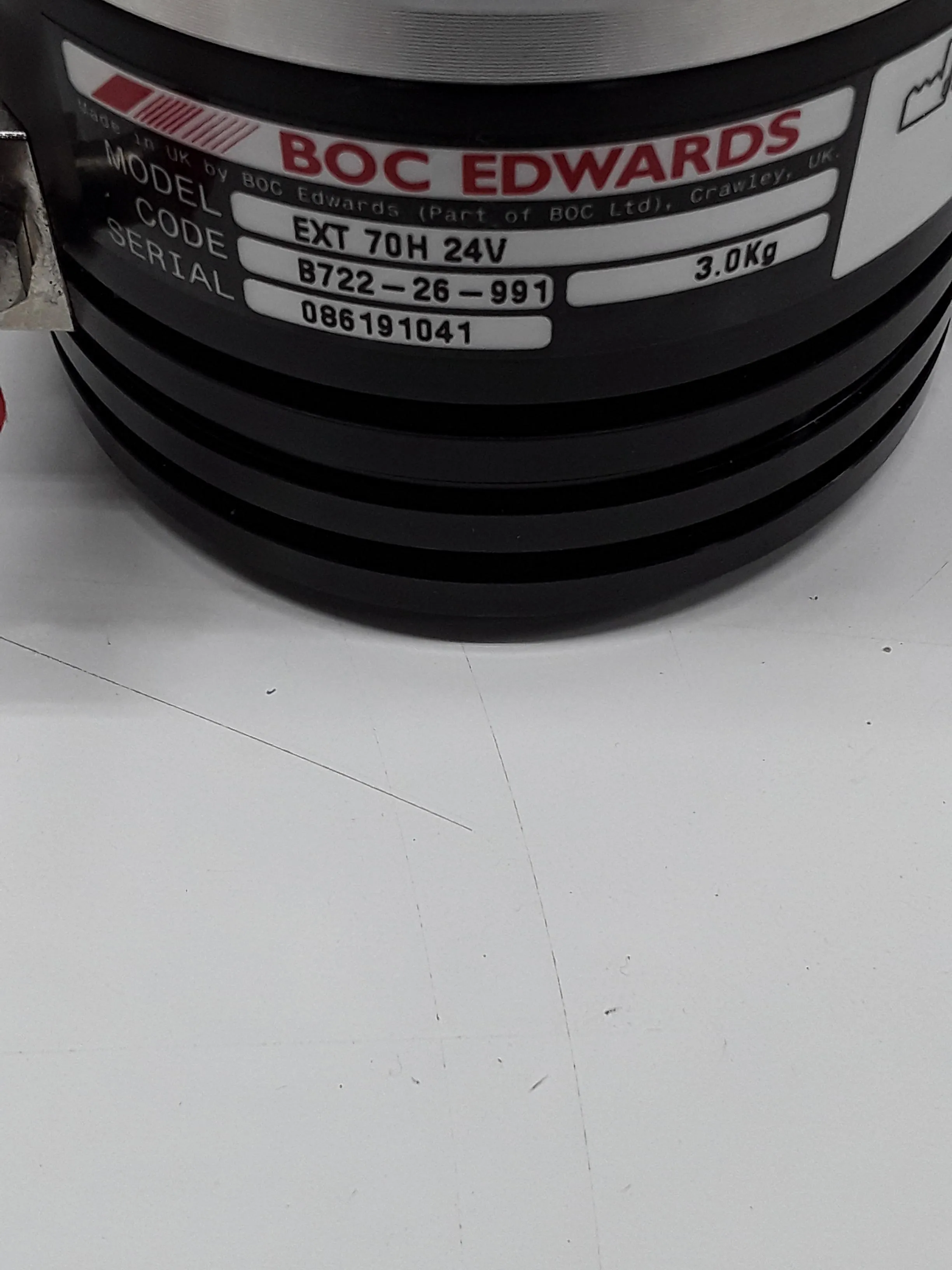

Edwards EXT 70H 24V Turbo Molecular High Vacuum Pump

Product Information

As a quirky, intelligent laboratory scientist, let me tell you why the Edwards EXT 70H 24V turbo molecular high vacuum pump is a gem. This pump has a pumping speed of 70 liters per second (l/s) and can be used for all general-purpose high vacuum applications. It boasts a maximum inlet-flange temperature of 100°C and a maximum magnetic field of 5mT. The Edwards EXT 70H 24V is a workhorse in the laboratory, suitable for various applications and is known for its reliability and performance. It's the perfect solution for creating and maintaining high vacuum levels, and its compact design makes it ideal for research and industrial settings. Whether used in analytical instrumentation, research environments, or industrial applications, this vacuum pump offers exceptional pumping speeds, reliability, and efficiency. It's an essential tool for any scientist or engineer requiring a high vacuum for their work.

• Pumping speed of 70 liters per second (l/s)
• Inlet: LF 100 with a ISO KF-16 exhaust foreline flange
• Maximum inlet-flange temperature: 100°C
• Maximum magnetic field: 5mT
• Compact and reliable design

• Pumping Speed: 70 liters per second (l/s)
• Inlet: LF 100 with a ISO KF-16 exhaust foreline flange
• Maximum Inlet-Flange Temperature: 100°C
• Maximum Magnetic Field: 5mT
• Installation Category: EN61010 part 1, Category 1
• Pollution Degree: CAN/CSA, UL, EN 61010 part 1
• Altitude: 2000 m
• Humidity: 10 to 90% non-condensing

Metric: 2.72 kg
Imperial: 6.00 lbs

Metric: 12.7 cm x 12.7 cm x 20.32 cm
Imperial: 5.0 in x 5.0 in x 8.0 in

841410

Vacuum pumps; liquid ring vacuum pumps and other rotary positive displacement pumps
