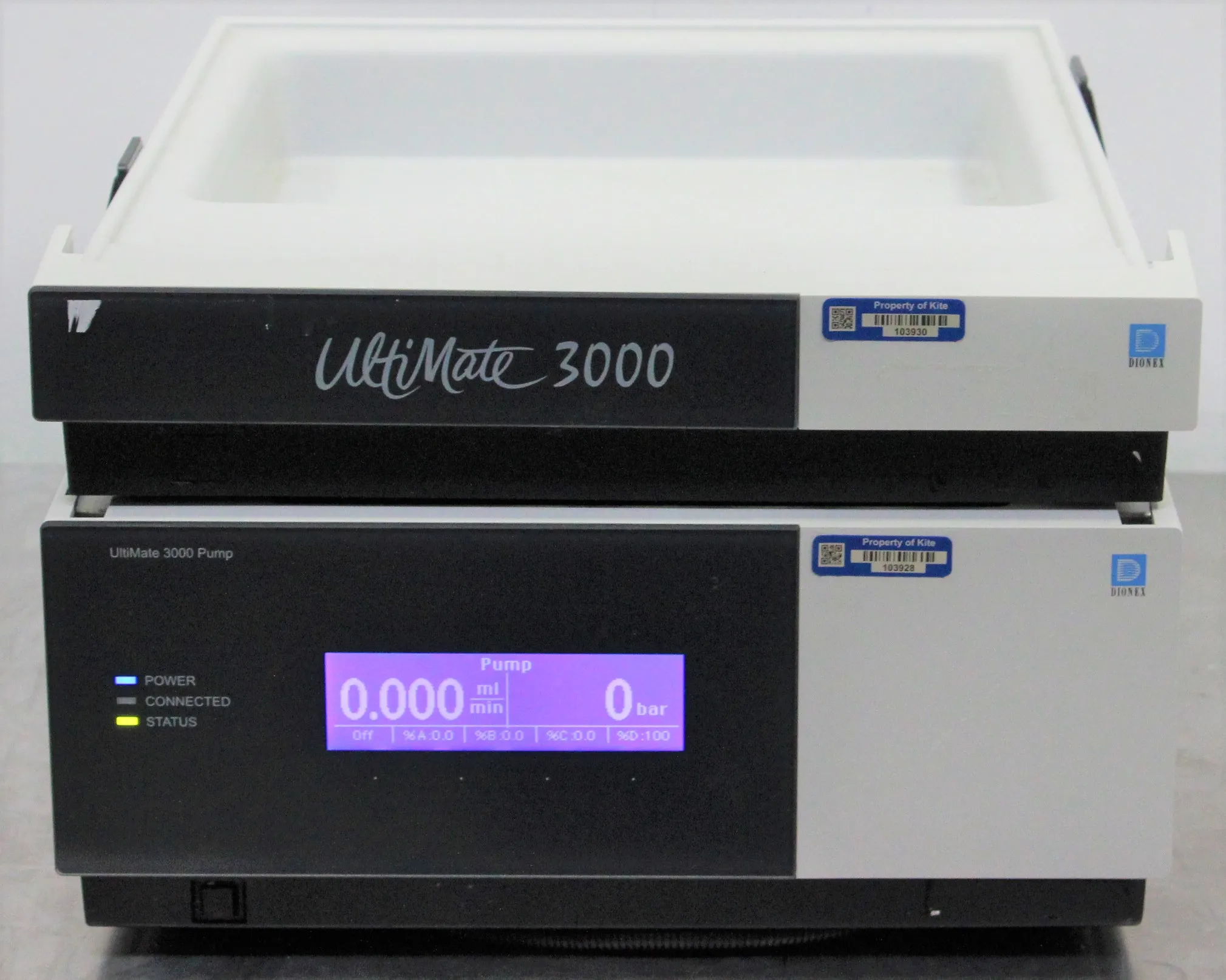

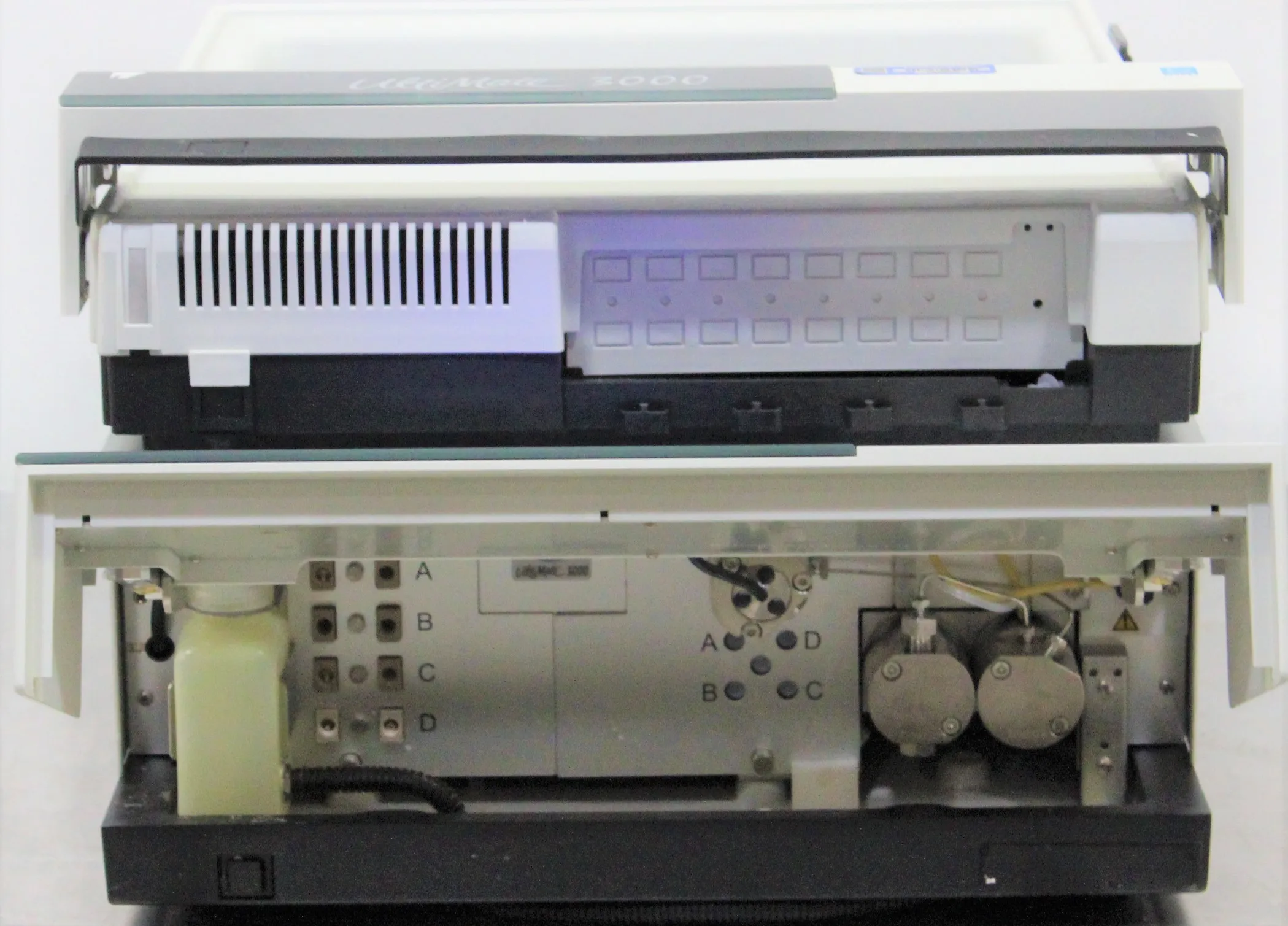

Dionex UltiMate LPG-3400AB Pump

Product Information

The Dionex UltiMate LPG-3400AB Pump, manufactured by Thermo Scientific, is the ideal choice for flexible solvent proportioning in UHPLC or conventional LC. With the ability to support ternary and quaternary gradients at up to 15,000 psi, this pump offers an excellent flow stability and is suitable for a wide range of applications in pharmaceutical, food and beverage, and environmental industries. The pump ensures precise flow accuracy, low-pressure proportioning, and features a robust construction for extended use. It is renowned for its industry-leading flow-pressure footprint. Moreover, the Dionex UltiMate LPG-3400AB Pump supports multiple fast routine applications and method development.

• Supports ternary and quaternary gradients
• Industry-leading flow-pressure footprint
• High flow stability
• Robust construction for extended use
• Suitable for multiple routine applications and method development

• Flow Accuracy: 0.1%
• Flow Precision: <0.05% RSD or <0.01 min SD
• Gradient Delay Volume: 325-1840 L (Depending on the SpinFlow mixer configuration)Default: 690 L
• Pressure Range: 2 to 103.4 MPa up to 5 mL/min; 2 to 80 MPa up to 8 mL/min

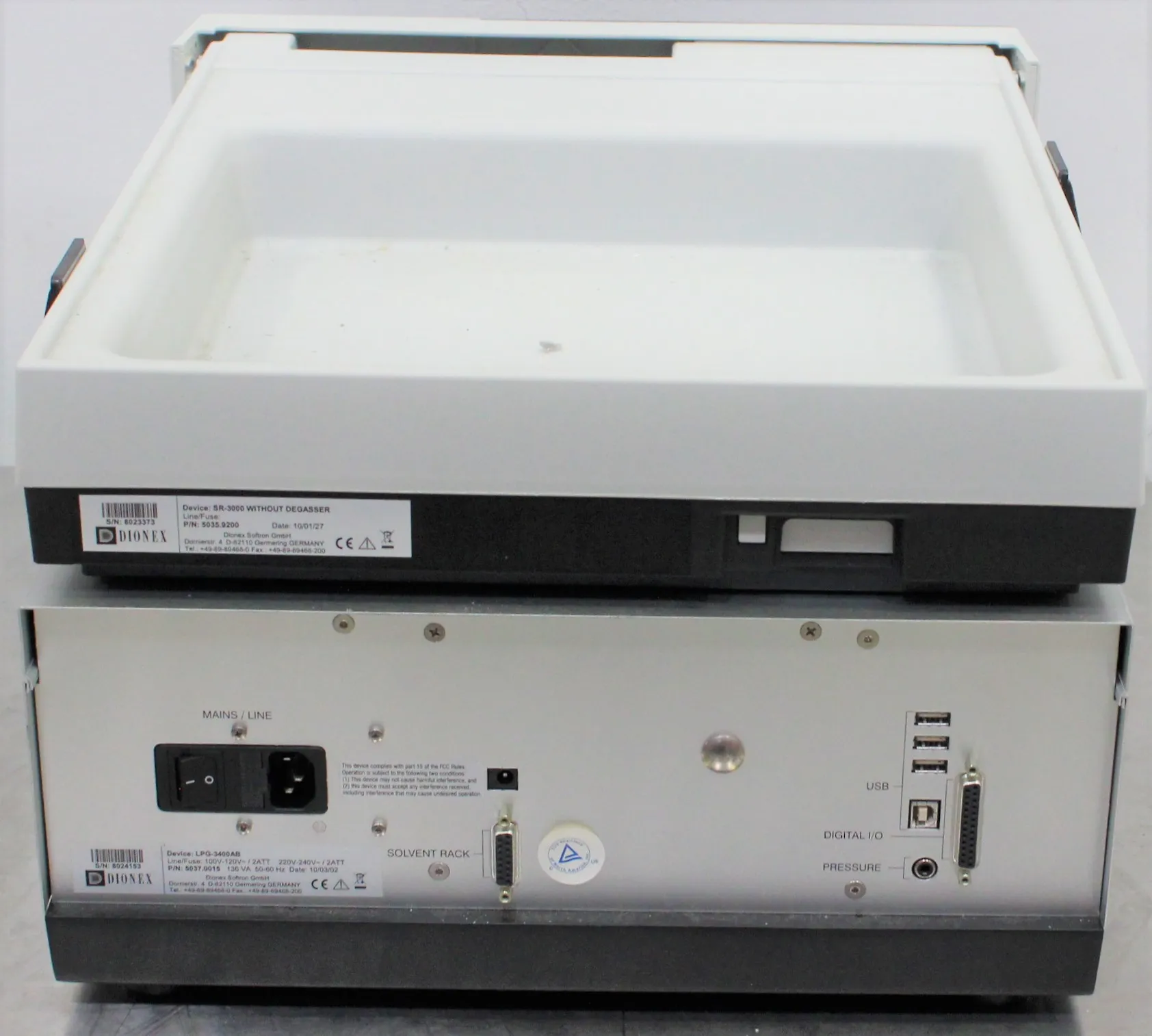

• I/O Interfaces: 2 digital inputs, 2 relay outputs

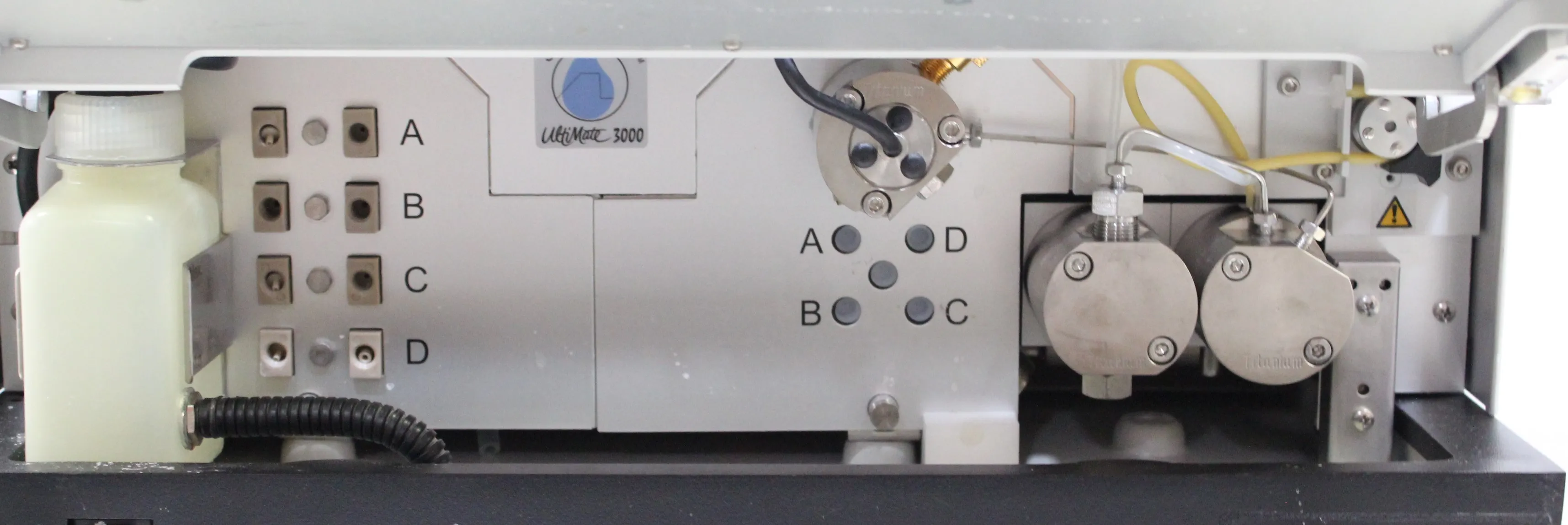

• No. of Eluent Lines: 4
• Proportioning Accuracy: 0.5% (full scale)
• Proportioning Precision: <0.15% SD
• Max. Flow Rate: 8.0 mL/min
• Min. Flow Rate: 0.001 mL/min (Recommended: 0.1 mL/min)

Metric: 8.62 kg
Imperial: 19.0 lbs

Metric: 24 cm x 16 cm x 13 cm
Imperial: 9.45 in x 6.3 in x 5.12 in

841381

The harmonized code 841381 is used for gear pumps; other than hydraulic pumps or fuel, lubricating or cooling medium pumps.
