Dionex Pump ICS-3000 DP-1 - HPLC / FPLC / GC / CE Pump

Product Information

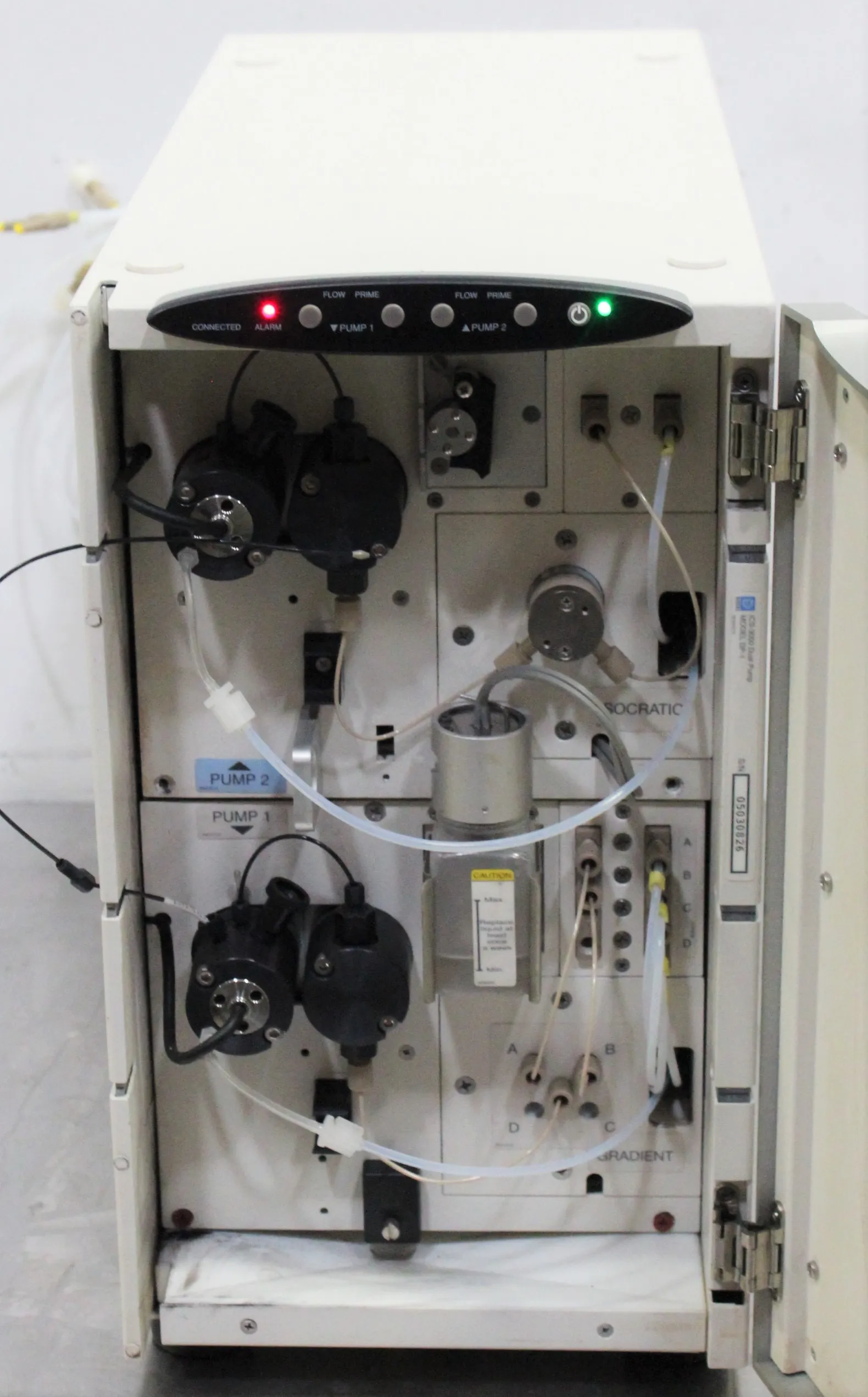

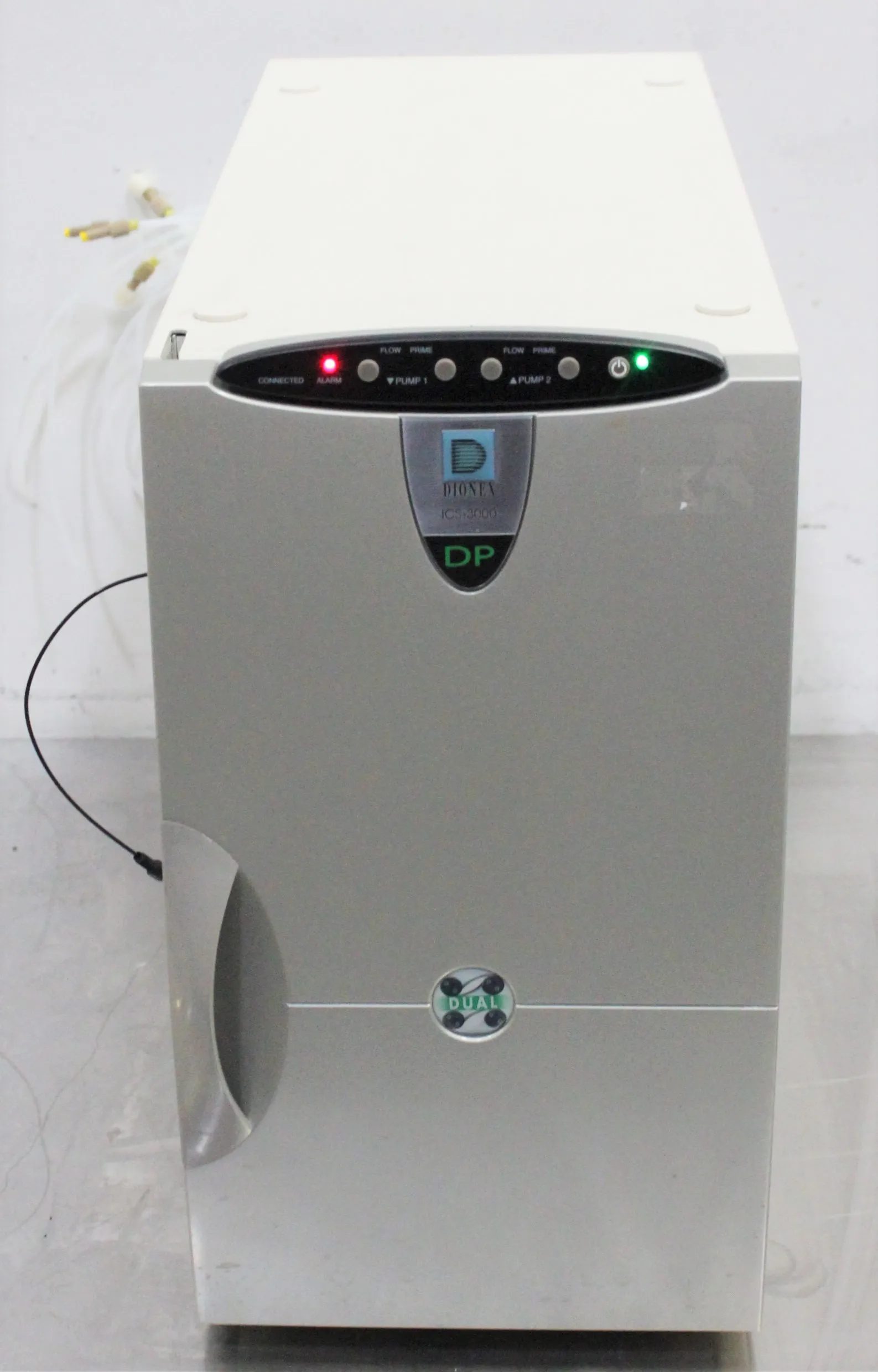

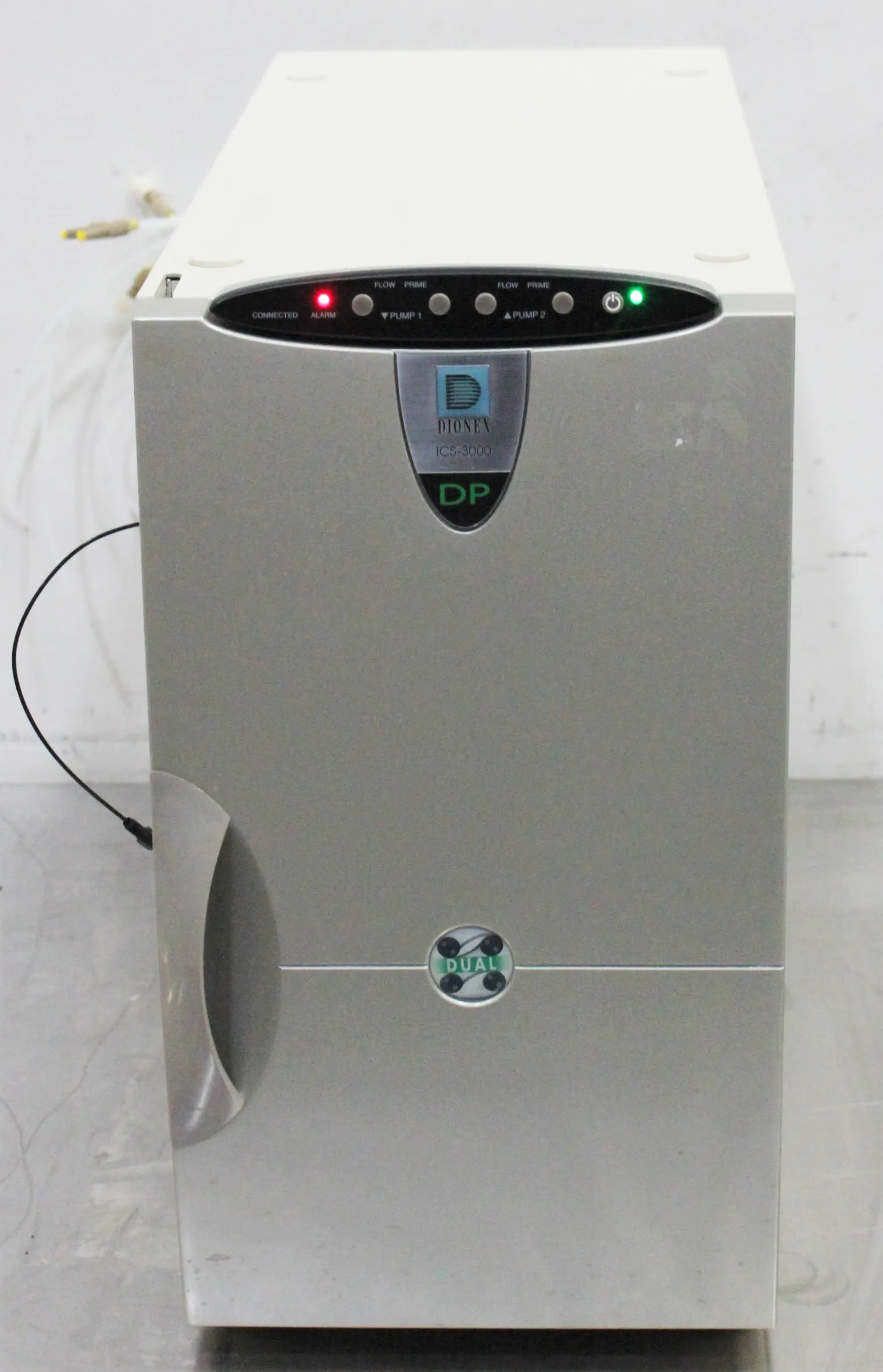

Meet the Dionex Pump ICS-3000 DP-1, the dual piston pump designed for the ion chromatograph ICS-3000. The flow rate ranges from 0.001 to 10,000 mL/min, ideal for various laboratory applications. This pump features a key panel and multiple interfaces including 4x USB and 1x parallel. Step into the world of precision with this pump's manufacture specifications, including a dual-piston design with a variable speed of 80 L per revolution and an operating pressure of 0.1 to 35 MPa (15 to 5000 psi). Perfect for laboratories seeking accuracy, this pump boasts a flow rate accuracy of + 0.1% at 1.0 mL/min. The high pressure limit ranges from 0 to 35 (0 to 5000 psi) while the low pressure limit goes from 0 to 34 MPa (0 to 4900 psi).

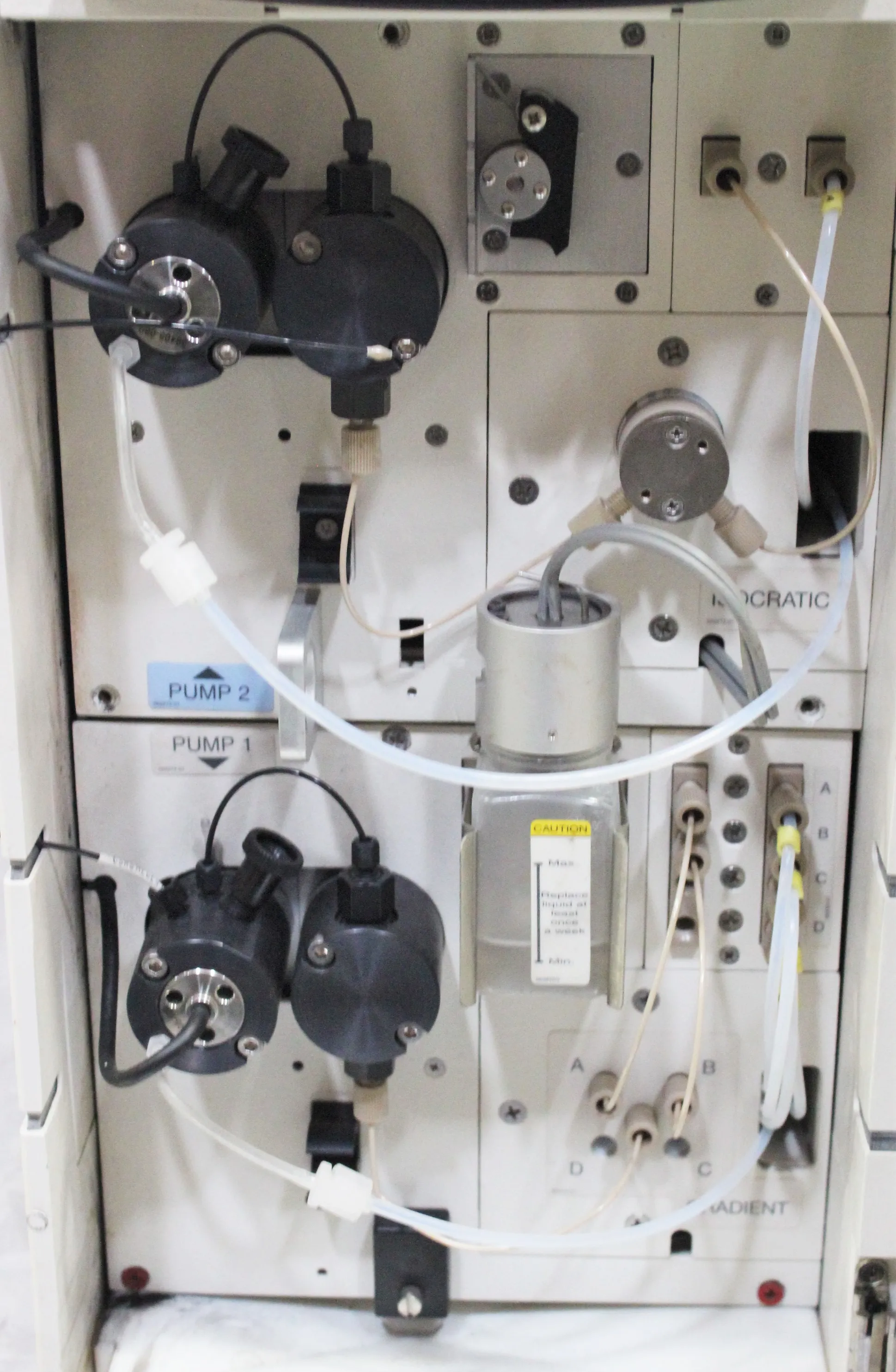

• Dual-piston design for enhanced precision
• Wide flow rate range from 0.001 to 10,000 mL/min
• High pressure and low pressure limits for flexible usage
• Key panel and multiple interfaces for user-friendly operation

• Pump: Dual-Piston(in series), variable speed, 80 L per revolution
• Flow Rate Range: 0.001 to 10.0 mL/min in increments of 0.001 mL/min
• Flow Rate Accuracy: ± 0.1% at 1.0 mL/min (typical)
• Operating Pressure: 0.1 to 35 MPa (15 to 5000 psi)
• Pressure Ripple: 1%
• Number of Eluents: One
• High Pressure Limit: 0 to 35 (0 to 5000 psi) in increments of 0.1 MPa (14psi)
• Low Pressure Limit: 0 to 34 MPa (0 to 4900 psi) in increments of 0.1 MPa (14 psi)

Metric: 29.48 kg
Imperial: 65.0 lbs

Metric: 22.0 cm x 9.0 cm x 16.0 cm
Imperial: 8.66 in x 3.54 in x 6.3 in

9027.50.1100

9027.50.1100 - Chromatographs and electrophoresis instruments; nesoi
