Thermo Fisher Diode Array Detector HL - Used Lab Equipment

Product Information

If you're searching for a reliable and versatile detector for your chromatography setup, look no further than the Thermo Fisher Diode Array Detector HL! This industry-leading detector boasts exceptional linearity, reduced refractive index interferences, and thermal effects for more reliable peak integration. With up to 10 absorption channels, one spectral field, and a data acquisition rate of 250 Hz, this detector provides unparalleled support for ultrafast separations. Technical jargon aside, it's basically your laboratory superhero, delivering swift, accurate results while ensuring peak performance!

• Up to 10 absorption channels and one spectral field for ultrafast separations
• Data acquisition rate of up to 250 Hz
• Outstanding linearity with reduced refractive index and thermal effects
• Easy-to-use with intuitive interaction and convenient flow cell and lamp usage tracking

• Type: Single-Beam, Reverse-Optics Design with Concave Holographic Grating
• Data Collection Rate: Max. 200 Hz (including 3D acquisition) under Chromeleon Chromatography Data System 7.2 SR1 control or higher
• GLP Features: Predictive performance functions, all system parameters logged in the Chromeleon CDS Audit Trail
• Drift: < 0.5 mAU/hour (at 230 nm)
• Noise: < 3 AU at 230nm (standard flow cell, bandwidth: 4nm, slit width: 4nm; time constant: 2s)
• Flow Cell Volume: Standard, LightPipe flow cell, 10mm; High Sensitivity, Light Pipe flow cell, 60mm; LightPipe diagnostic cell
• No. of Channels: 10 + 3D field
• Wavelength Accuracy: 1 nm
• Wavelength Range: 190-680 nm
• Lamp: Deuterium lamp
• Linearity: < 5% at 2.0 AU (typically < 5% at 2.5 AU)
• Weight: 17kg (37.5 lbs)
• Dimensions: 160mm x 420mm x 620mm (6.3 in. x 16.5 in. x 24.4 in.)

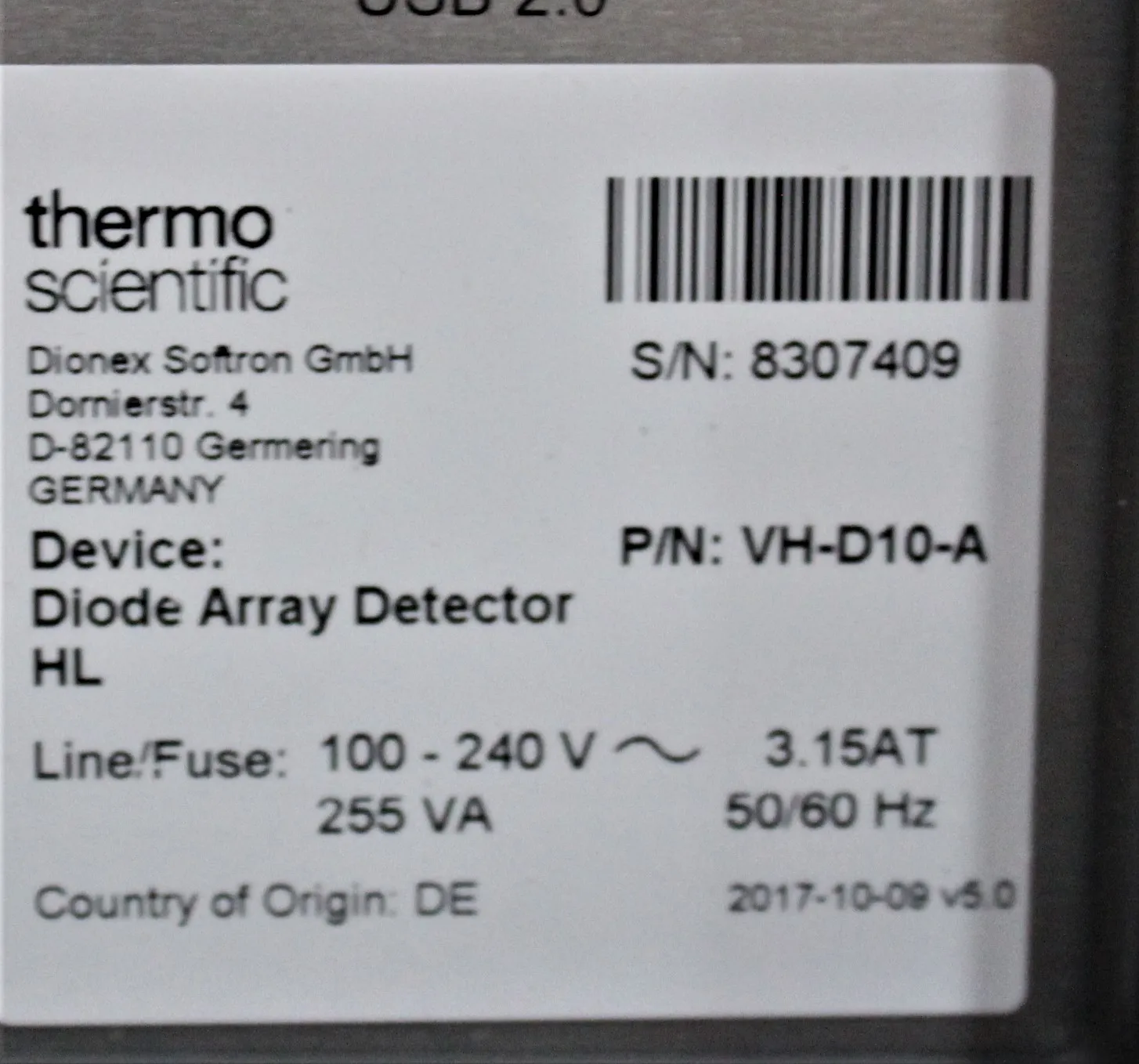

• Electrical Requirements: 100-240 V AC, 50/60 Hz, max. 150 W/255 VA

Metric: 17 kg
Imperial: 37.5 lbs

Metric: 620 cm x 420 cm x 160 cm
Imperial: 24.4 in x 16.5 in x 6.3 in

9027300000

The Thermo Fisher Diode Array Detector HL falls under this harmonized code, which is for spectrometers; such as, but not limited to, mass or gas spectrometers, and chromatographs. This code is apt based on the detector's function and specifications.
