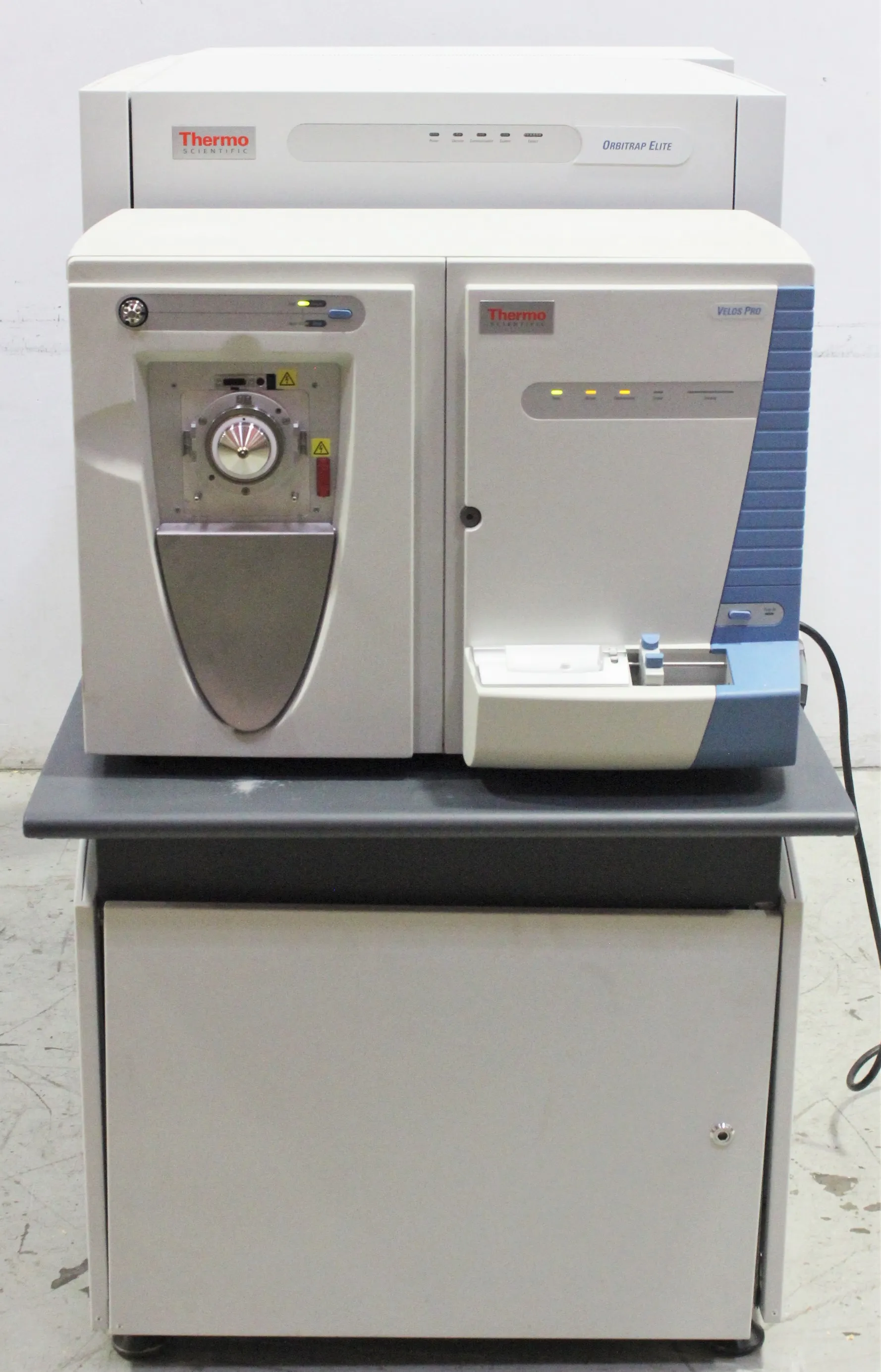

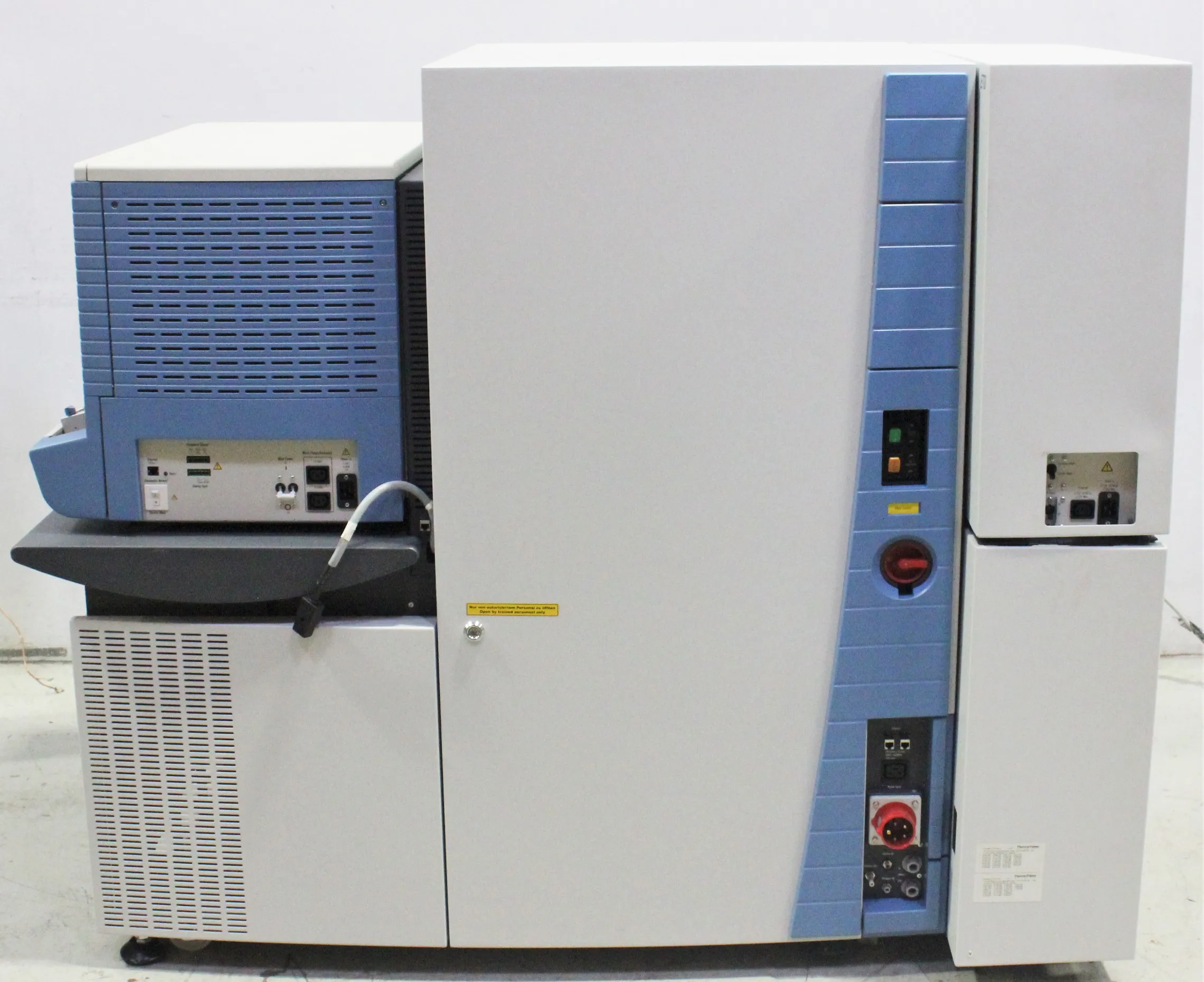

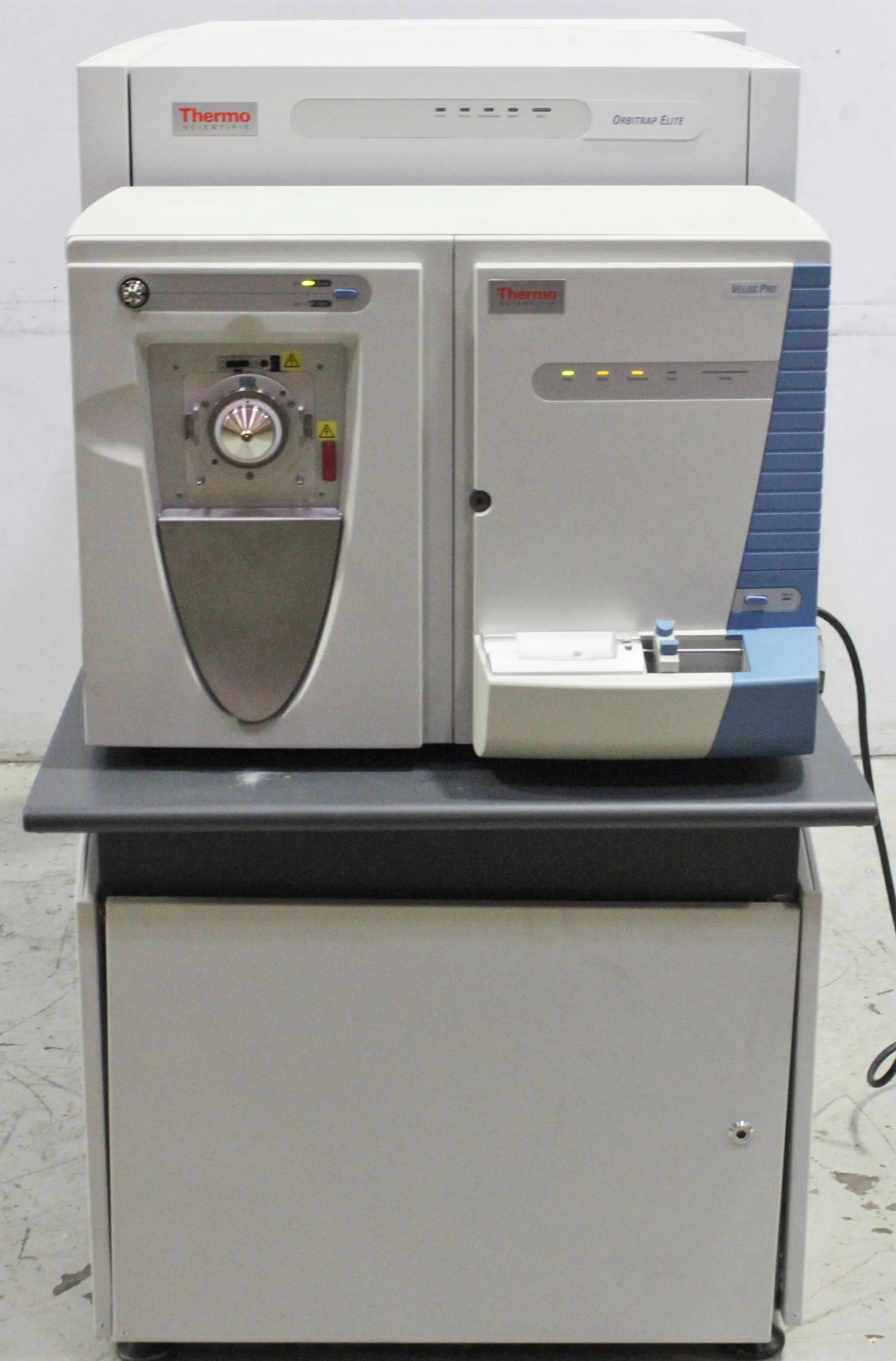

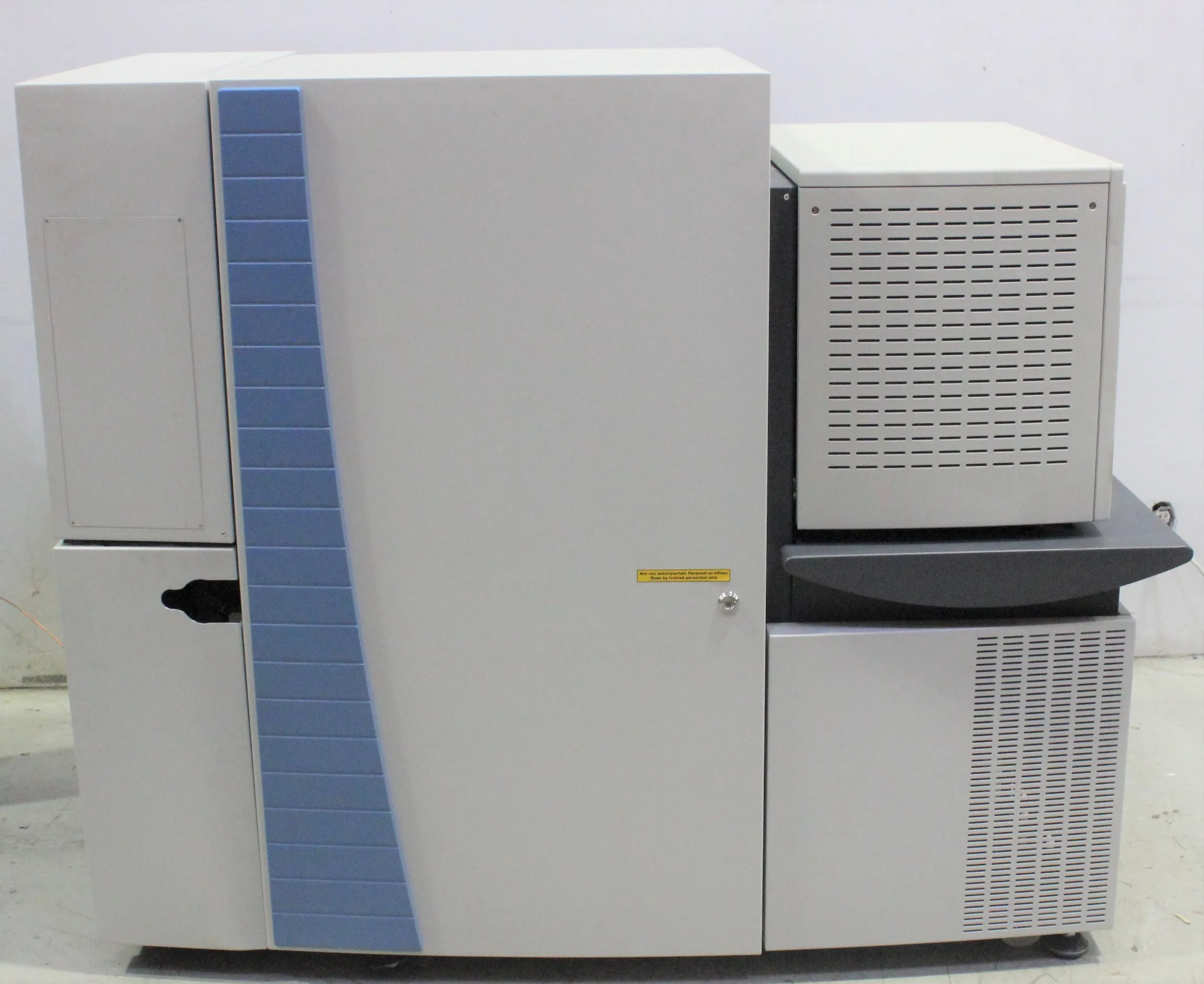

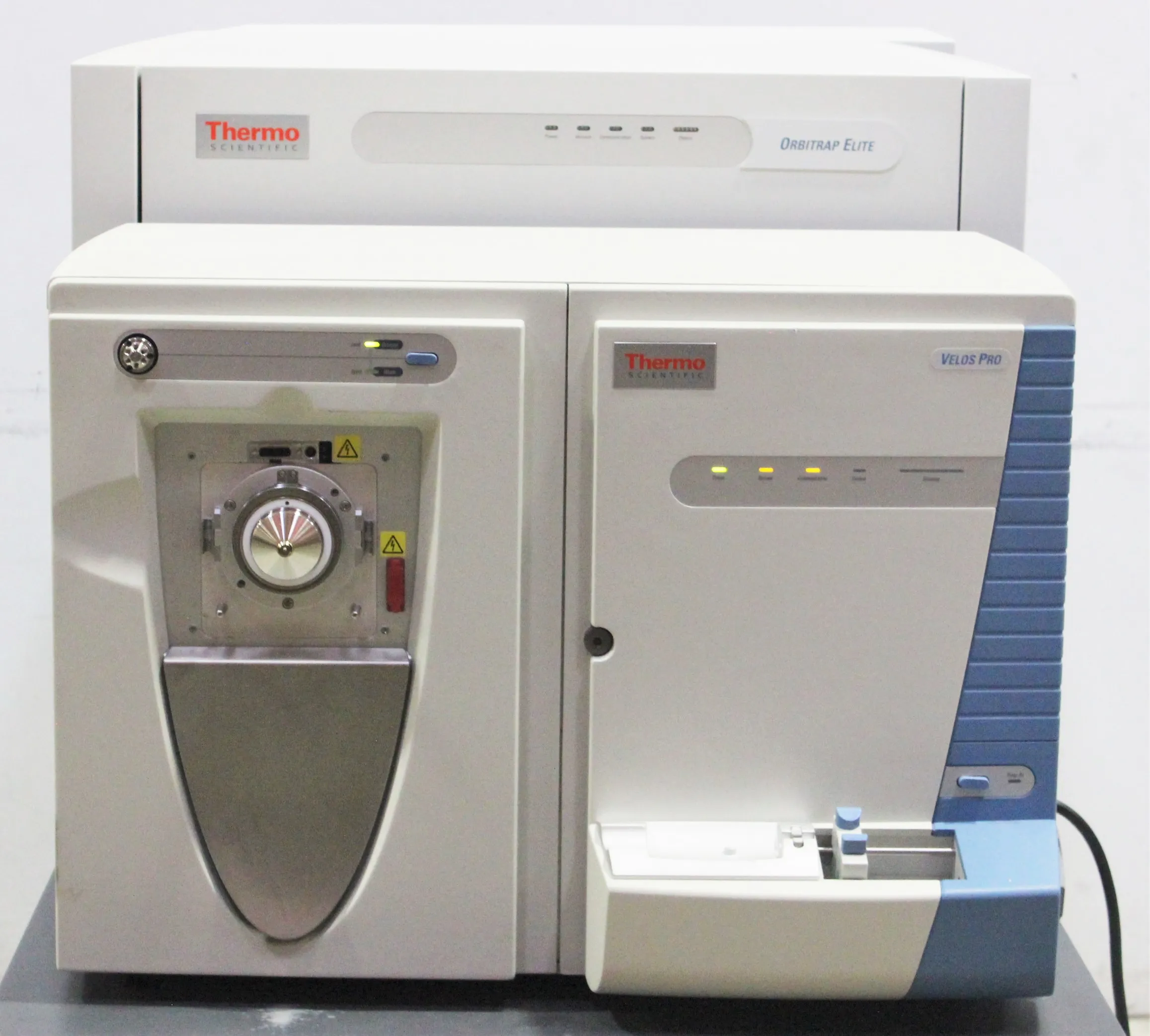

Thermo Fisher Orbitrap Elite & LTQ Velos PRO Mass Spectrometer

Product Information

Behold the Thermo Fisher Orbitrap Elite & LTQ Velos PRO, a groundbreaking hybrid mass spectrometer designed to push the boundaries of analytical chemistry. Harnessing the innovative high-field Orbitrap analyzer alongside the cutting-edge dual-pressure linear ion trap, this system boasts enhanced speed, sensitivity, and ultrahigh resolution to delve into the depths of your samples. This extraordinary resolution empowers the accurate determination of intact protein molecular weights and thorough analysis of isobaric species in complex, low-abundance samples - ideal for proteomics, metabolomics, and lipidomics applications. Experience the future of mass spectrometry with the unparalleled depth and certainty offered by the Thermo Fisher Orbitrap Elite & LTQ Velos PRO.

• High-field Orbitrap analyzer
• Dual-pressure linear ion trap
• Enhanced speed and sensitivity
• Ultrahigh resolution for accurate molecular weight determination
• Ideal for proteomics, metabolomics, and lipidomics applications

• Mass Range: m/z 50-2000, m/z 200-4000
• Resolution: 60,000 at m/z 400 at a scan rate of 1 Hz, minimum resolution 7,500, maximum resolution >100,000 at m/z 400
• Mass Accuracy: < 3 ppm with external calibration, < 1 ppm using internal calibration
• MS/MS: Electrospray Ionization (ESI)
• Sensitivity: -2 L of a 50 fg/L solution of (Ion Trap) reserpine (100 femtograms total) injected at a ow of 500 L/min will produce a minimum signal-to-noise ratio of 100:1
• Dynamic Range: >5,000 within a single scan guaranteeing specied mass accuracy
• MS Scan Power: MS n , for n = 1 through 10
• ETD: 3 L/min infusion of a 1 pmol/L solution of Angiotensin I will produce an electron transfer dissociation fragmentation efciency of >15%
• Analog Inputs: One (1) analog input (0-1 V), One (1) analog (0-10 V)

Metric: 599.2 kg
Imperial: 1322 lbs

Metric: 56 cm x 34 cm x 56 cm
Imperial: 22 in x 13 in x 22 in

9027200000

9027200000 - Instruments and apparatus for physical or chemical analysis (including spectrometers) - Other instruments and apparatus
