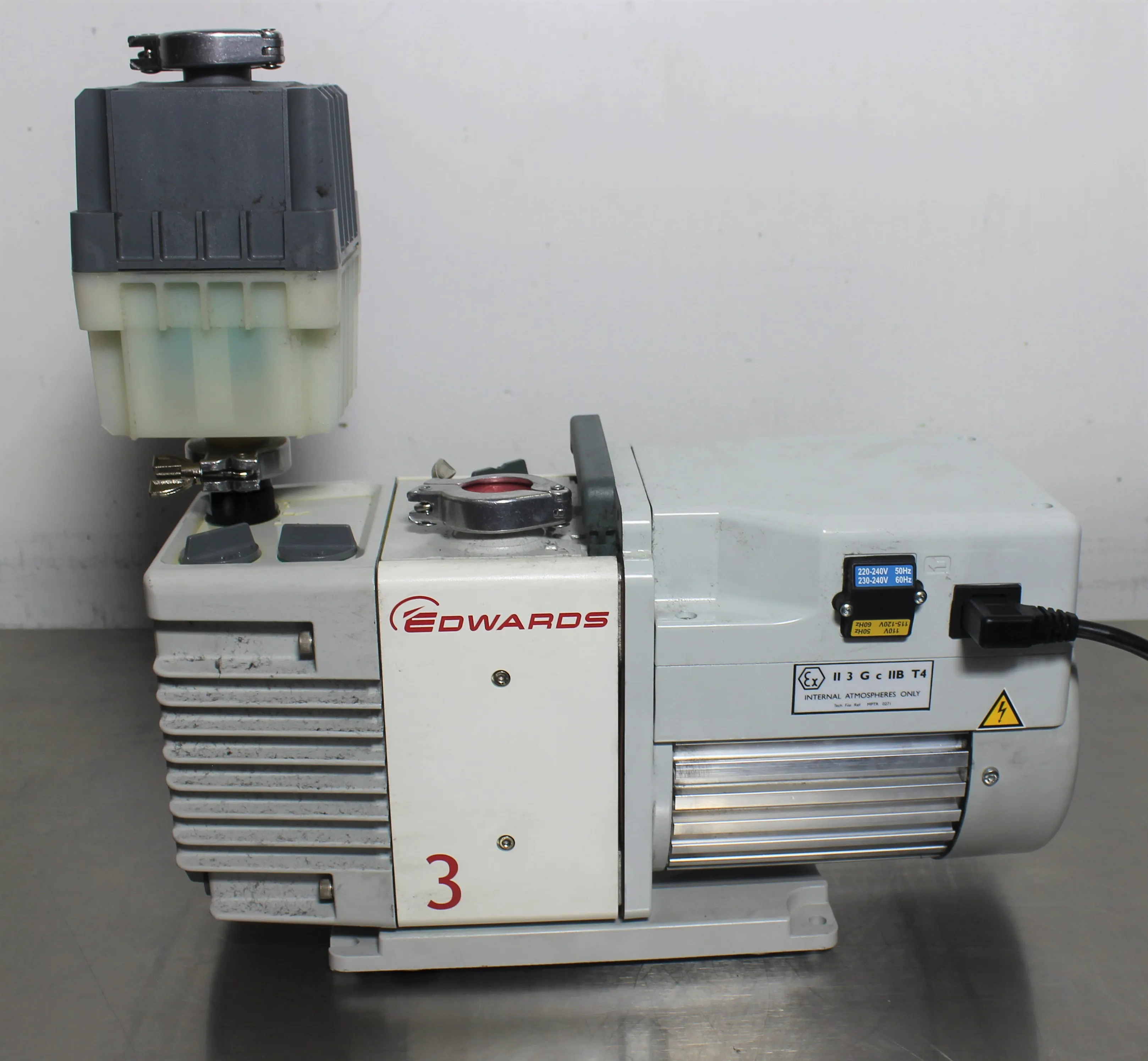

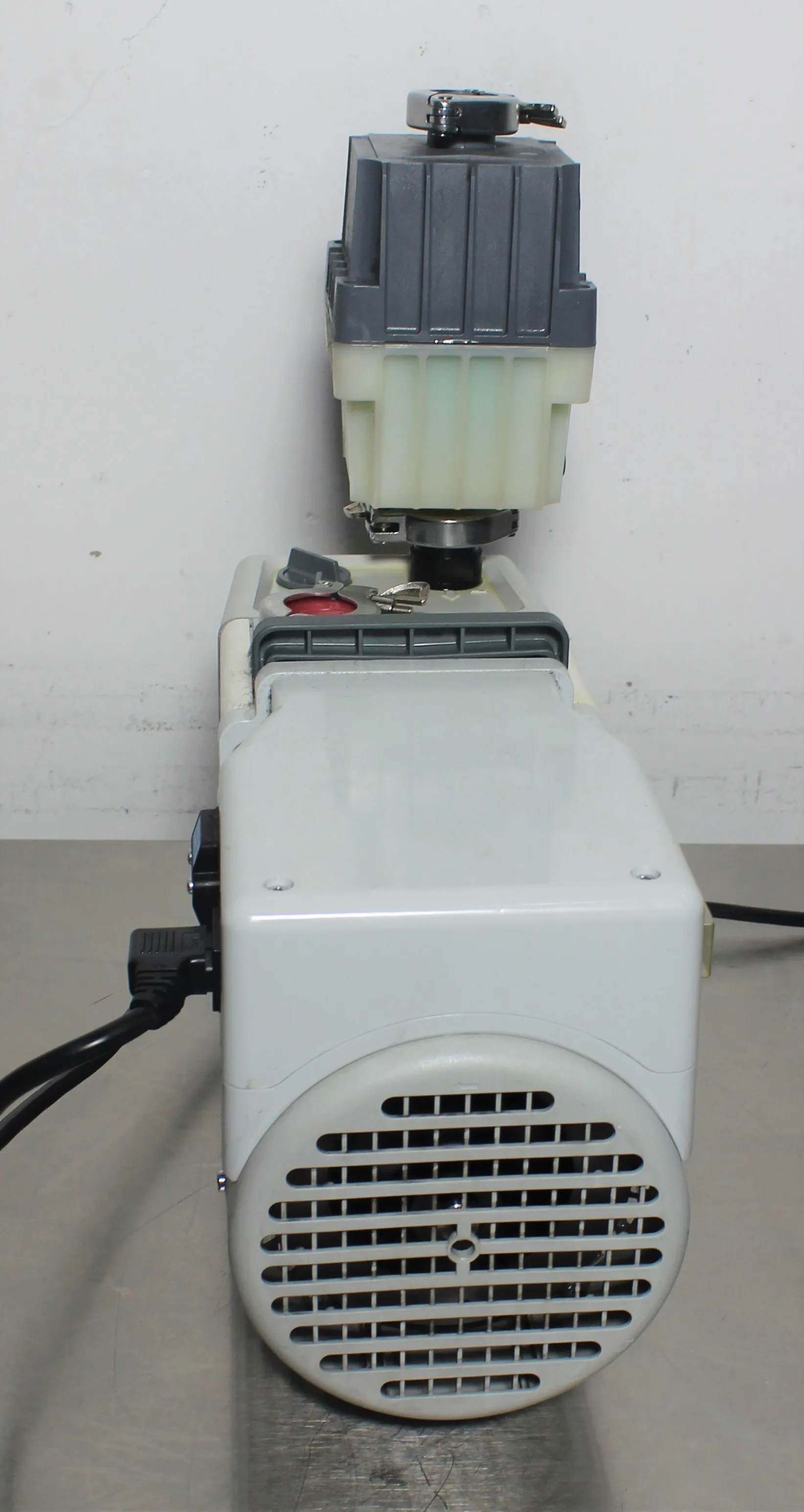

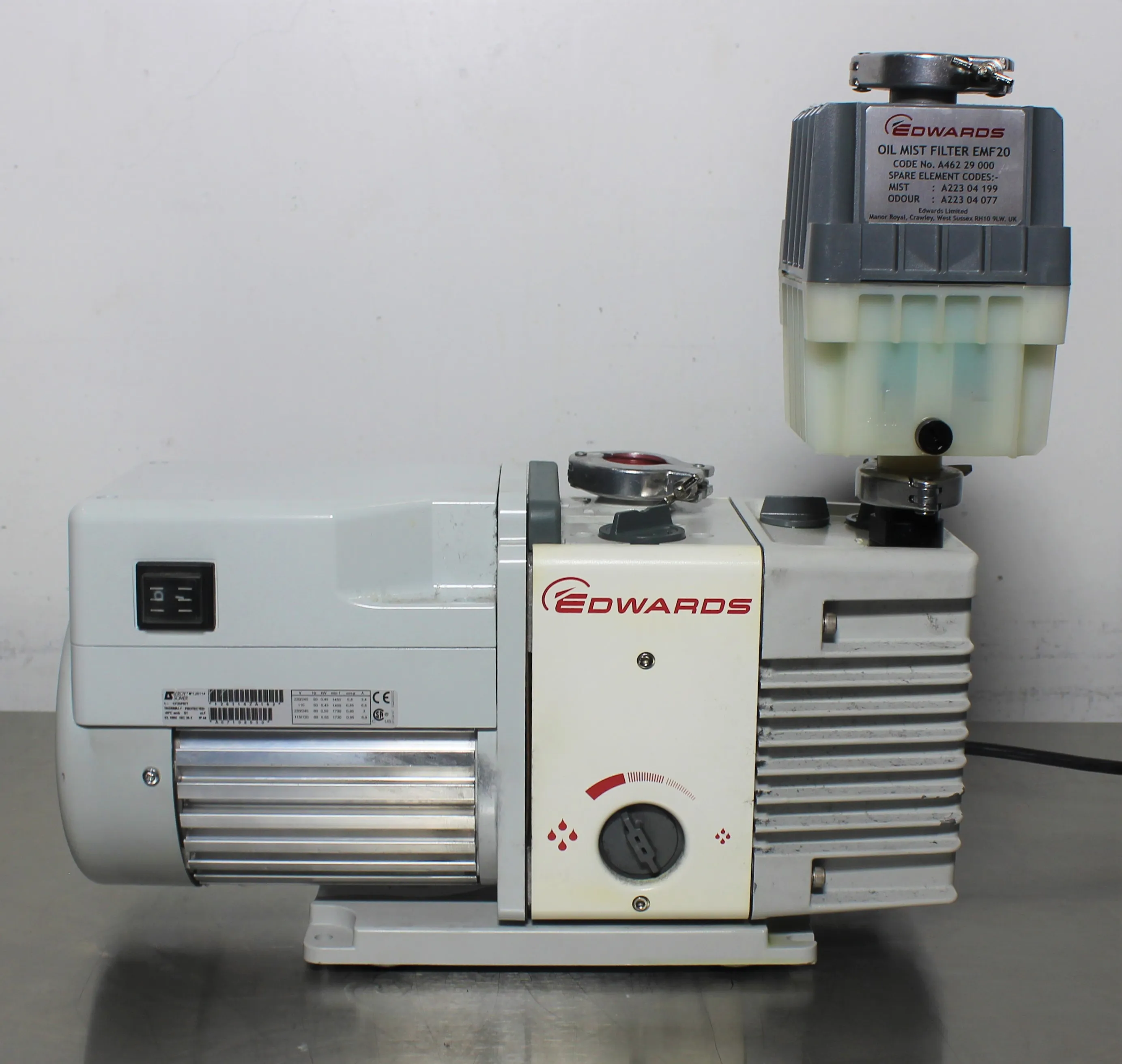

Edwards RV3 Vacuum Pump

Product Information

The Edwards RV3 Vacuum Pump is a powerful and versatile piece of equipment designed to cater to a wide range of laboratory environments. This robust pump boasts unique dual-mode operation to handle very high gas loads without compromising vacuum quality, quiet operation at 48 dBA, and easy reconfiguration, even while the pump is running. The Edwards RV3 Vacuum Pump is perfectly suited for centrifugal concentrators, rotary evaporators, freeze dryers, gel dryers, vacuum ovens, and general-purpose laboratory requirements.

• Dual-mode operation for high gas load handling
• Quiet operation at 48 dBA
• Easily reconfigurable even when running
• Fast-acting inlet valve to prevent oil and gas suckback

• Maximum Pressure: 1.5 x 10-3mbar
• Horsepower: 0.5 hp
• Electrical Requirements: 115 V 50/60 Hz
• Noise Level: 48 dB (A)
• Weight (Metric): 21.6 kg
• Temperature (Metric) Max: 40°C
• Flow Rate: 76 L/min.
• Overall Height (English): 9 in.
• Overall Length (English): 17 in.
• Overall Width (English): 6.25 in.
• Voltage: 115 V
• Includes: Pump, 2m electrical supply cable, inlet screen and Ultragrade 19 Oil, lifting bracket

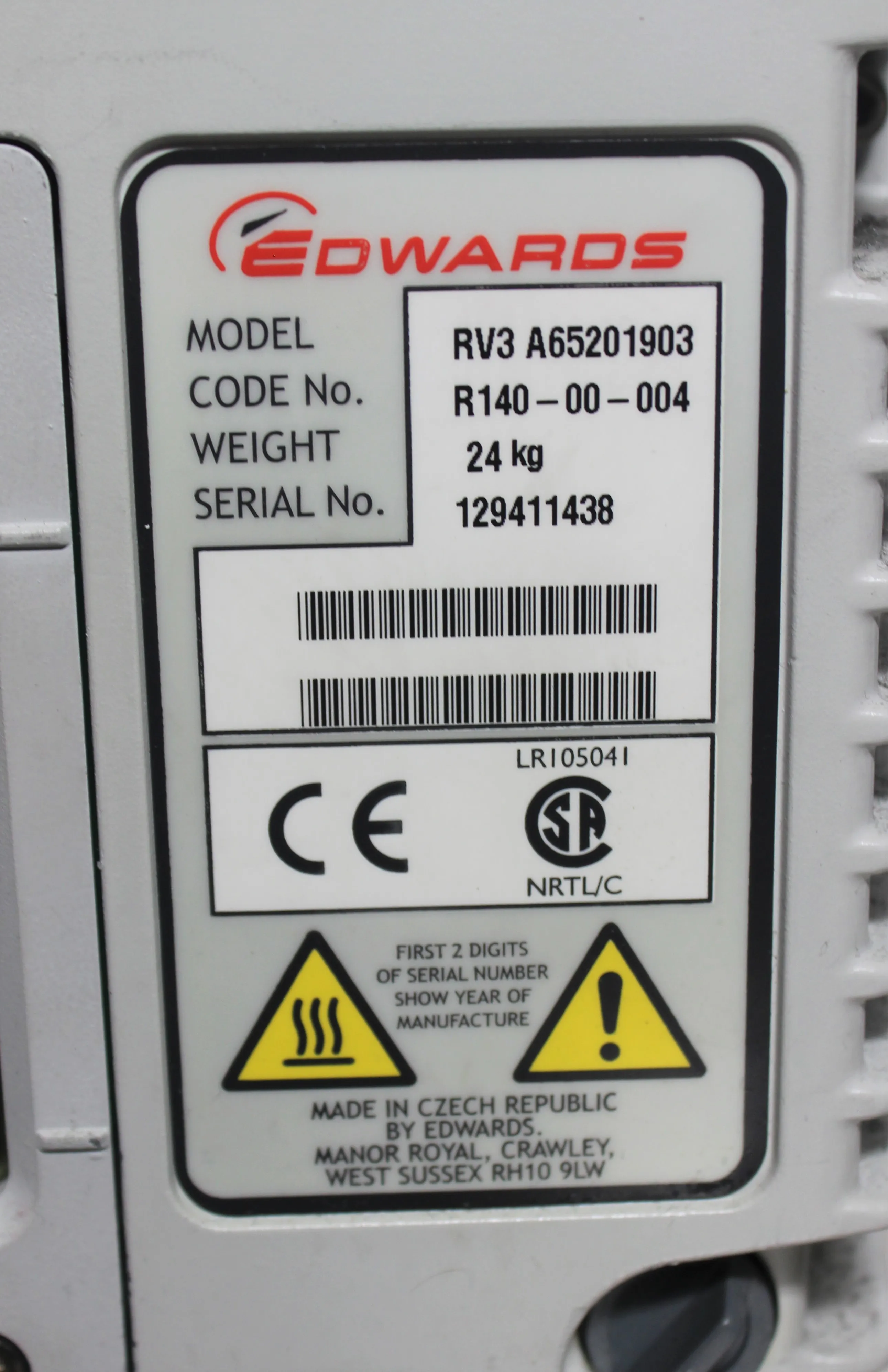

• Model: RV3
• Weight (English): 47.61 lb.
• Temperature (English) Max.: 104F
• Temperature (Metric) Min.: 12C

Metric: 21.6 kg
Imperial: 47.61 lbs

Metric: 45.72 cm x 15.88 cm x 22.86 cm
Imperial: 18 in x 6.25 in x 9 in

841410

Vacuum pumps; liquid ring vacuum pumps
