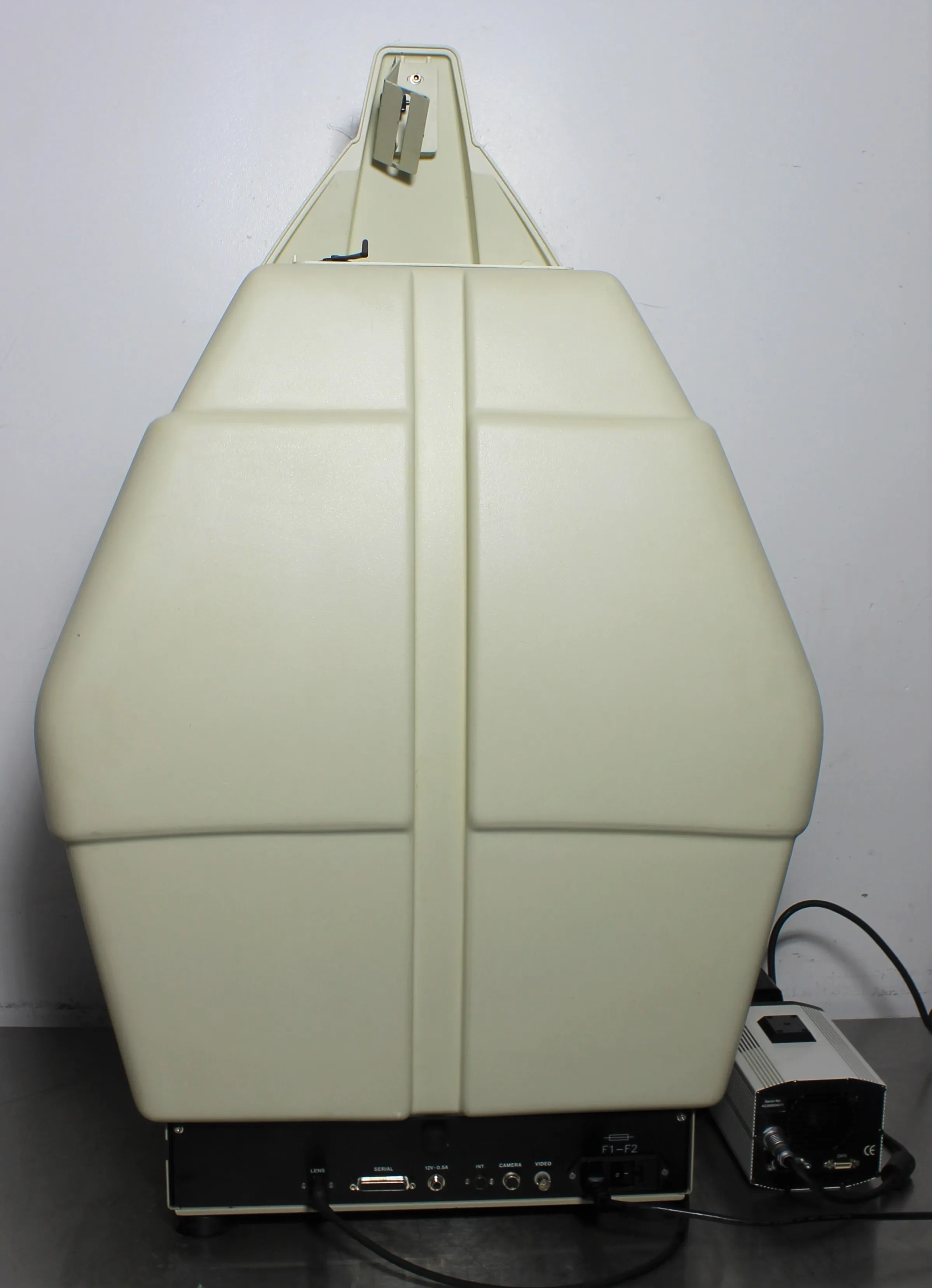

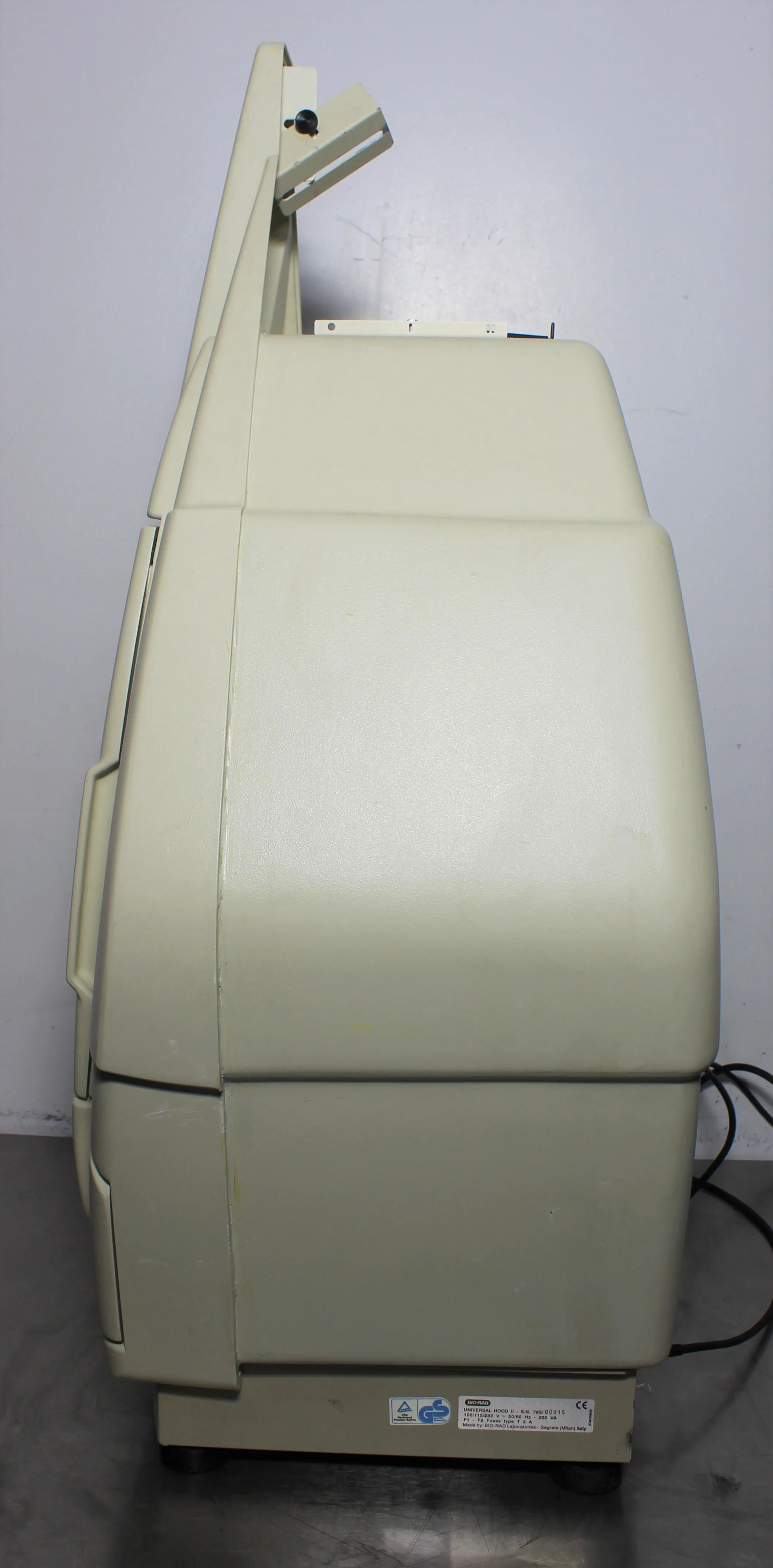

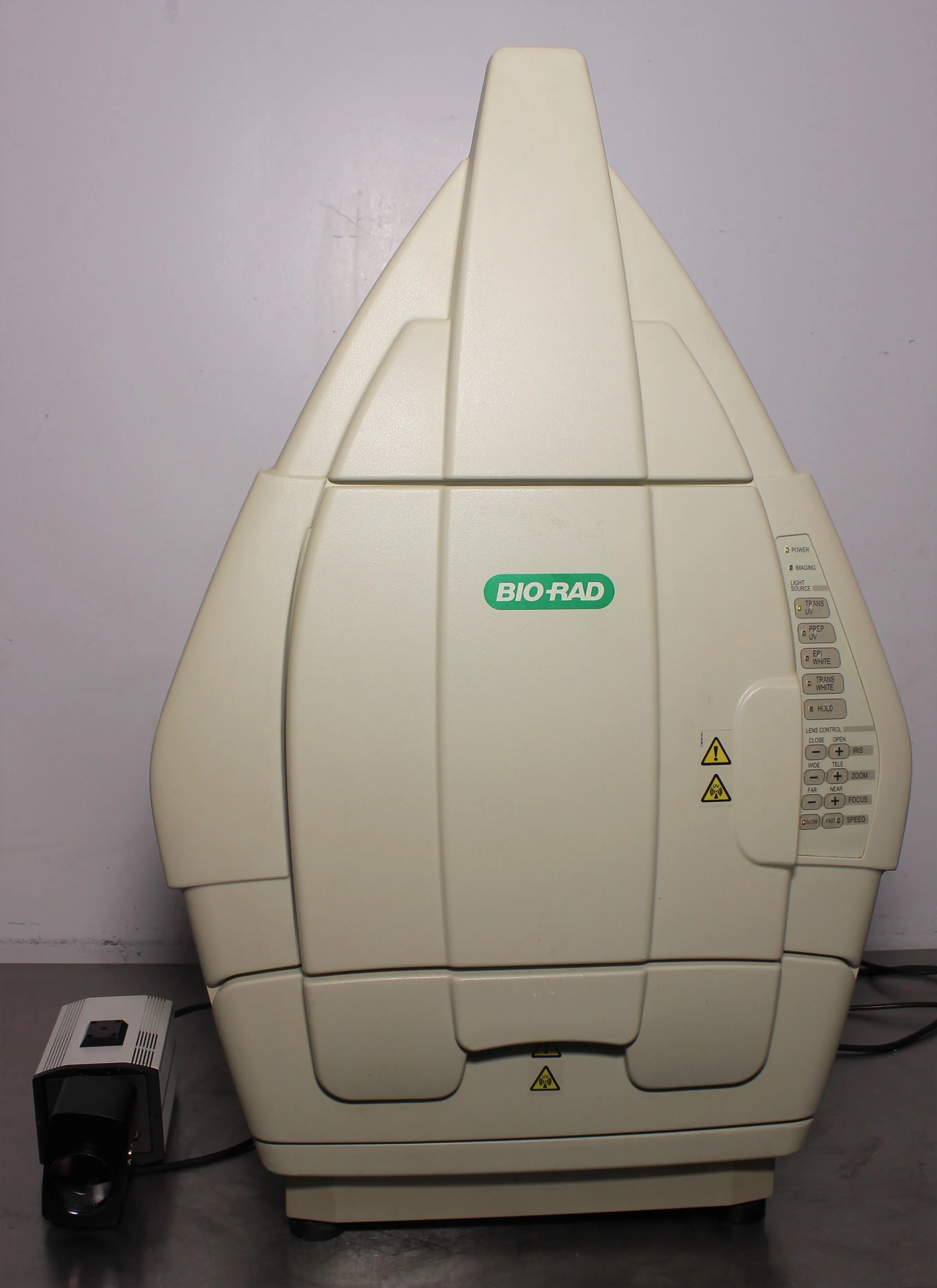

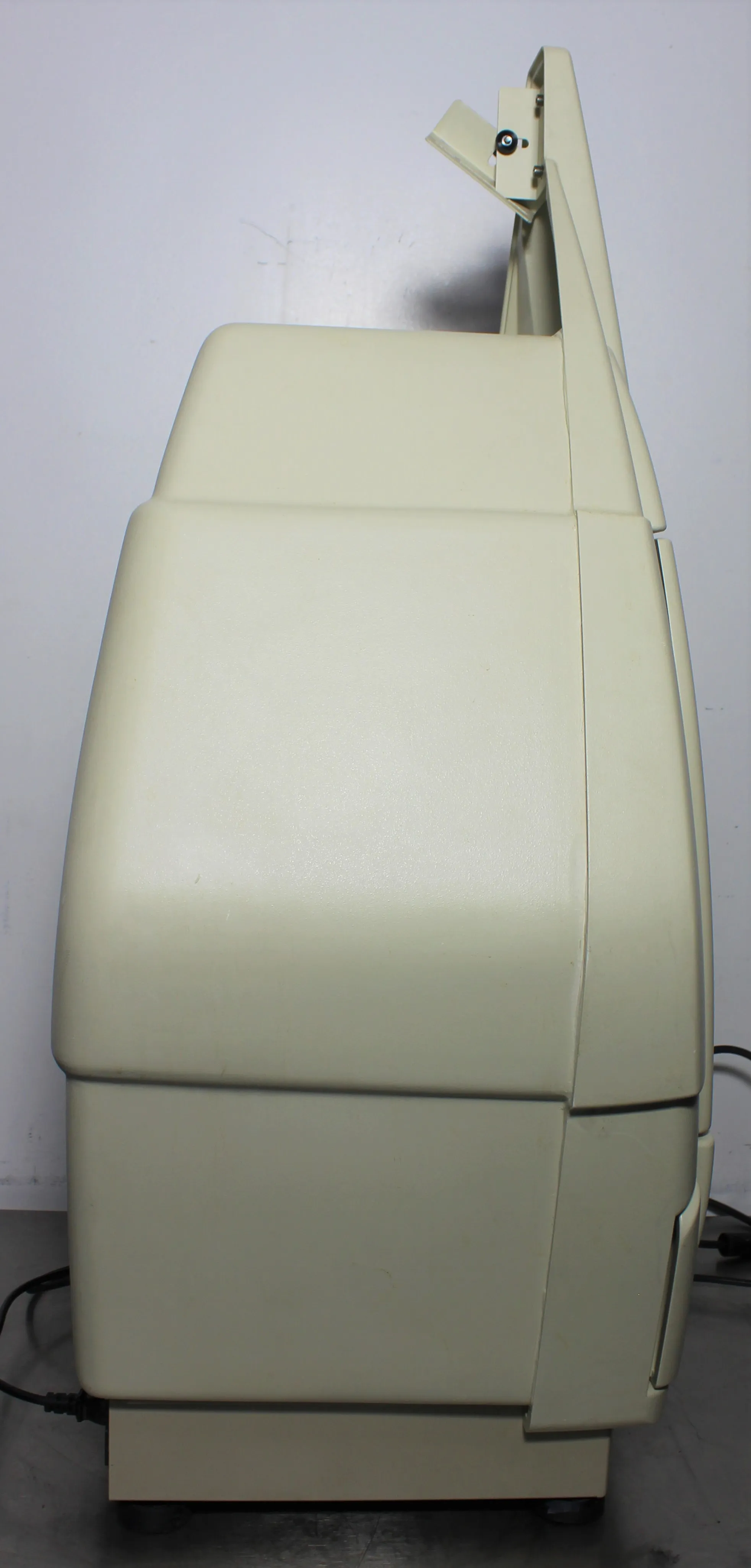

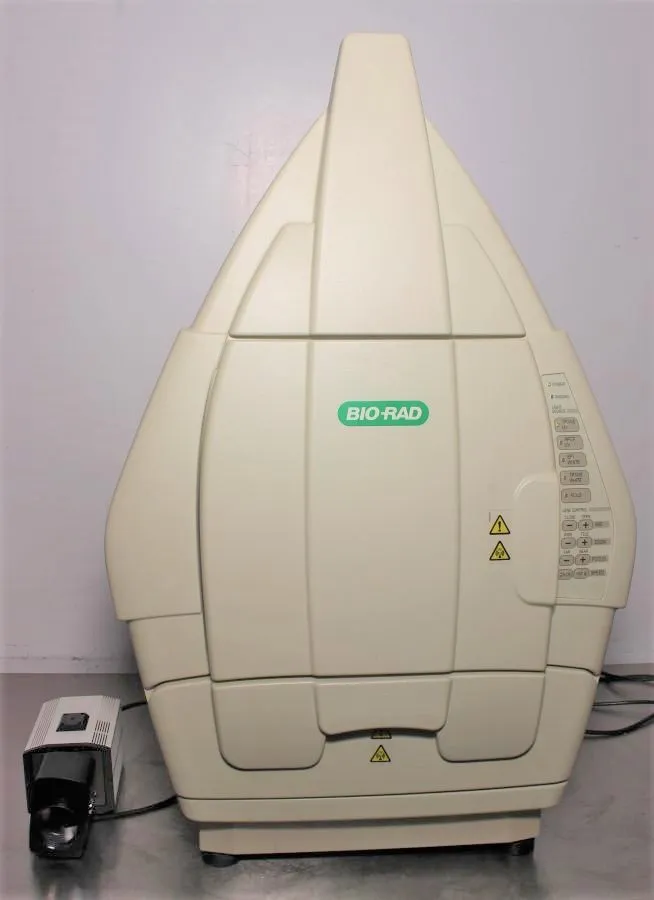

Biorad Gel Doc EQ System w/ Universal Hood II

Product Information

The Biorad Gel Doc EQ System w/ Universal Hood II is an easy-to-use, high-performance system that captures images in real time, allowing for accurate positioning and focusing on the sample. This powerful Gel Doc system features a compact darkroom, UV-transilluminator workstation, CCD camera, motorized zoom lens, and user-friendly Quantity One software, supporting documentation and quantitation of gels stained with ethidium bromide and other fluorophores. The Biorad intuitive software facilitates rapid optimization, annotation, analysis, and printing of the acquired images. The powerful system is designed to effortlessly handle sample sizes of up to 28 x 36 cm and an excitation source that includes Trans UV 302, 254, 365 nm & White, Epi-White light. This makes it perfect for a wide array of laboratory procedures, such as capturing DNA gel images, protein analysis, and much more. The system is a testimony to the quality, reliability, and precision that Biorad has become known for in the scientific community. Used by leading researchers and labs, this system is well-suited for applications such as life science research, biotechnology, molecular biology, and microbiology among others.

• Real-time image capturing

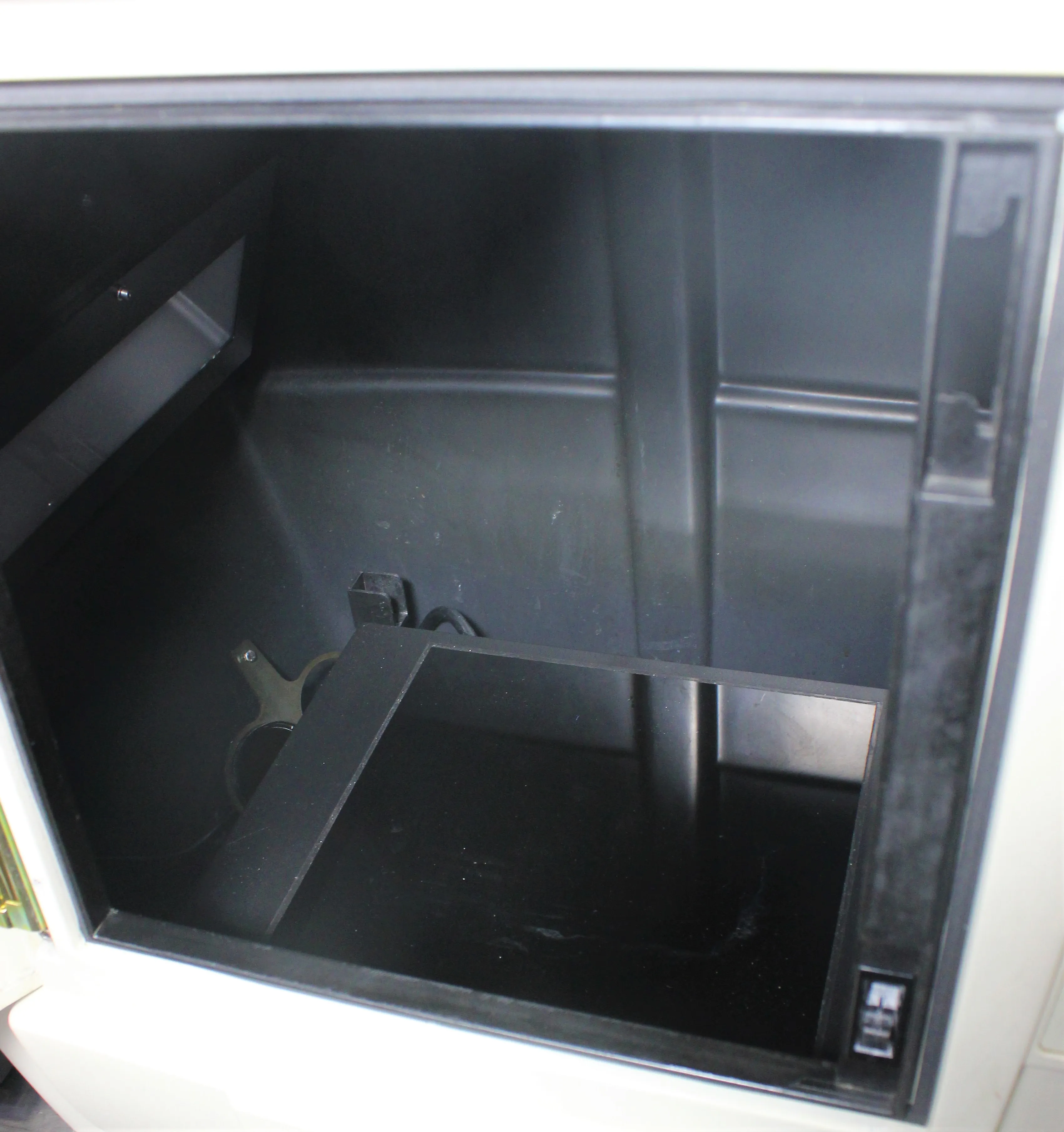

• High-performance darkroom and workstation
• Motorized zoom lens
• Compatible with Quantity One software
• Supports imaging of gels stained with various fluorophores
• User-friendly interface for rapid image optimization and analysis

• Maximum Sample Size: 28 x 36 cm
• Excitation Source: Trans UV 302, 254, 365 nm & White, Epi-White light
• Illumination Control: 3 modes (trans-UV, trans white, epi-white)

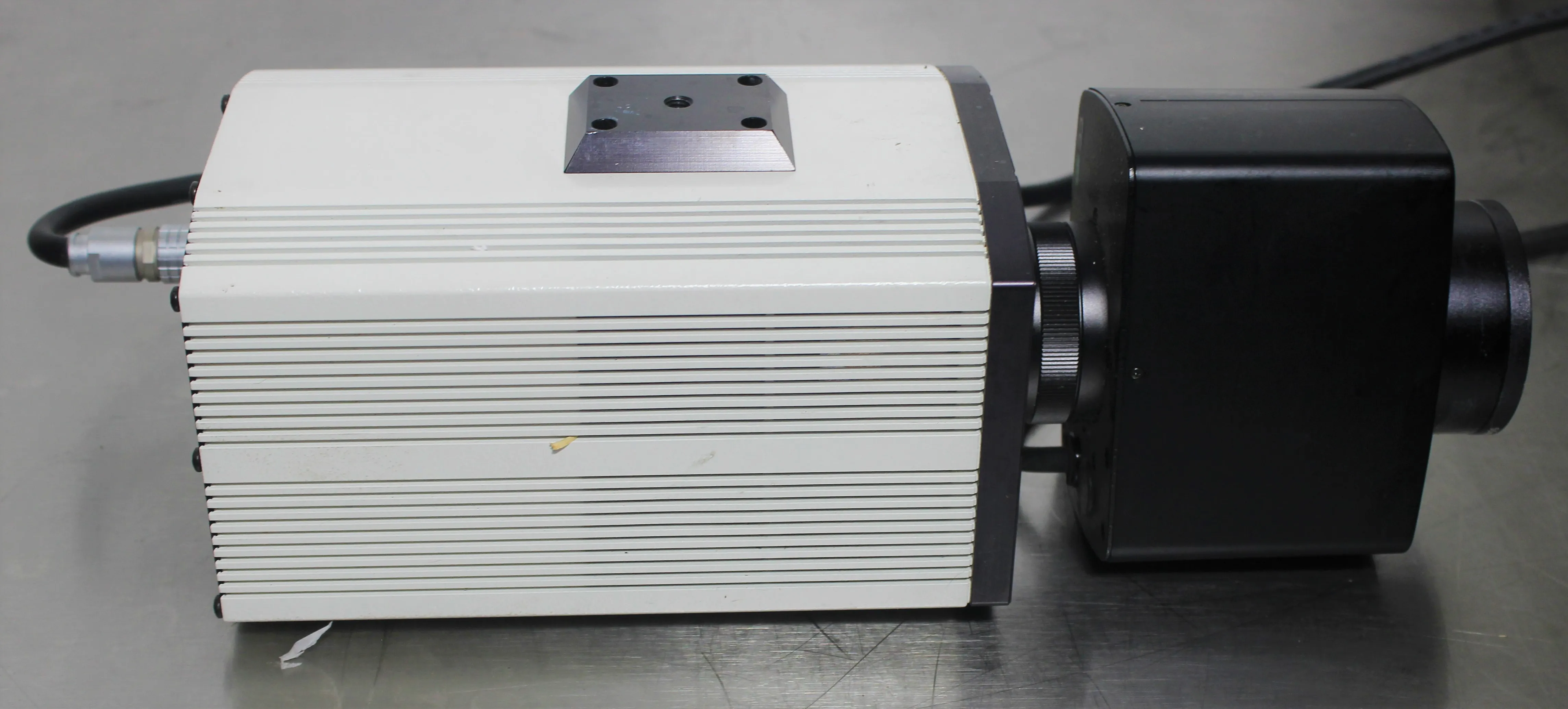

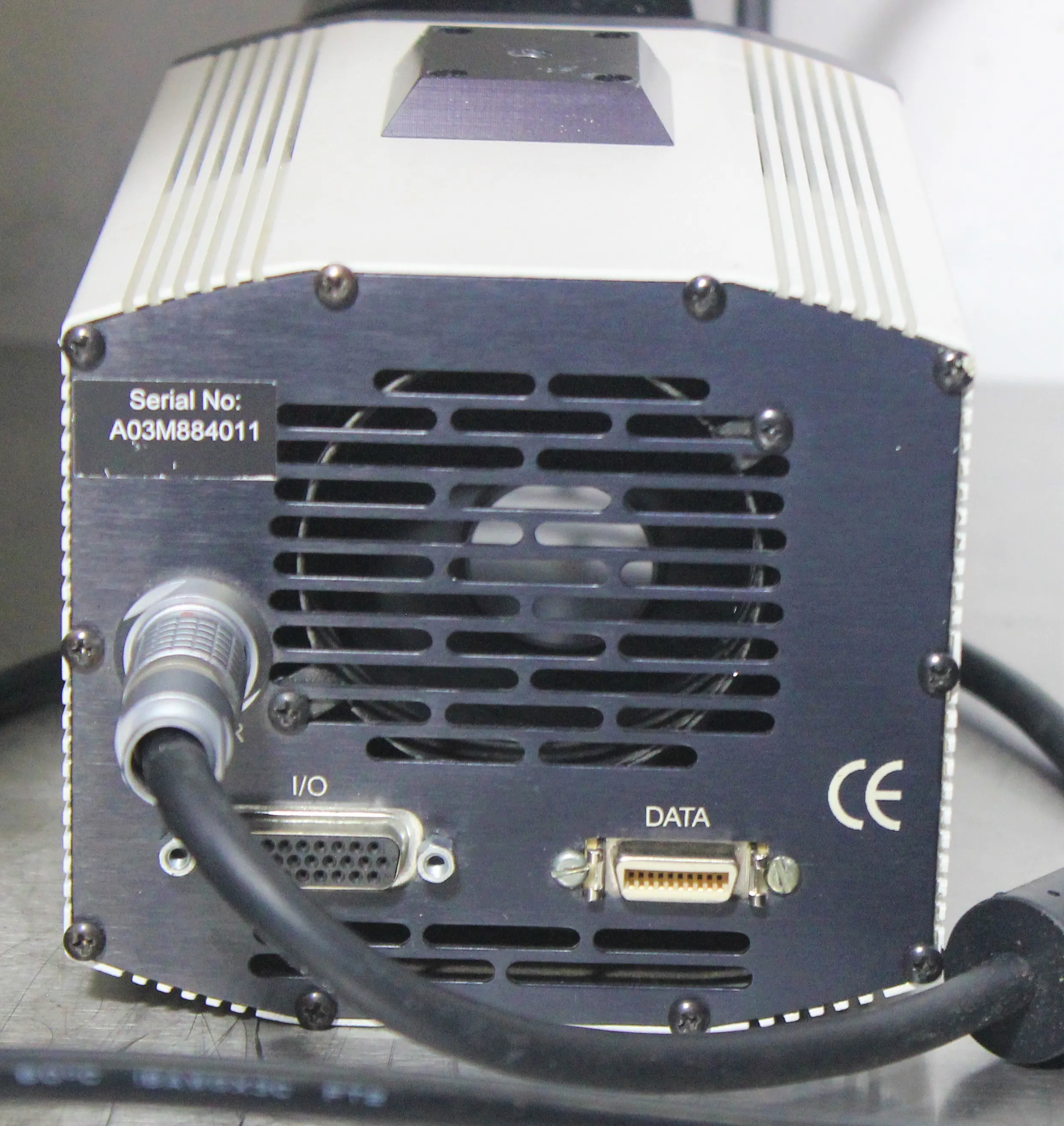

• CCD Detector: CCD, 768 x 494 RS-170, 752 x 582 CCIR
• Pixel Size: 8.4 x 9.8 microns (H x V)
• Emission Filters: 1 included (amber), 4 optional
• Dynamic Range: 1.8 Orders
• Pixel Density (Gray Levels): 8 bit (256 gray levels)

Metric: 38.555 kg
Imperial: 85.0 lbs

Metric: 30.0 cm x 40.0 cm x 58.0 cm
Imperial: 11.811 in x 15.748 in x 22.835 in

901780

This category includes laboratory equipment such as microscopes, telescopes, and parallel optical microscopes. The Biorad Gel Doc EQ System w/ Universal Hood II falls under this classification due to its imaging system capabilities and components.
