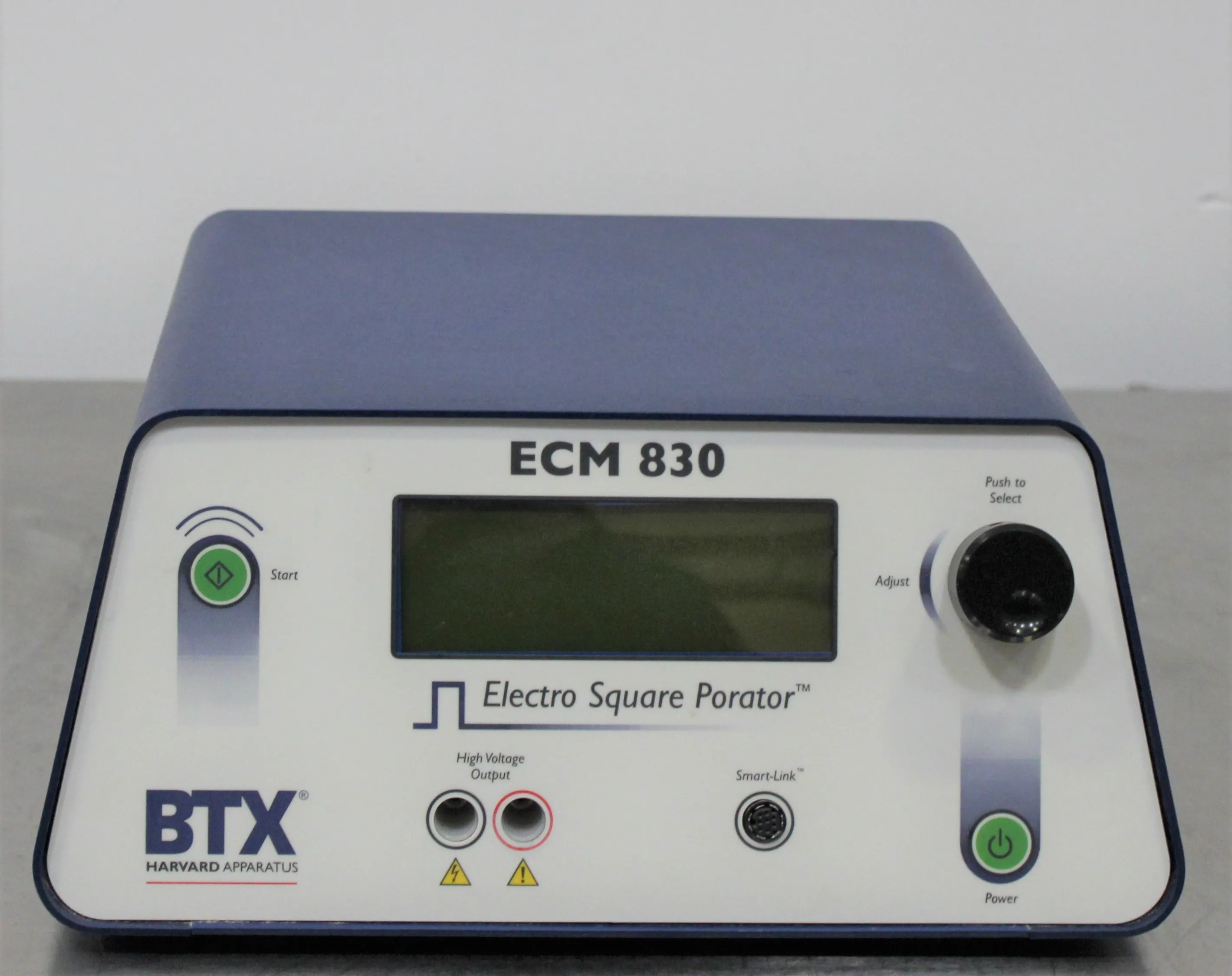

BTX ECM 830 Electroporation Controller

Product Information

Introducing the BTX ECM 830, an invaluable tool for genetic, drug, and protein delivery applications in various areas of research and experimentation. This piece of equipment is a square wave pulse generator designed for in vitro and in vivo applications. It can be utilized for activities such as nuclear transfer, gene delivery to mammalian cells, ex vivo tissue research, embryo manipulation, and more. Partner the ECM 830 with our extensive collection of BTX specialty electrodes and accessories to elevate your molecular and drug delivery experiments to new heights. The ECM 830, with its fresh and efficient design, offers a range of capabilities for modern researchers and experimenters.

• Square wave pulse generator
• Designed for in vitro and in vivo applications
• Can be used in combination with a wide array of BTX specialty electrodes and accessories

• Charge Time: 5 sec maximum (without delay)
• Pulse Length Range: 1 msec to 999 sec LV Mode/ 1 msec resolution
• Multiple Pulsing: 1 to 99
• Pulse Interval: 100 msec to 10 sec
• Programmability: Storage for 3 protocol setups (V,t,n,interval)
• Safety: Generator short circuit proof
• Capacitance: 4000F LV, 111F HV
• Input: 500 A limit at 100s
• Remote Operation: Footswitch available

Metric: 11.34 kg
Imperial: 25 lbs

Metric: 30.48 cm x 33.02 cm x 15.24 cm
Imperial: 12 in x 13 in x 6 in

901920

The chosen harmonized code 901920 refers to Electrocardiographs and Their Parts, which encompasses electrical pulse generators like the BTX ECM 830 used in various applications. This code is suitable due to the device's application in delivering precise electrical pulses in research experiments.
