Dionex ED40-1 Electrochemical Detector HPLC / FPLC / GC / CE Used with 30-Day Warranty
Same item available with different options / conditions
- Make Dionex
- Hertz 50Hz/60Hz
- Model ED40-1

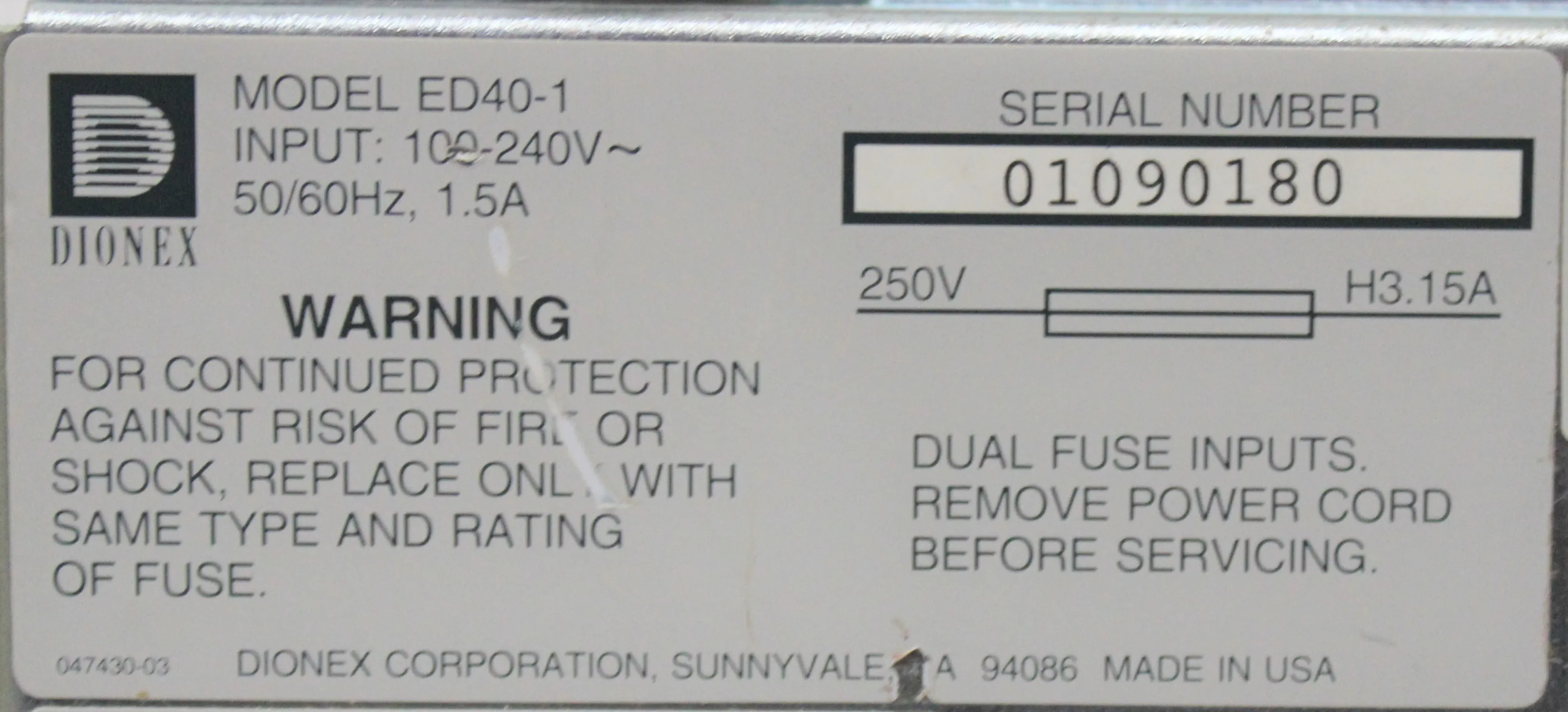

- Serial 01090180
- Weight 28.0 Lb
- Voltage 120V/220V

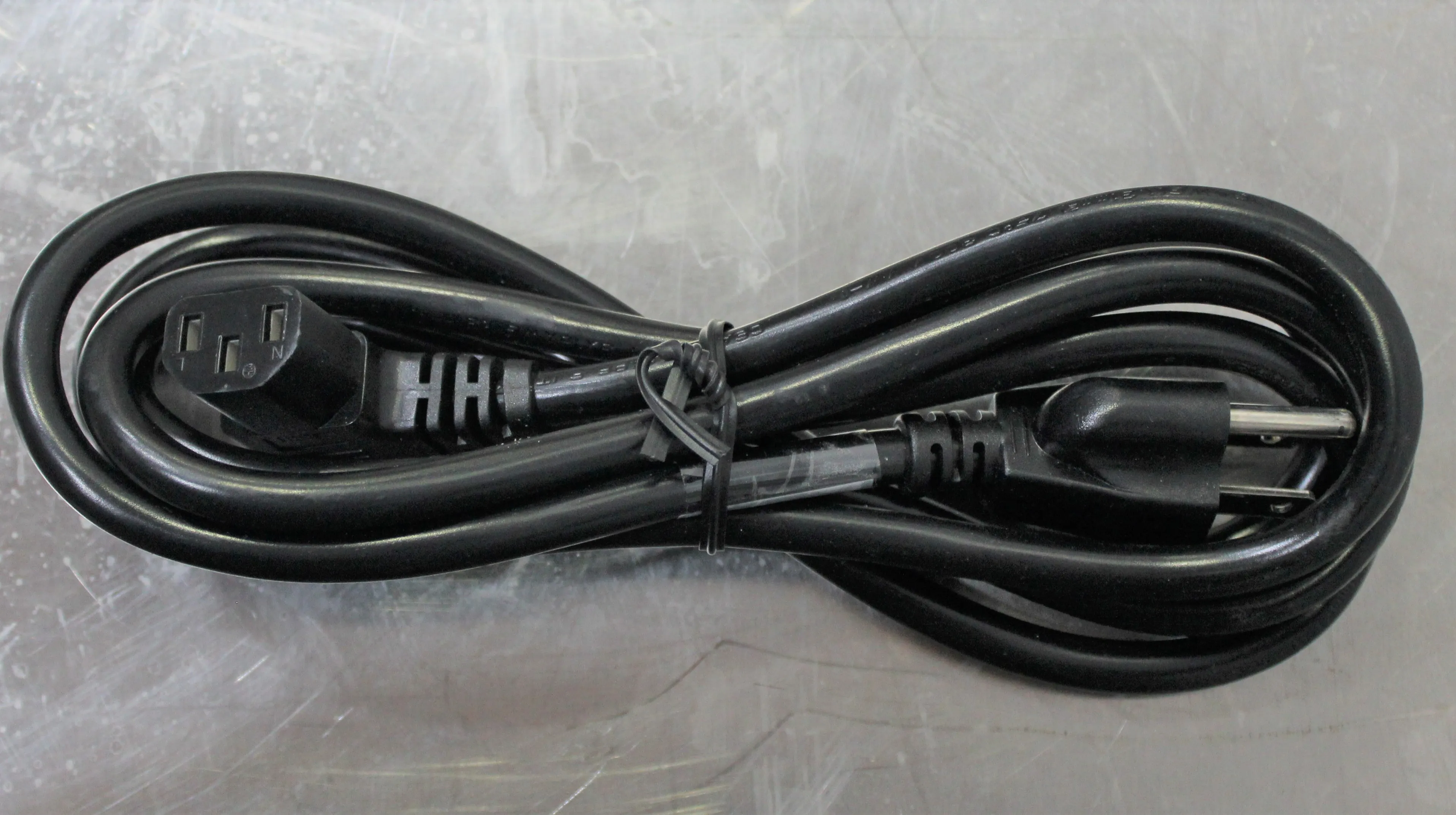

- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 24.0in x 17.0in x 14.0in
- Shipping Type FedEx Ground
- Item Condition Excellent
- Manufacturing Date Does Not Apply
Product Information

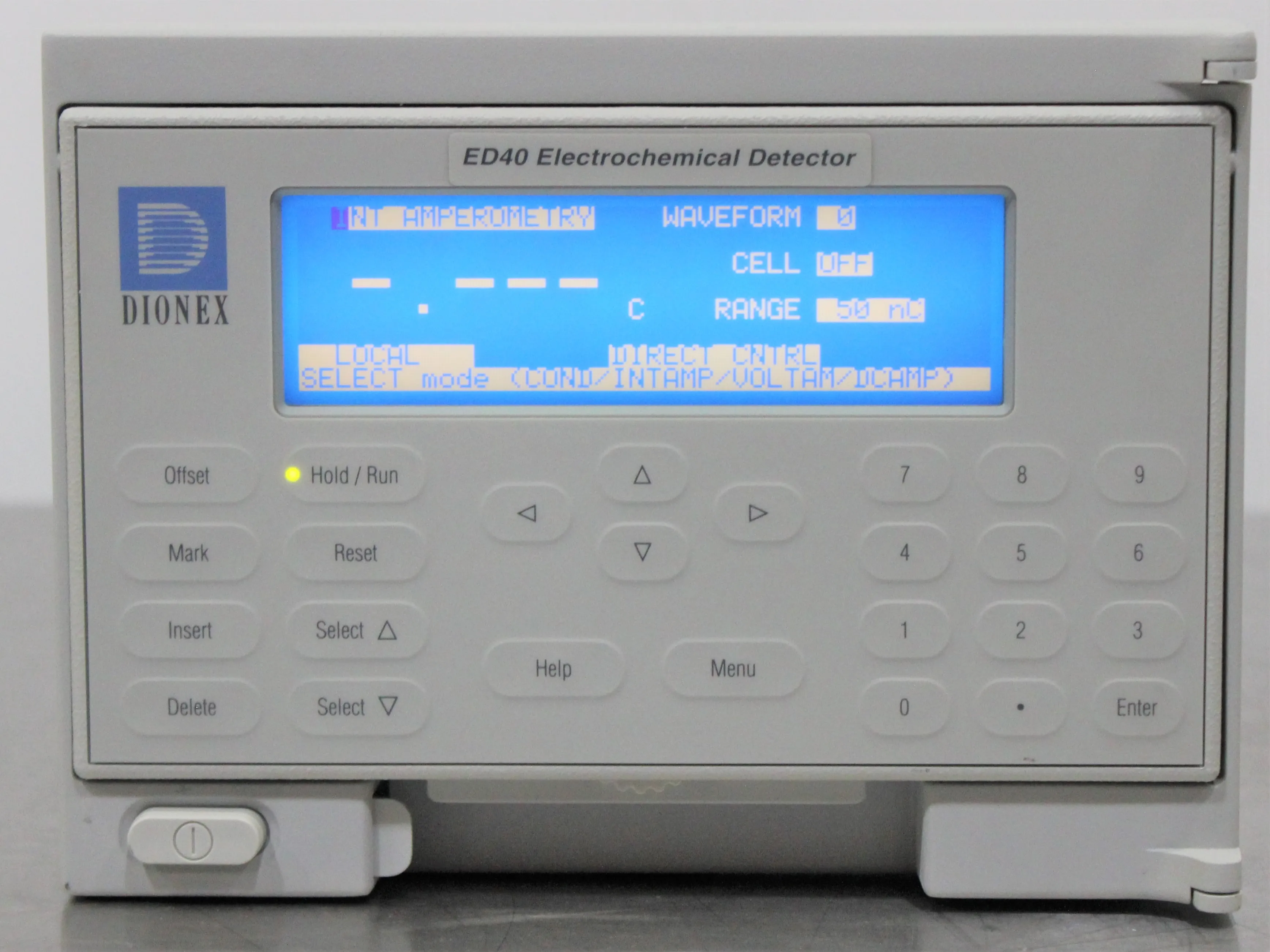

The Dionex ED40-1 Electrochemical Detector measures current resulting from the application of potential (voltage) across electrodes in flow through cells. The measurements help answer the major questions analytical chemists ask: What's in it, and how much is there? This detector has a range from 0.01 S to 3000 S, full scale for Conductivity, and 50 pA to 300 A for DC Amperometry. It also offers temperature compensation, remote operation, and various electrochemical cell features. The ED40-1 model is known for its reliability and versatility when used in HPLC, FPLC, GC, and CE applications. It provides valuable insights into the properties of the flowing solution and is a valuable tool for analytical chemists.
Key Features- Measures current resulting from the application of potential
- Range from 0.01 S to 3000 S for Conductivity
- 50 pA to 300 A for DC Amperometry
- Temperature compensation and remote operation capabilities
- Range: 0.01 S to 3000 S, full scale for Conductivity
- 50 pC to 200 C for Integrated Amperometry
- Temperature Compensation: 0.0 to 3.0% per C for Conductivity
- Cell Drive: Variable 8 kHz square wave for Conductivity
- Local Operation: Front panel controls and display status of all functions
- Remote Operation: Control of 4 of 7 functions via TTL or Relay contacts
- Cell Body: PEEK material
- Active Volume: 1.0 L
- Maximum Pressure: 2.0 mPa (300 psi)
- Electrodes: 316 stainless steel
- Maximum Pressure for Amperometry: 0.7 mPa (100 psi)
- Working Electrodes for Amperometry: Gold, Silver, Platinum, Glassy Carbon
- Reference Electrode for Amperometry: Combination pHAg/AgCl
Metric: 12.7 kg
Imperial: 28 lbs
Metric: 24.0 cm x 17.0 cm x 14.0 cm
Imperial: 9.45 in x 6.69 in x 5.51 in
9027.50.40
Harmonized Code Details9027.50.40 - Gas, Liquid or Electric Meter, Other - The ED40-1 is classified under this code due to its function as an electrochemical detector used in chromatography, falling under the 'Other' subcategory as it doesn't fit precisely into other meter categories. Its specific functionalities are aligned with the details of this harmonized code.
This item is sold out, please see other similar options.
