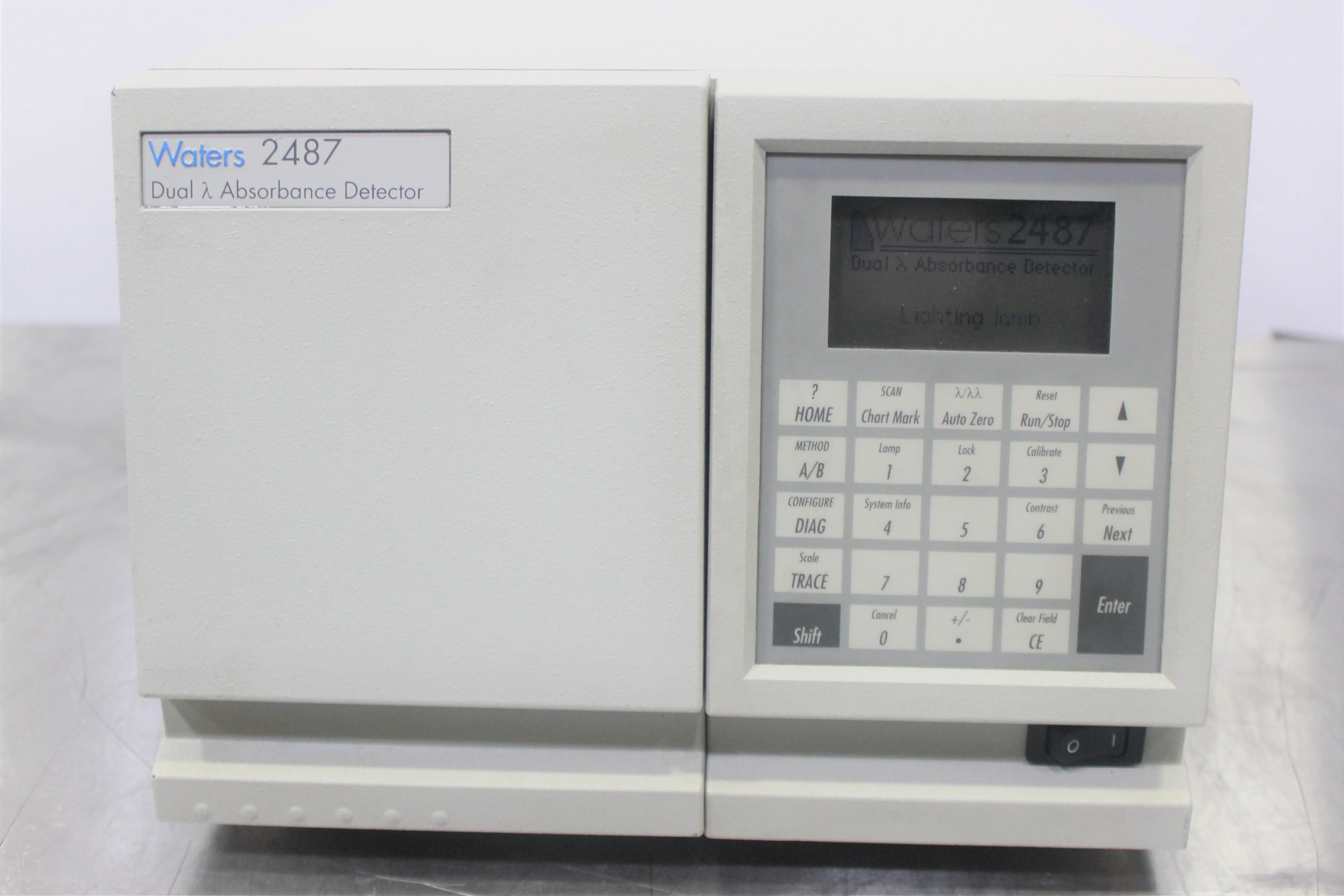

Waters 2487 Dual Wavelength UV Detector HPLC/FPLC/GC/CE

Product Information

The Waters 2487 Dual Wavelength UV Detectoris the most sensitive and versatile absorbance detector available for HPLC, providing advanced programmability, dual wavelength capability, unmatched signal-to-noise performance, reduced optical bandwidth and exceptional linearity. It offers the sensitivity required for detection of minor impurities, with the linear dynamic range to simultaneously quantitate major and minor components, enhancing the productivity of any chromatography laboratory.

• Dual wavelength capability
• Unmatched signal-to-noise performance
• Reduced optical bandwidth
• Exceptional linearity
• Advanced programmability
• Sensitivity for minor impurities detection
• Linear dynamic range for quantitating major and minor components
• Enhanced productivity for any chromatography laboratory

• Wavelength range: 190 to 700 nm
• Bandwidth: 5 nm
• Wavelength accuracy: +1 nm
• Wavelength repeatability: +0.10 nm
• Noise, single wavelength2: < +0.35 x 10-5 AU, dry cell, 254 nm, 1.0 sec. time constant (TC)
• Noise, dual wavelengthb: < +2.5 x 10-5 AU, dry cell, 254 nm / 280 nm, 2.0 sec. time constant (TC)
• Linearityb: 5% at 2.5 AU, propyl paraben, 257 nm
• Drift: 1.0 x 10-4 AU/hour/ C at 254 nm (after 1-hour warmup)
• Sensitivity setting range: 0.0001 to 4.0000 AUFS

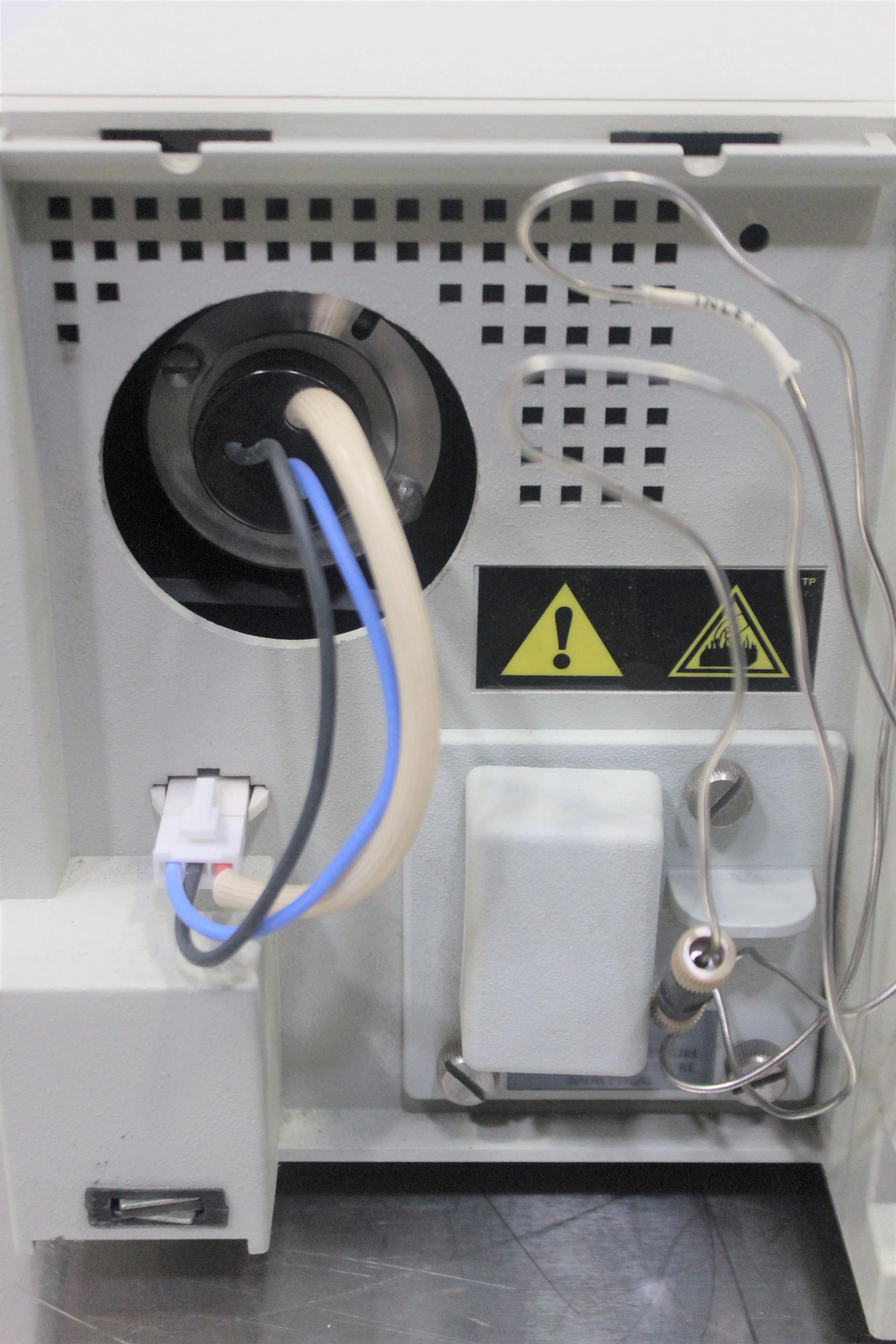

• Lamp source: Deuterium arc lamp
• Flow cell: TaperSlit Flow Cell design
• Path length: 10 mm (standard analytical)
• Cell volume: 10 L (standard analytical)
• Pressure limit: 1000 psi / 70 bar

Metric: 21.772 kg
Imperial: 48.0 lbs

Metric: 60.96 cm x 60.96 cm x 35.56 cm
Imperial: 24.0 in x 24.0 in x 14.0 in

90273000

90273000 - Spectrometers, spectrophotometers and spectrographs using UV, visible or IR optical radiations (HS 2017)
