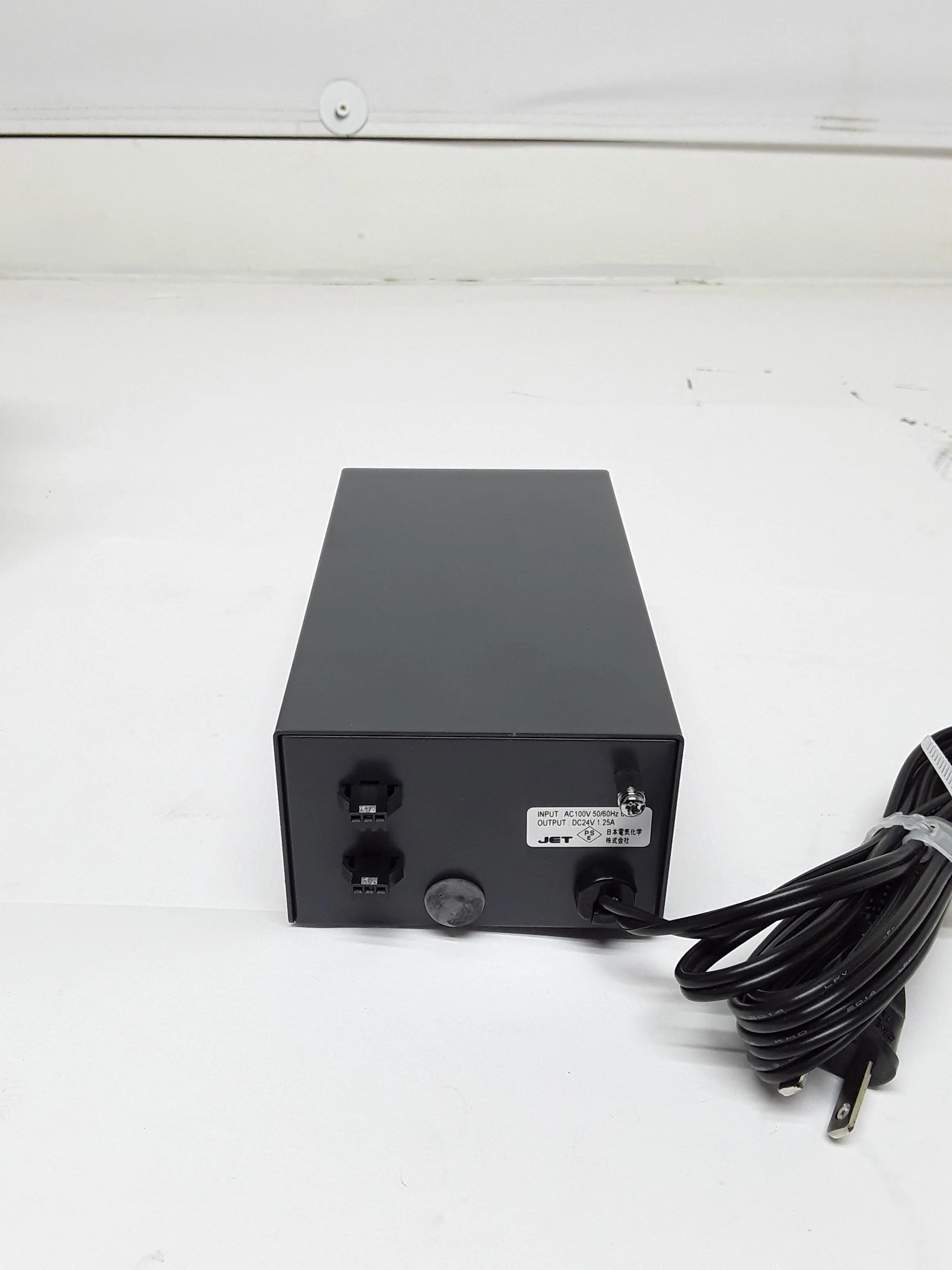

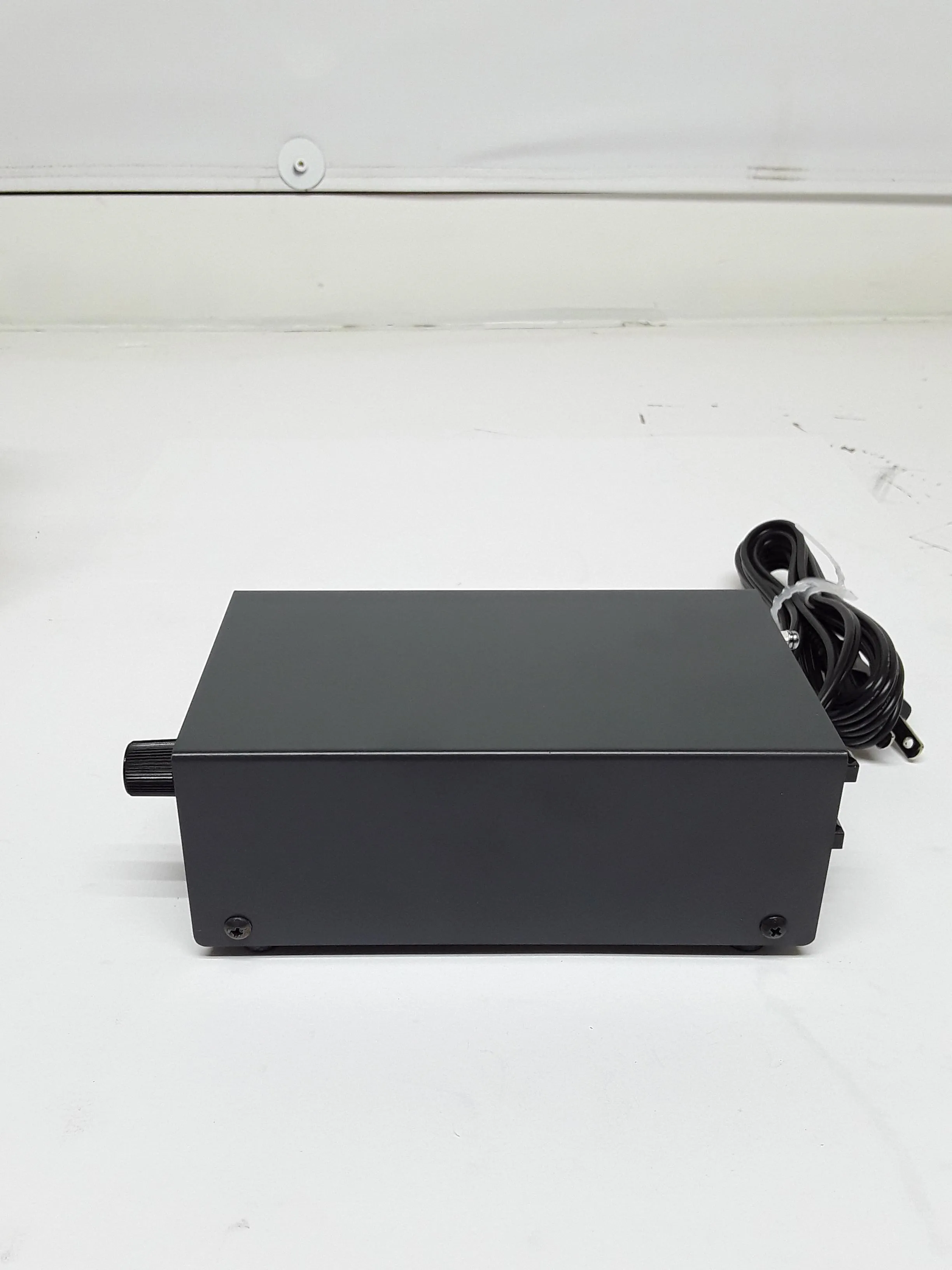

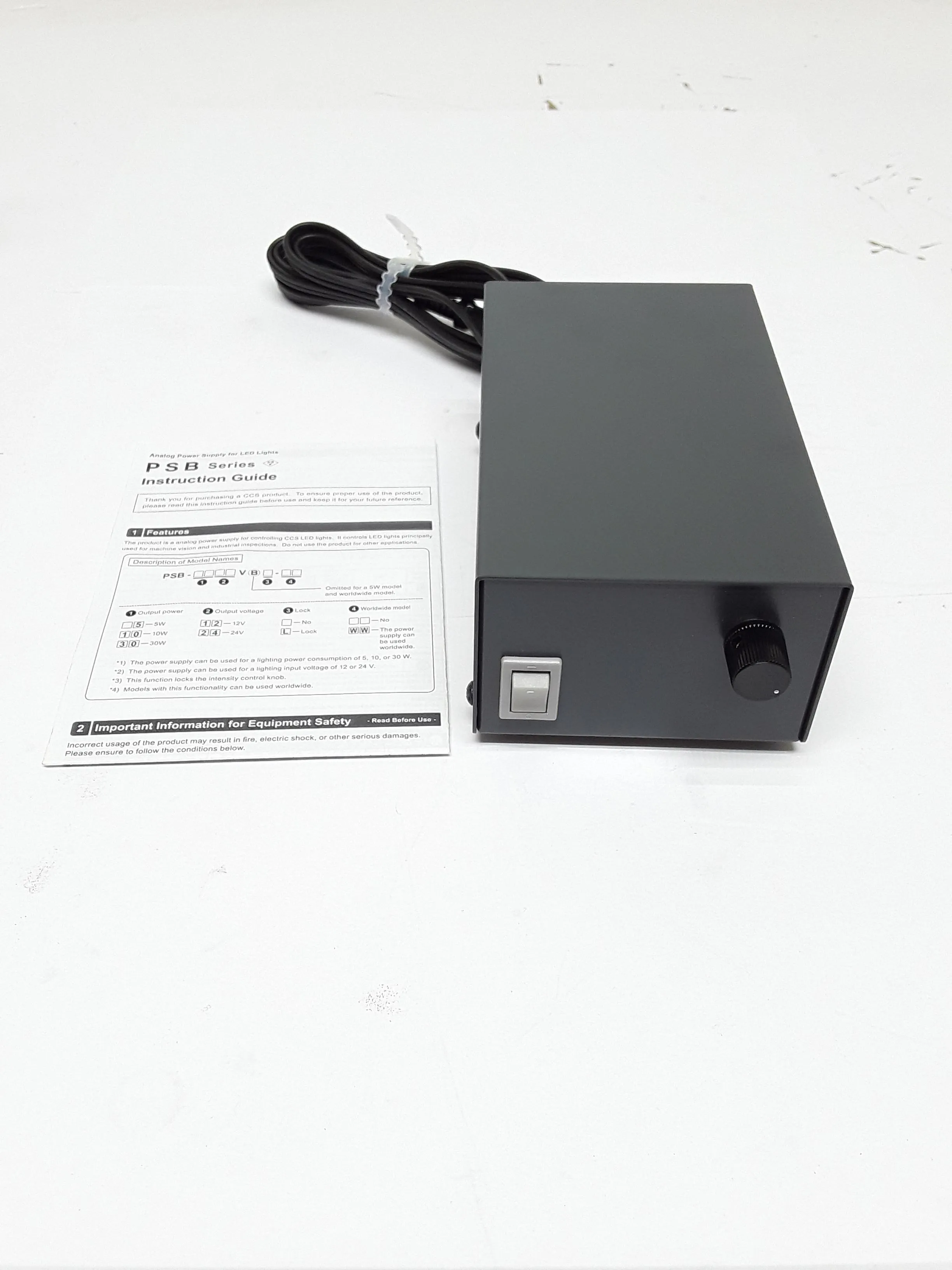

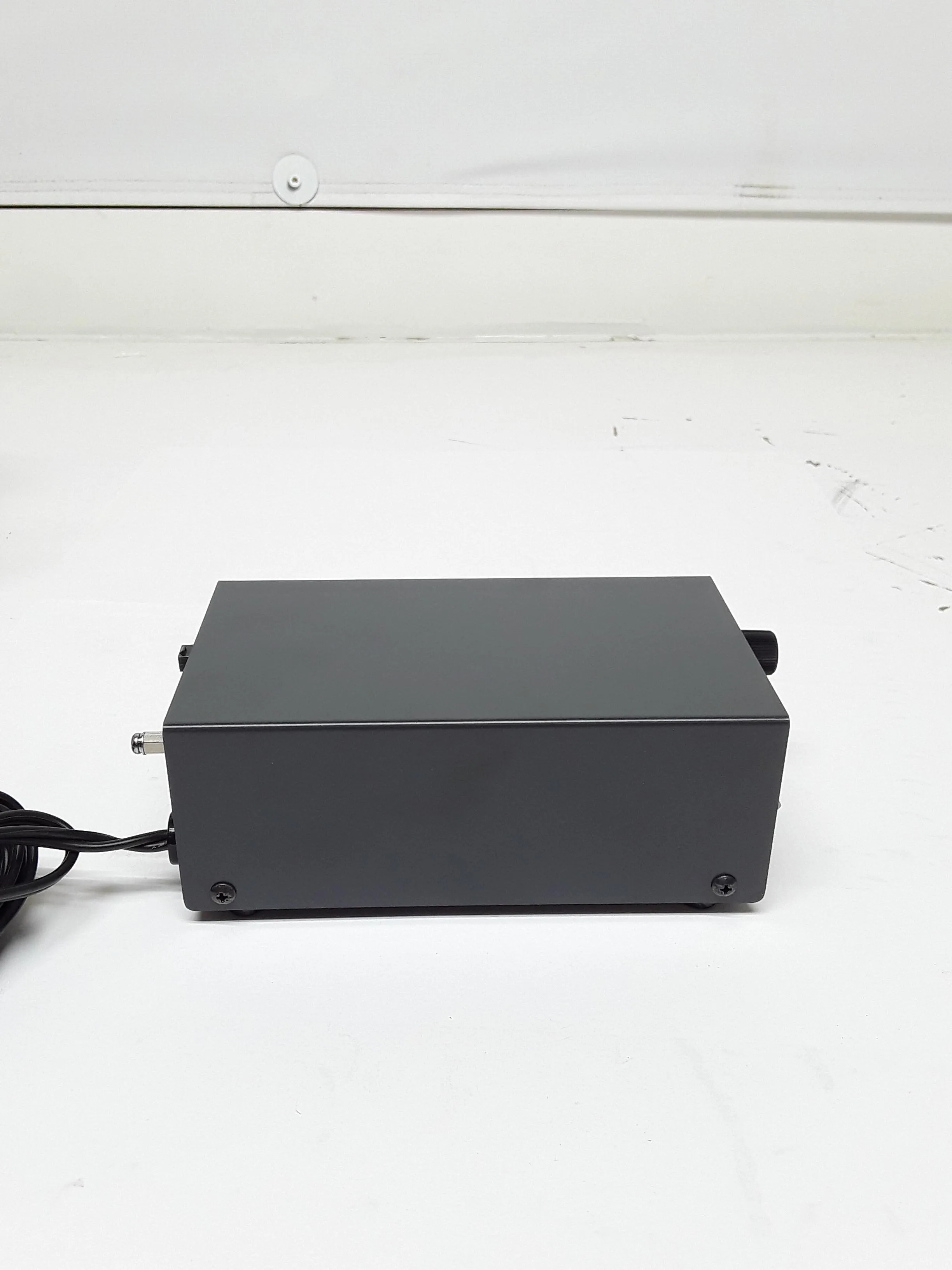

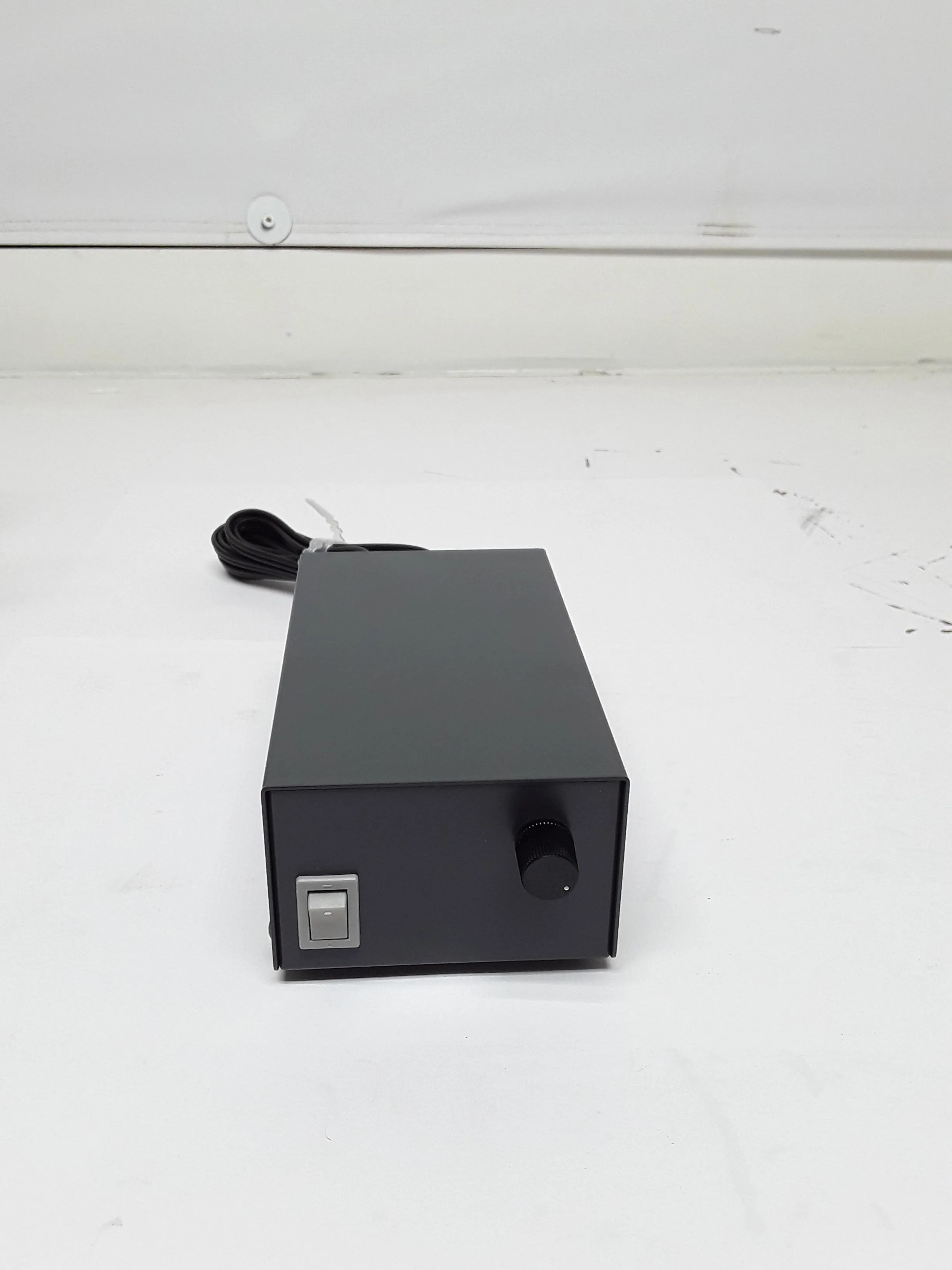

Cognex PSB-3024vb Analog Control Unit

Product Information

This Analog Control Unit by Cognex, model PSB-3024vb, is a new Class 1 power supply designed for use with LED Light Units. It provides constant lighting with variable-voltage control, suitable for a variety of applications such as laboratory research, industrial inspections, and medical diagnostics. With a unique feature set, including over current protection, high-efficiency power consumption, and continuous lighting, this power supply unit is a reliable and essential component for any laboratory workspace. Injecting a playful touch into the technical details, did you know that an Analog Control Unit enables accurate control of light intensity and inrush current, crucial for experiments requiring specific lighting conditions? It also operates at a frequency of 50/60 Hz, aligning perfectly with common power standards, making it versatile and adaptable across different global regions. Furthermore, Cognex PSB-3024vb Analog Control Unit, similar to superhero gadgets, has an intrinsic safety feature where it operates at 125% of the rated current and automatically resets to protect itself from overloads, a feature ideal for laboratory settings where safety is a priority. With an output voltage range of 15 to 24.05 VDC, this unit demonstrates remarkable flexibility, catering to a wide array of LED light units and other compatible devices.

• Constant lighting with variable-voltage control
• Over current protection at 125% of the rated current
• High-efficiency power consumption
• Continuous lighting method
• Flexible output voltage range: 15 to 24.05 VDC

• Drive method: Constant lighting
• Intensity control method: Variable-voltage control
• Number of channels: 1 channel
• Power consumption: 78 VA typ.
• Inrush current: 15 A (at 100 VAC) *From a cold start
• Lighting method: Continuous lighting
• Output voltage: 15 (1) to 24.05 (0.2) VDC
• Output current: 1.25 A
• Input voltage: 100 to 120 VAC (rated), 85 to 132 VAC (range)
• Output connector: SMP-03V-BC (1: Output (+), 2: NC, 3: Output (-))
• Material: Steel plate t1.0
• Operating temperature and humidity: Temperature: 0 to 40, Humidity: 20% to 85%RH (with no condensation)
• Storage temperature and humidity: Temperature: -20 to 60, Humidity: 20% to 85%RH (with no condensation)
• Conformed standards: RoHS
• Weight: 700 g max.

Metric: 0.907 kg
Imperial: 2.0 lbs

Metric: 25.4 cm x 25.4 cm x 25.4 cm
Imperial: 10 in x 10 in x 10 in

854370

Electronic integrated circuits; Processors and controllers, whether or not combined with memories, converters, logic circuits, amplifiers, clock and timing circuits, or other circuits
