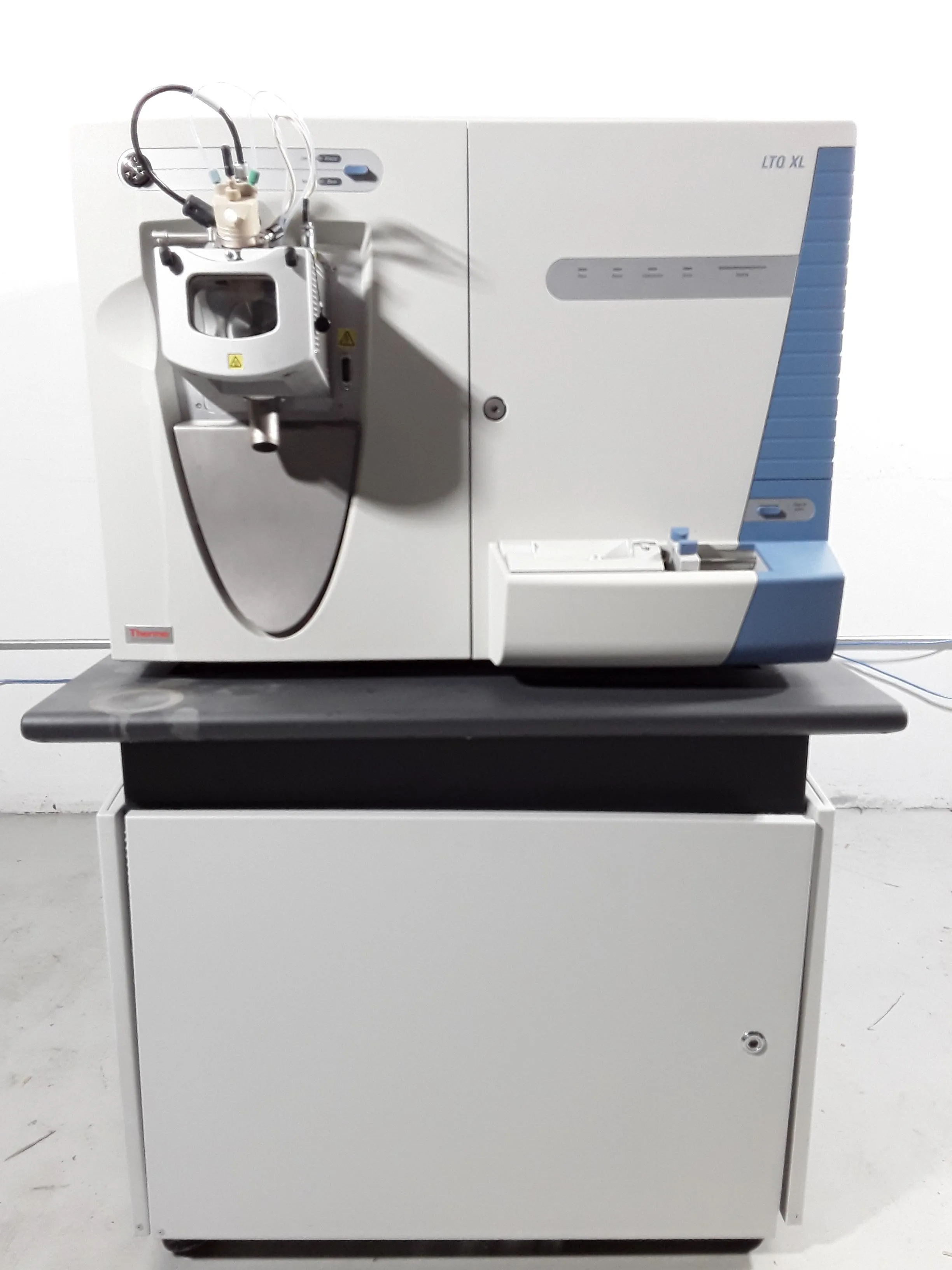

Thermo Fisher LTQ Orbitrap XL & LTQ XL Mass Spectrometer

Product Information

As the proud & knowledgeable scientists at REUZEit, we present the Thermo Fisher LTQ Orbitrap XL & LTQ XL Mass Spectrometer. This hybrid FT mass spectrometer combines patented Orbitrap technology with the successful linear ion trap, Thermo Scientific LTQ XL, providing superior detection of compounds in complex mixtures. The new collision cell offers flexibility in MS/MS experiments. The LTQ Orbitrap XL supports a wide range of applications, from routine compound identification to analysis of trace level components. With outstanding mass accuracy, resolving power, and high sensitivity MSn performance, this instrument is a superior alternative to Q-TOF systems.

• Outstanding mass accuracy
• Superior resolving power
• High sensitivity MSn performance
• Multiple dissociation techniques: CID, PQD and HCD
• Parallel MS and MSn analysis
• Fast, sensitive, and reliable compound detection
• Wide dynamic range
• Routine FT mass accuracy
• Supports various applications
• Dynamic Range: > 4,000 within a single scan

• Mass Range: m/z 50-2000, m/z 200-4000
• Resolution: 60,000 at m/z 400 at a scan rate of 1 Hz, minimum resolution 7,500; maximum resolution >100,000 at m/z 400
• Mass Accuracy: < 3 ppm with external calibration, < 1 ppm using internal calibration
• Sensitivity: sub-femtomol range for peptides
• MS Scan Power: MSn, for n = 1 through 10
• Analog Inputs: One (1) analog input (0-1 V), One (1) analog (0-10 V)
• Gas-free multipole ion transfer optics
• Orbitrap mass analyzer provides faster, more sensitive and more reliable detection of compounds in complex mixtures
• LTQ XL ion trap extends the legendary MSn performance of the LTQ ion trap
• High stability and ion transmission efficiency
• Regulated helium flow for stable performance
• Differentially pumped vacuum system with ultra-fast real-time data acquisition and instrument control system
• Automatic system calibration

Metric: 599.604 kg
Imperial: 1322.0 lbs

Metric: 57 cm x 35 cm x 56 cm
Imperial: 22.44094 in x 13.7795 in x 22.0472 in

9027200000

Spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR), other
