Sogevac SV65 BI FC - Vacuum Pump Class 1

Product Information

The new SOGEVAC SV65B pumps allow space saving in your developments with minimum customer design constraints. It can also replace almost any pump in the field without requiring special adaptations. Improved SV 65 BI FC lubrication circuits and mechanical tolerances provide a constant low noise level at all working pressures. This provides a new standard in work area comfort to those operating your system. All lubrication circuits as well as the gas ballast system have been integrated into the pumps major components allowing limited sealings and a reduced number of parts. As a result, improved product reliability and durability is gained with prolonged maintenance intervals. The new SOGEVAC B pumps carry on with the proven and user-friendly maintenance concept of the former generation. All maintenance points are located on the front of the pump. Enhancements include an unambiguous angle mounted oil-sight glass offering visibility from two sides and a unique system that allows an easier exhaust demister replacement. Manufacturers Specifications: Pumping speed (50/60 Hz): 34.7 / 41.8 cfm, Ultimate pressure: < 0.5 mbar, Mains connection: 200-240V, 1-ph, 12A, 50/60 Hz, Inlet connection: KF-40. Advantages: Continuous operation from atmospheric pressure to ultimate pressure, High pumping speed also at low pressures, Low noise level, Low vibrations, Integrated exhaust filter, better than 99.9% efficient, No oil loss owing to the integrated oil return line, Exhaust gas free of oil mists, Efficient air cooling (standard), Low space requirement, easy to install, Rugged, Maintenance-friendly, Compact design, Optimum size-to-performance ratio, High water vapor tolerance, For use in various applications, Wide range of accessories available for adaptation to differing problems. APPLICATIONS: Vacuum packaging, Vacuum processing, Central vacuum systems, Degassing, Drying / Filling, Freeze Drying, Impregnation, Leak testing, Laser, Handling / Lifting. Please note: Due to shipping regulations, all vacuum pumps will be shipped without pump oil. Oiled vacuum pumps SHOULD NOT be run without oil.

• Improved lubrication circuits and mechanical tolerances for low noise level
• Integrated gas ballast system for enhanced reliability and durability
• Proven user-friendly maintenance concept
• Integrated exhaust filter with over 99.9% efficiency

• Pumping speed (50/60 Hz): 34.7 / 41.8 cfm
• Ultimate pressure: < 0.5 mbar

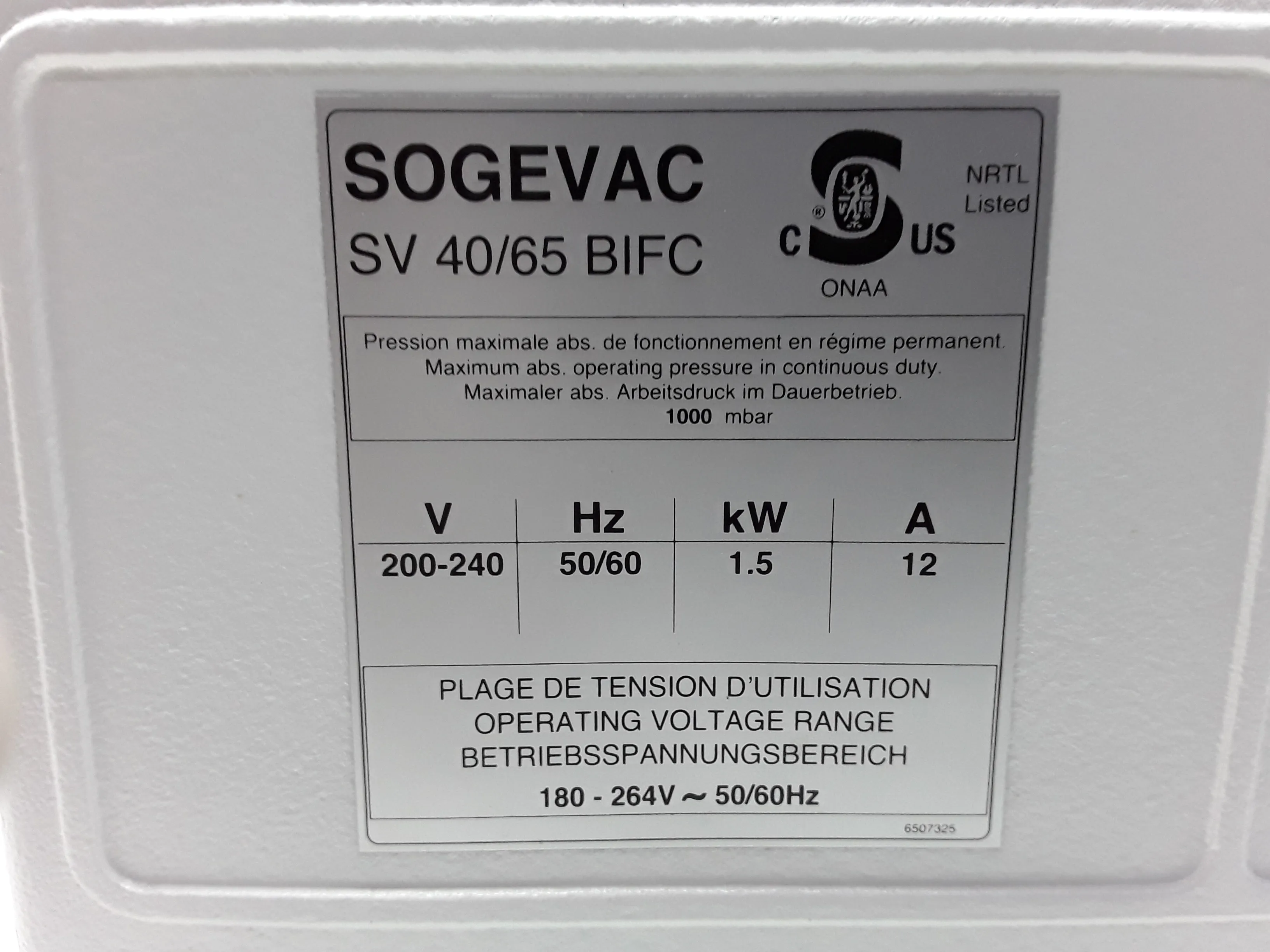

• Mains connection: 200-240V, 1-ph, 12A, 50/60 Hz
• Inlet connection: KF-40
• Continuous operation from atmospheric pressure to ultimate pressure
• High pumping speed at low pressures
• Low noise level and vibrations
• Integrated exhaust filter, better than 99.9% efficient
• No oil loss with integrated oil return line
• Exhaust gas free of oil mists
• Efficient air cooling (standard)
• Compact design with a low space requirement
• High water vapor tolerance
• Wide range of accessories available for adaptation to differing problems

Metric: 57.606 kg
Imperial: 127 lbs

Metric: 23 cm x 13 cm x 11 cm
Imperial: 9.06 in x 5.12 in x 4.33 in

841410

Vacuum pumps; liquid ring, capacities not exceeding 140 m³/h
