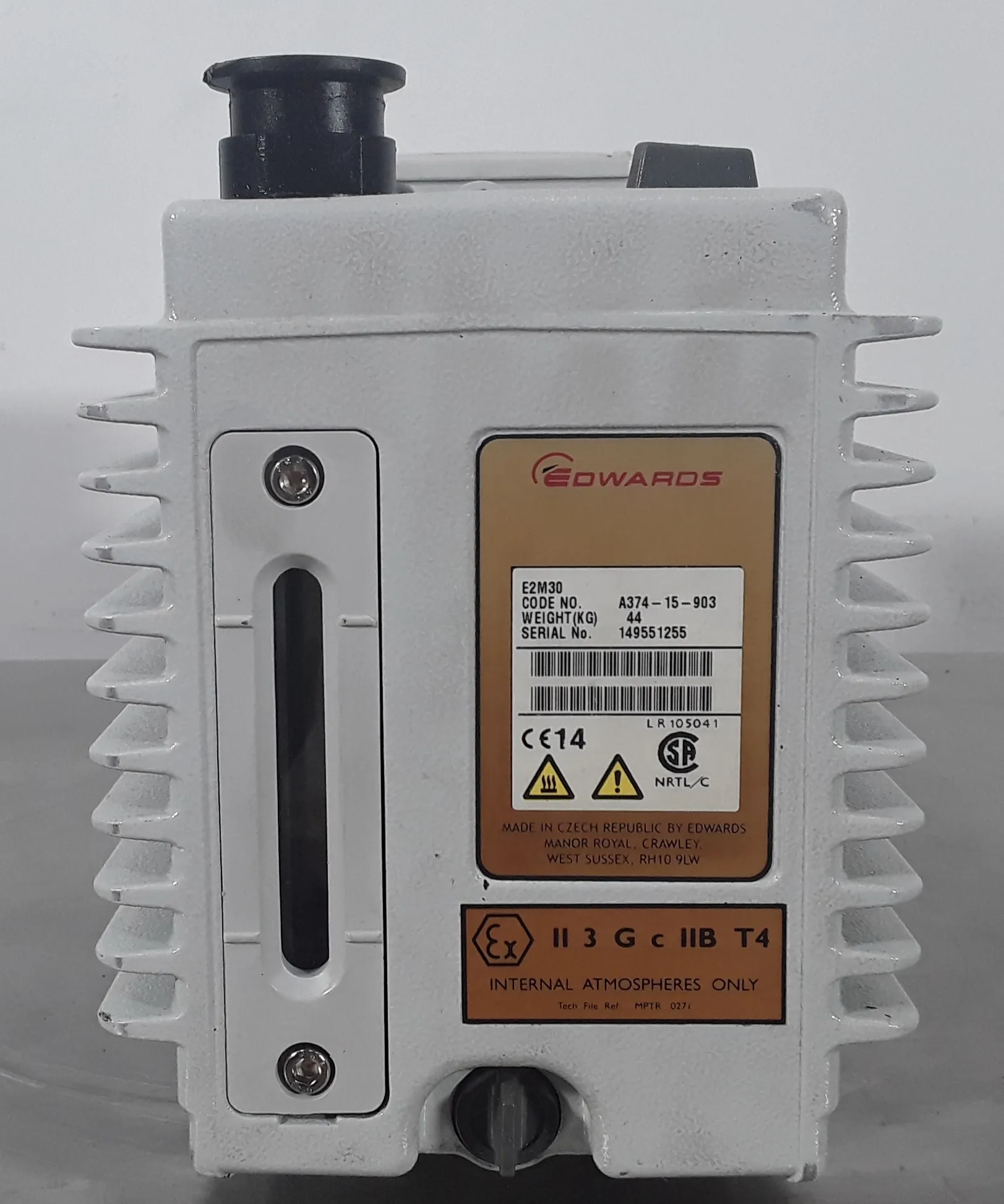

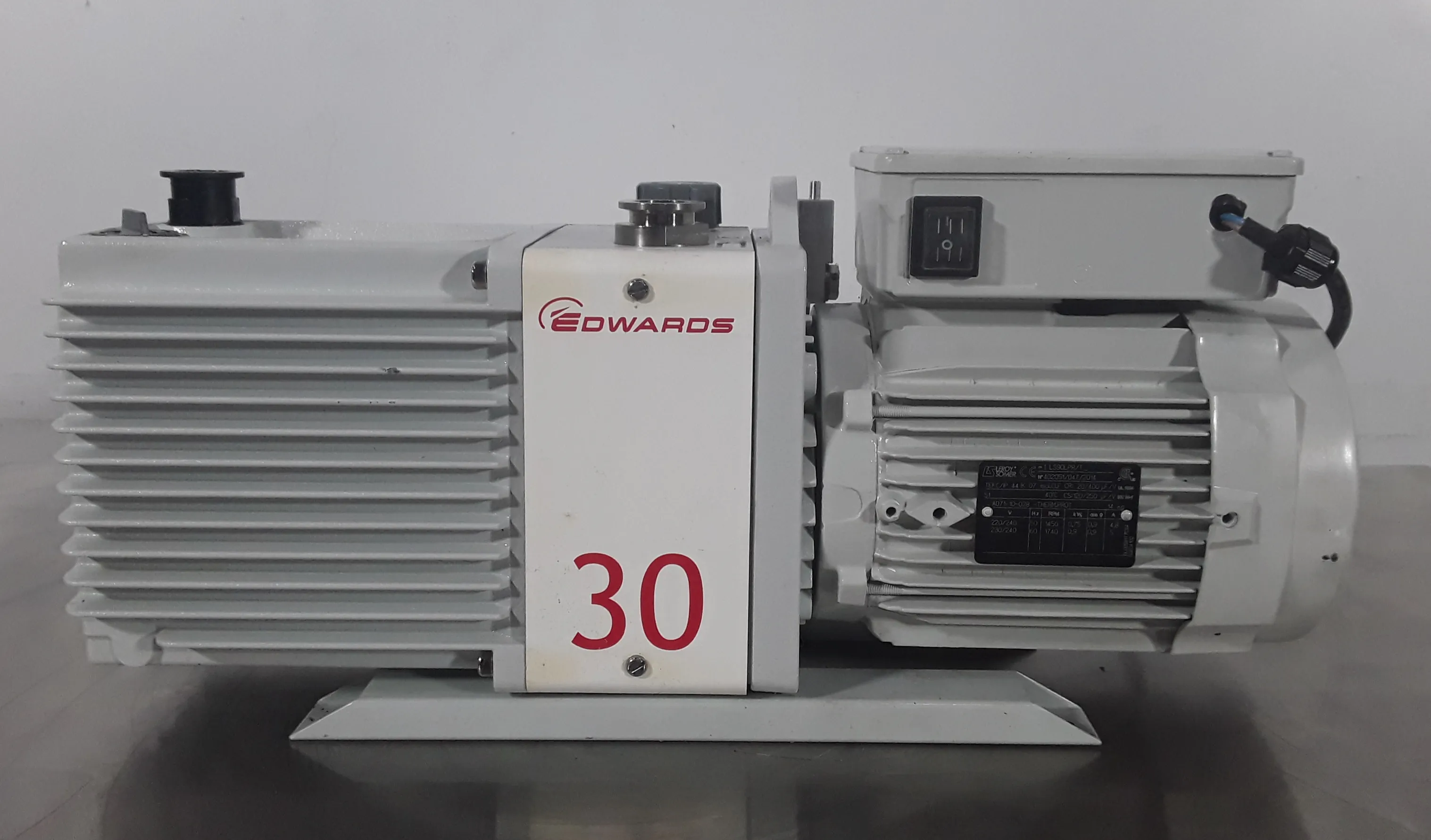

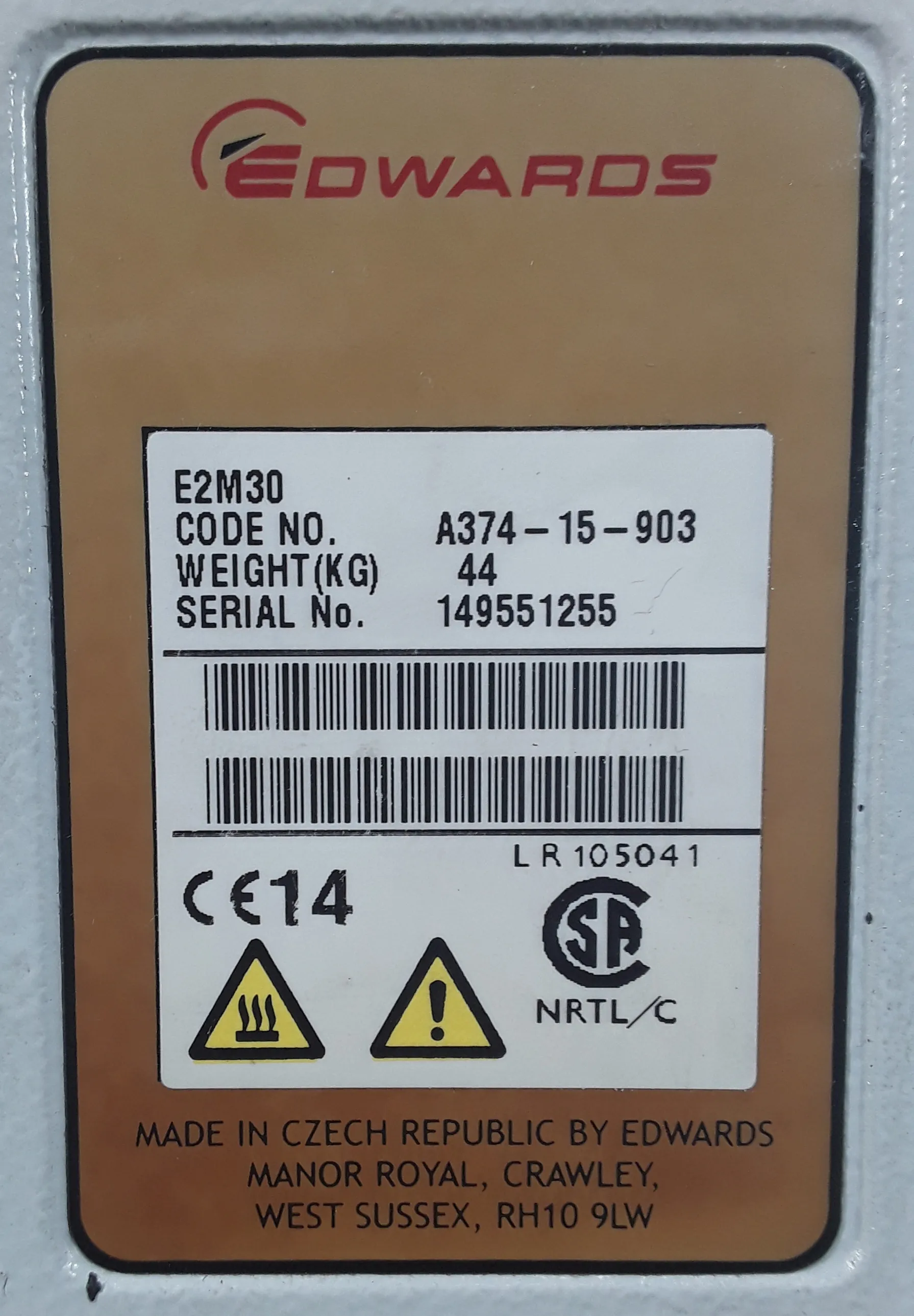

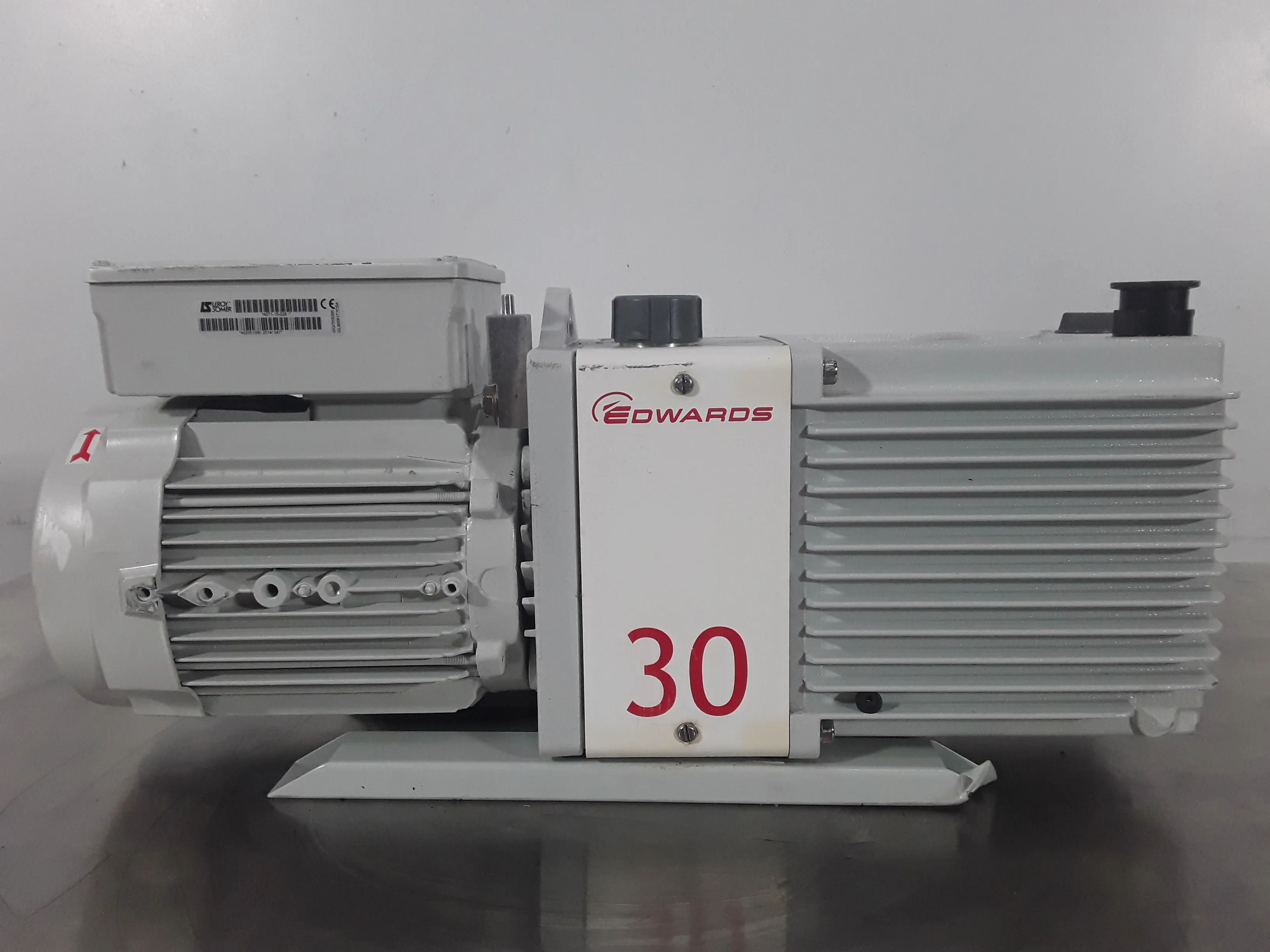

Edwards E2M30 Dual Stage Rotary Vane Mechanical Vacuum Pump

Product Information

As a quirky, intelligent laboratory scientist, intimately familiar with each piece of equipment, I present the Edwards E2M30 dual stage rotary vane mechanical vacuum pump. This remarkable device offers an excellent ultimate pumping speed and superior vapor handling capabilities, all while operating quietly. They are very reliable and have accessories to match any application. Imagine solving problems with Refrigeration dehydration, Brake line evacuation, Epoxy degassing, Sterilization, Mass spectrometry, Vacuum ovens, Lasers, Backing combinations, Thin film coating, Vacuum distillation, Freeze drying, and even Space research! Let's not forget other vacuum processes that can make use of the manifold capabilities of this intriguing machine. Manufactured by Edwards, the model E2M30 has a pumping speed displacement at 60Hz of 21 CFM and an ultimate pressure of 7.5 X 10 -4 Torr.

• Dual stage rotary vane mechanical vacuum pump
• Superior vapor handling capabilities
• Ultimate pumping speed of 21 CFM
• Operates quietly
• Reliable and accessories to match any application

• Manufacture Specification
• The pump is designed for reliable, long-term operation.
• Thermal overload device prevents overheating (single phase only).
• The pump is a free-standing unit.

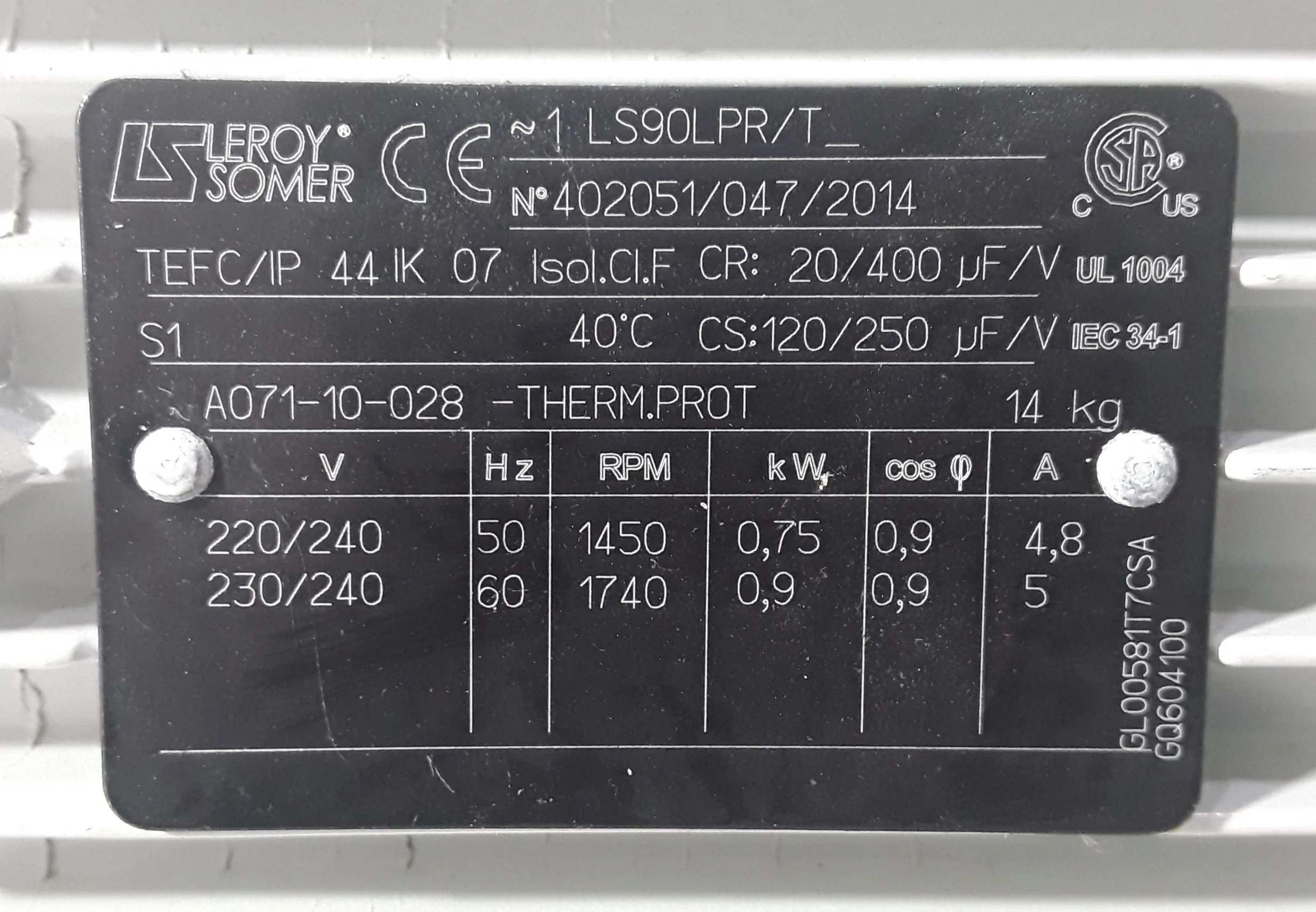

• The drive is provided through a flexible coupling by a single-phase motor.

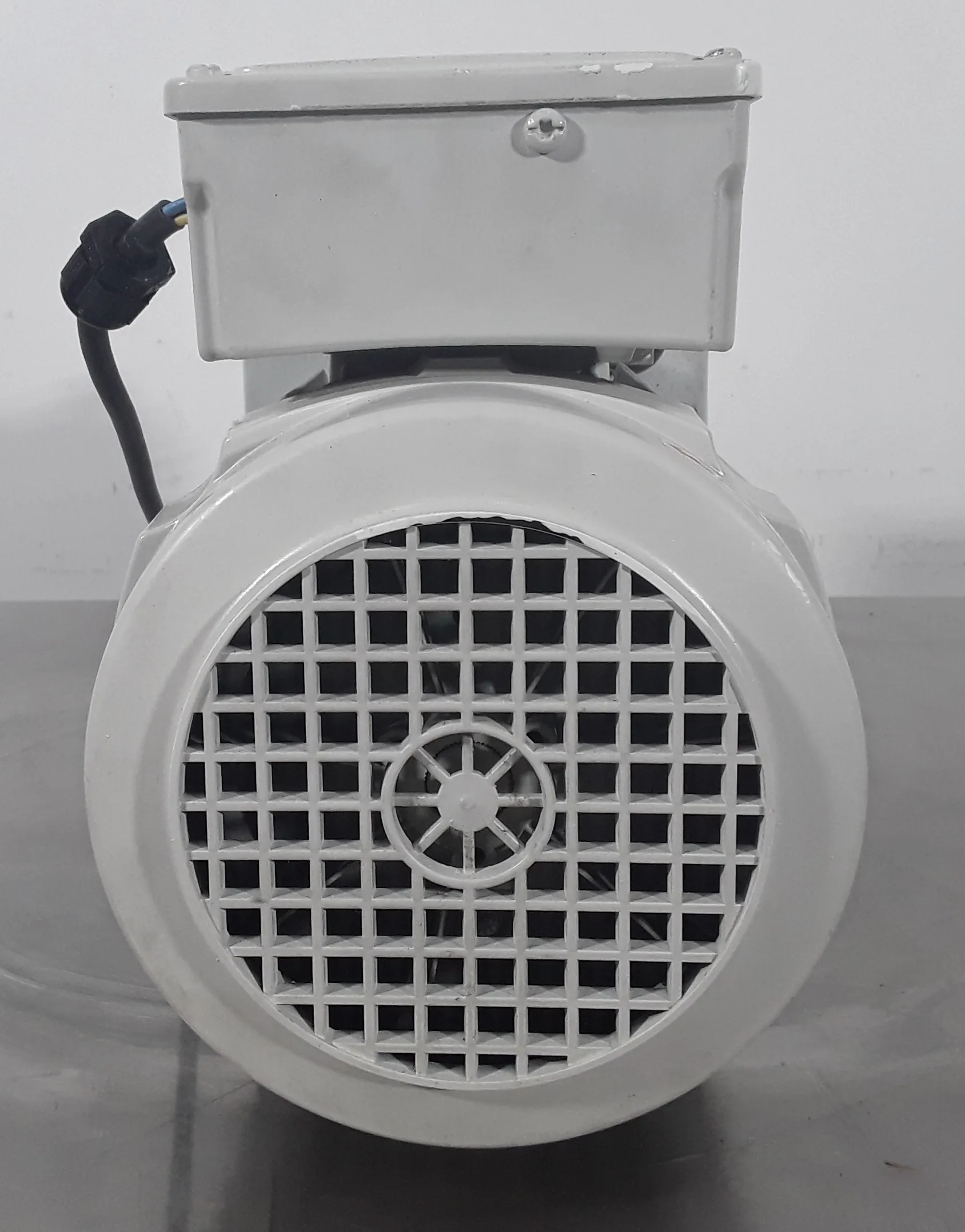

• The motors are totally enclosed and are cooled by the motor-cooling fan.
• Pressure die-cast oil box with integral oil seals prevents oil leaks.
• Gas ballast valve for large water vapor handling capacity

Metric: 54.43 kg
Imperial: 120 lbs

Metric: 30 cm x 15 cm x 20 cm
Imperial: 11.81 in x 5.91 in x 7.87 in

841410

Vacuum Pumps, of a kind used in refrigerating equipment, Exceeding 7 CFM but not exceeding 12 CFM pumping capacity, of rotary vane type
