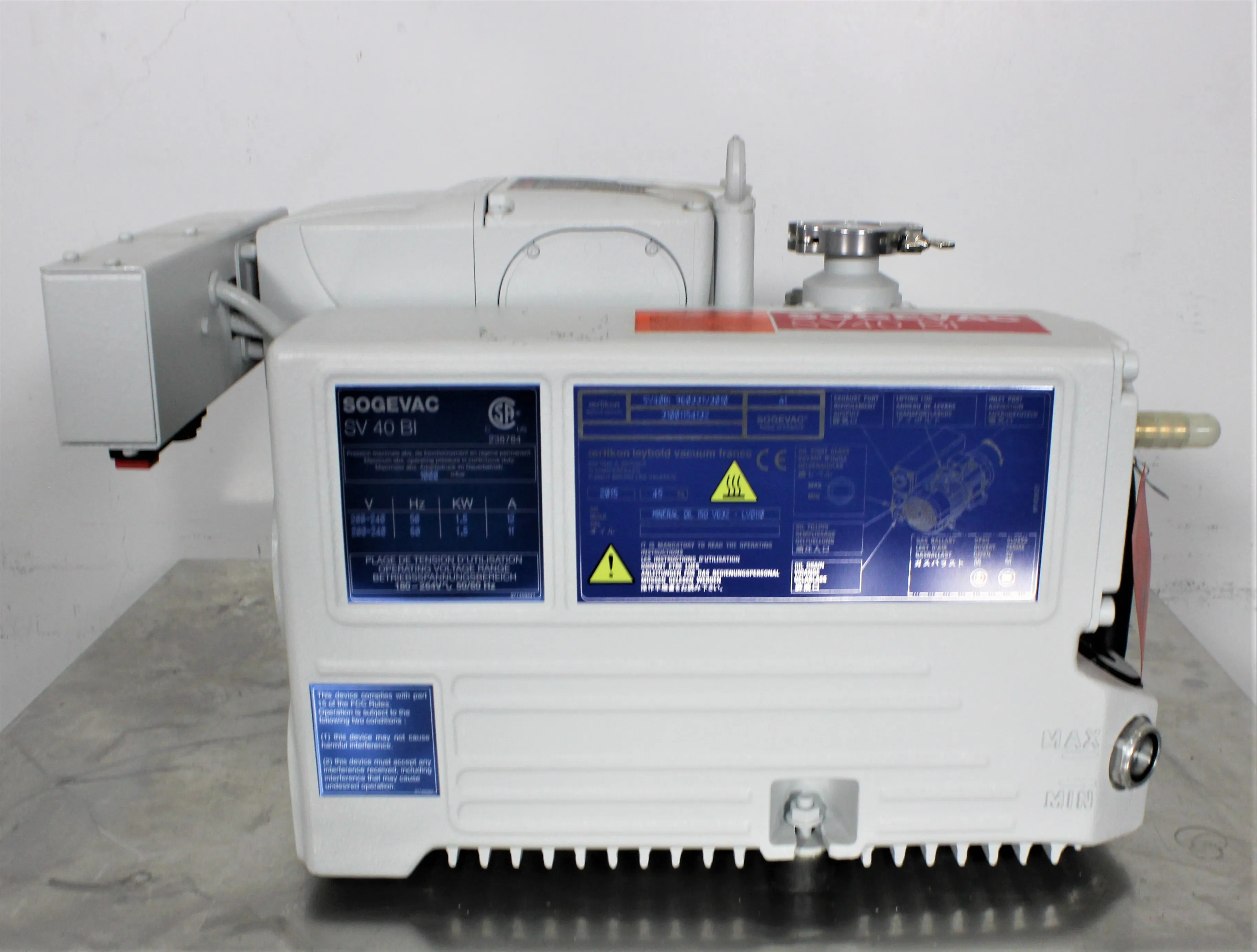

Used Leybold Sogevac SV40 Rotary Vane Vacuum Pump

Product Information

Leybold SOGEVAC SV40 Rotary Vane Vacuum Pump is an innovation in the vacuum industry, offering space-saving design and seamless adaptability for various applications. The improved lubrication circuits and mechanical tolerances ensure a constant low noise level at all working pressures, enhancing comfort. Its integrated functions eliminate the need for external piping, making maintenance easier and less frequent. The compact design and small footprint, along with the very low and constant noise level, make it a versatile solution for vacuum packaging, vacuum processing, central vacuum systems, degassing, drying/filling, freeze drying, impregnation, leak testing, laser, and handling/lifting.

• Space-saving design
• Constant low noise level
• Integrated functions with no external piping
• Versatile applications

• Inlet Connection: KF-25
• Outlet Connection: NPT 1 1/4" Inside Thread
• Pumping Speed (50 Hz): 22.7 cfm
• Pumping Speed (60 Hz): 27.7 cfm
• Ultimate Pressure w/Gas Ballast: < 1.1 Torr
• Ultimate Pressure without Gas Ballast: < 0.4 Torr
• Operating Fluid: LVO 130
• Operating Fluid Capacity: 1.0 l
• Rotational Speed (50 Hz): 1500 rpm
• Rotational Speed (60 Hz): 1800 rpm

Metric: 65 kg
Imperial: 143 lbs

Metric: 21 cm x 12 cm x 13 cm
Imperial: 8.27 in x 4.72 in x 5.12 in

84142000

84142000 - Vacuum pumps, the chosen code represents this particular type of pump which is used for creating a vacuum environment across various industries.
