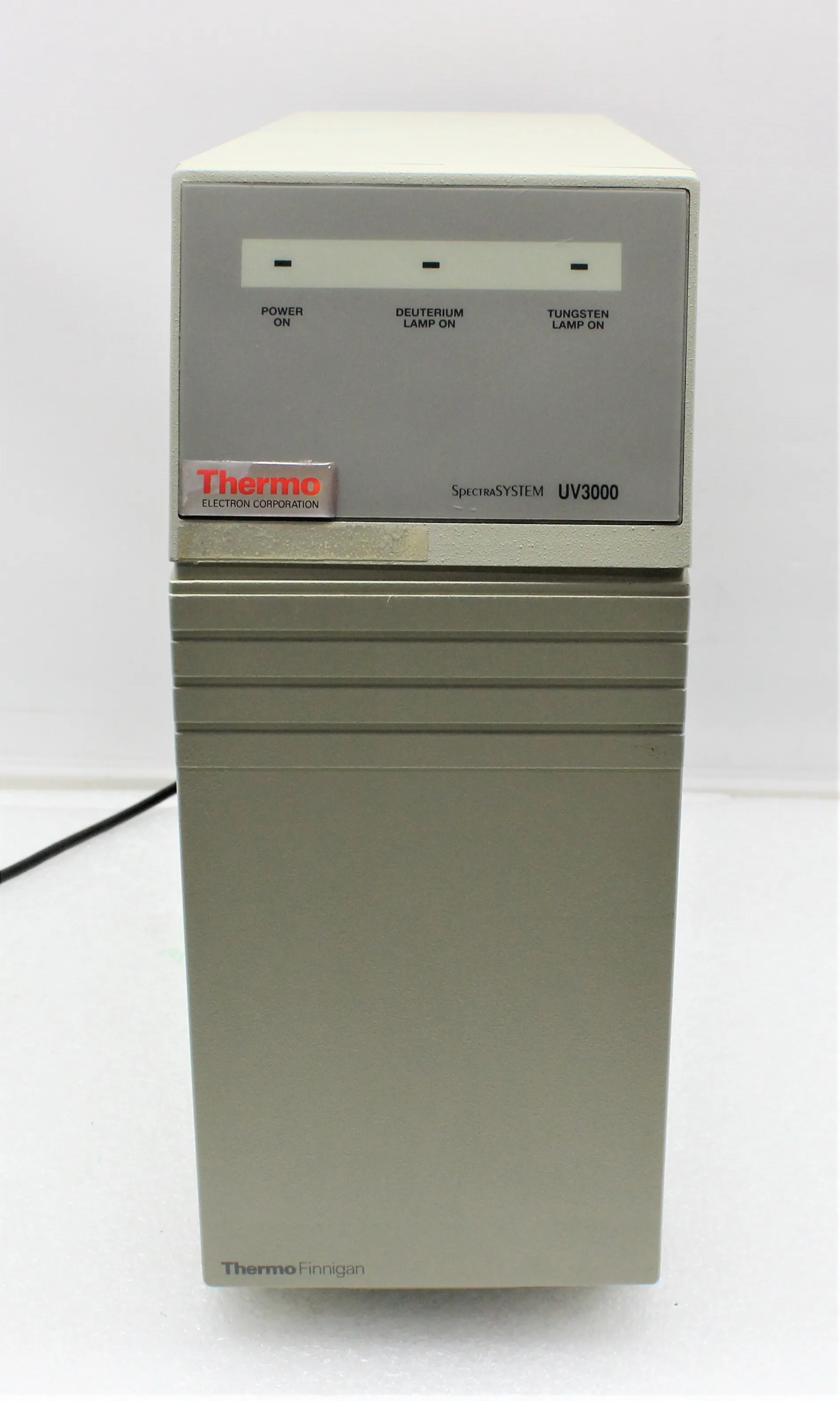

Thermo UV3000 Detector HPLC/FPLC/GC/CE - Used

Product Information

Introducing the Thermo Seperation Products UV3000 Detector, a powerful proponent of analytical prowess. With its multi-dimensional spectral data capabilities, versatile wavelength range of 190-800 nm, and advanced flowcell design, this detector is well-equipped for trace analysis, preparative work, and separation science applications. Peak purity calculations and high-speed scanning are just the tip of the iceberg, with sensitivity and selectivity optimized for Thermo Electron columns. This UV/Vis detector with PDA capability is more than just a piece of equipment; it's an adaptable analytical ally.

• Multi-dimensional spectral data delivery
• Wavelength range of 190-800 nm
• External flowcell flexibility
• Optimum sensitivity and selectivity with Thermo Electron columns
• Enhanced spectral resolution for increased selectivity
• Contour and 3-D plotting with Atlas Spectral Analysis software

• Wavelength Range: 190-800 nm
• Wavelength Accuracy: ±2 nm
• Wavelength Precision: < 0.01 nm
• Bandwidth: 6 nm
• Absorbance Linearity: 5% at 1.8 AU @ 257 nm* (*Based on ASTM E1657-94)
• Drift: < 2 * 10^-5 AU @ 254 nm
• Slew Time: 0.020 sec

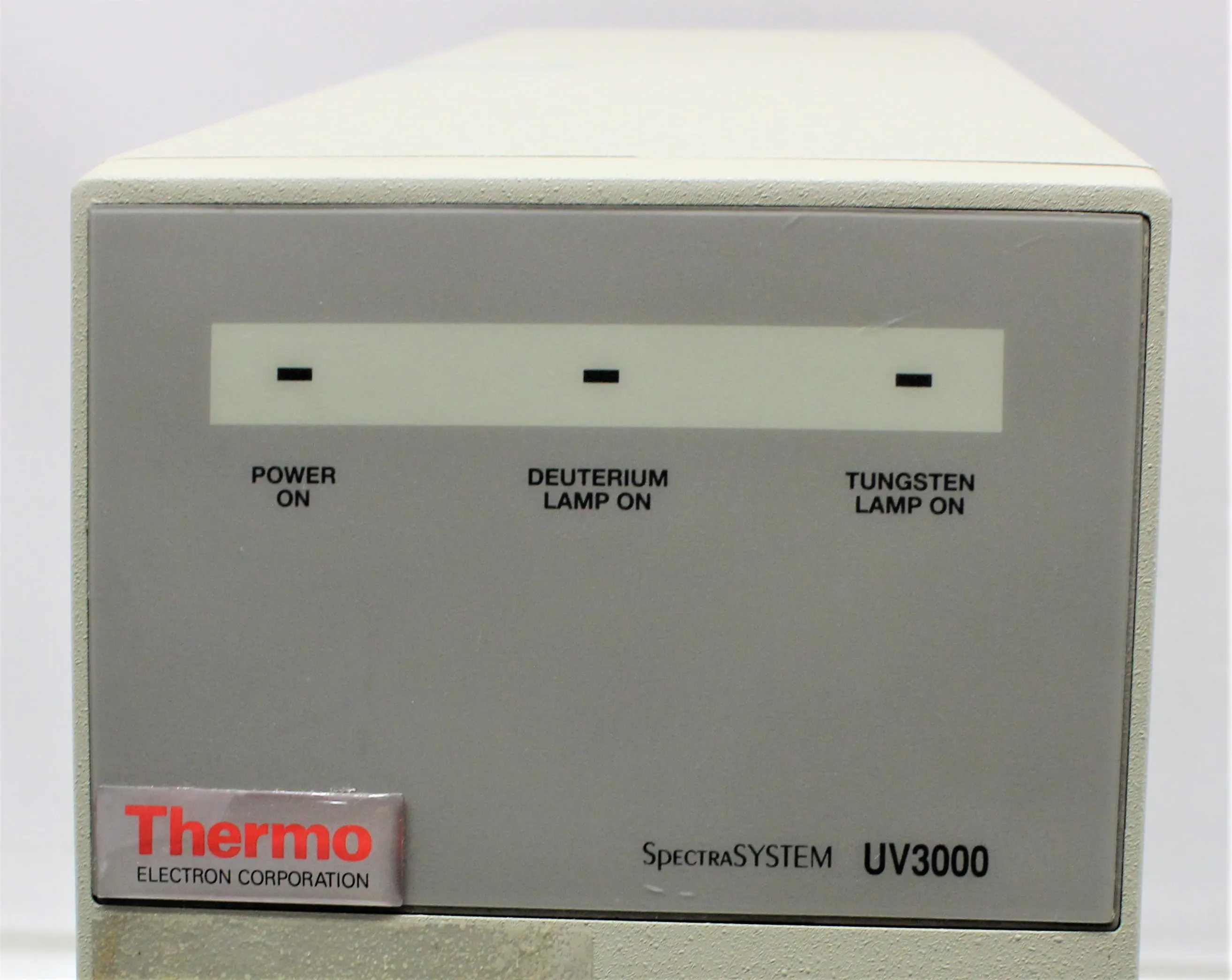

• Lamps: Deuterium and tungsten, pre-aligned
• High Sensitivity Mode: Number of wavelengths monitored - 13
• Data Rate: 24 points/sec (single wavelength), 96 points/sec (scanning mode)
• Noise: < 1 * 10^-5 AU @ 254 nm
• Scan Speed: 96960 nm/sec
• Recorder Outputs: 3 unattenuated at either 10 mV, 100 mV, or 1 V per 2 AU

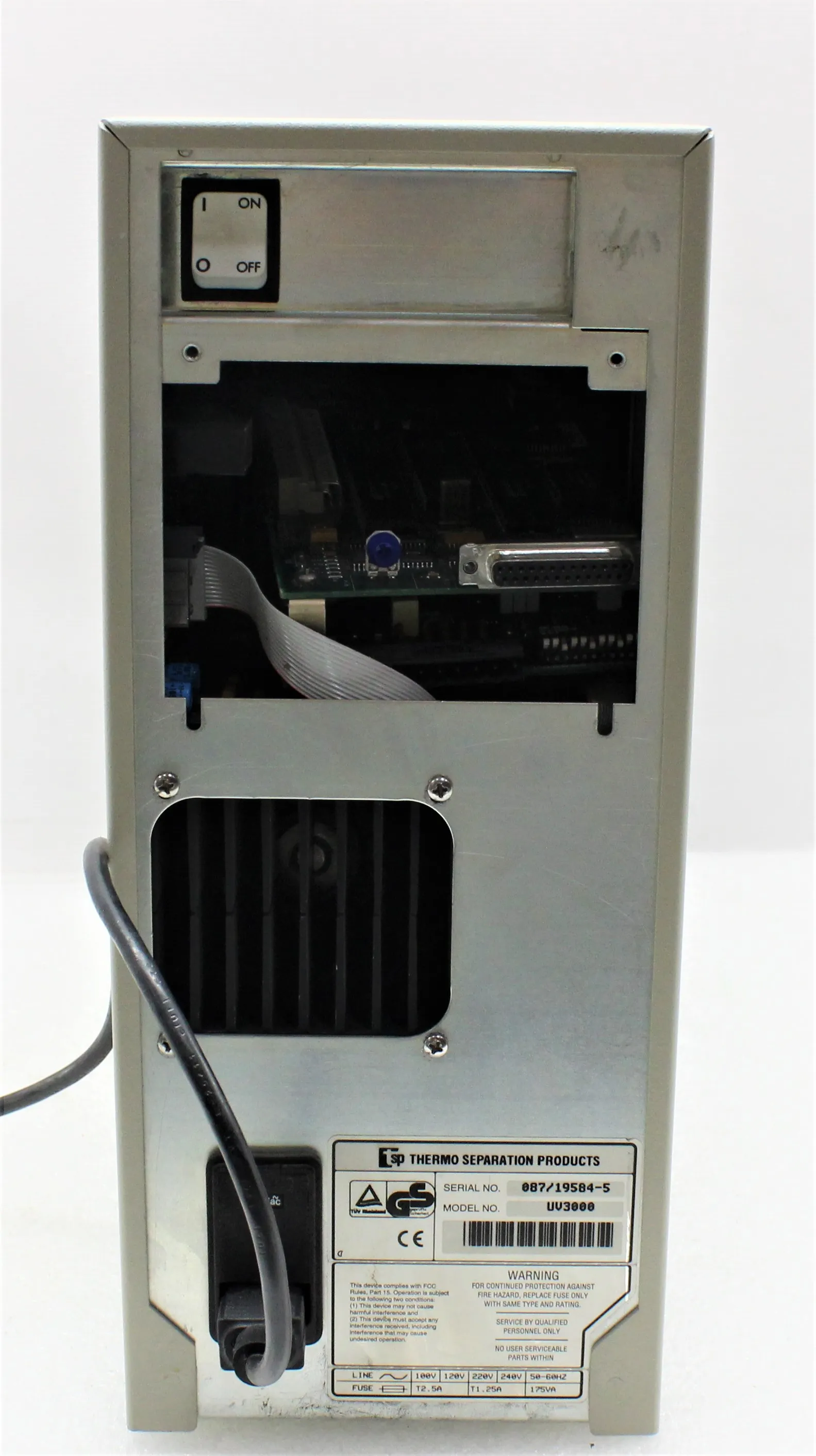

• Remote Controls: Autozero input, 25 pin RS-232

Metric: 19.051 kg
Imperial: 42 lbs

Metric: 19.0 cm x 6.0 cm x 14.0 cm
Imperial: 7.5 in x 2.4 in x 5.5 in
