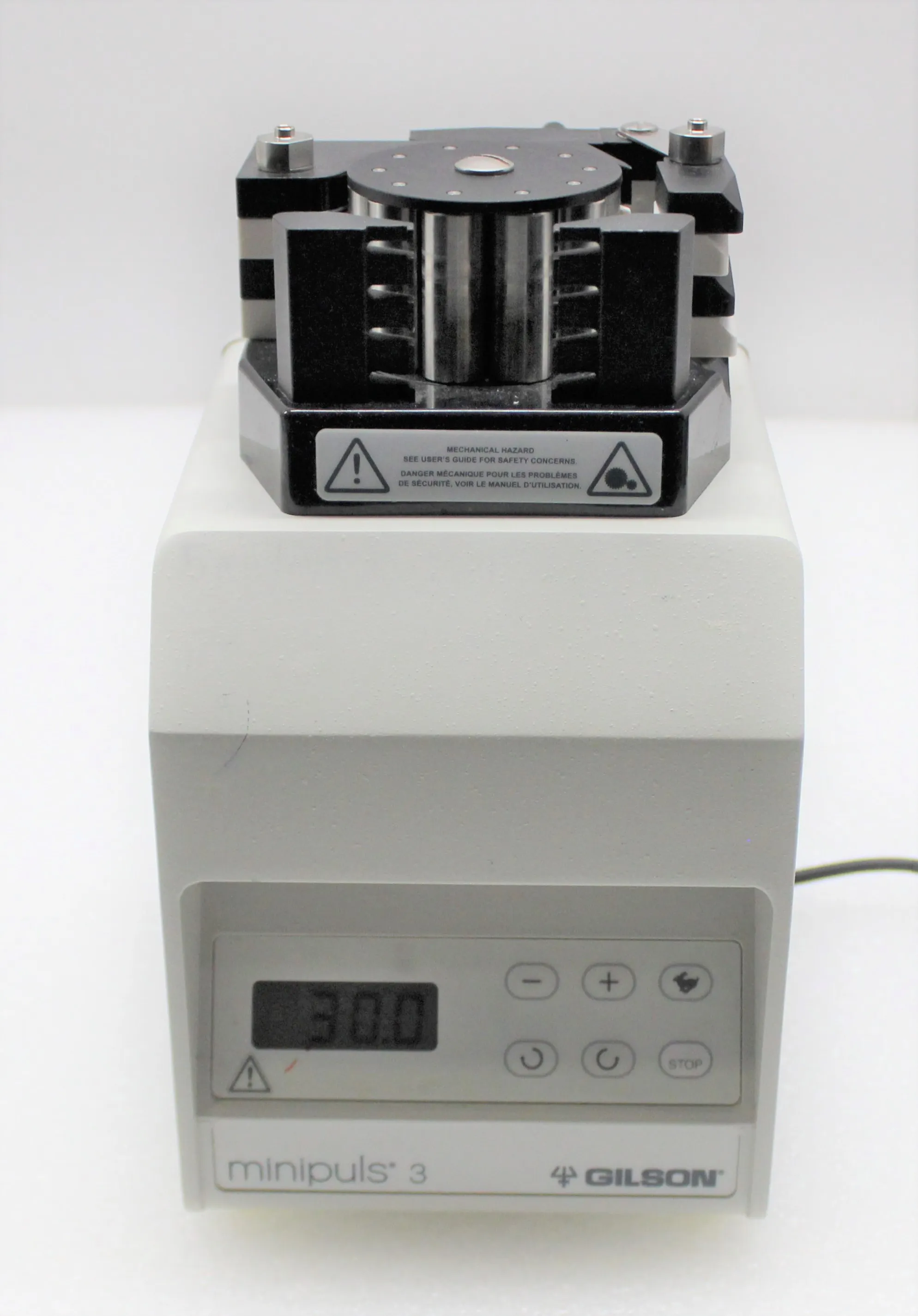

Gilson Minipuls 3 Peristaltic Pump

Product Information

The Gilson Minipuls 3 is a peristaltic pump that delivers smooth, low pulse flows of biological and chemical fluids in a variety of flow rate configurations. With microprocessor speed control and a high-torque stepper motor, it is designed to meet the liquid handling needs of process laboratories. The precision speed and control of the Minipuls 3 ensure smooth flows without sample shearing or degradation. This pump is ideal for applications such as chromatography, flow cytometry, and research involving precise fluid handling.

• Smooth, low pulse flows for biological and chemical fluids
• Microprocessor speed control
• High-torque stepper motor
• Designed for process laboratory liquid handling

• Standard Flow Rates (1, 2, 4, or 8 channels): 0.3 L/min - 30 mL/min at a maximum pressure of 0.5 MPa
• High Flow Rates (2 or 4 channels): 1 mL/min - 220 mL/min at a maximum pressure of 0.3 MPa
• Head Speed: Continuous adjustment from 0 to 48 rpm by 0.01 rpm increments up to 9.99 rpm
• Motor Speed Stability: 0.5% for any variation of line voltage, torque, or temperature
• Peristaltic Tubing Diameter: Standard model - 0.254mm (ID), High-Flow model - 28mm (ID)

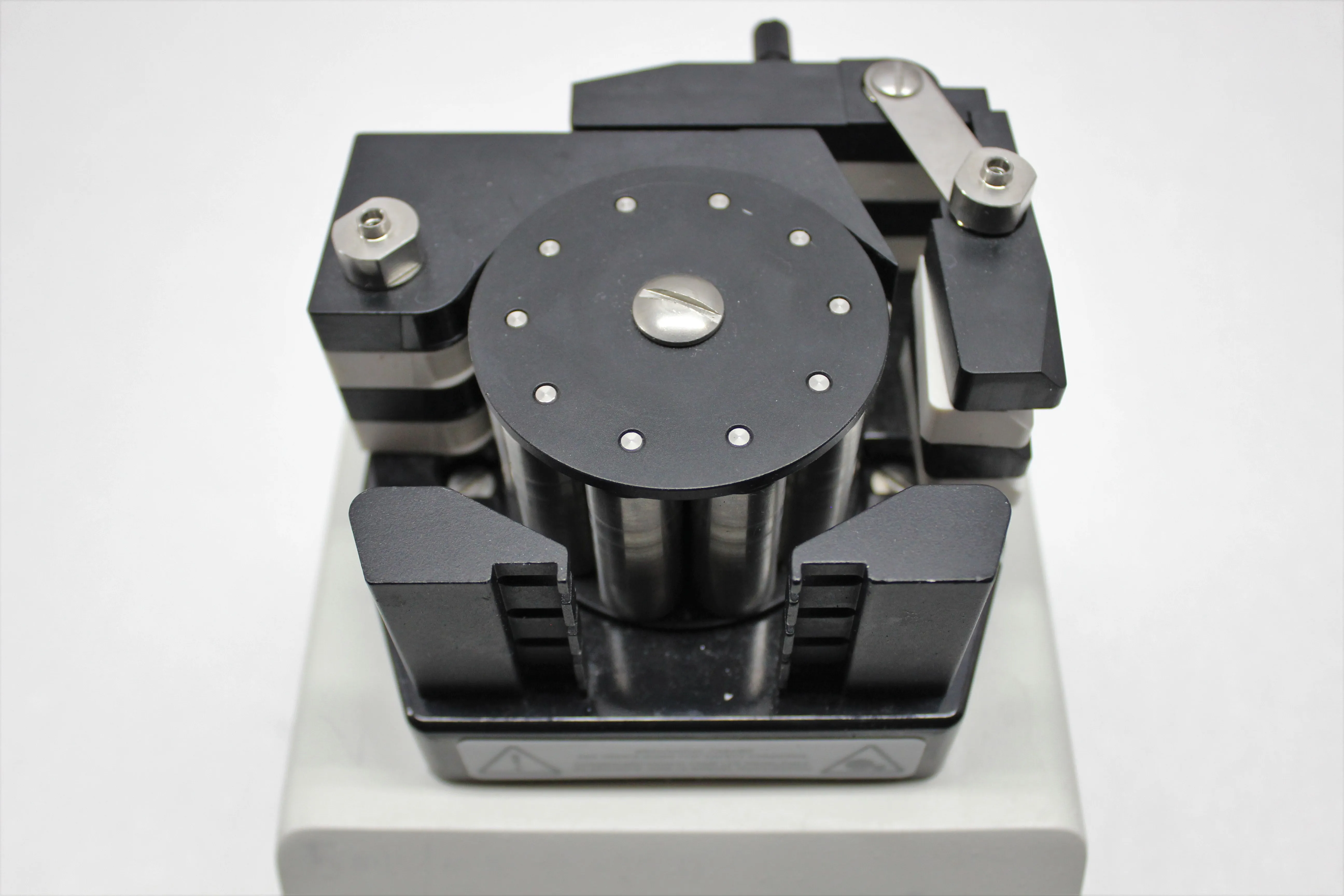

• Pump Heads: Standard model - 1-, 2-, 4-, or 8-channel heads with 10 stainless steel rollers per head, High-Flow model - 2- or 4-channel heads with five stainless steel rollers per head

Metric: 8 kg
Imperial: 18 lbs

Metric: 7 cm x 6 cm x 7 cm
Imperial: 2.76 in x 2.36 in x 2.76 in

841360

Pumps for liquids, whether or not fitted with a measuring device; liquid elevators. This code is used based on the function of the equipment as a peristaltic pump for delivering precise fluid flows in laboratory settings.
