Chemyx Fusion 100T Syringe Pump - Used, 240V, 50Hz/60Hz

Product Information

The Chemyx Fusion 100T Syringe Pump is a dual-channel syringe pump designed to handle precision dosing applications with unmatched ease of use and system value. This infusion syringe pump ensures pulseless, reproducible pump rates for a wide range of analytical techniques and applications in chemical, pharmaceutical, and biotech R&D. The pump handles syringes from 0.5mL to 60mL and offers infusion rates from 0.0001 L/min to 102 mL/min. It is equipped with a touchscreen, USB, RS232, and TTL control, ensuring versatile connectivity. The technical specifications, including accuracy, reproducibility, and various environmental factors, make this syringe pump an ideal choice for applications requiring precision and reliability. The elegant 4.3 inch LCD touch screen, connectivity options, and compact design further enhance its value in laboratory settings.

• Dual-channel syringe pump
• Precision dosing applications
• Touchscreen control
• USB, RS232, TTL connectivity
• Infusion rates from 0.0001 L/min to 102 mL/min

• Mode: Infuse Only
• Accuracy: < 0.35%
• Reproducibility: < 0.05%
• Syringe Size (Min/Max): 0.5mL to 60mL
• Minimum Flow Rate: 0.0001 mL/min (with 0.5mL syringe)
• Maximum Flow Rate: 140 mL/min
• Linear Force: 35lb (15.9kg)

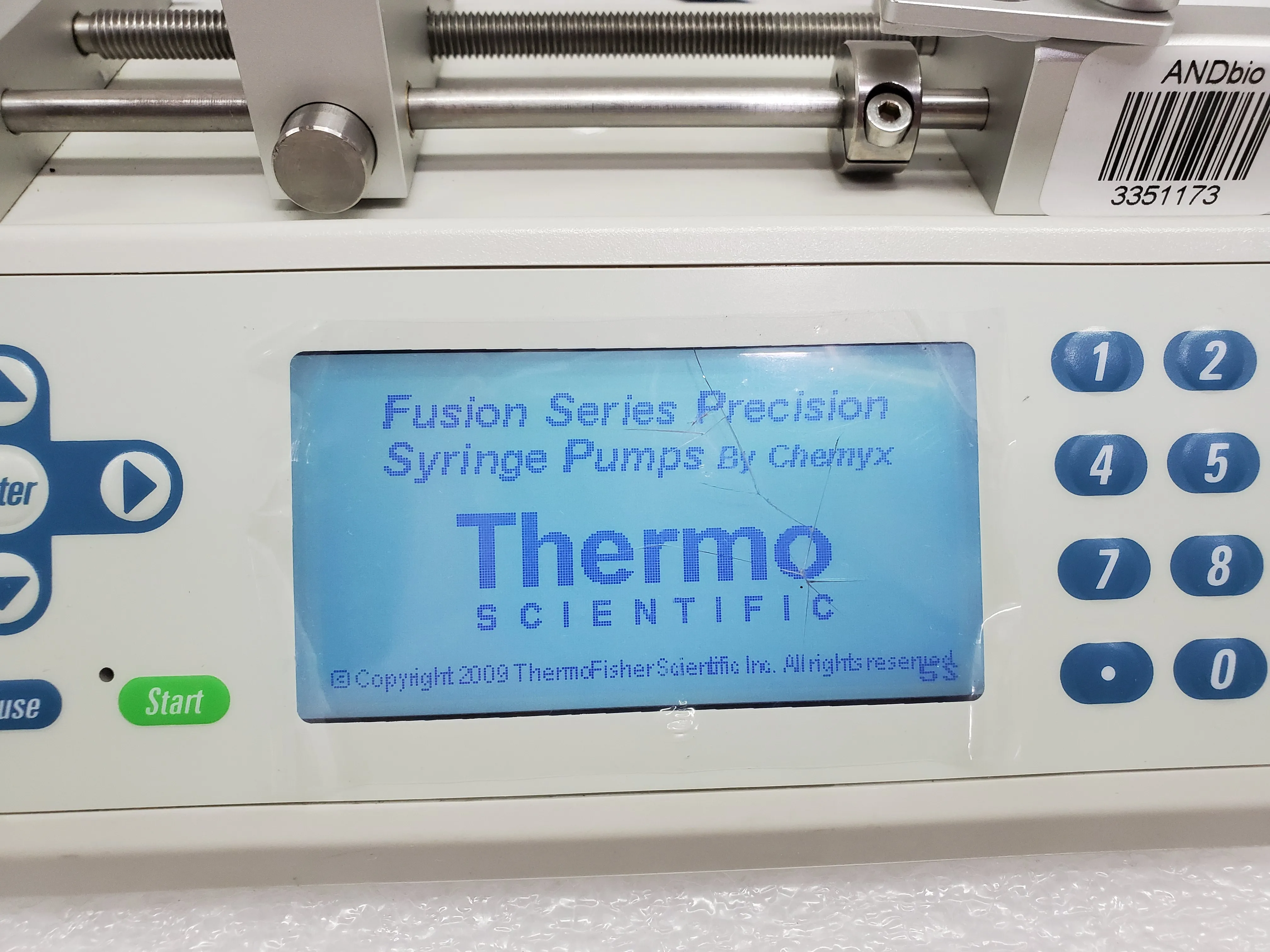

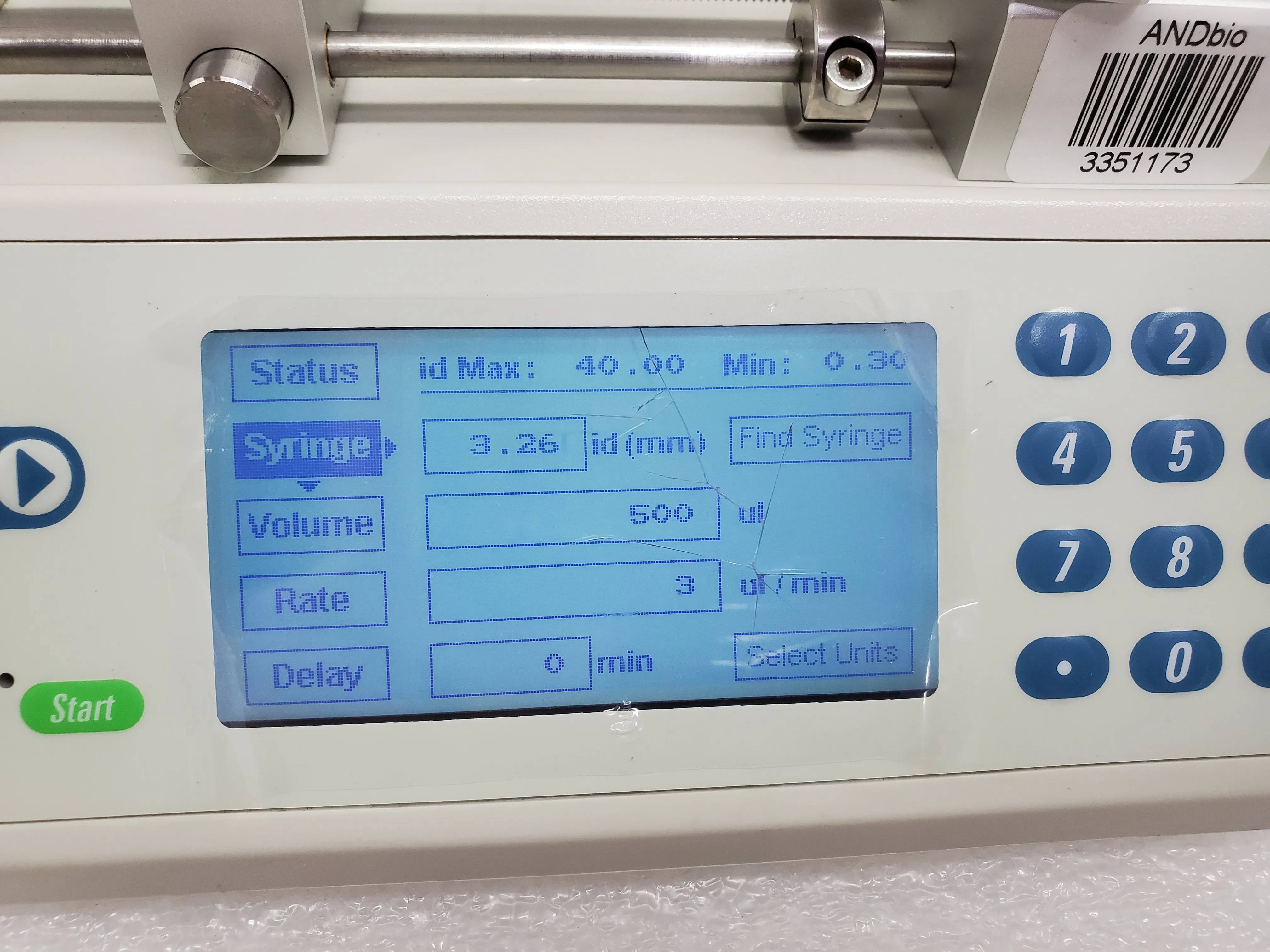

• Display: 4.3 inch LCD Touch Screen

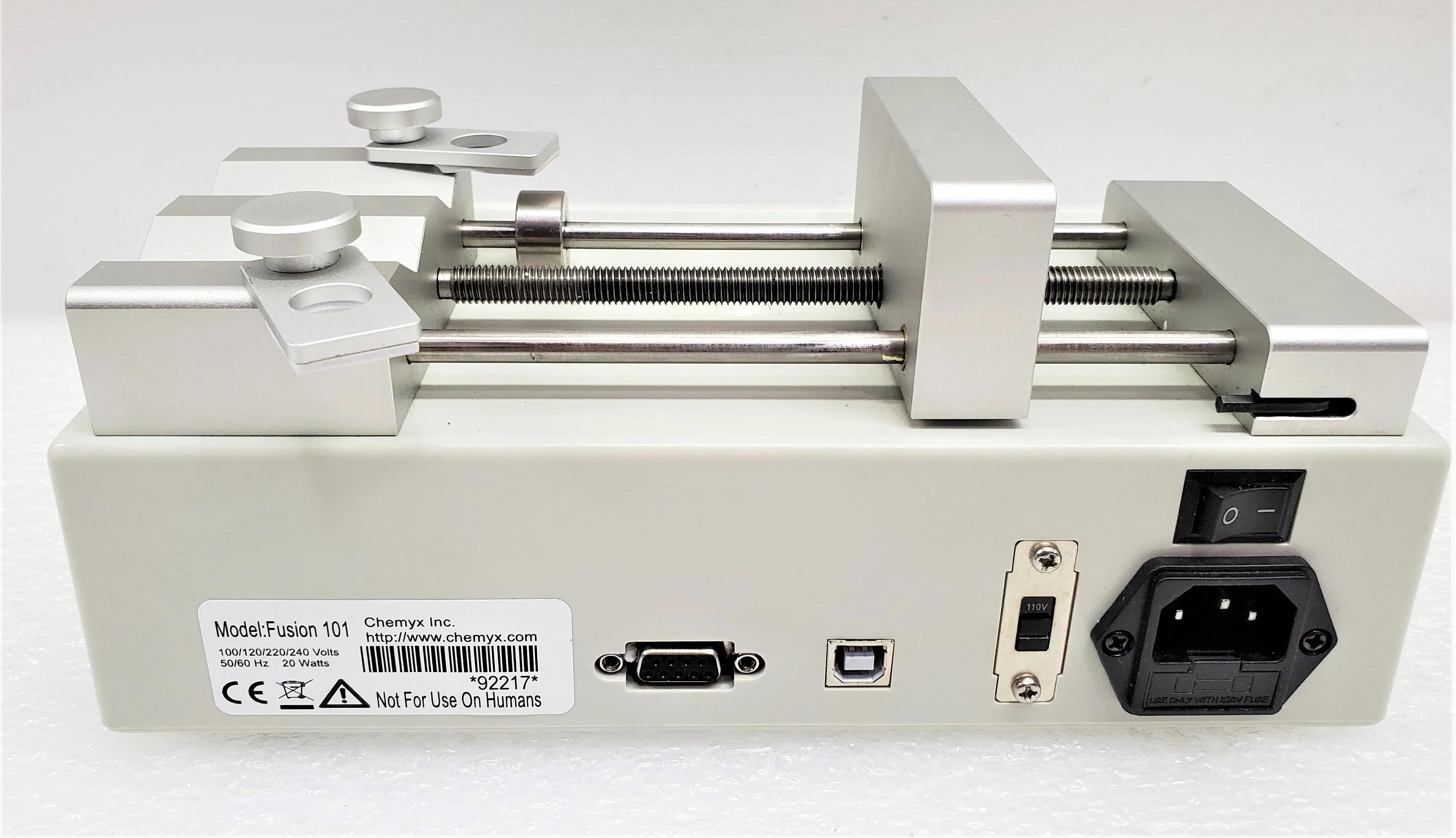

• Connectivity: USB-B, RS232, and TTL Ports
• System Dimensions: 9.5 x 6.8 x 4.4 inches (24 x 17 x 11 cm)
• Motor Drive: 0.9 Stepper Motor with Micro-stepping
• Step Resolution: 0.098 m/step
• Operating Temperature: 4C to 40C (40F to 104F)
• Storage Temperature: -10C to 70C (14F to 158F)
• Humidity: 20% to 80% RH, non-condensing
• Installation Category: II
• Regulatory Compliance: CE, RoHS, REACH, FCC, IC

Metric: 3.175 kg
Imperial: 7 lbs

Metric: 24 cm x 17 cm x 11 cm
Imperial: 9.5 in x 6.8 in x 4.4 in
