Teledyne CombiFlash RF Plus UV Flash Chromatography System

Product Information

The Teledyne CombiFlash RF Plus UV Flash Chromatography System has been thoroughly tested and is in good condition. It delivers reversed phase purifications at a fraction of the cost of preparative HPLC. The system operates at pressures up to 150 psi (10.3 bar) and is compatible with both normal and reversed phase purification conditions. It is suitable for purifying synthetic compounds, natural products, peptides, or polymers. The system's built-in RFID technology automates setting parameters for purification runs and fraction collection. It has an internal fraction collector, UV spectra display in real-time, post-run capabilities, and built-in active solvent and waste management to prevent columns from drying and waste overfills. This unit also boasts rapid column air purging, easy scale-up with built-in method scaling, and an intuitive user interface. Additionally, it features a TLC to Gradient calculator, variable UV and UV-Vis detection, programmable gradients, and automated sample injections. The system's specifications include a flow rate range of 1-200 mL/min, maximum pressure of 200 psi, and compatibility with UV (UV-Vis optional) + ELSD detection. The unit's dimensions are 61.0 x 35.8 x 43.2 cm (H x W x D).

• Reversed phase purifications at a fraction of the cost of preparative HPLC
• RFID technology for automated setting of purification parameters
• Active solvent and waste management to prevent drying and overfills

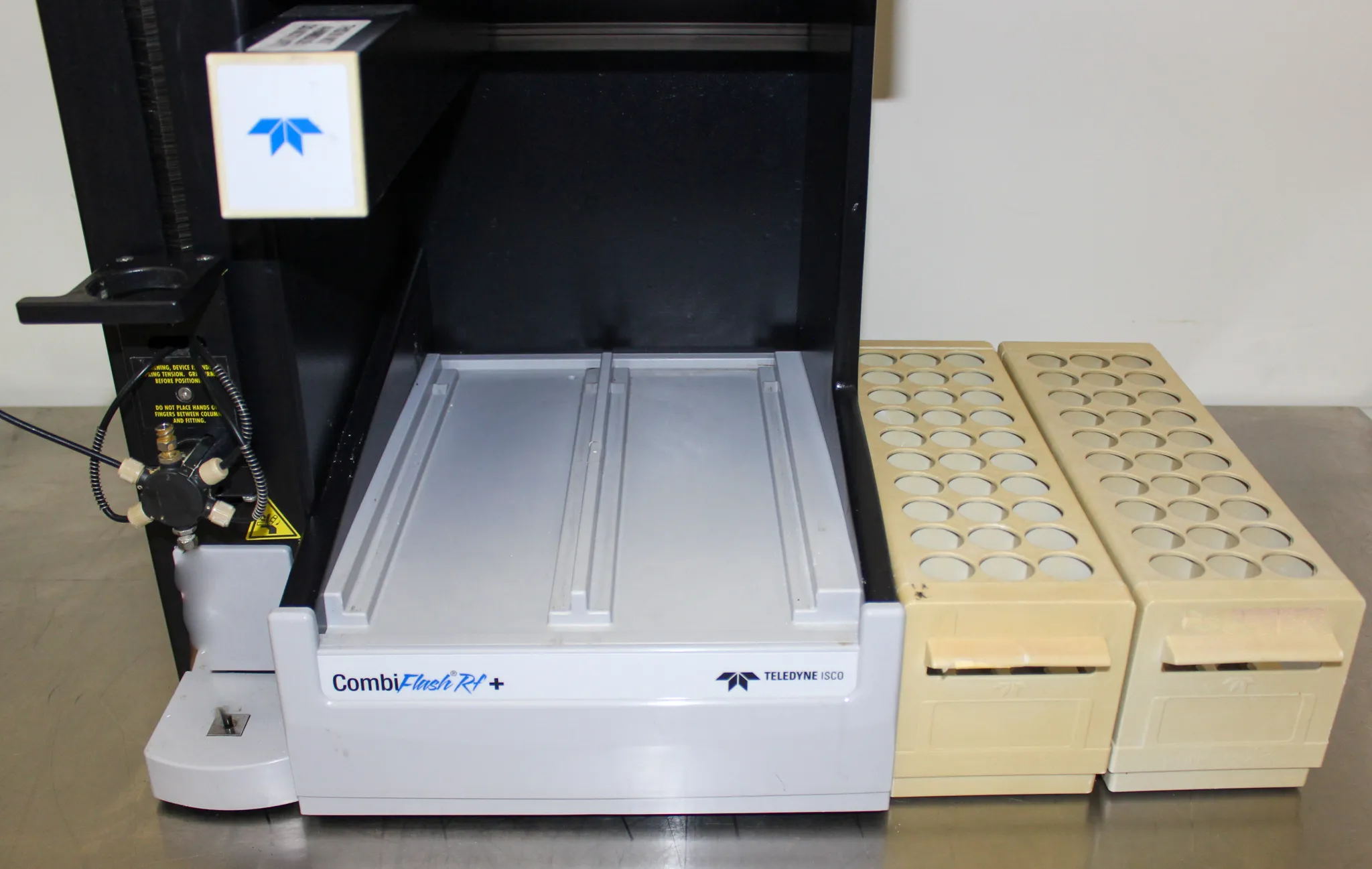

• Internal fraction collector
• UV and UV-Vis detection with programmable gradients

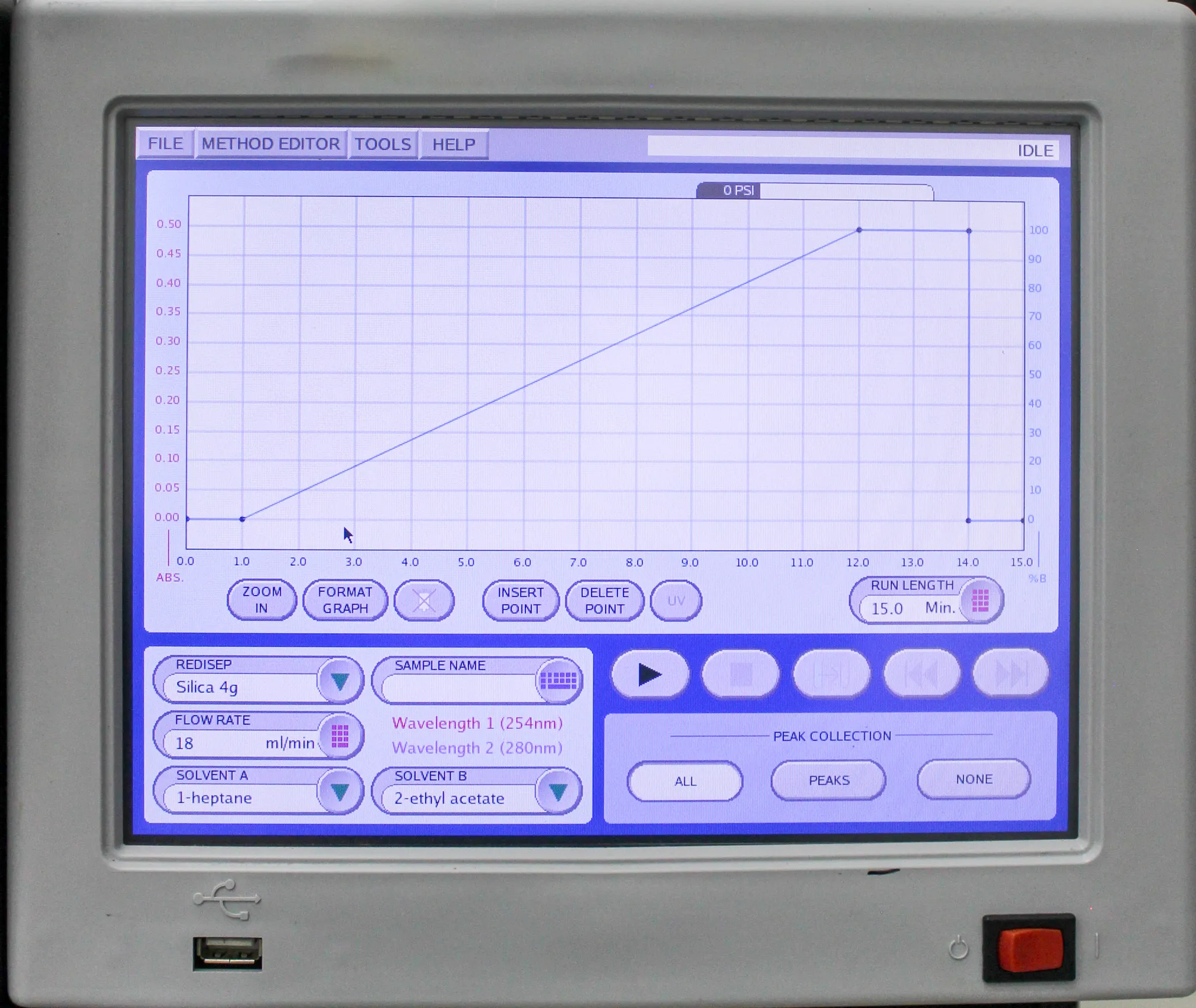

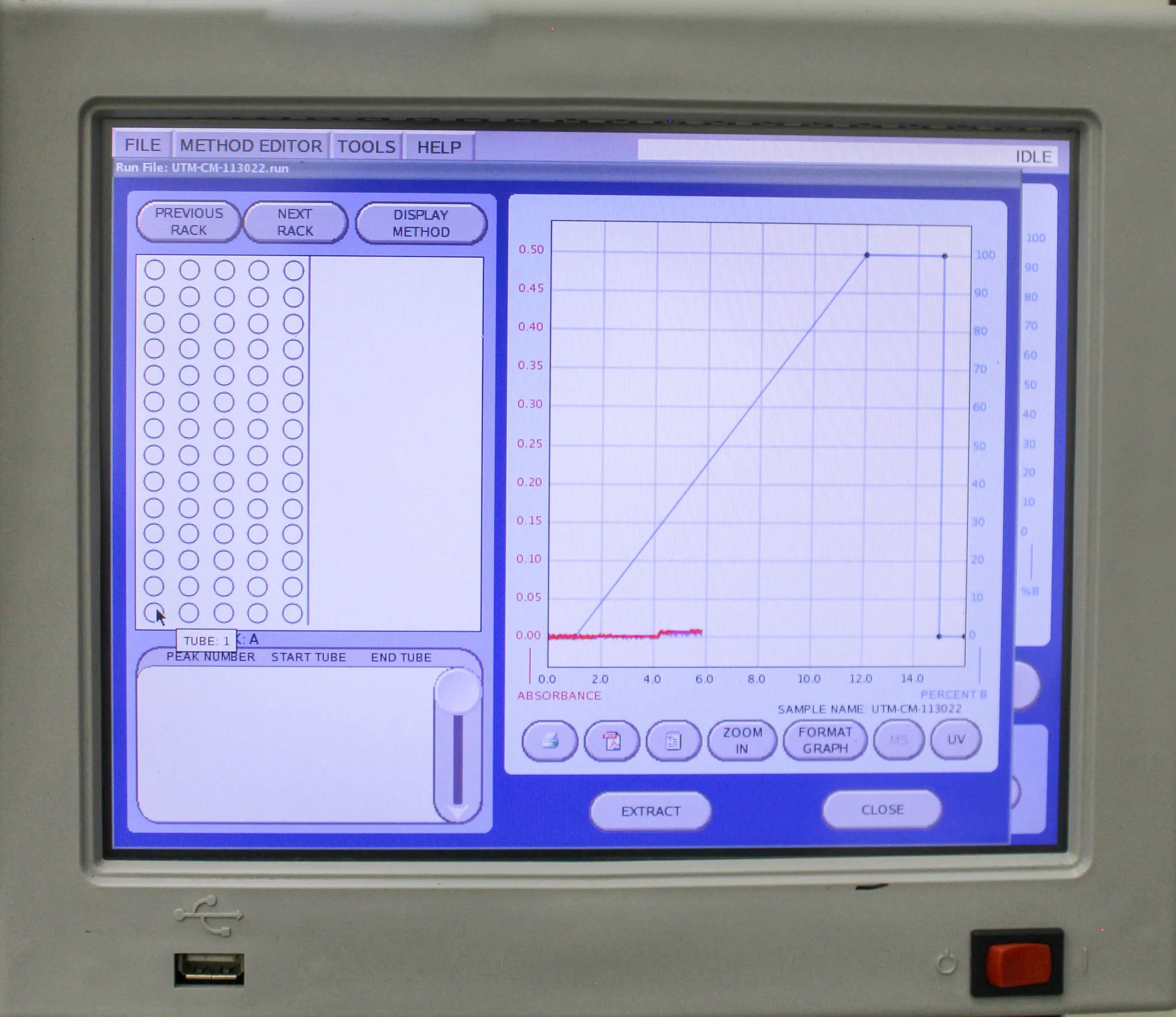

• Automated sample injections with touch screen interface

• Flow Rate Range: 1 - 200 mL/min
• Maximum Pressure: 200 psi (14 bar)
• Detection: UV (UV-Vis optional) + ELSD
• Spray Chamber Temperature: Ambient to 120 C
• Drift Tube Temperature: 10 - 70 C
• Gas Requirements: 65 psi (4.6 BAR) - 5 psi (0.3 BAR) Nitrogen or other inert gas

Metric: 14.515 kg
Imperial: 32 lb

Metric: 61.0 cm x 35.8 cm x 43.2 cm
Imperial: 24.0 in x 14.1 in x 17.0 in

9027200000

9027200000 - Liquid chromatographs. Instruments for measuring or checking viscosity, porosity, expansion, surface tension, or the absorption, heat or light transmission of liquids.
