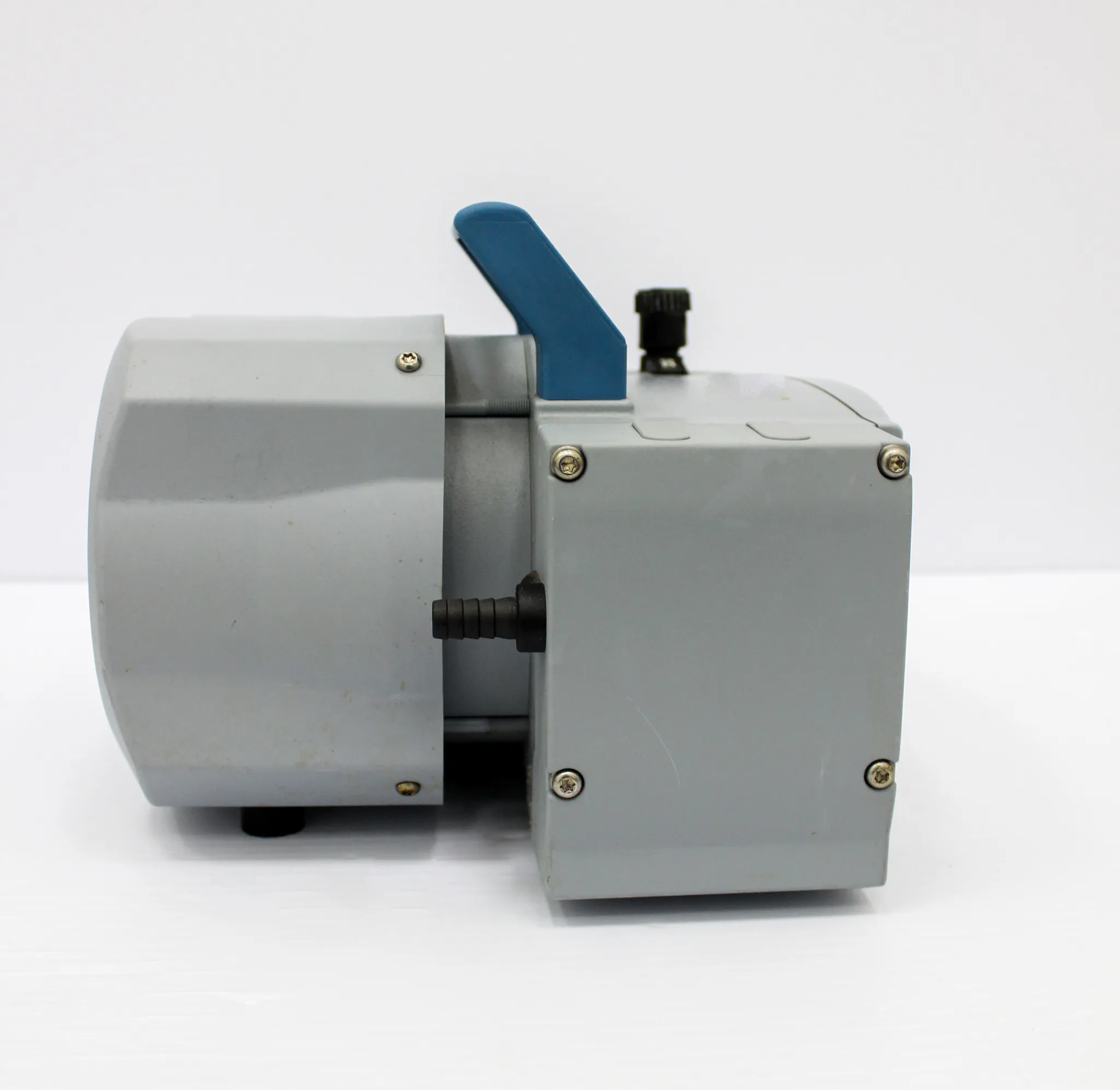

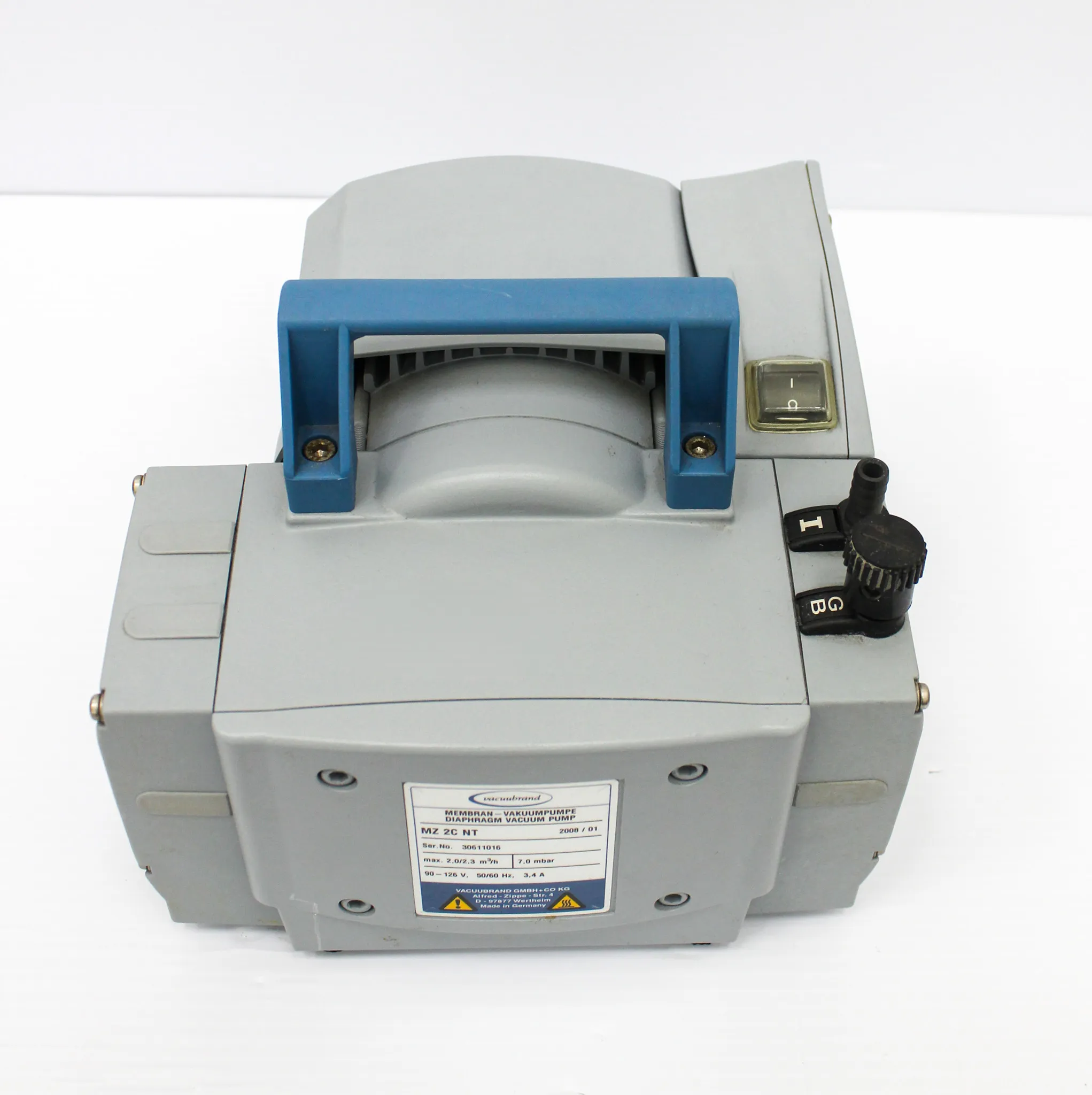

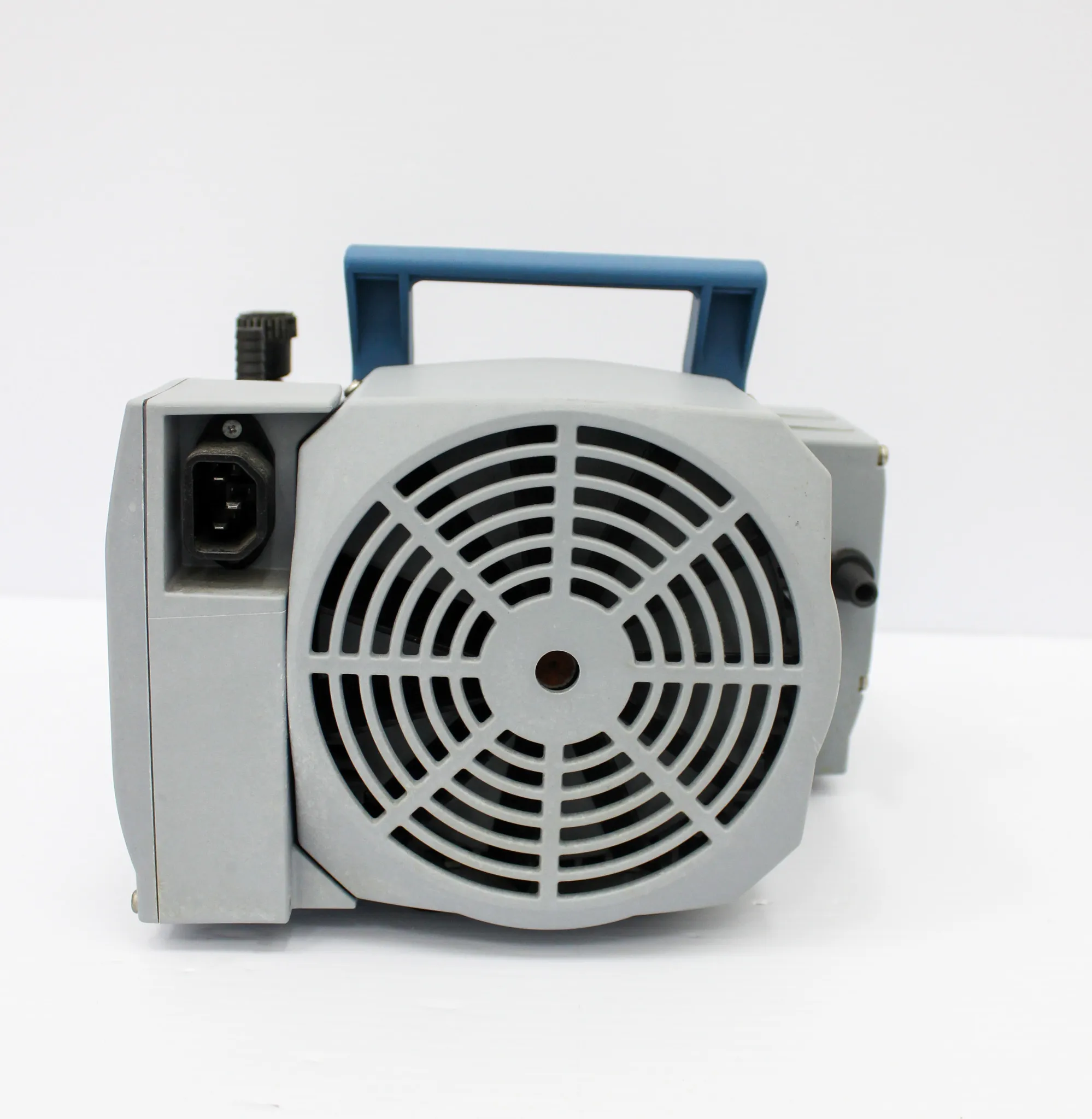

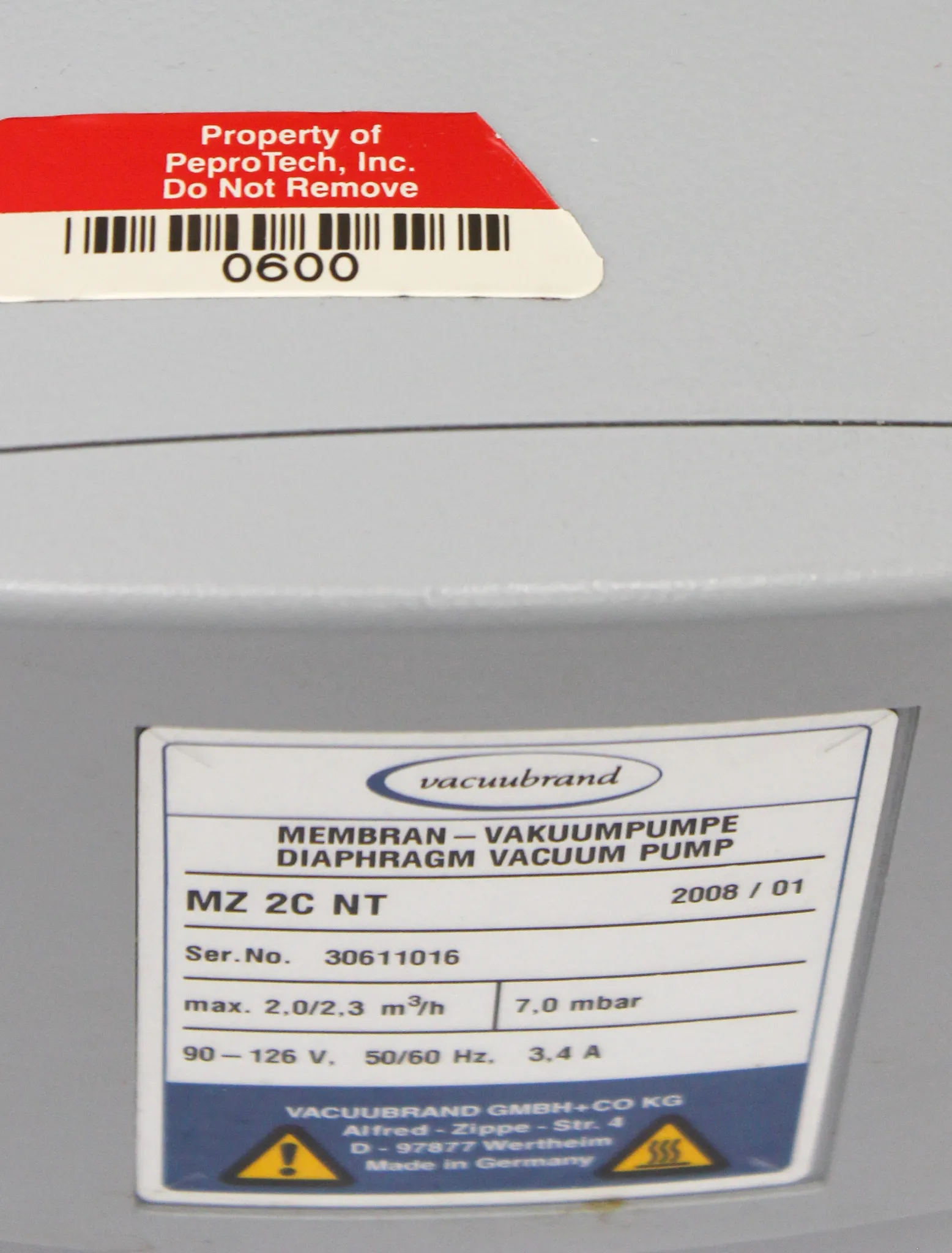

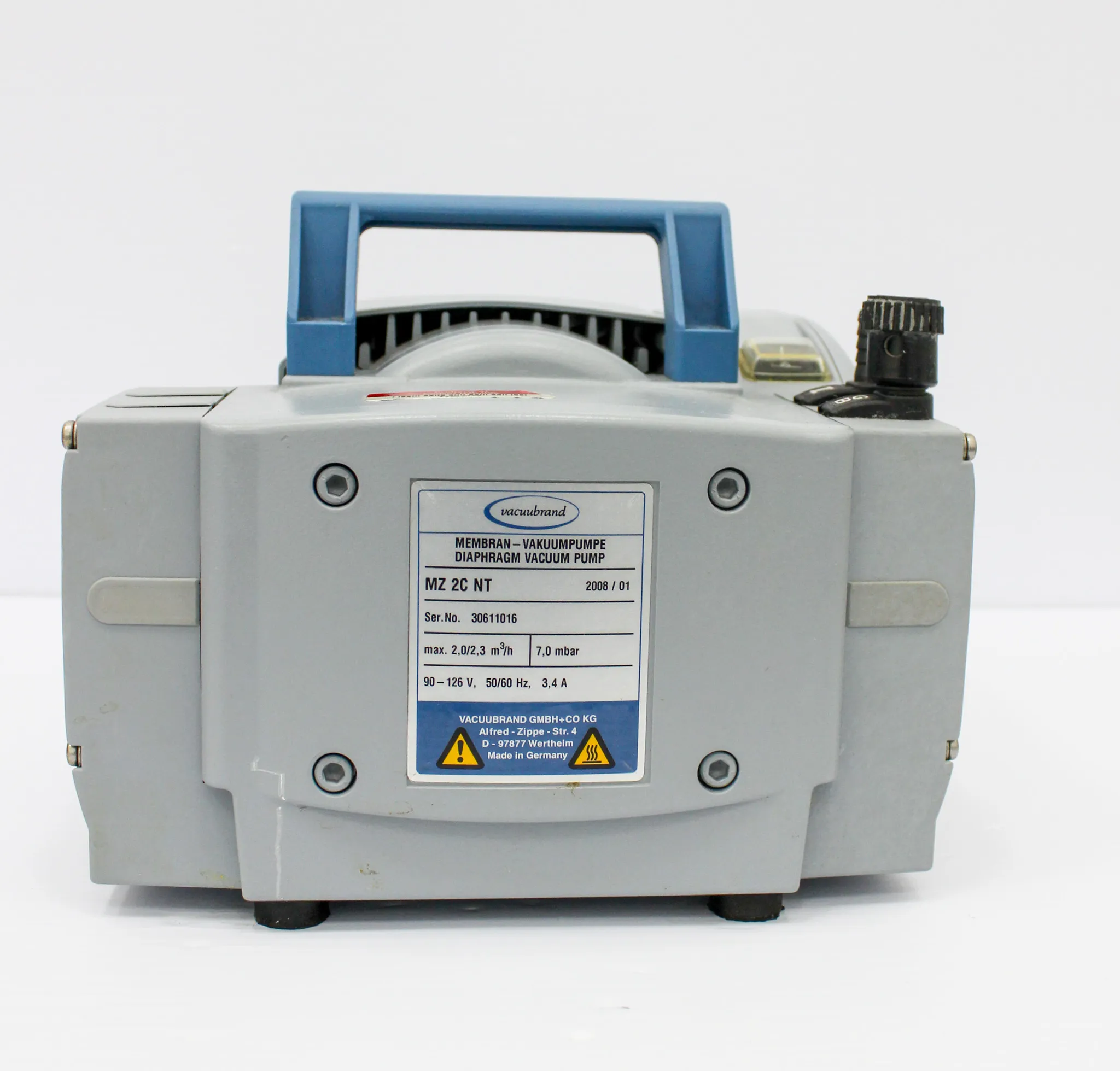

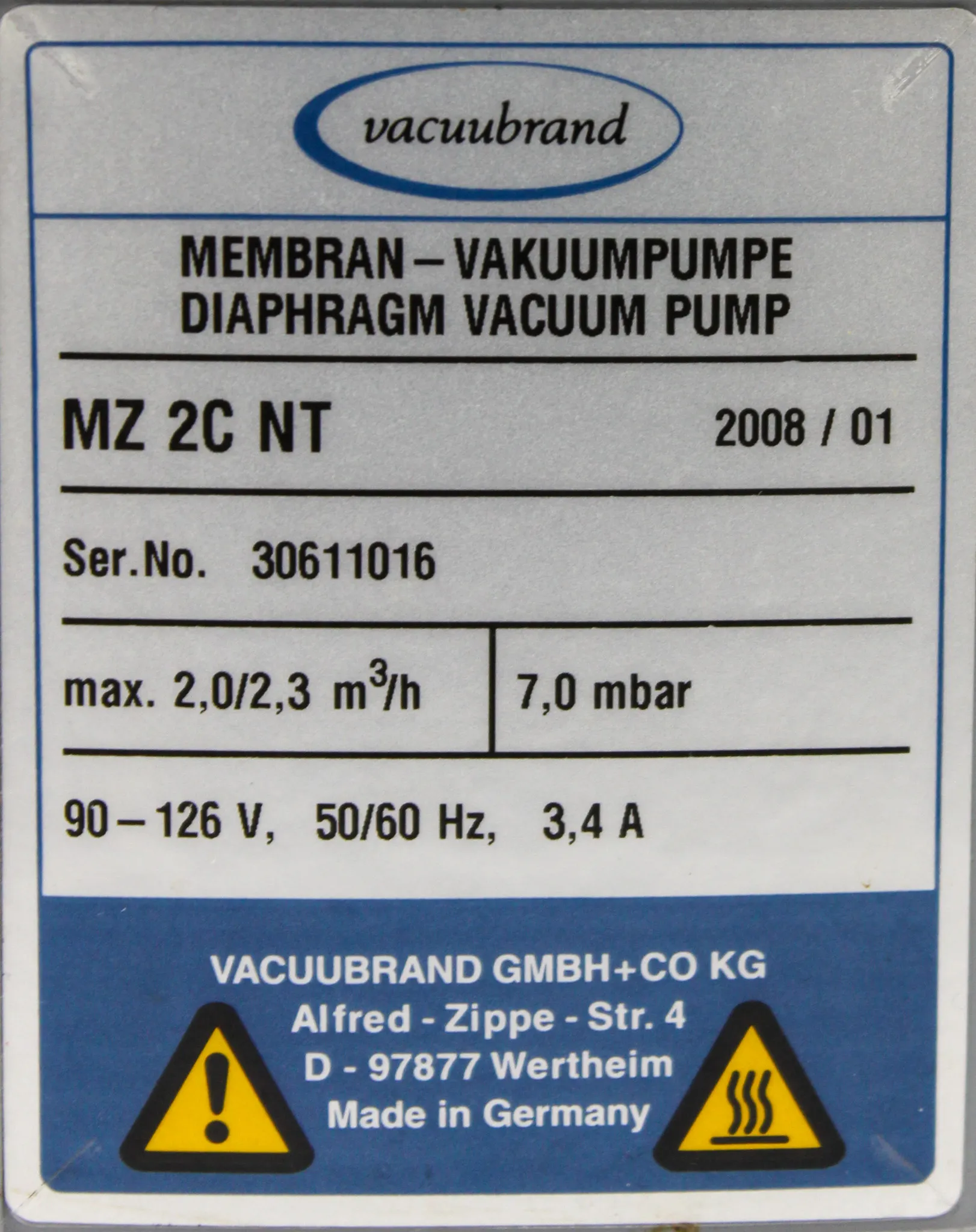

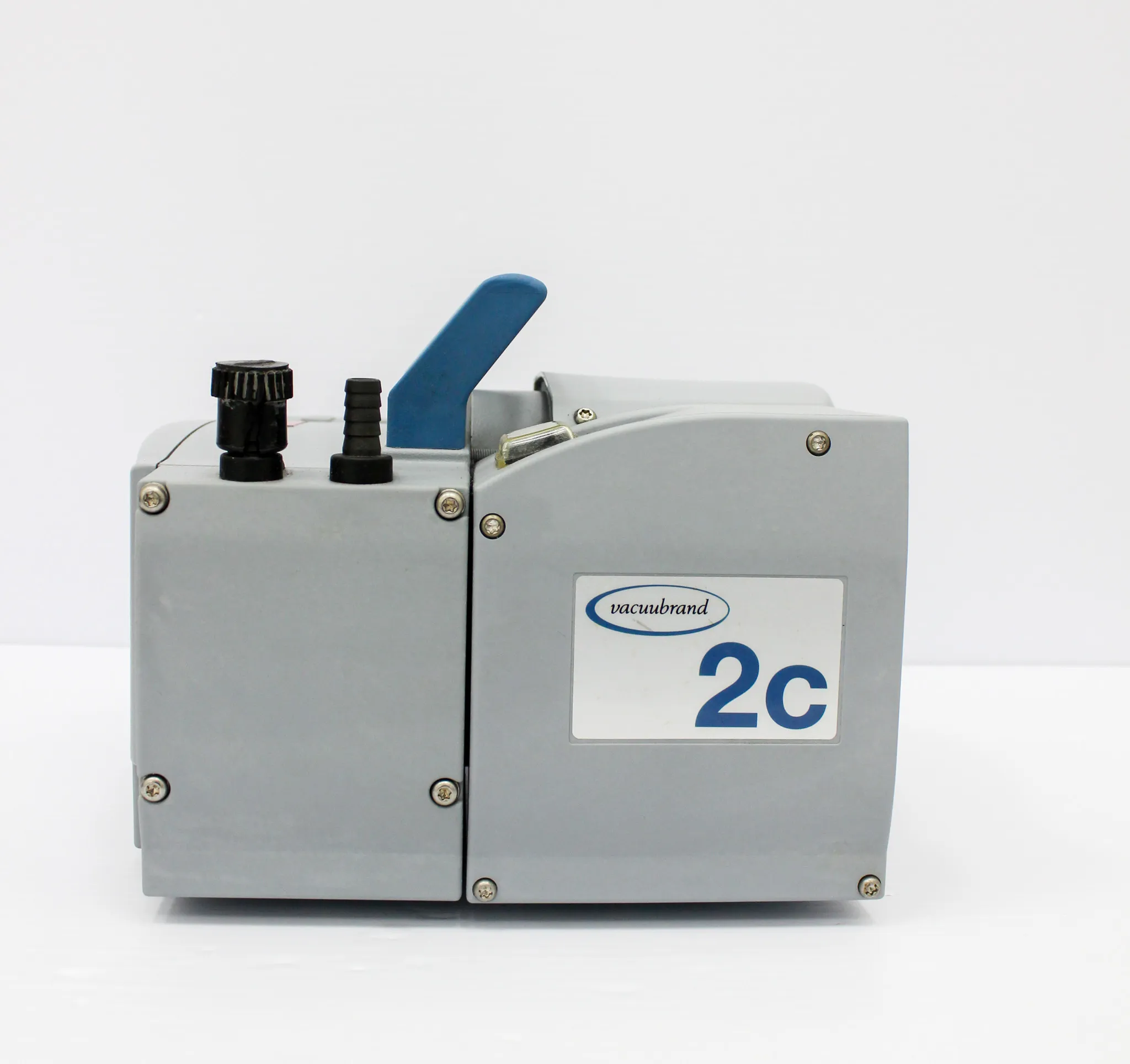

Vacuumbrand MZ 2C NT Chemistry Design Diaphragm Vacuum Pump MZ 2C NT

Product Information

Welcome, scientists and industry professionals! Feast your eyes on the MZ 2C NT Chemistry Design Diaphragm Pump by Vacuumbrand. This little powerhouse has undergone rigorous testing to confirm that it works in tip-top shape. While it boasts a few cosmetic blemishes from regular use, these quirks do not affect its functionality in any way. Now, let's delve into the details of this two-stage construction workhorse. Offering a dazzling combination of high pumping speed and low ultimate vacuum, the MZ 2C NT utilizes chemically resistant fluoroplastics in all contact areas with the pumped media. The PTFE sandwich diaphragms elevate reliability and extend operating life, showcasing its long-term value. Boasting a whisper-quiet, low-vibration operation, it maintains outstanding chemical resistance and vapor tolerance, ensuring exceptional performance even at low vacuum levels. The MZ 2C NT's robust design caters to long service life, perfect for demanding chemistry applications. Imagine its seamless integration in tasks such as vacuum generation for rotary evaporators, vacuum concentrators, and gel dryers. And would you believe it? It's our most popular chemistry diaphragm pump, no less. Here we stand face-to-face with a masterful pumping system. But perhaps its most admirable trait is its ability to be a part of a family of reliable and widely embraced chemistry vacuum systems and pumping units. That's the legacy of the MZ 2C NT - a pioneer, an achiever, a game-changer in the laboratory realm. With ultimate vacuum at 7mbar/5 torr and a gas ballast valve, the MZ 2C NT showcases superior vapor tolerance and productivity for a wide array of applications in chemistry and pharmaceutics. Its two-stage construction positions it as the perfect solution for your needs. Despite its industrial strength, the pump is tailored to be whisper quiet and exhibits low vibration, ensuring a pleasant and tranquil work environment. The chemistry world, behold your durable, impactful, and high-performing companion - the MZ 2C NT by Vacuumbrand. Dare to experience its brilliance - you won't be disappointed!

• Two-stage construction for high pumping speed and low ultimate vacuum
• Chemically resistant fluoroplastics in all contact areas with the pumped media
• Whisper quiet and low vibration with outstanding chemical resistance and vapor tolerance
• Long diaphragm life and maintenance-free drive system
• Gas ballast valve for continuous condensate purge

• Max. pumping speed 50 Hz: 2 m3/h
• Max. pumping speed 60 Hz: 1.4 cfm
• Ultimate vacuum: 7 mbar / 5 torr
• Ultimate vacuum with gas ballast: 12 mbar / 9 torr
• Number of heads: 2
• Number of stages: 2
• Lower ambient temperature (operation): 10°C
• Upper ambient temperature (operation): 40°C
• Lower ambient temperature (storage): -10°C
• Upper ambient temperature (storage): 60°C
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: Hose nozzle DN 8-10 mm
• Outlet connection: Hose nozzle DN 8-10 mm
• Rated motor power: 0.18 kW
• Rated motor speed at 50/60 Hz: 1500/1800 min-1
• Protection class IEC 60529: IP 40
• Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm: 45 dBA
• NRTL certification: Yes
• Rated mains voltage range 1100-115 V
• Rated mains voltage range 2120 V
• Mains frequency 150-60 Hz
• Mains frequency 260 Hz
• Items supplied: Pump completely mounted, ready for use, with manual.

Metric: 25 kg
Imperial: 55.12 lbs

Metric: 25.4 cm x 25.4 cm x 25.4 cm
Imperial: 10 in x 10 in x 10 in

8414100000

The product is classified under Harmonized System Code 8414100000, which represents Vacuum Pumps. This code is selected due to the clear description of the product's function and is most fitting for the Vacuumbrand MZ 2C NT Chemistry Design Diaphragm Pump.
