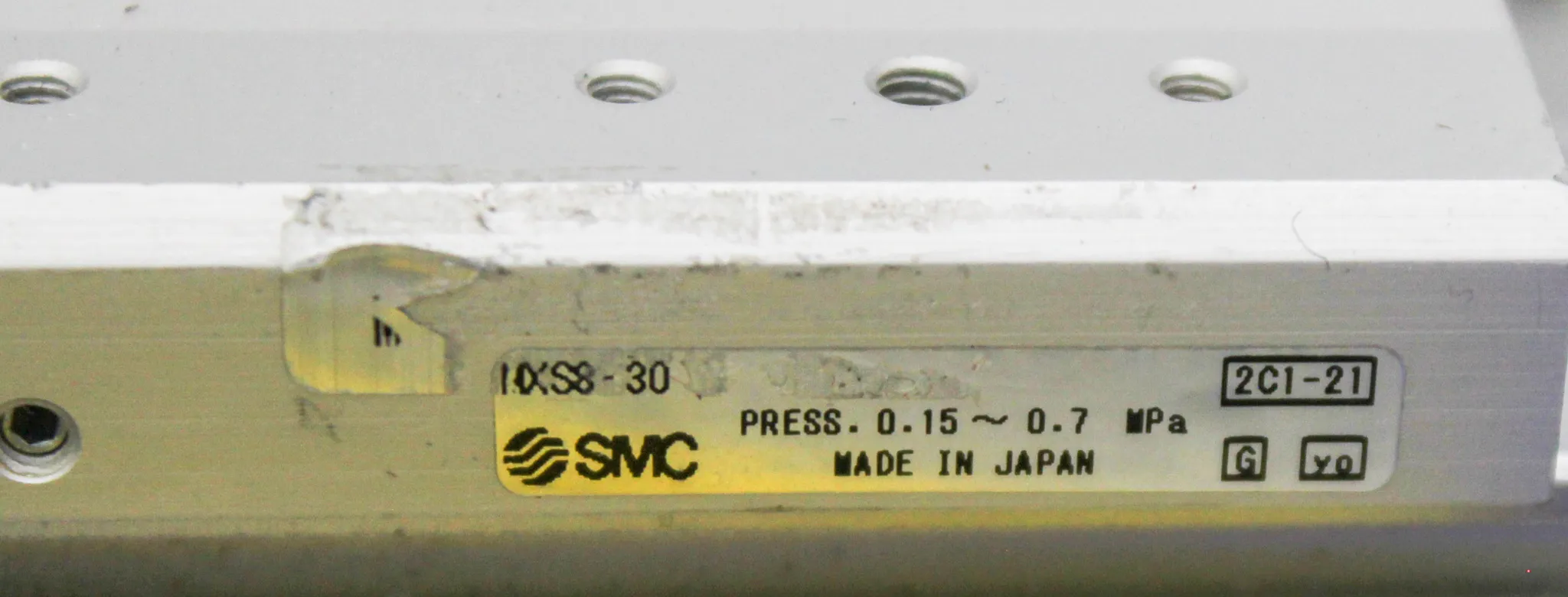

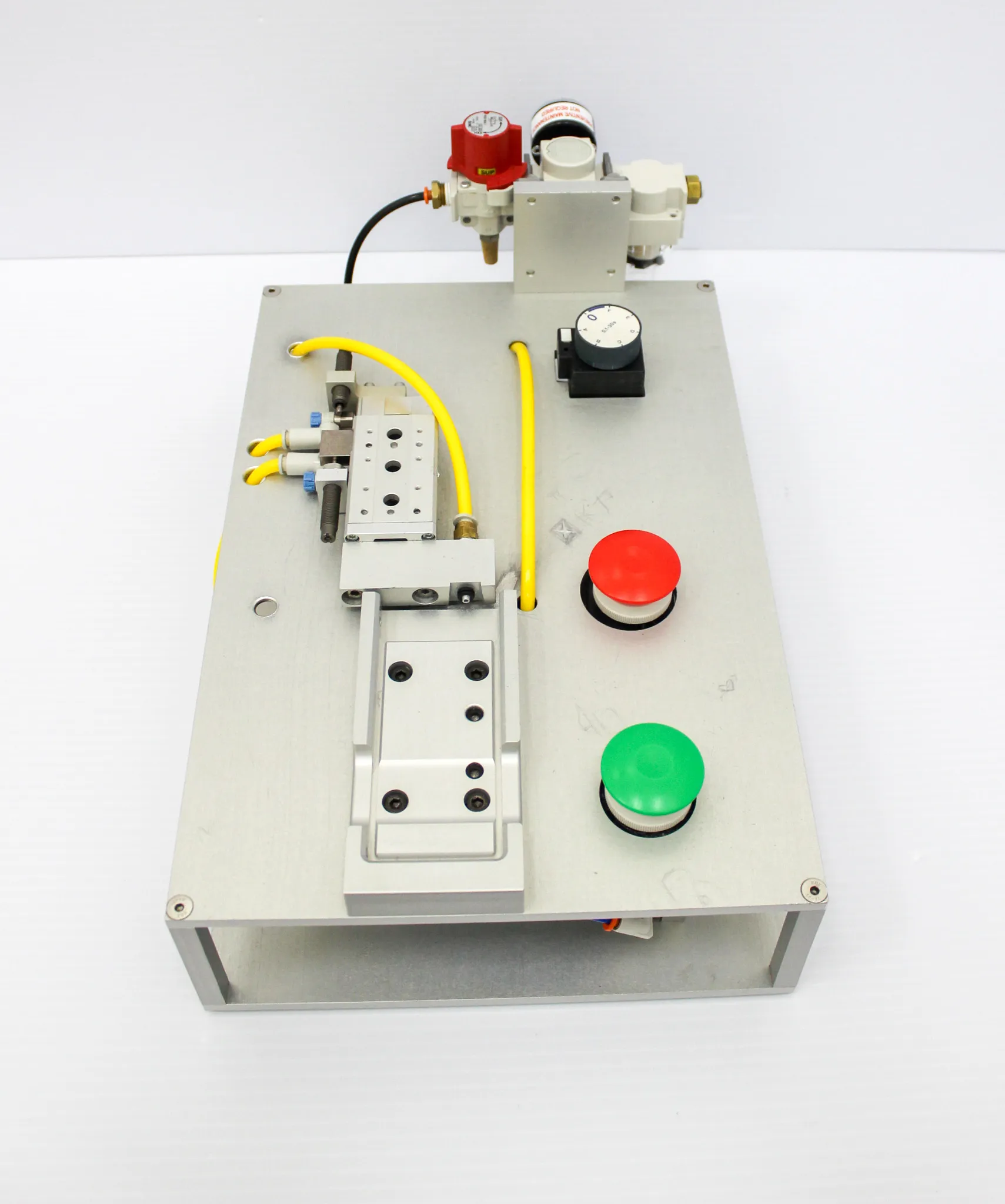

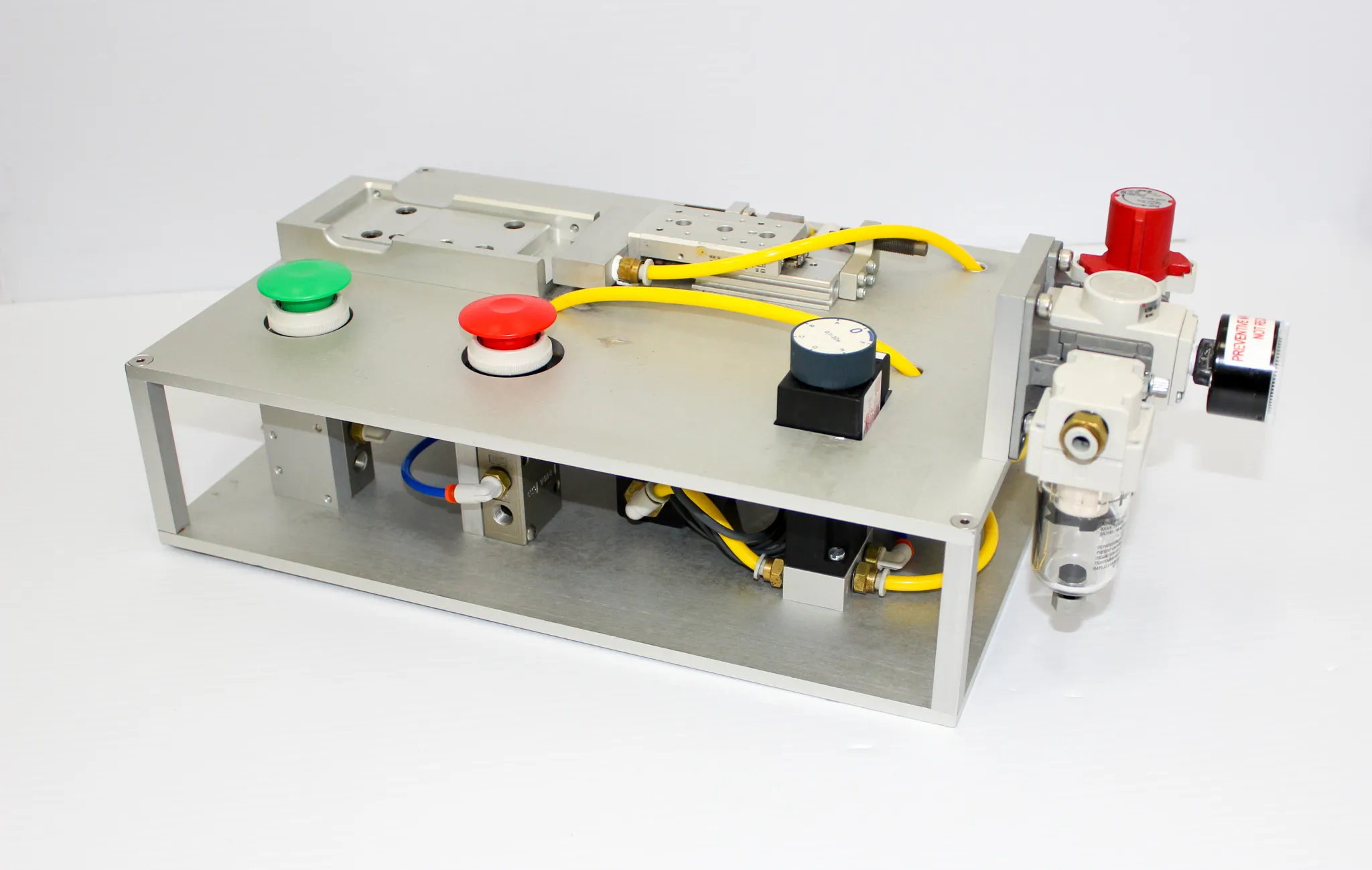

SMC MXS8-30P Custom Stopper Base with Regulator and Filter

Product Information

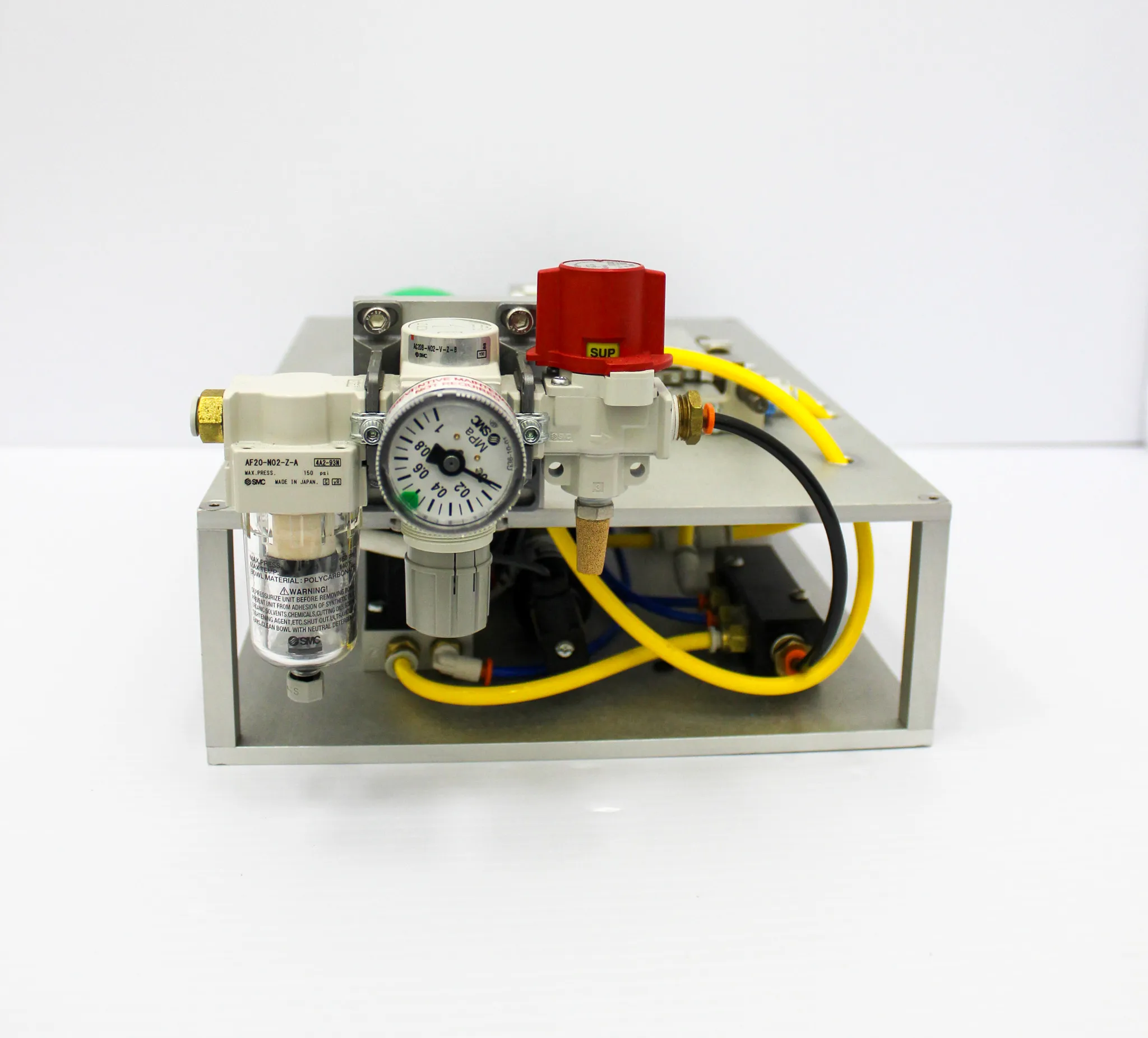

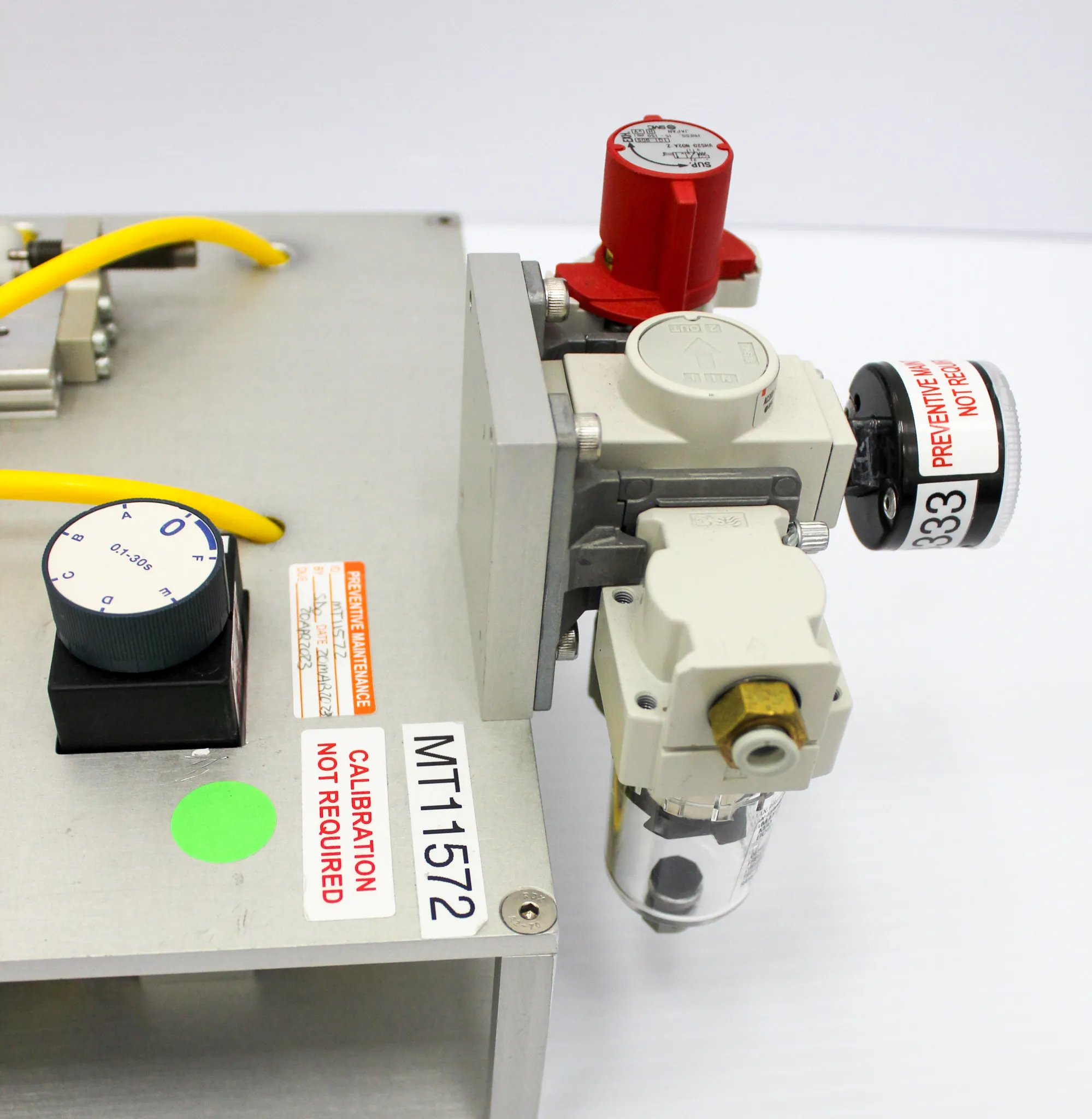

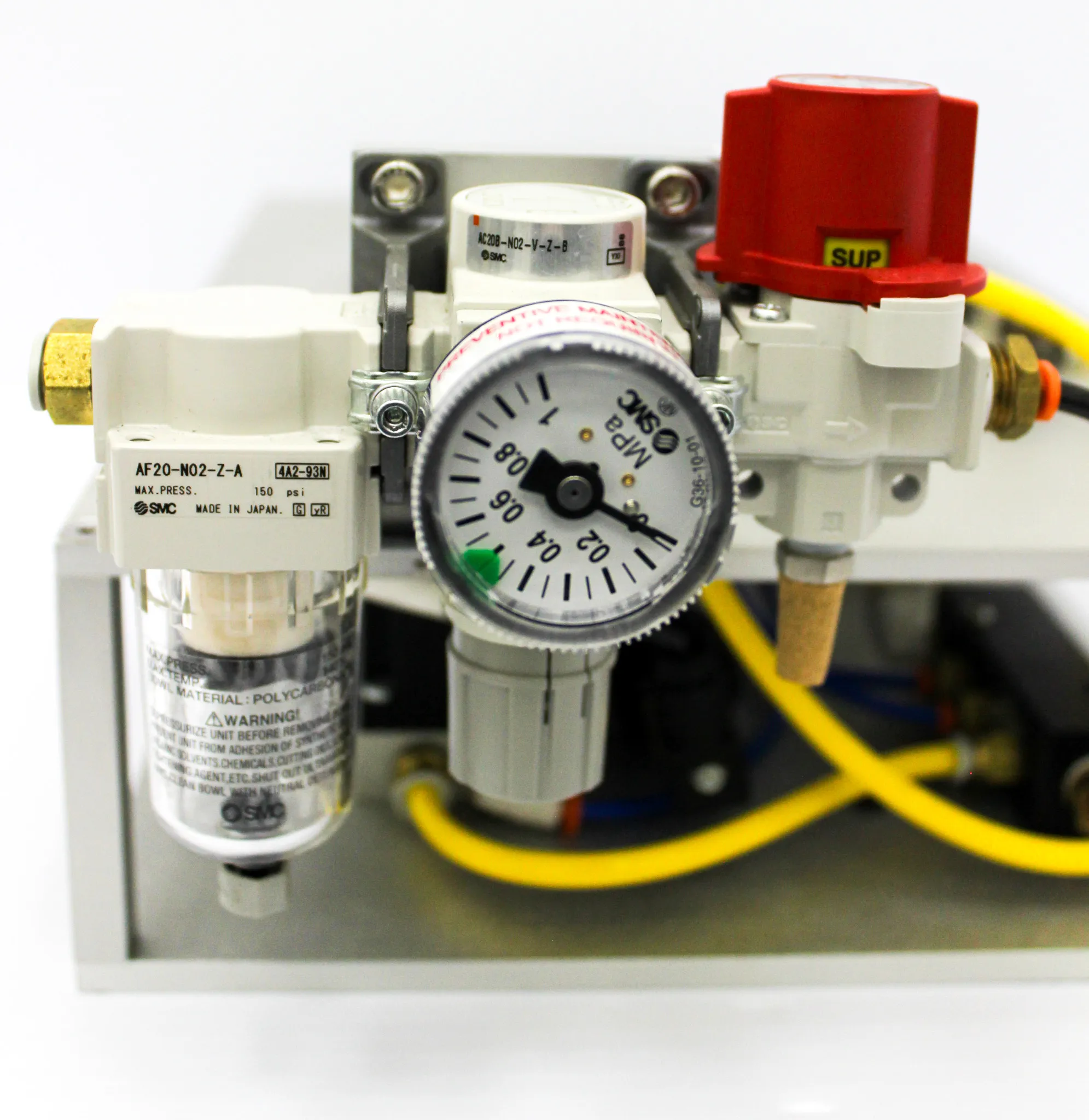

Hello fellow scientists! Let's delve into the intricacies of the SMC MXS8-30P Custom Stopper Base. This precision slide table, with guides, rails, and rubber bumpers, ensures meticulous and safe positioning for vertical applications, equipped with a sleek AR20-N02-Z-B Set regulator and AF20-N02-Z-A Filter. These components work in harmony to enhance safety, optimize pressure, and improve energy efficiency. Using custom end lock options and modular, embedded pressure gauge designs, this SMC Valve, when combined with the rest of the SMC air preparation equipment, offers an extensive range of features that guarantee robust performance, user-friendly assembly, and minimal downtime for your laboratory endeavors.

• Precision slide table with guides, rails, and cross roller bearings
• Rubber bumpers and shock absorbers for safe positioning
• End lock options in the event of air pressure loss
• Modular type regulator with optional embedded pressure gauge
• Modular style air filter with maximum 46% size reduction

• Precision slide table dimensions: Bore sizes 6, 8, 12, 16, 20, 25 mm

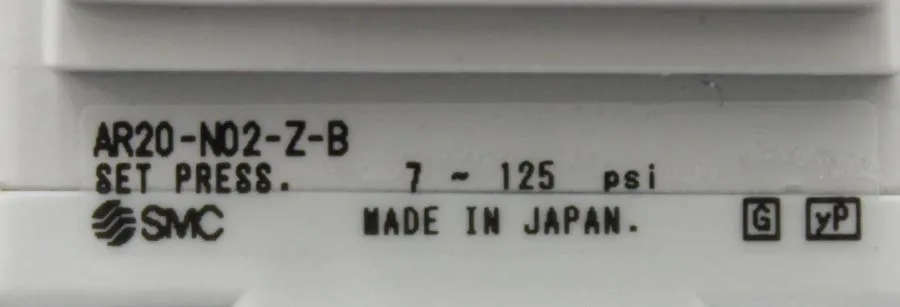

• Regulator pressure range: 7-125 psi

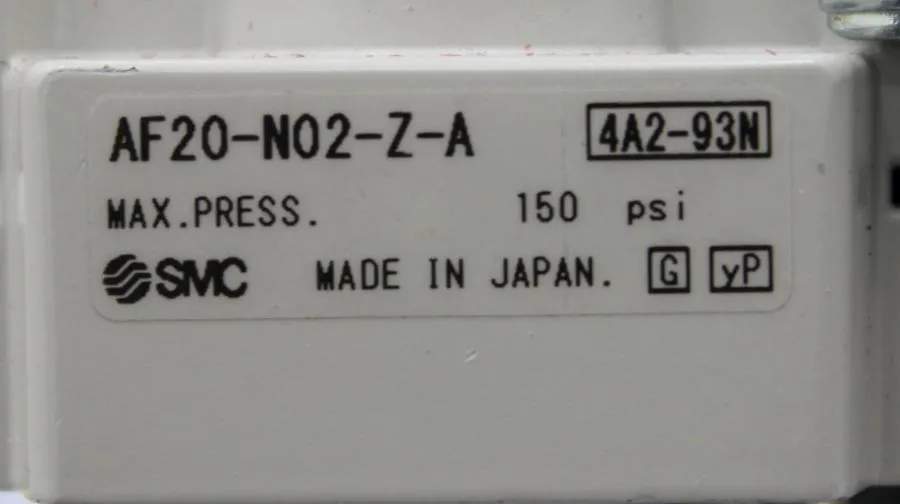

• Filter maximum pressure: 150 psi
• Valve pressure range: 15-50 psi
• Valve body sizes: 1/8, 3/8, 1/2, 3/4
• Valve port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1

Metric: 8.1 kg
Imperial: 17.85 lbs

Metric: 48.26 cm x 45.72 cm x 38.1 cm
Imperial: 19 in x 18 in x 15 in

841490

The chosen harmonized code 841490 is for Parts of Air or Vacuum Pumps, Air or other Gas Compressors and Fans; Ventilating or Recycling Hoods Incorporating a Fan, whether or not Fitted with Filters, other than Goods of Heading 8414. This code corresponds with the description of the precision slide table, regulators, and air filters, encapsulating the primary functional components of the equipment.
