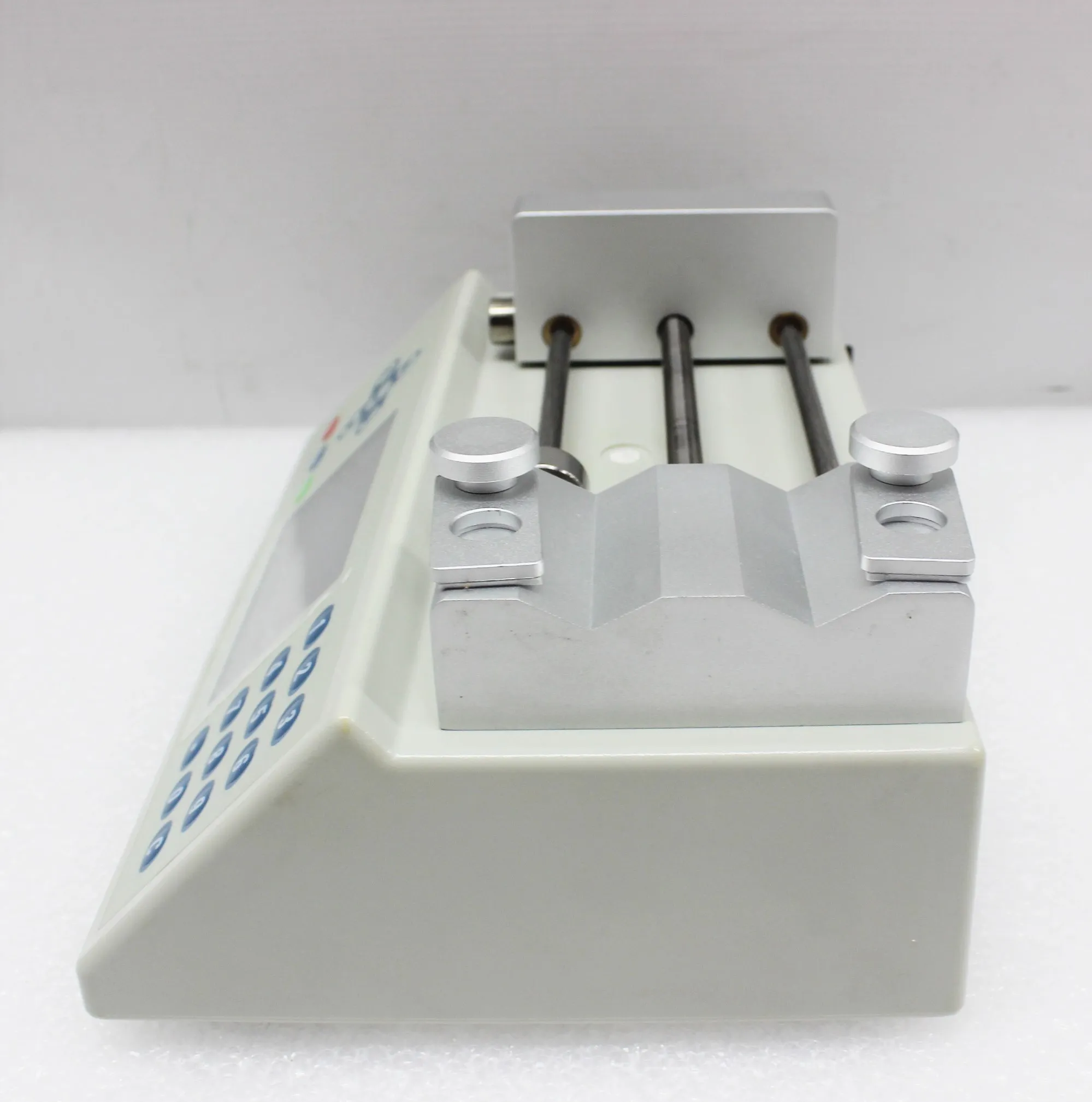

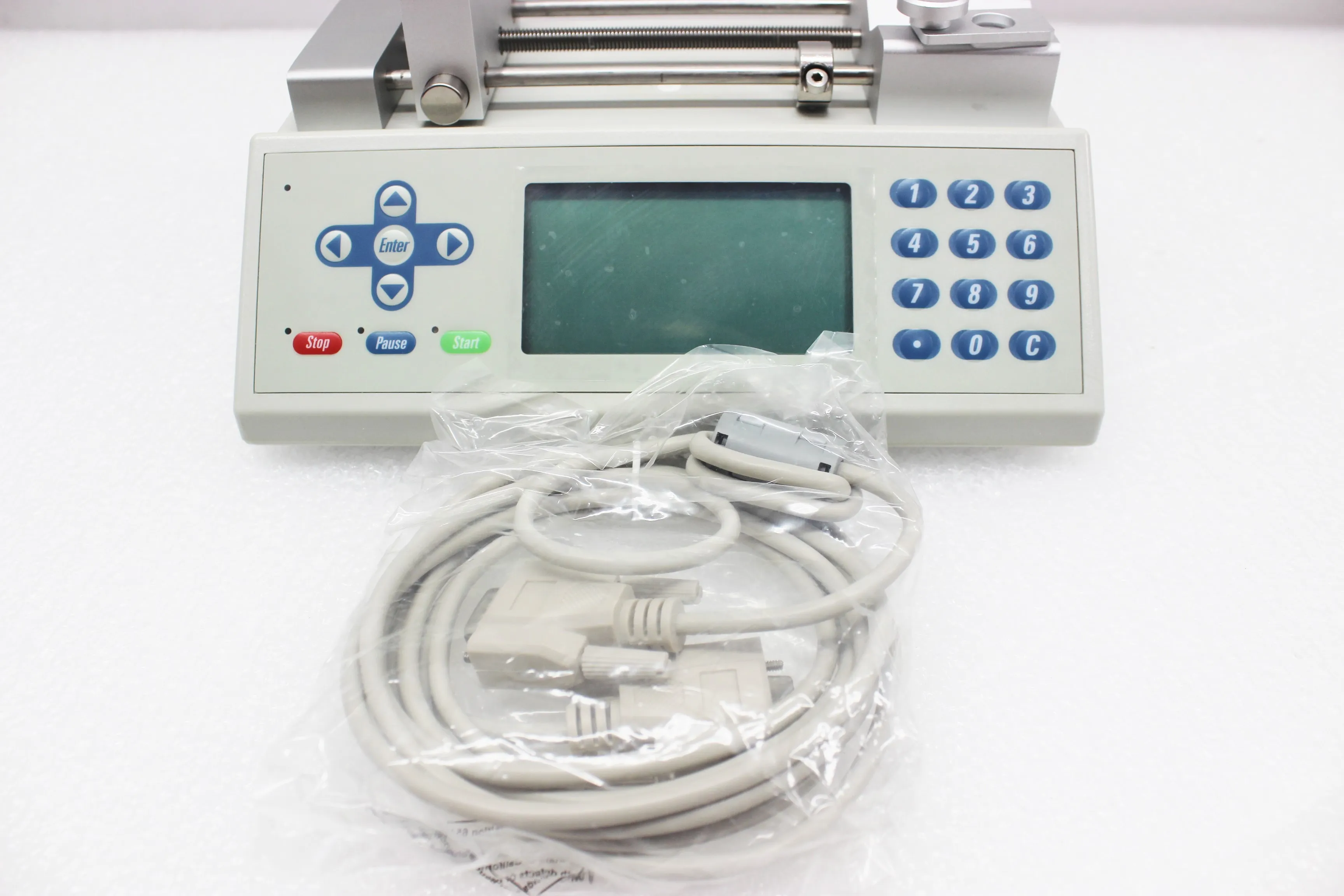

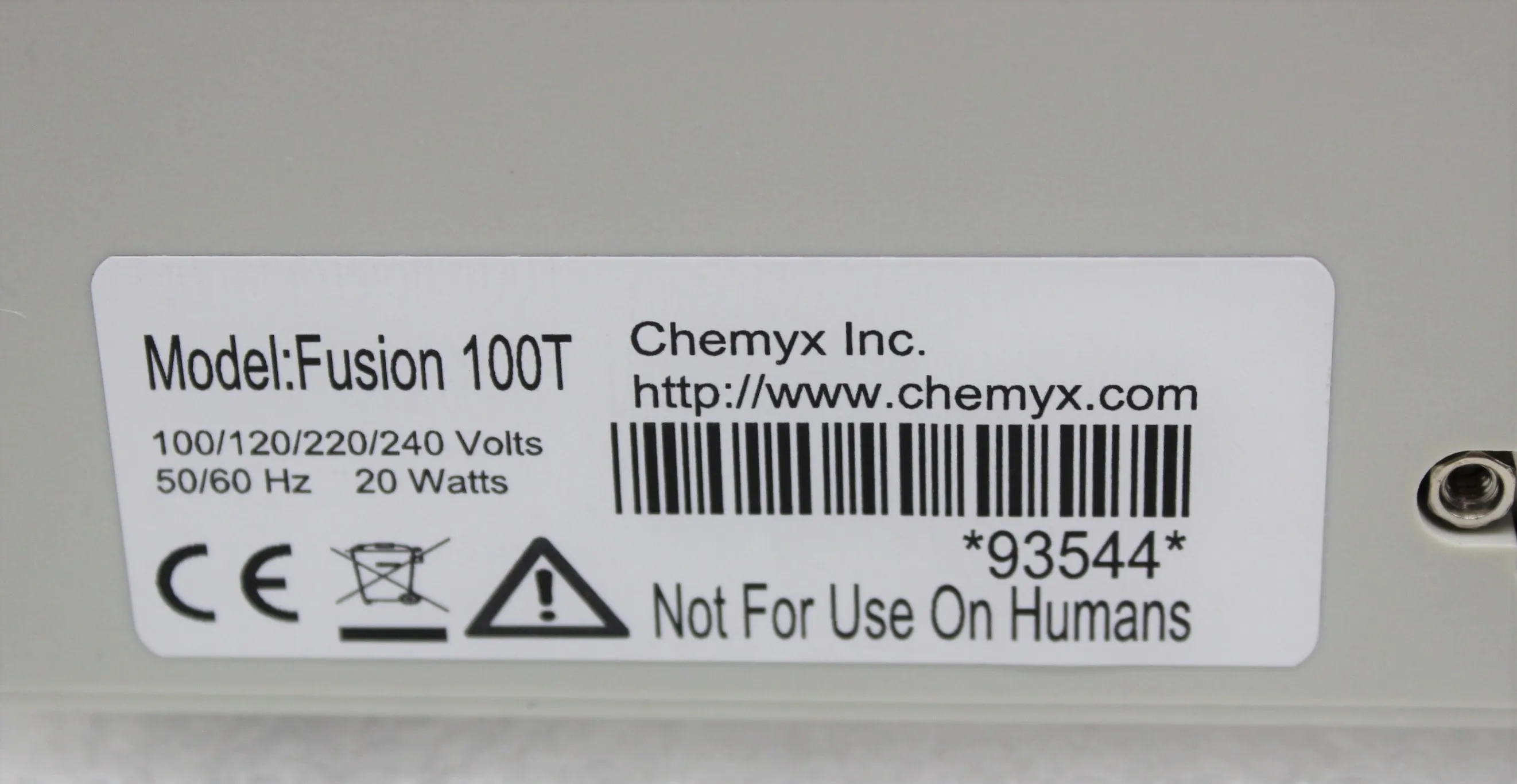

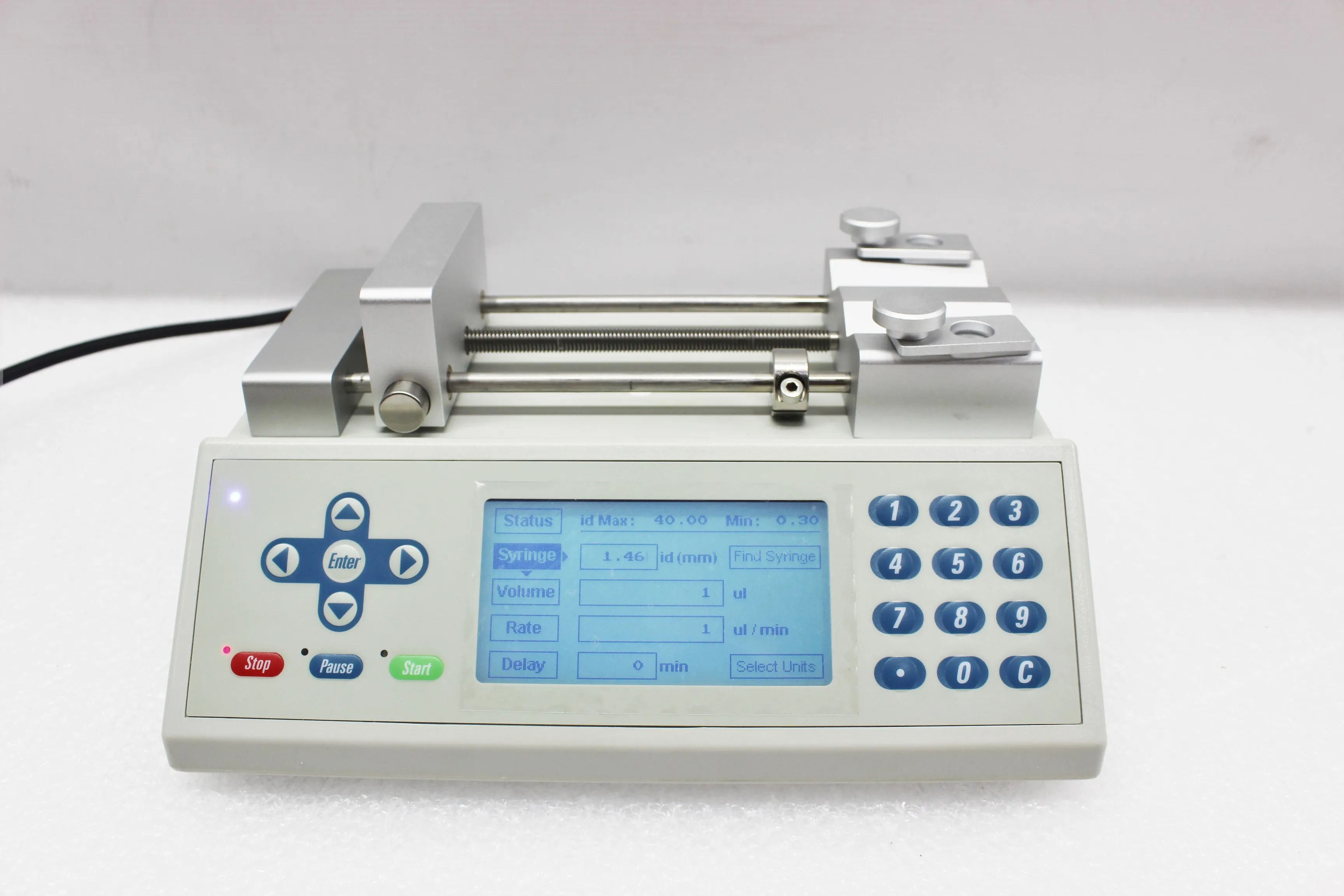

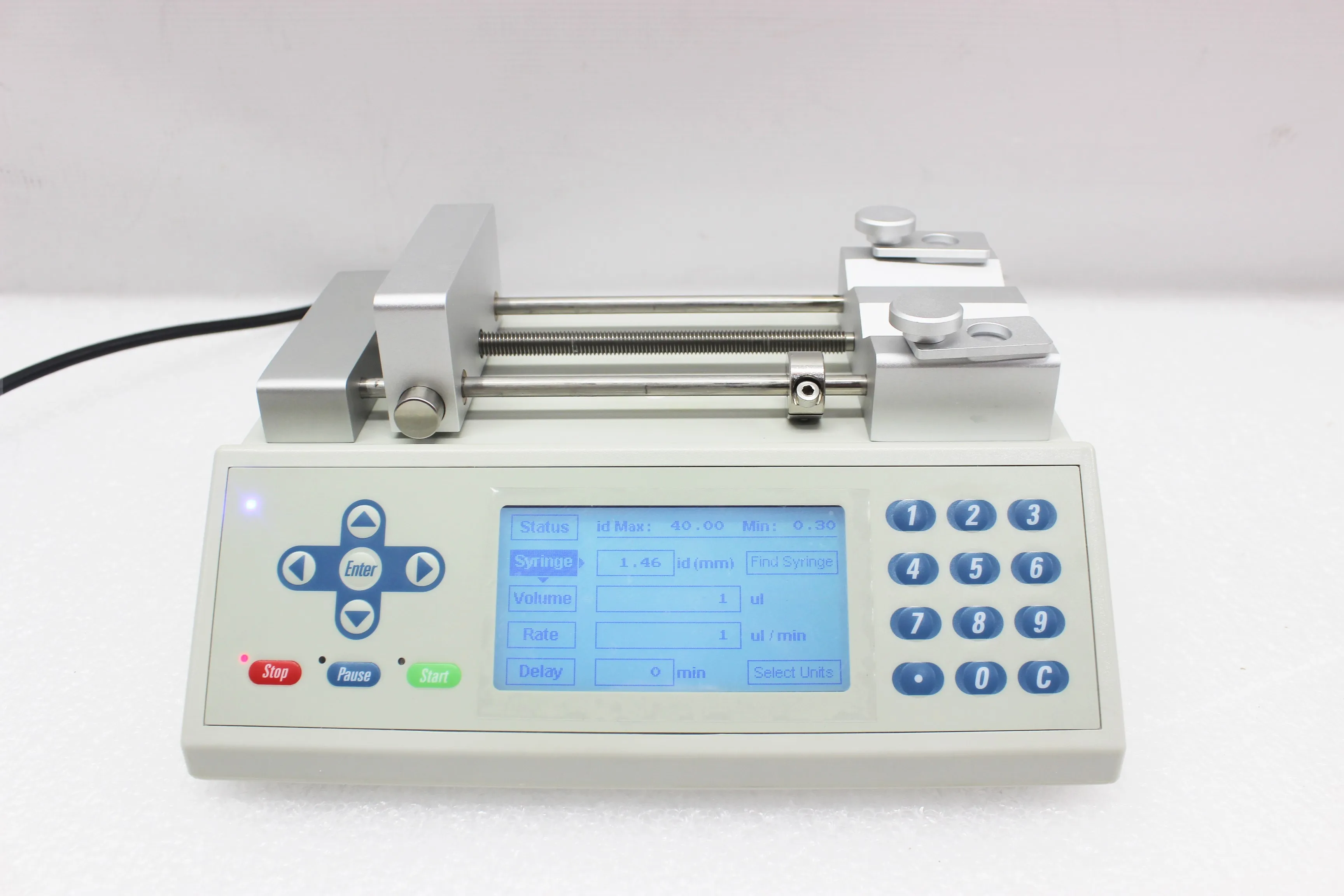

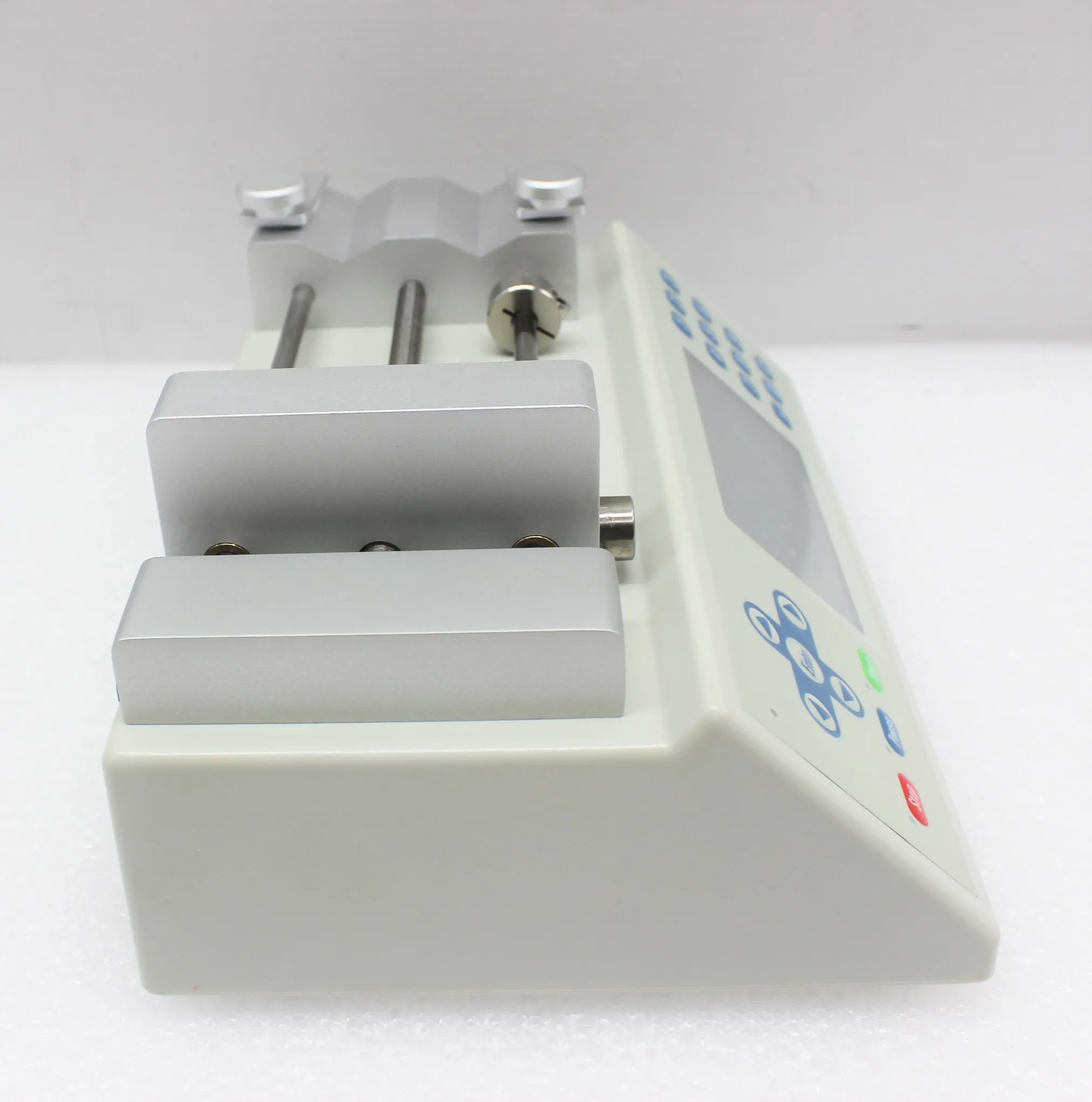

Chemyx Fusion 100T Syringe Pump by Thermo Scientific, Model: Fusion 100T, 93544 Serial Number

Product Information

The Chemyx Fusion 100T Syringe Pump by Thermo Scientific is a used laboratory equipment, with a pulseless and reproducible micro-flow rate for a variety of applications such as microfluidics, mass-spec calibration, reactor injection, and animal drug infusion. This syringe pump holds syringes from 0.5 l to 60 ml for a wide range of flow and volume-delivery capabilities. With a flow rate range from 0.0001 l/min to 102 ml/min, it is able to program simple runs to variable, multi-step volume and rate profiles. Its RS232 and USB connectivity allows integration into laboratory workflow and automation software, such as LabVIEW or Matlab. This equipment delivers an enhanced level of precision and reproducibility, making it an essential tool in any contemporary laboratory. Manufactured by Chemyx, the specific model is Fusion 100T, and this unit has the serial number 93544. Although it has been previously used, it remains in working condition. The current condition class is Class 1, and it also includes a 30-Day Warranty with 100% Parts and Labor coverage. The Fusion 100T Syringe Pump is characterized by its accuracy with less than 0.04% error and reproducibility with less than 0.05% deviation, distinguishing it as an invaluable asset for any research environment. A notable point of interest with this equipment is its wide operating temperature range, from 4C to 40C (40F to 104F), allowing for versatile deployment within the lab. A remarkable aspect of this device is that it is designed for seamless computer control, supporting a wide range of operating systems including Windows, Mac, and most Linux distributions, thus ensuring compatibility with various laboratory computational systems.

• Pulseless, reproducible micro-flow rates
• Flow Rate Range: 0.0001 l/min to 102 ml/min
• RS232 and USB connectivity for integration into laboratory workflow
• Wide operating temperature range: 4C to 40C (40F to 104F)
• CE, RoHS, REACH, FCC, and IC compliant
• Computer control with broad operating system compatibility

• Mode: Infuse Only
• Minimum Flow Rate: 100 pL/min (with 0.5 L syringe)
• Maximum Flow Rate: 128 mL/min (with 60 mL syringe)
• Linear Force: 9.1 kg (20 lb)
• Max Syringe Volume: 60 mL
• Step Resolution: 0.098 microns
• Height: 11 cm (4.4 in.)
• Length: 24 cm (9.5 in.)
• Depth: 17 cm (6.8 in.)
• Weight: 3 kg (7 lb)
• Screen: 10.8 cm (4.25 in.) diagonal
• Ports: RS232 (DB9 or USB-B) and TTL (USB-B) COM Ports
• Power: 110/220 VAC
• Operation Temp: 4C to 40C (40F to 104F)
• Storage Temp: -10C to 70C (14F to 158F)
• Humidity: 20% to 80% RH, non-condensing
• Compliance: CE, RoHS, REACH, FCC, IC
• Computer Control: Windows: XP, VISTA, 7, 10, Mac: Mac OS X v10 or later, Most Linux distributions
• MATLAB and LabVIEW controller programs; Python coming soon
• Accuracy: < 0.04% error
• Reproducibility: < 0.05% deviation

Metric: 3 kg
Imperial: 7 lbs

Metric: 24 cm x 17 cm x 11 cm
Imperial: 9.5 in x 6.8 in x 4.4 in

901890

Harmonized System Code 901890: Apparatus And Equipment For Physical Or Chemical Analysis - Syringe Pump
