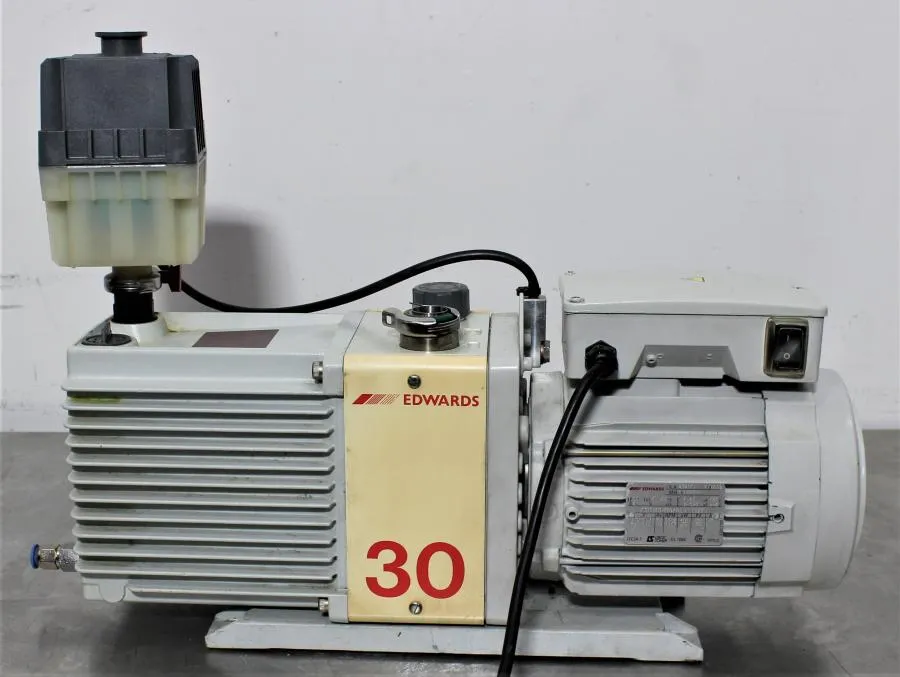

Edwards E2M30 Dual Mode High Vacuum Pump RV3, 100% Parts and Labor Warranty

Product Information

As experienced lab scientists, we've seen a variety of pumps but none as unique as the Edwards E2M30. This Dual Mode High Vacuum Pump allows you to configure the pump for very high gas loads without compromising vacuum. The NW25 inlet/outlet connections make it versatile for centrifugal concentrators, rotary evaporators, freeze dryers, gel dryers, vacuum ovens, or general-purpose requirements. This pump operates at a quiet 48dBA and is easy to use and service, requiring no special tools. The fast-acting inlet valve prevents oil and gas suckback in the event of power or oil pressure loss. With three user-selectable gas ballast positions, it meets the most vapor handling requirements. The pump includes a 2m electrical supply cable, inlet screen, Ultragrade 19 Oil, and lifting bracket. It has a 30-day warranty, covering 100% of parts and labor. Suitable for high vacuum or high throughput, this pump is a reliable option for various laboratory applications.

• Unique dual mode for high gas loads without compromising vacuum
• NW25 inlet/outlet connections for versatility
• Operates at a quiet 48dBA
• Easy to use and service, requiring no special tools
• Includes 2m electrical supply cable, inlet screen, Ultragrade 19 Oil, and lifting bracket
• 30-day warranty covering 100% parts and labor

• Maximum Pressure: 1.5 x 10-3mbar
• Horsepower: 0.5 hp
• Electrical Requirements: 115 V 50/60 Hz
• Noise Level: 48 dB (A)
• Weight (Metric): 21.6 kg
• Temperature (Metric) Max: 40°C
• Flow Rate: 76 L/min.
• Overall Height (English): 9 in.
• Overall Length (English): 17 in.
• Overall Width (English): 6.25 in.
• Voltage: 115 V
• Includes: Pump, 2m electrical supply cable, inlet screen and Ultragrade 19 Oil, lifting bracket
• Model: RV3
• Weight (English): 47.61 lb.
• Temperature (English) Max.: 104°F
• Temperature (Metric) Min.: 12°C

Metric: 21.6 kg
Imperial: 47.61 lbs

Metric: 43.18 cm x 15.875 cm x 22.86 cm
Imperial: 17 in x 6.25 in x 9 in

8414102000

The Edwards E2M30 Dual Mode High Vacuum Pump falls under Harmonized System Code 8414102000 for Vacuum Pumps as it meets the classification criteria by providing a high-level vacuum application with specific design functionalities.
