Applikon ez-Control Bioreactor and Fermenter System Z310110011

Product Information

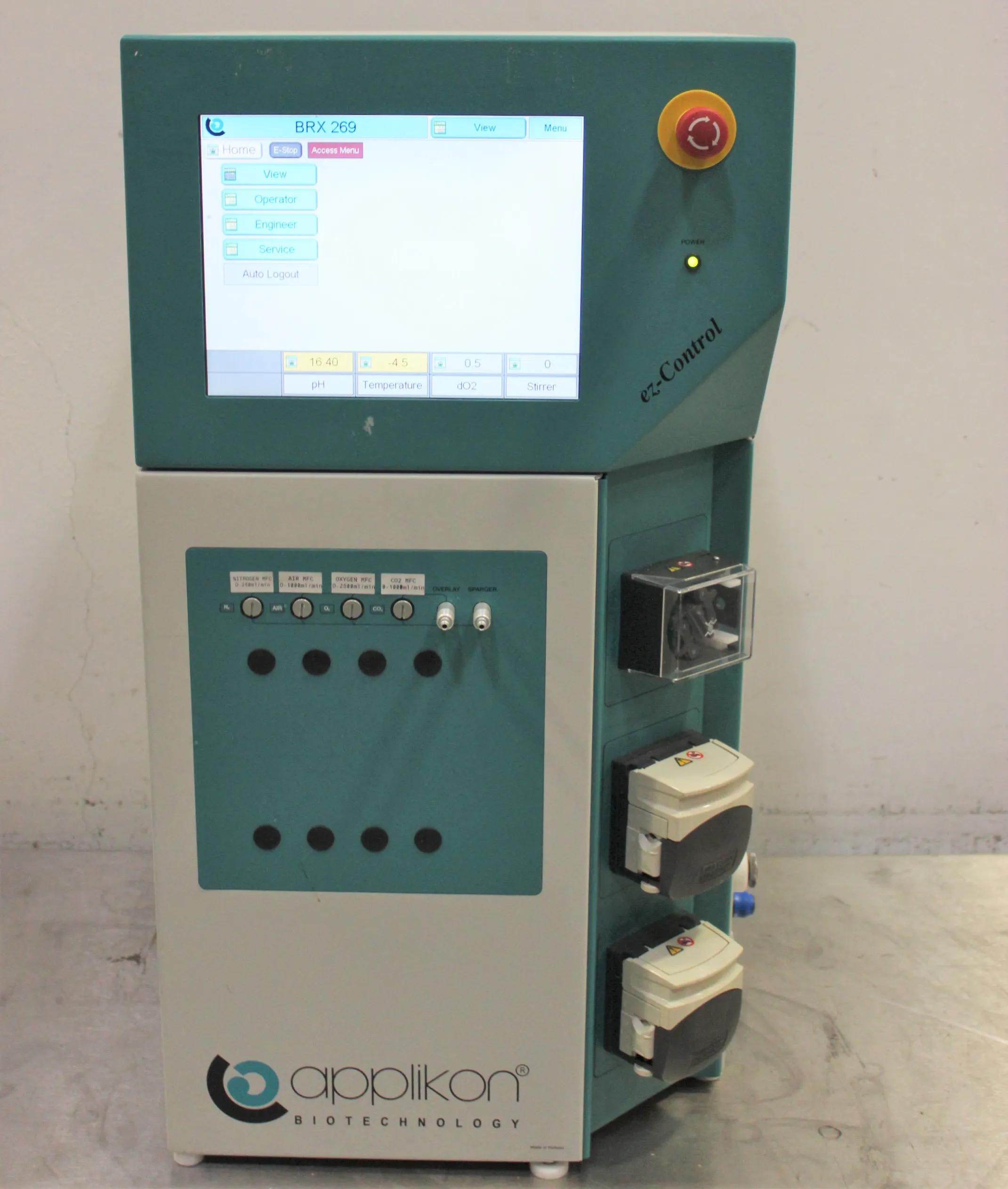

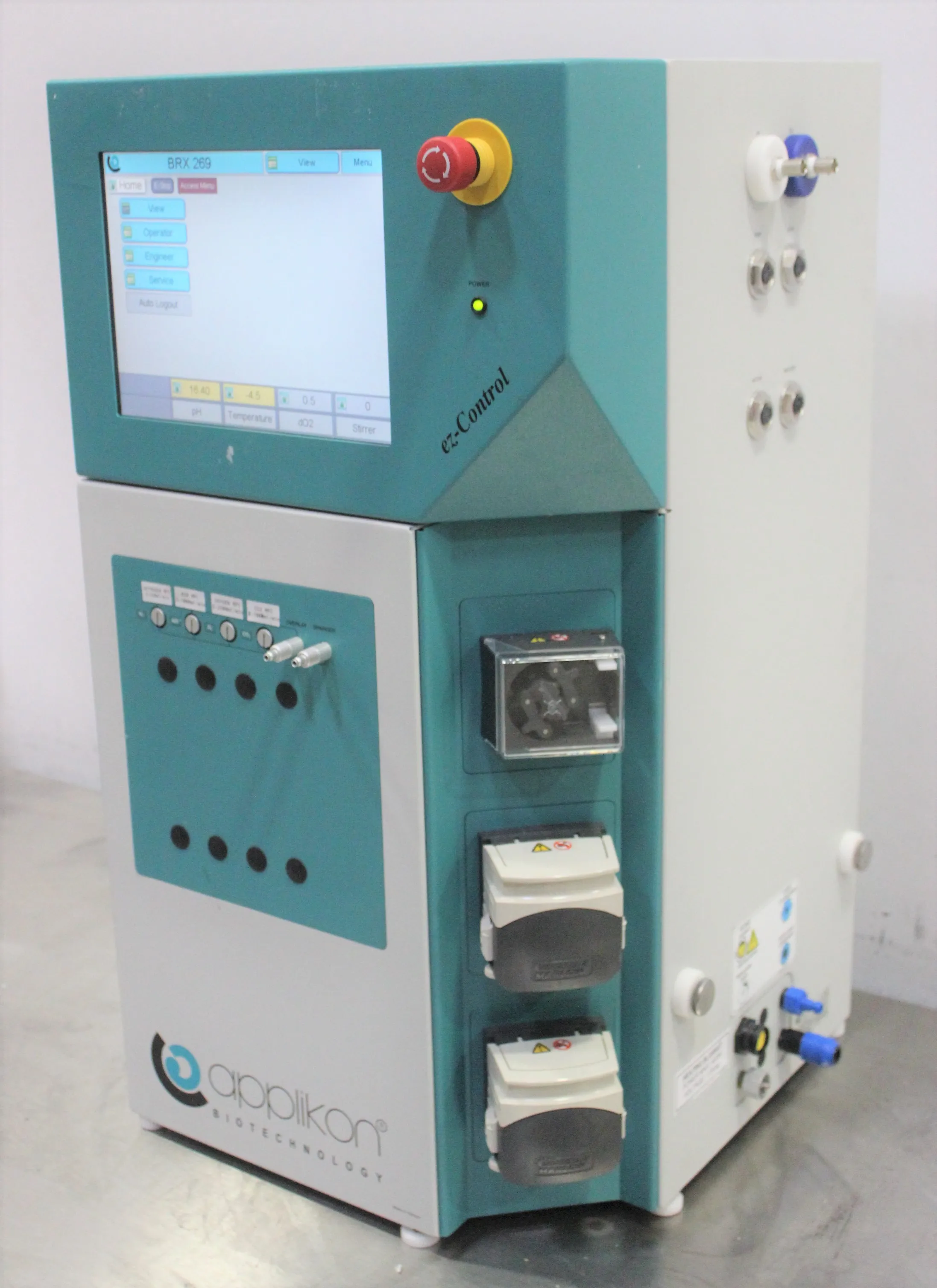

Introducing the Applikon Biotechnology ez-Control, a user-friendly system that offers precise control over key parameters for bioreactors and fermenters. This powerful system ensures accurate pH, temperature, dissolved oxygen, foam/level, and agitation control. The touch screen interface provides ease of operation, allowing the user to focus on the process while the built-in adaptive control maintains strict parameter control. The system offers a color touch screen operation, PID control with selectable autotuning adaptive control, and integrates emergency stop and central alarm output features. It is an essential tool for microbiology, biotechnology, and pharmaceutical research applications. Stay ahead with the most current firmware V1.60.

• Color touch screen interface with emergency stop and central alarm output
• PID control with selectable autotuning adaptive control

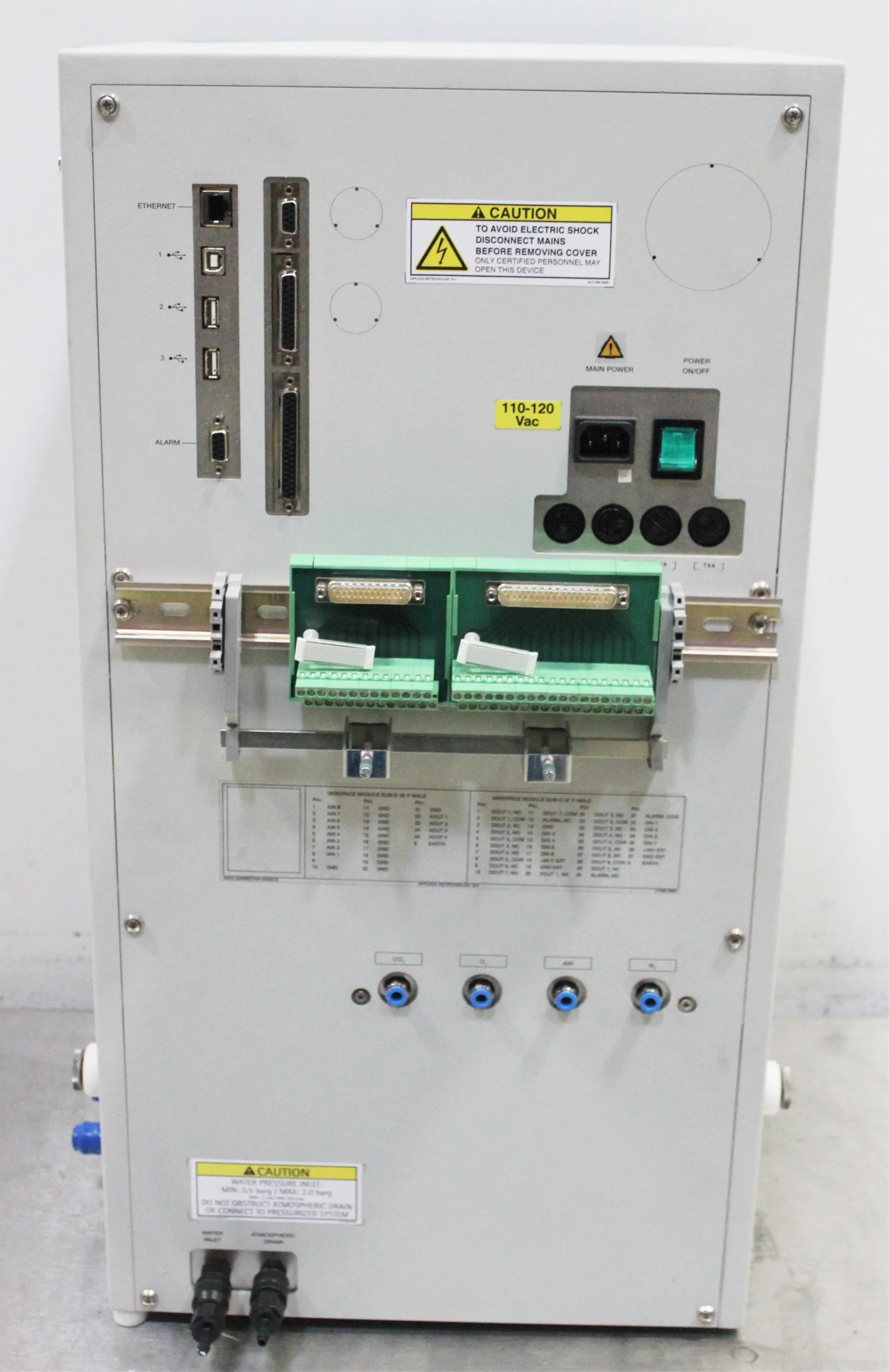

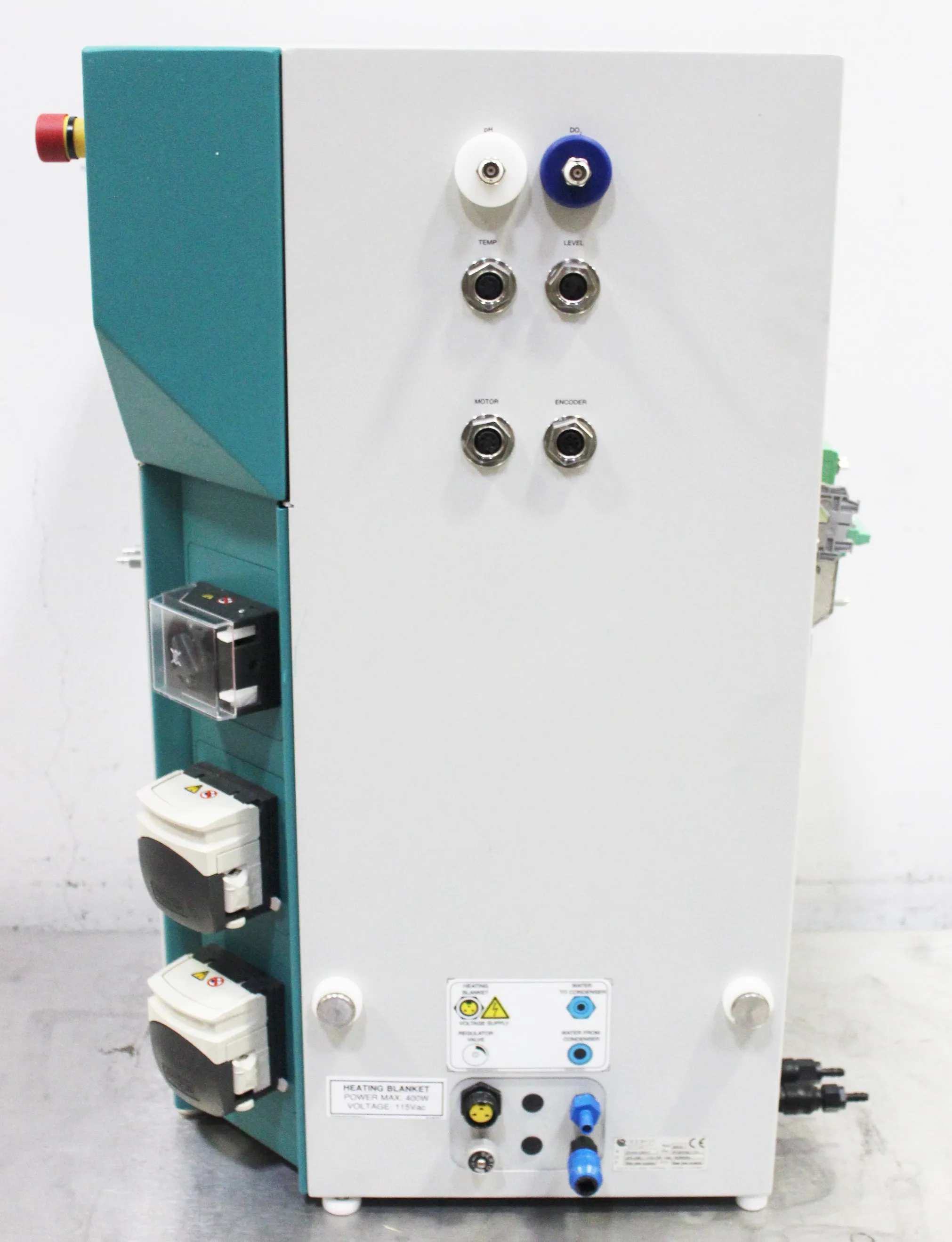

• Process connections and utility connections for smooth integration
• Adaptive agitation control with six motor types to accommodate various bioreactor sizes
• Compatible with various analog and digital input and output devices

• pH Range: 0 to 14, Accuracy: 0.01 pH, Resolution: 0.01
• Temperature Range: 0°C to +150°C, Accuracy: 0.1°C, Resolution: 0.1°C
• Dissolved Oxygen Range: 0% to 500% (air) and 0% to 100% (oxygen), Accuracy: 0.1%, Resolution: 0.1%
• Agitation: Multiple motor types, each with a specific RPM range and accuracy
• Analog in: Multiple options including 0-20 mA, 4-20 mA, 0-5 VDC, and 0-10 VDC
• Digital in/out: Flexible digital connectivity for efficient control
• Fluorophor pH: Range 5 to 8 pH, Accuracy: ±0.2 pH, Resolution: 0.01
• Biomass: Measures capacitance and conductivity with high resolution for accurate readings

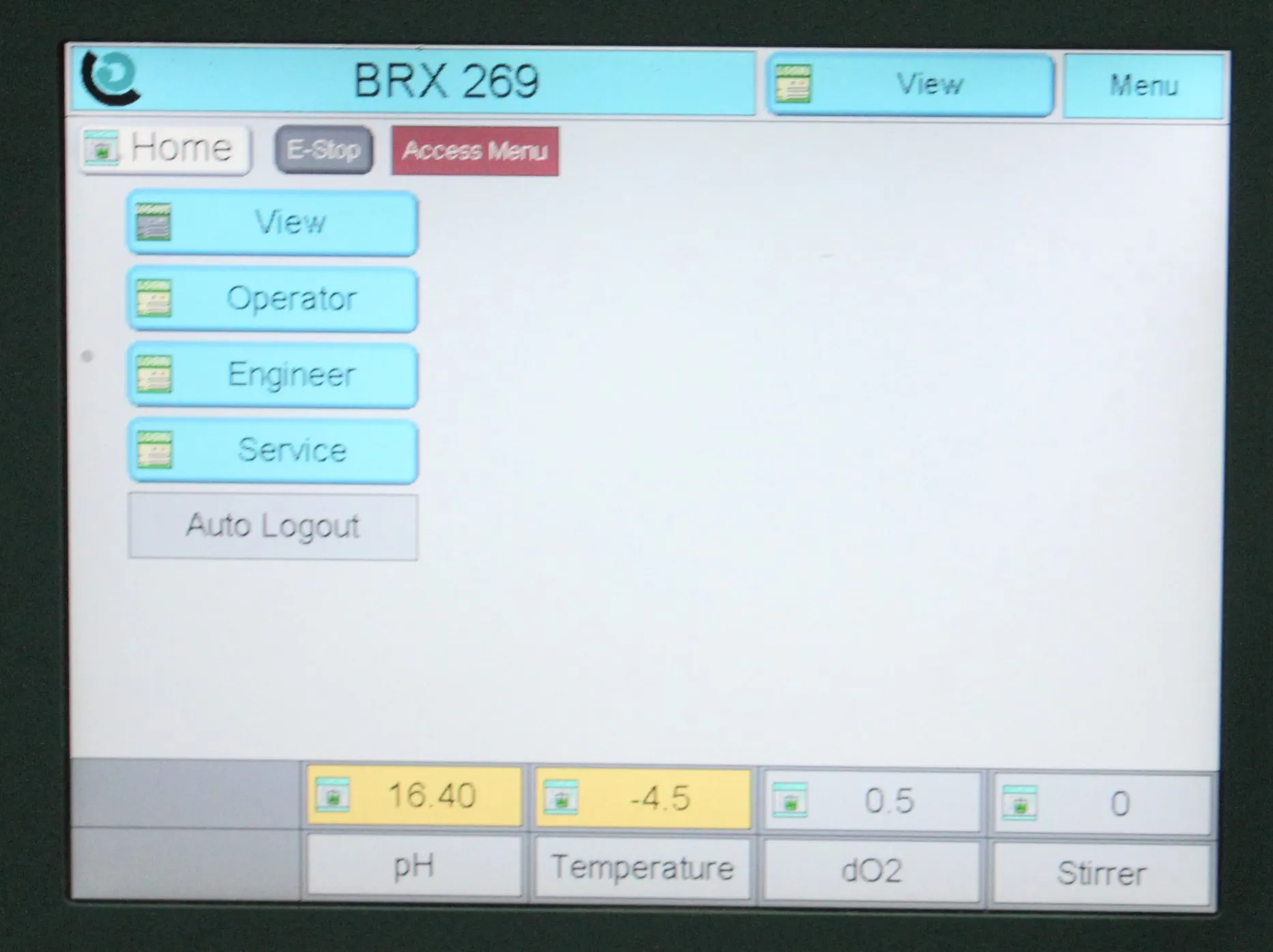

• Display: 10.4 inch color display with resistive touchscreen for intuitive operation

Metric: 37.85 kg
Imperial: 83.5 lbs

Metric: 45.72 cm x 30.48 cm x 91.44 cm
Imperial: 18 in x 12 in x 36 in

841989

The chosen harmonized code 841989 fits well as it relates to machinery, plant, or laboratory equipment for the treatment of materials by a process involving a change of temperature, and offers broad applicability for these bioreactor and fermenter systems.
