OGP SmartScope ZIP 250 Benchtop Metrology Imaging System

Product Information

OGP SmartScope ZIP 250 is a top-tier benchtop metrology imaging system designed to provide fast stage speed, durability, and precision without sacrificing accuracy. This durable system features a heavy-duty cast base with Y-axis center drive for stability, along with a variety of features including accurate video metrology, AccuCentric motorized zoom lens, and reliable substage LED illumination. The compact design and precise measurements make it suitable for applications such as quality control, measurement, and inspection in manufacturing, electronics, and medical device industries.

• Fast stage speed for maximum throughput
• Accurate video metrology

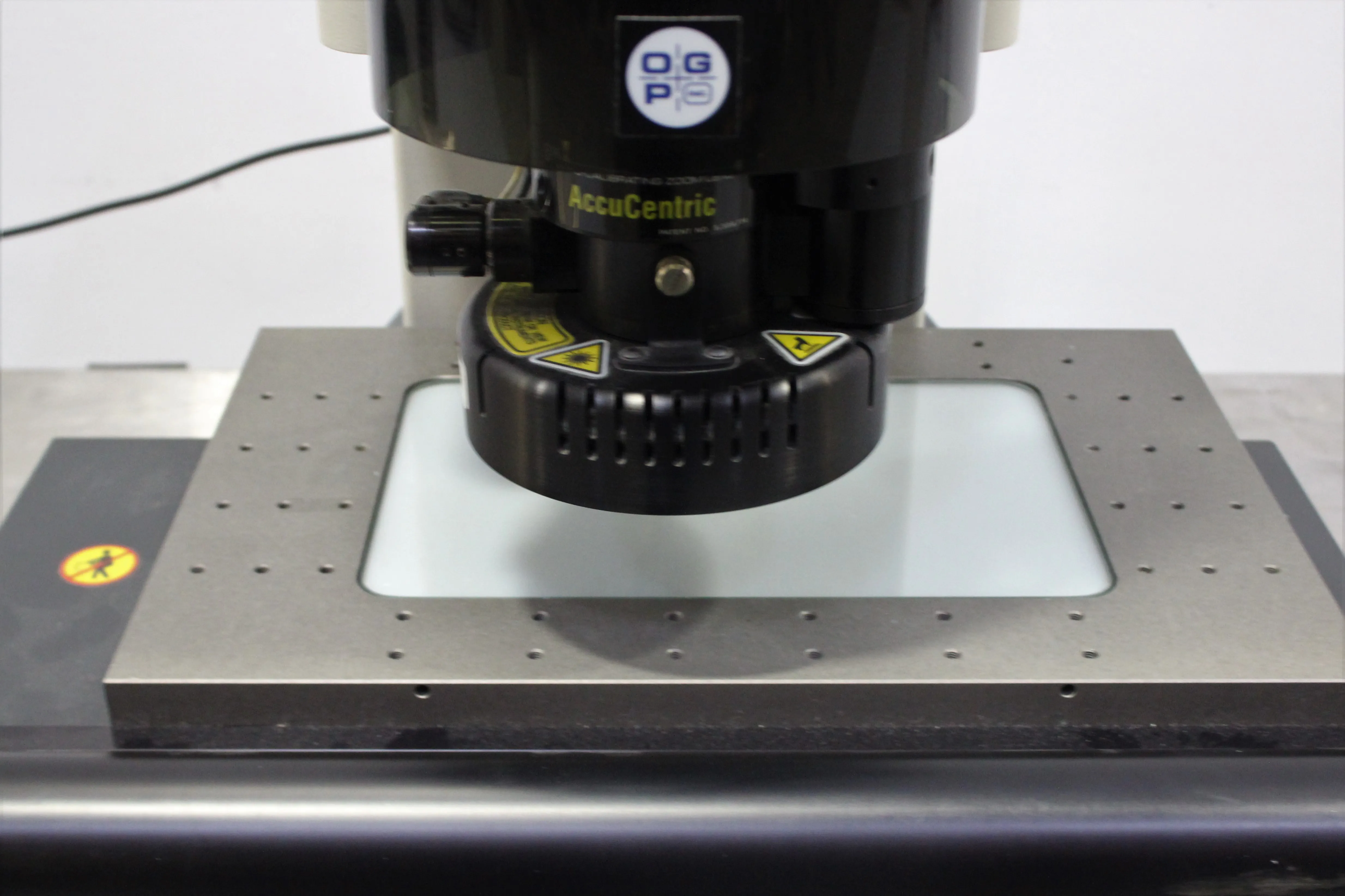

• AccuCentric motorized zoom lens
• Heavy-duty cast base for stability
• Integral compound stage with Y-axis center drive
• Substage LED profile, coaxial LED surface, SmartRing LED ring light for reliable illumination

• XYZ TRAVEL (MM): 300 x 150 x 200
• OPTICS: AccuCentric auto-compensating zoom, motorized; 1.0x lens; 2.0x lens attachment; 1.0x adapter tube
• ILLUMINATION: Substage LED profile (green), coaxial LED surface (white), SmartRing LED ring light (white)

Metric: 56.7 kg
Imperial: 125 lbs

Metric: 39 cm x 34 cm x 42 cm
Imperial: 15.35 in x 13.39 in x 16.54 in

902730

902730 - Instruments and apparatus for physical or chemical analysis
