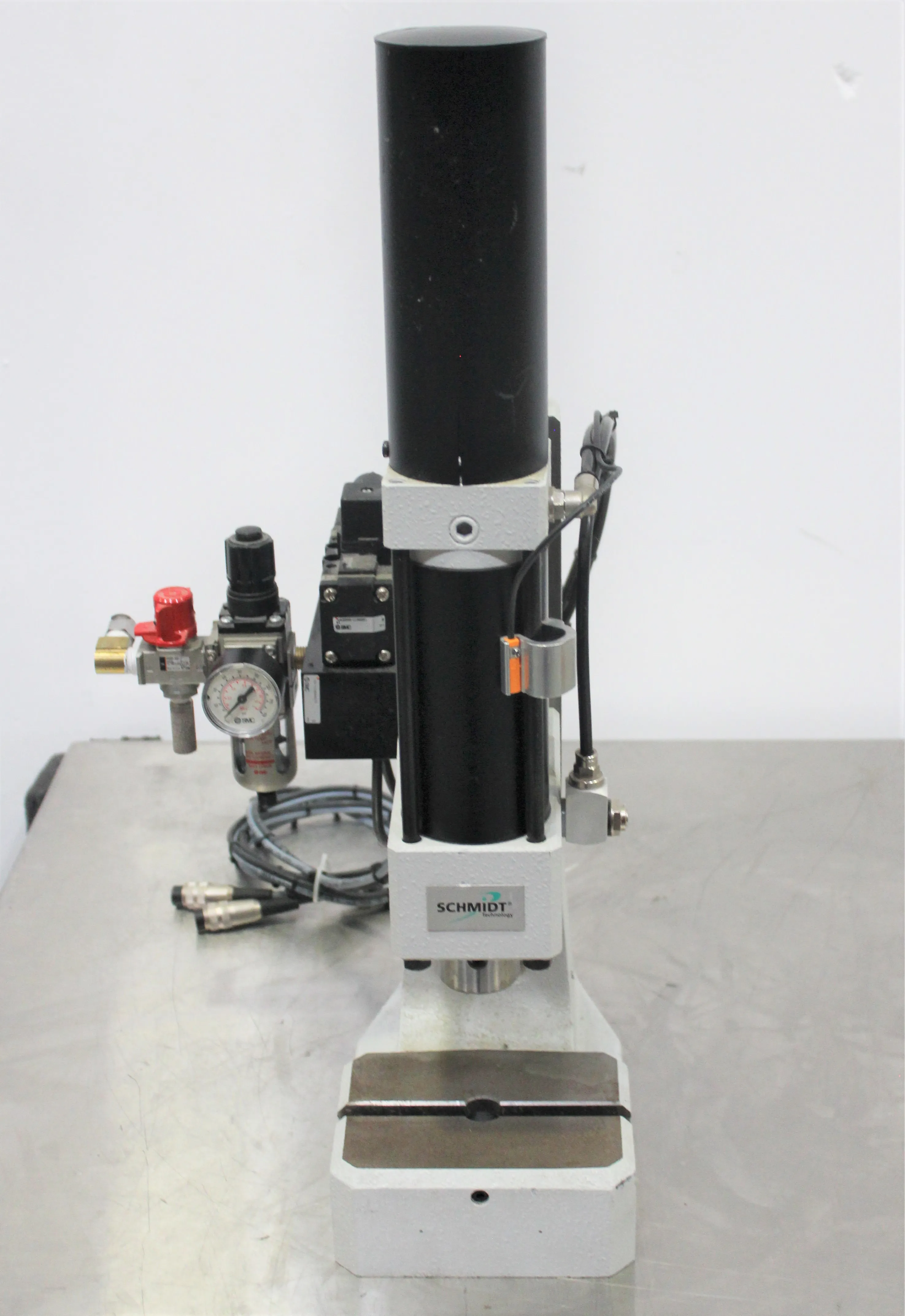

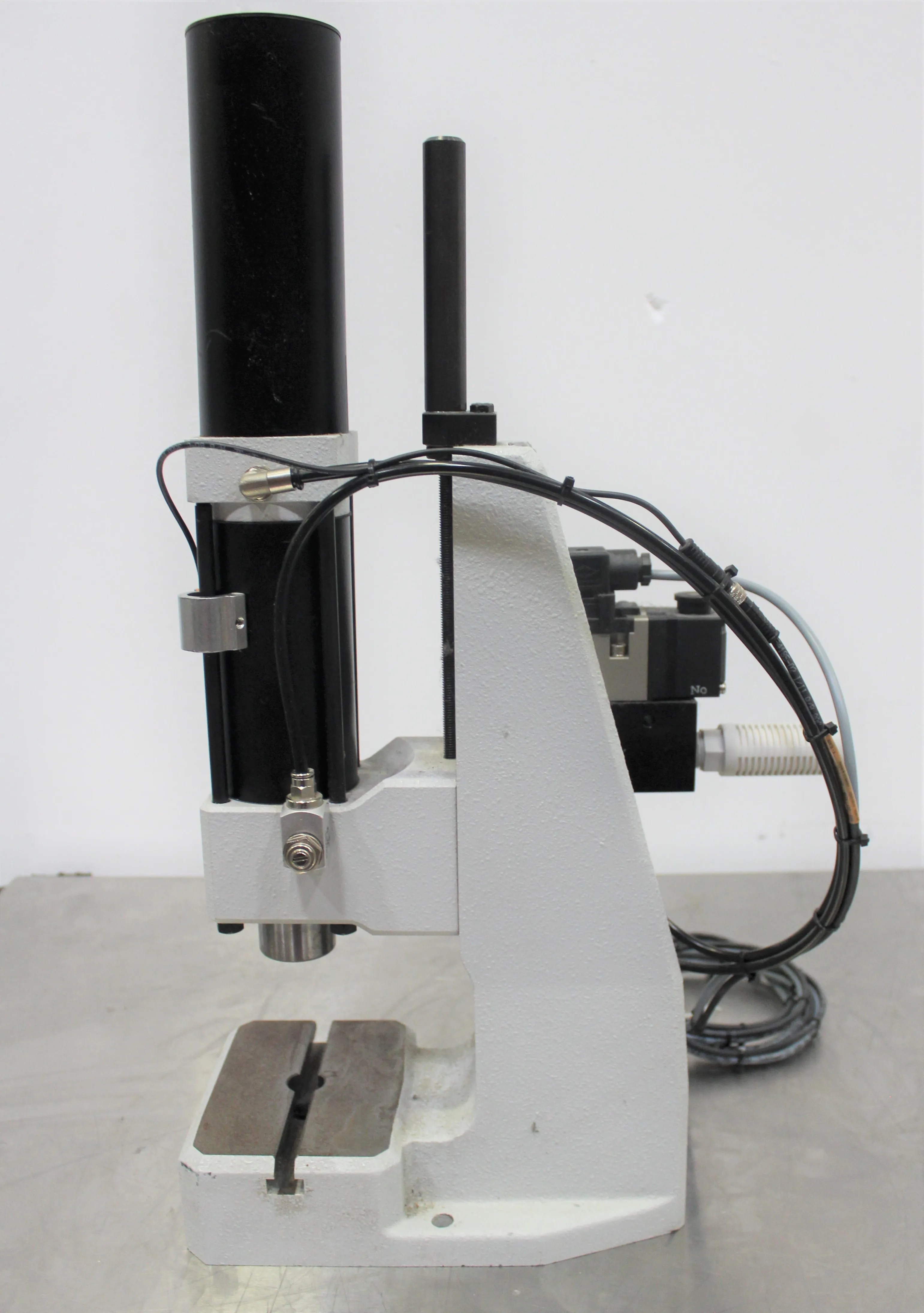

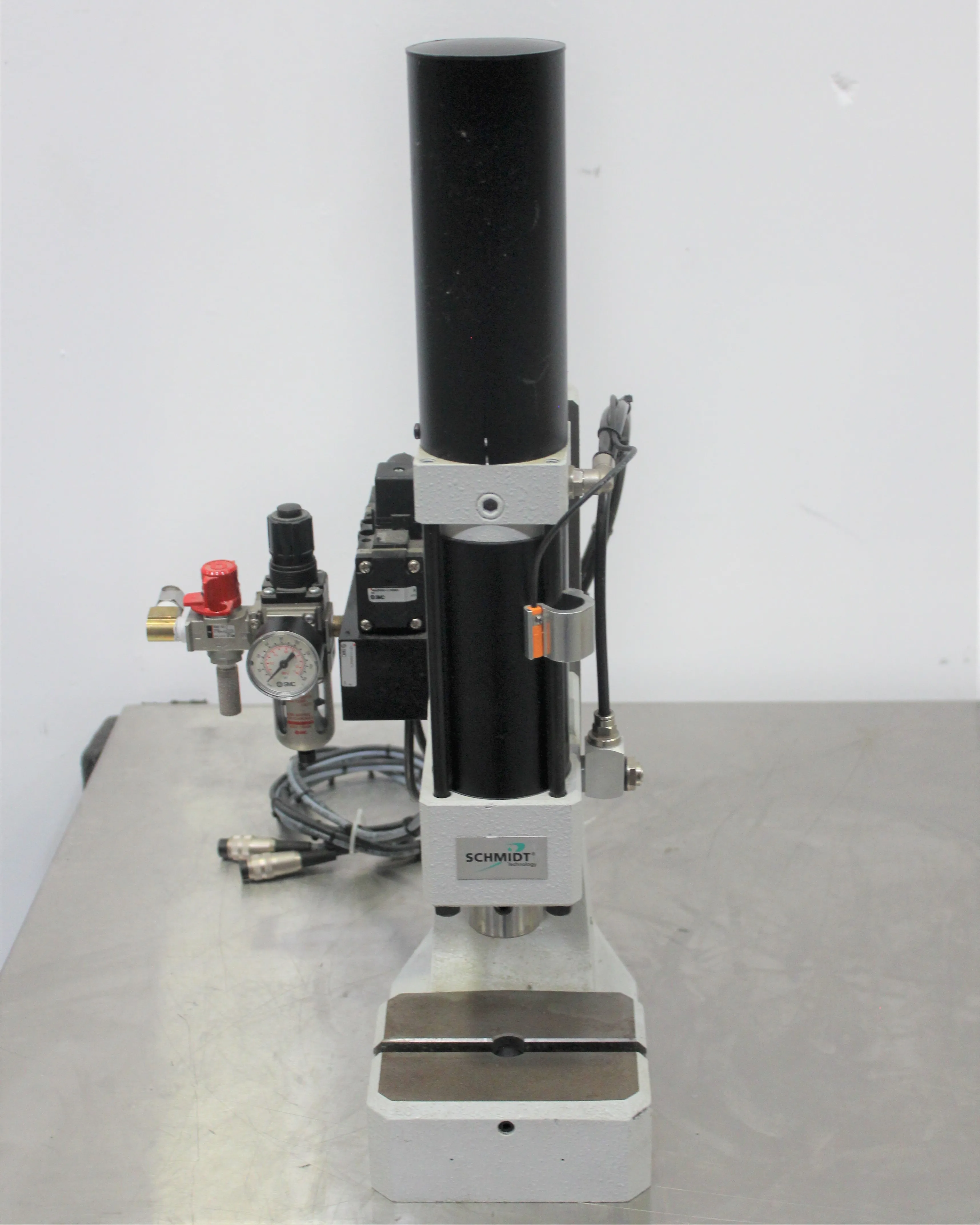

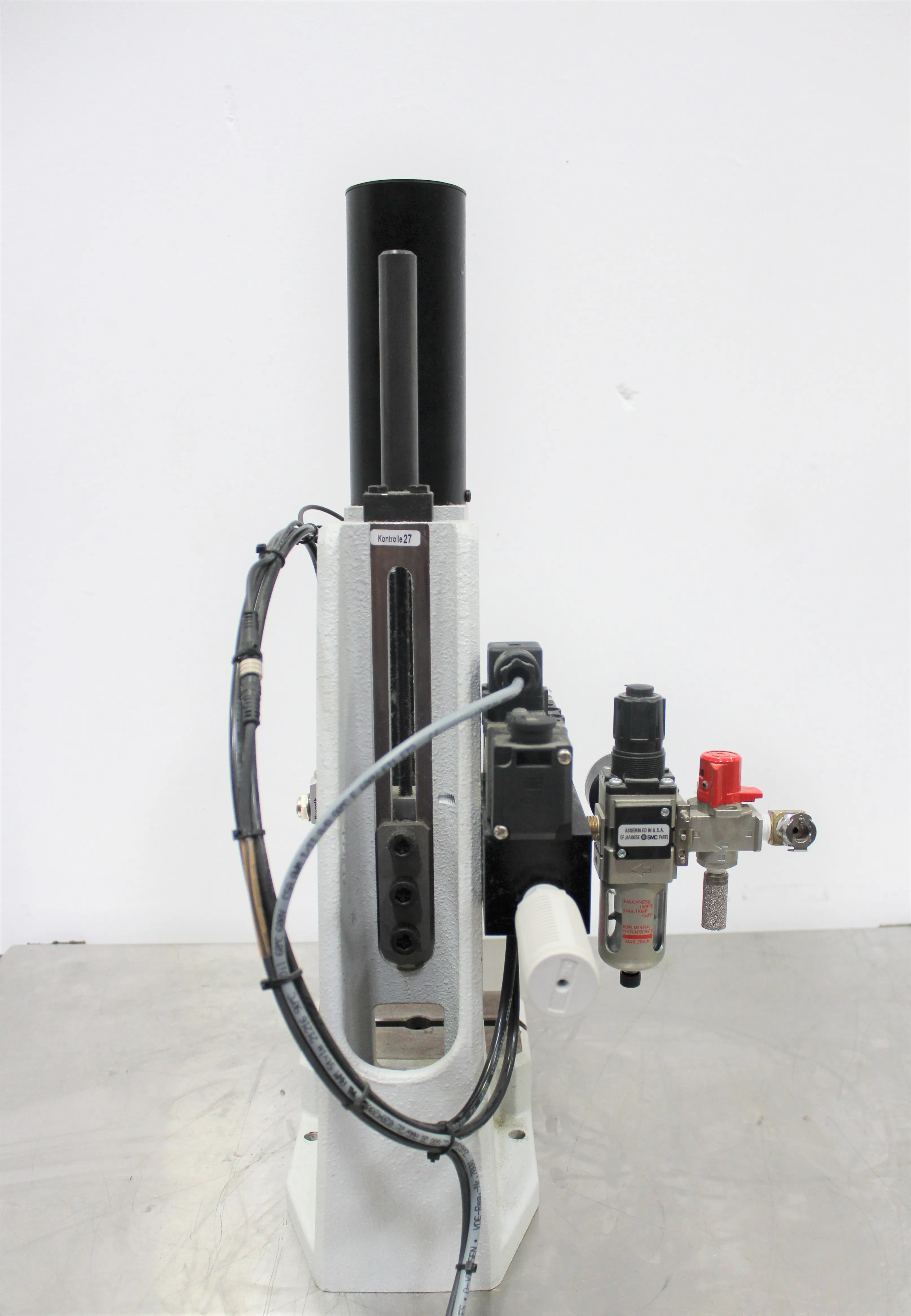

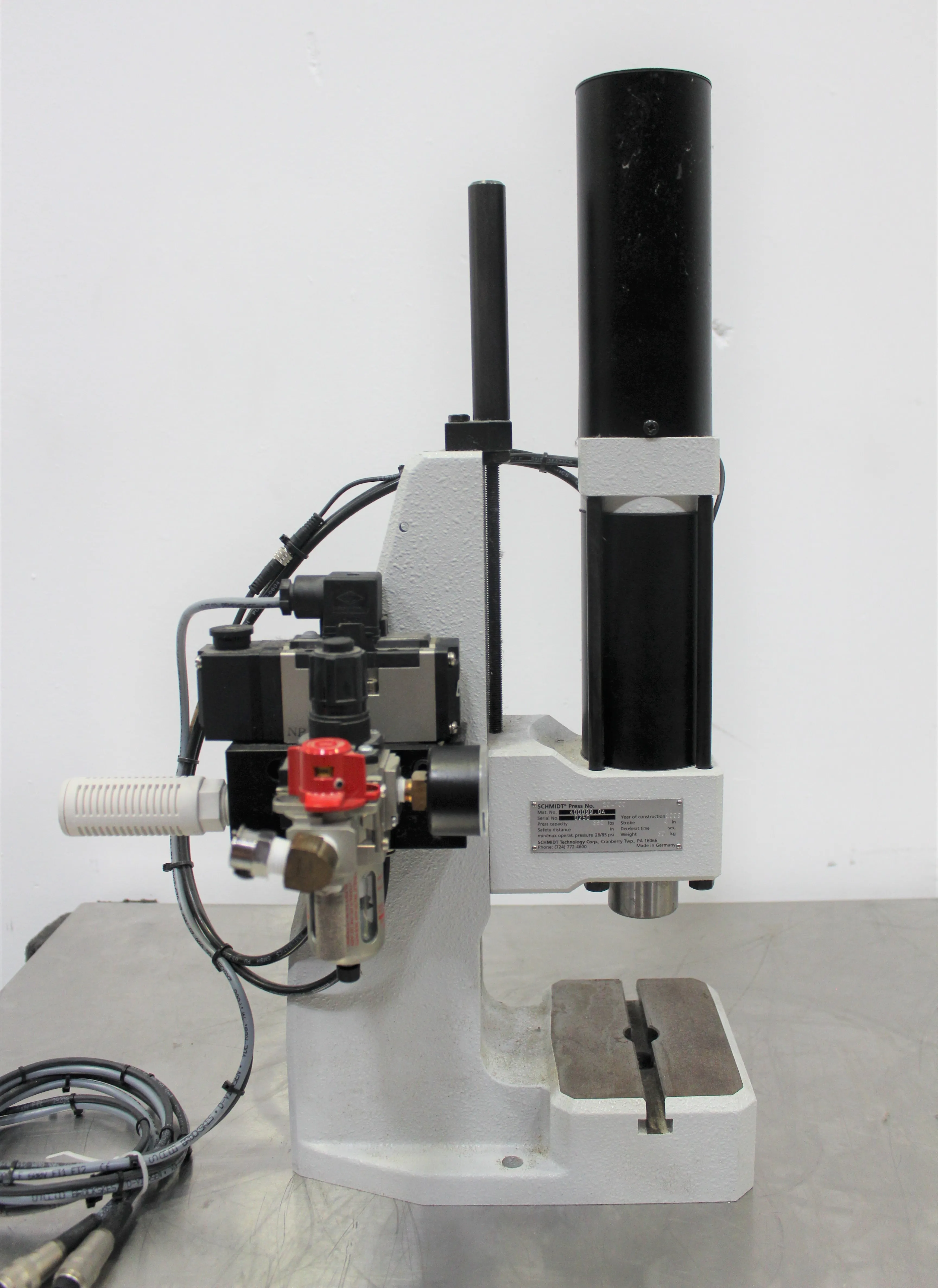

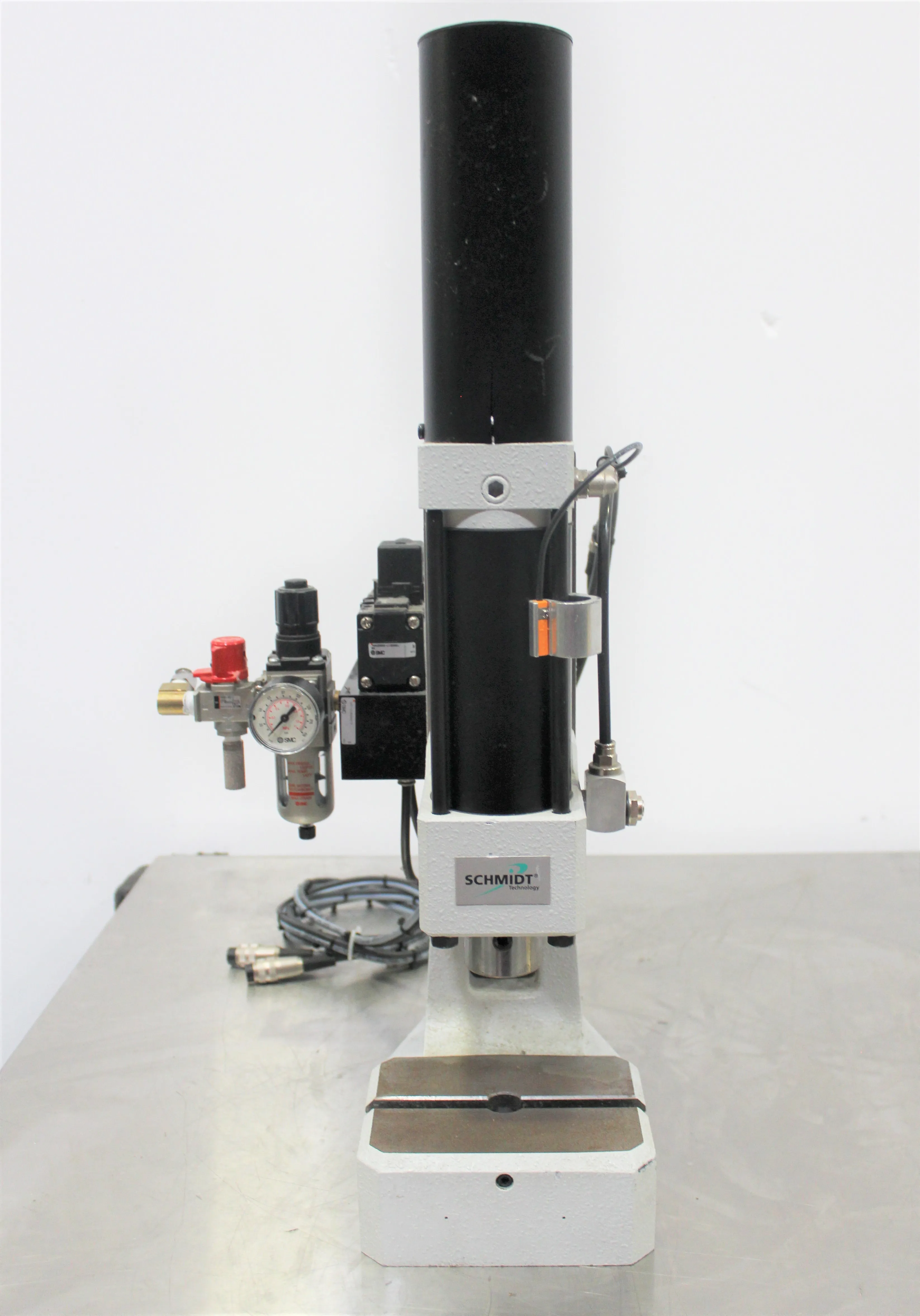

SCHMIDT Technology 20-100 Pneumatic Press

Product Information

The SCHMIDT Technology 20-100 Pneumatic Press is a versatile modular system suitable for a range of operations, from transforming and joining to assembling tasks, within the pressing capacities of 1.6 to 60 kN (350 lbs). This used piece of equipment, manufactured in 2009, is in Class 2 condition and comes with a 30-Day Warranty with 100% Parts and Labor coverage. The press features a round anti-rotational ram, adjustable ram position, and a T-slot with a locking set screw in the fixture mounting plate. With a max press capacity of 350lbs and an operating pressure range of 28/85 psi, this equipment offers precision and reliability for various laboratory applications. The SCHMIDT Technology 20-100 Pneumatic Press is used in laboratories for performing optimal transforming, joining, and assembling operations. It is suitable for applications such as precision assembly, press-fitting, crimping, heat-sealing, and staking in industries like electronics, medical device manufacturing, aerospace, and automotive. Anecdotal evidence suggests that this press delivers versatile and precise performance, making it a valuable asset in any laboratory setting.

• Modular system design
• Adjustable ram position
• Precision lower stop for ram position adjustment
• High press capacity of 350lbs
• Operating pressure range of 28/85 psi

• Modular System Design
• Adjustable Ram Position
• Precision lower stop for ram position adjustment (1 division line = 0.001 inch)
• T-slot with locking set screw in fixture mounting plate
• Max Press Capacity: 350lbs
• Operating Pressure Range: 28/85 psi

Metric: 34.47 kg
Imperial: 76 lbs

Metric: 35.56 cm x 30.48 cm x 58.42 cm
Imperial: 14 in x 12 in x 23 in

846210

The chosen harmonized code is 846210 - Forgings, die-stamped and stampings, of iron or steel, for pharmaceutical or laboratory machinery.
