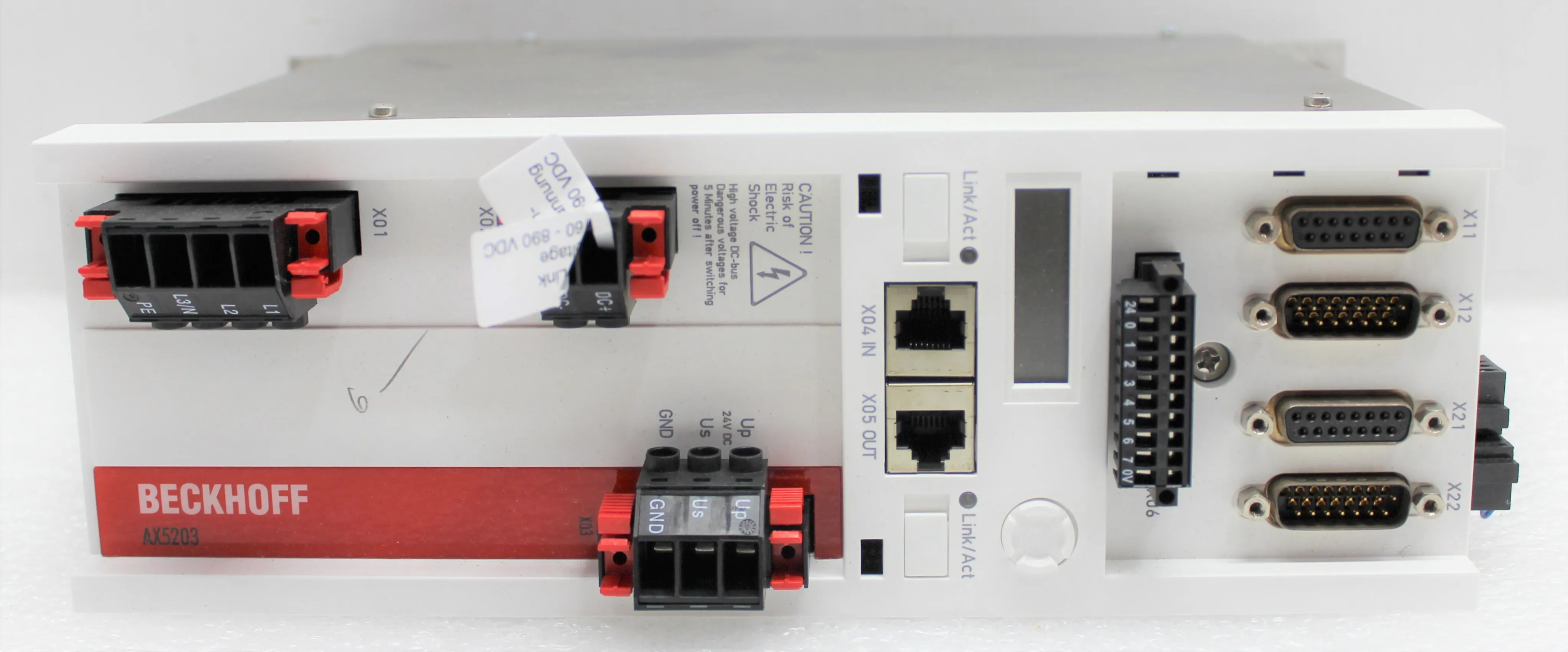

Beckhoff AX5203 Two-Channel Servo Drive Class 2 Used - Lab Bench

Product Information

The Beckhoff AX5203 two-channel servo drives offer optimal function, flexibility, and cost-effectiveness. The components required for operation, such as the power supply unit, EMC filter, and DC link capacitors, are integrated. The control loop supports fast and highly dynamic positioning tasks. The two-channel version offers different current intensities, from 2x1.5A to 2x6A, making it adaptable for various motor sizes. With features like flexible adjustment and a cascaded control loop, it's suitable for a wide range of fast and dynamic positioning tasks. The manufacturer's specifications outline the power supply voltage, DC-link voltage, feedback options, system bus, drive profile, and more. This Beckhoff AX5203 is used but in Class 2 condition and comes with a 30-Day Warranty, offering reliability at a lower cost. This equipment is typically used for precise motion control and fast positioning tasks in laboratory automation, robotics, and production machinery.

• Optimal function and cost-effectiveness
• Two-channel version with adaptable current intensities
• Flexibility for fast and highly dynamic positioning
• Integrated power supply unit, EMC filter, and DC link capacitors
• Suitable for a wide range of positioning tasks and different motor sizes

• Function: Servo drive
• Channels: 2
• Rated supply voltage: 3 x 100-480 V AC ±10%
• DC-Link voltage: max. 875 V DC
• Rated output current per channel: 3A
• Peak output current per channel: 10A
• Feedback: SinCos 1Vpp, Resolver, EnDat 2.1, Hiperface, BiSS B, OCT
• System bus: EtherCAT
• Drive profile: SERCOS profile for servo drives according to IEC 61800-7-204 (SoE)
• Ambient temperature (operation): 0 to +50°C (see documentation)
• Approvals/markings: CE, cULus, EAC

Metric: 9.0718 kg
Imperial: 20 lbs

Metric: 25.4 cm x 22.86 cm x 12.7 cm
Imperial: 10 in x 9 in x 5 in

850440

850440 - Other DC motors, DC generators; DC, AC motor generators (excluding generating sets)
