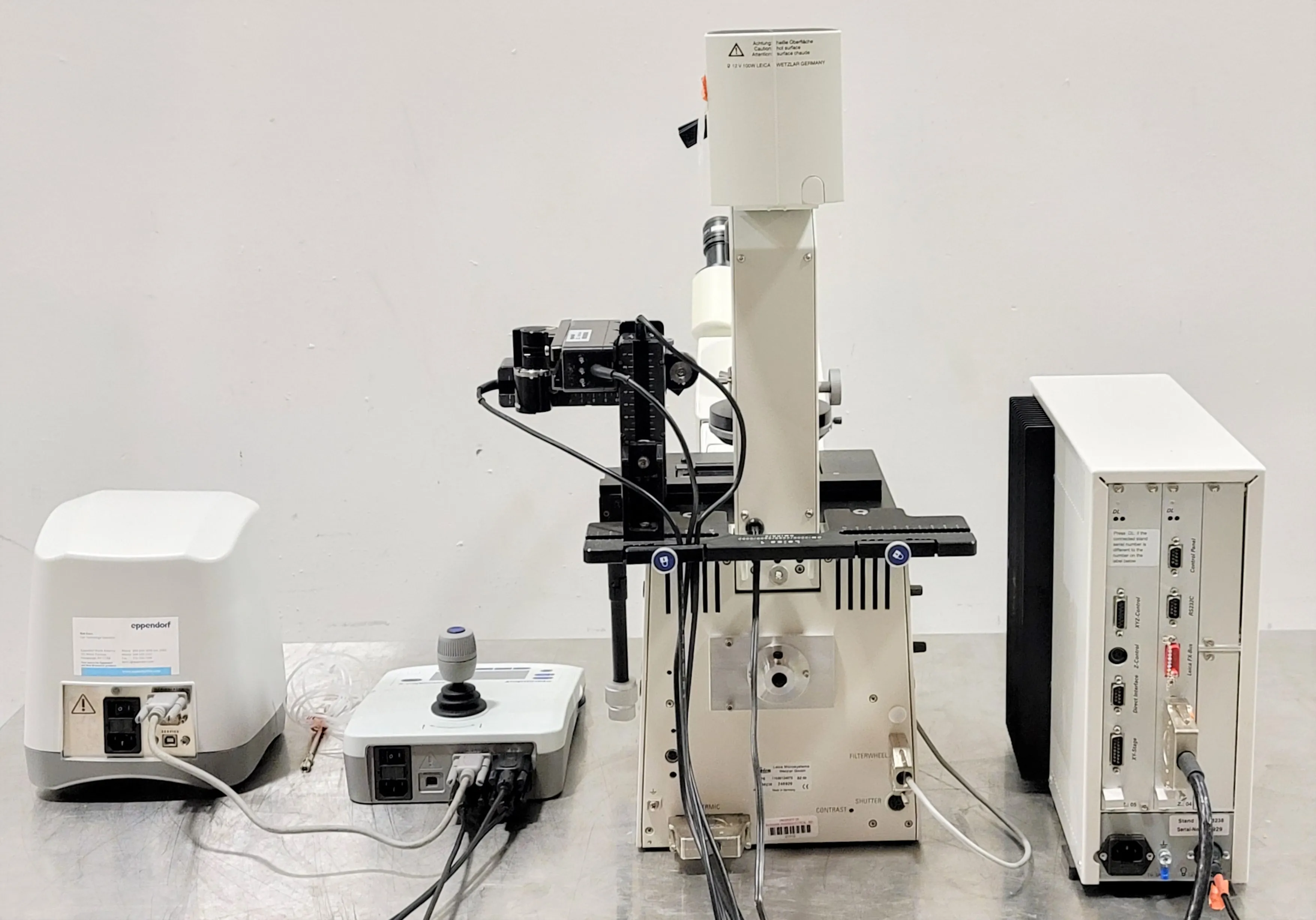

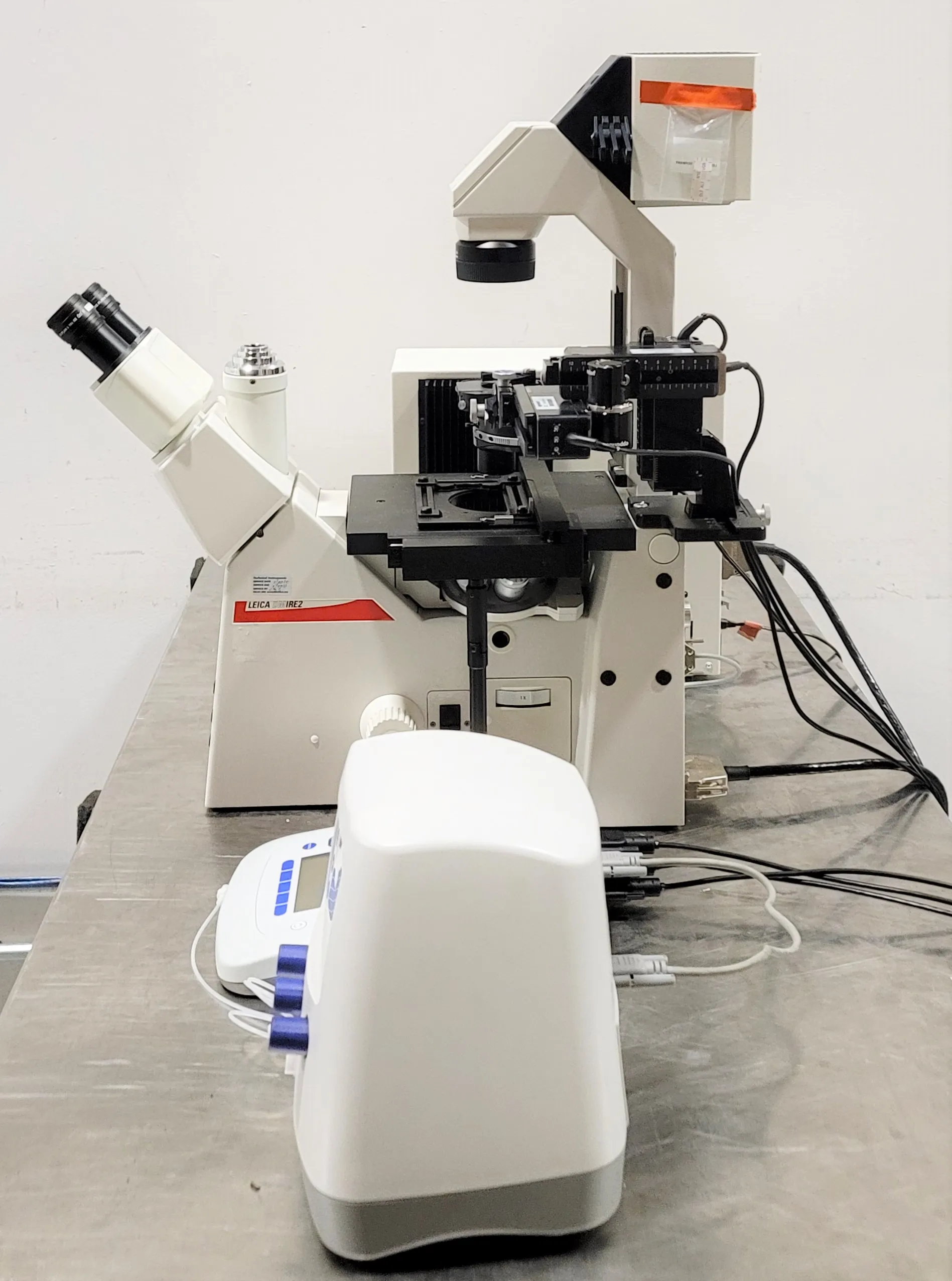

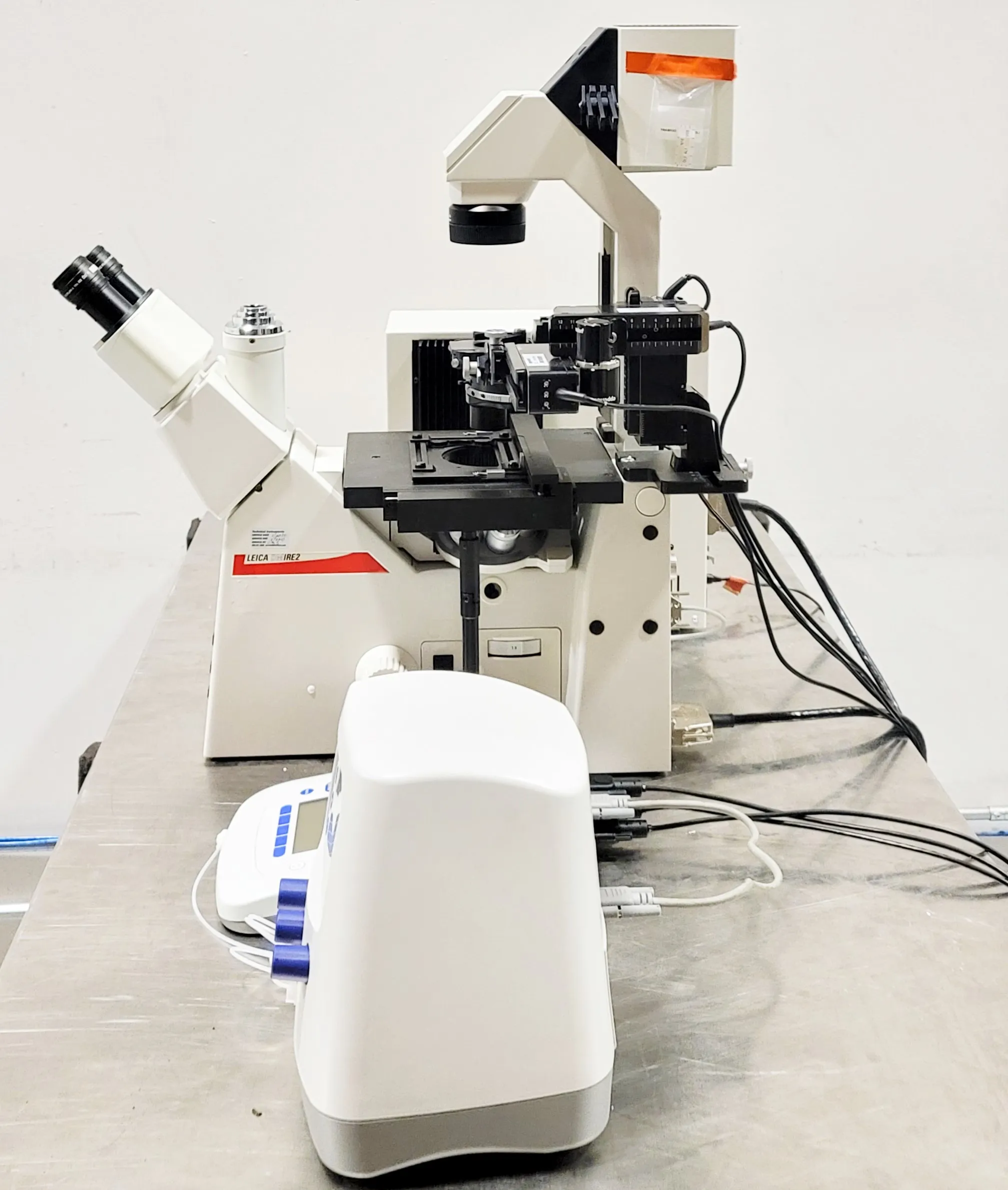

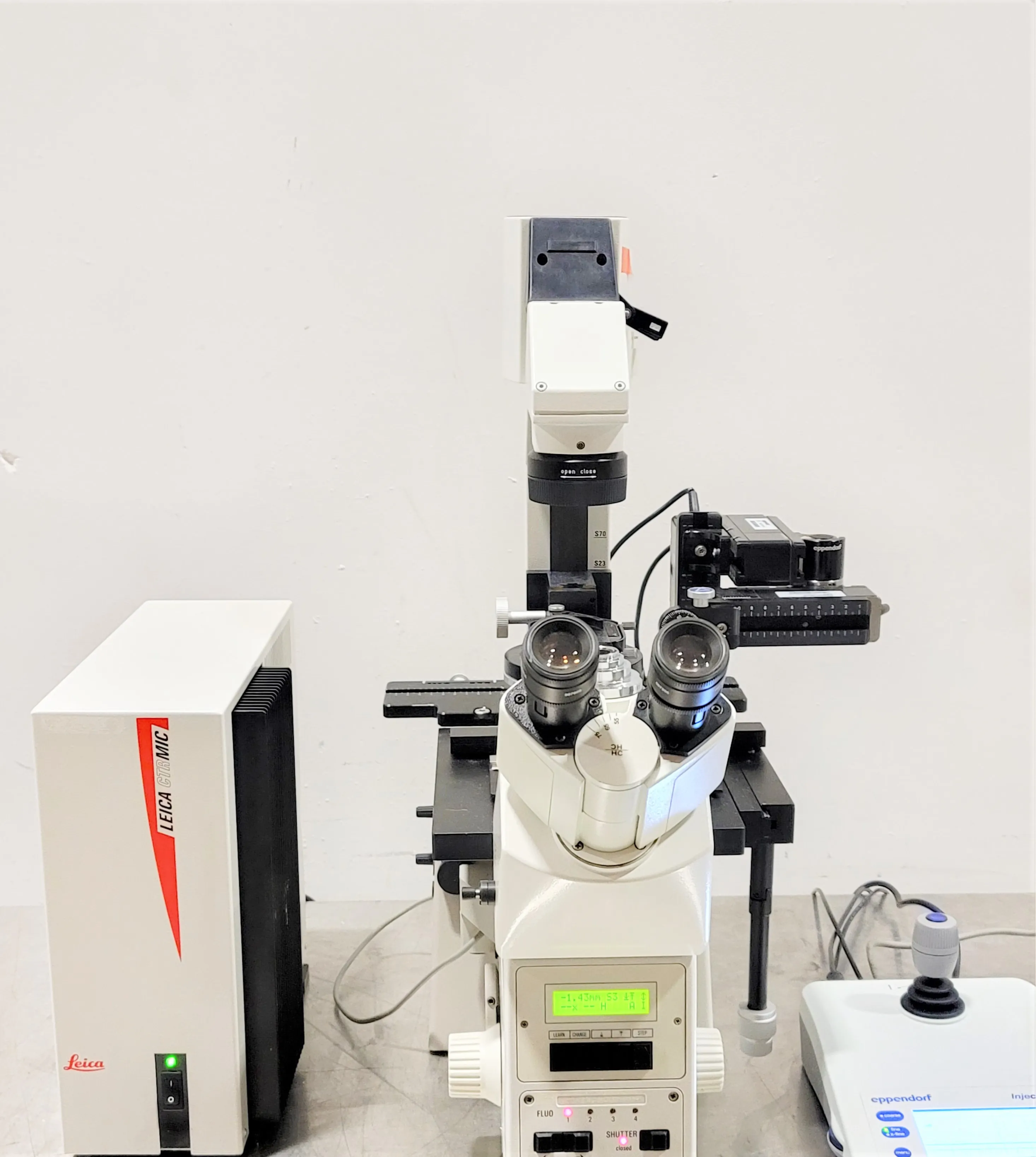

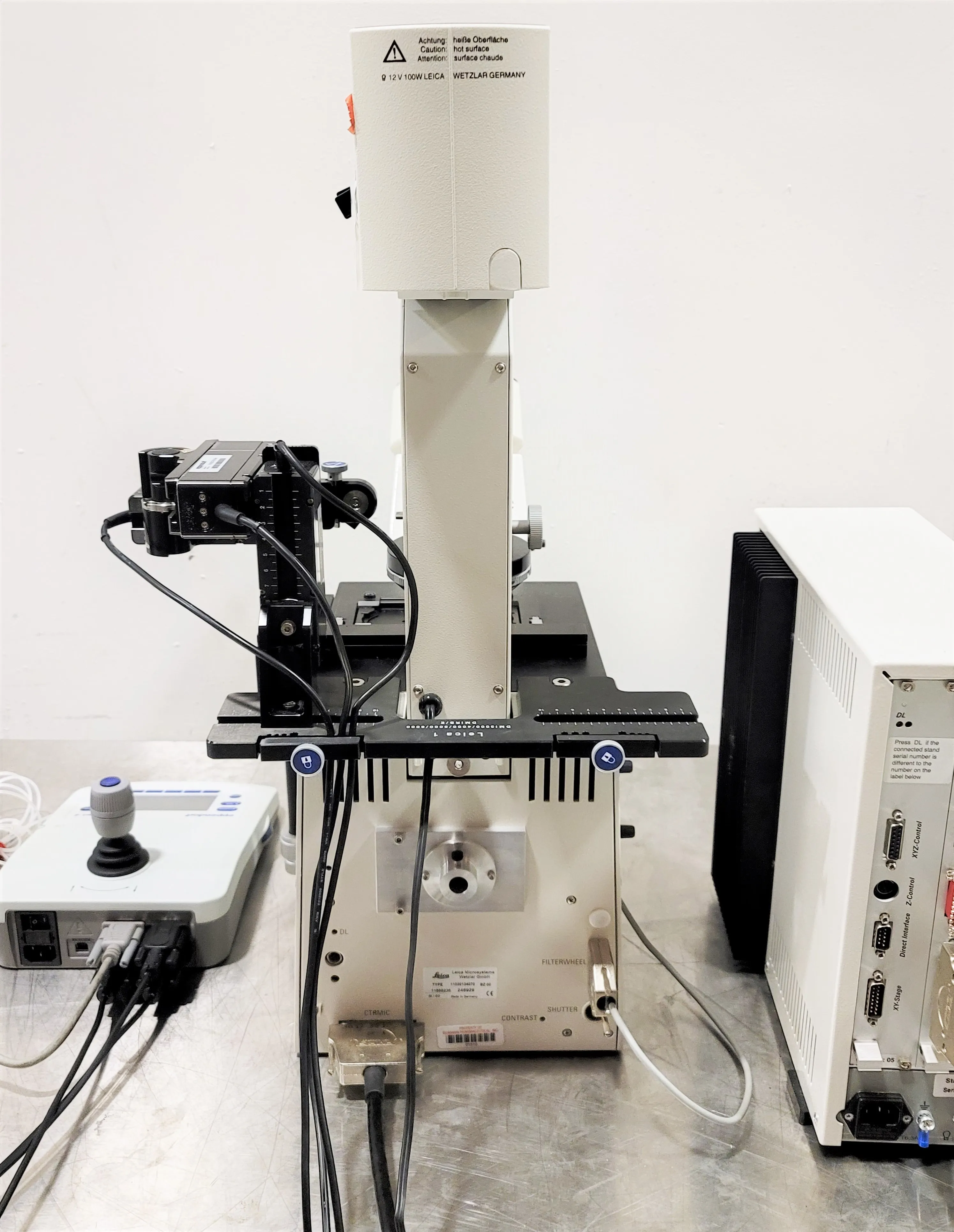

LEICA DM IRE 2 Microscope with Eppendorf FemtoJet 4i and InjectMan 4 Microinjection System

Product Information

The Leica DM IRE2 is the logical further development of the successful inverted research microscope from Leica. It is used for examinations of cells and tissue, for micromanipulation and microinjection techniques all the way through to microdissection or confocal microscopy. The Leica DM IRE2 has universal application potential, incorporating all the contrasting techniques of brightfield, darkfield, phase contrast, DIC, fluorescence and Hoffmann modulation contrast, which are all easy to use and switch between. The Eppendorf FemtoJet 4i is perfectly suited for injecting small to intermediate volumes (up to 1 L) featuring a wide range of functionality, simple operation and electronic coupling to both, TransferMan 4r and InjectMan 4, allowing for easy controlling of the injection process. The InjectMan 4 is ideal for microinjection into adherent cells, smaller organisms, and embryos in the early stages of development. The axial movement ensures the optimal protection of sensitive cells and the lowest possible mortality rate. Manufacture Specification: Leica DM IRE2, Eyepieces: (2)x HC Plan S 10x/22, Illumination: Brightfield, Phase Contrast, Polarizer, Analyzer, Fluorescence (TI2-F-FLT-E), Objectives: 10x/.40, 20x/.70, 40x/1.25-0.75, 100x/1.40-0.70, Type of Stage: Manual Stage, Eppendorf FemtoJet 4i, Pressure Supply Integrated Compressor, Pressure Display Can be set to hPa or psi, Programmable Parameters Injection time, injection pressure, compensation pressure, Clean Function Maximum rinsing pressure 6,000 hPa (87 psi), EppendorfInjectMan 4, Control One joystick for movement control in X-,Y-,Z- and X/Z- dimensions, Speed Control Dynamic Kinetics, Working Mode Coarse, fine, x-fine

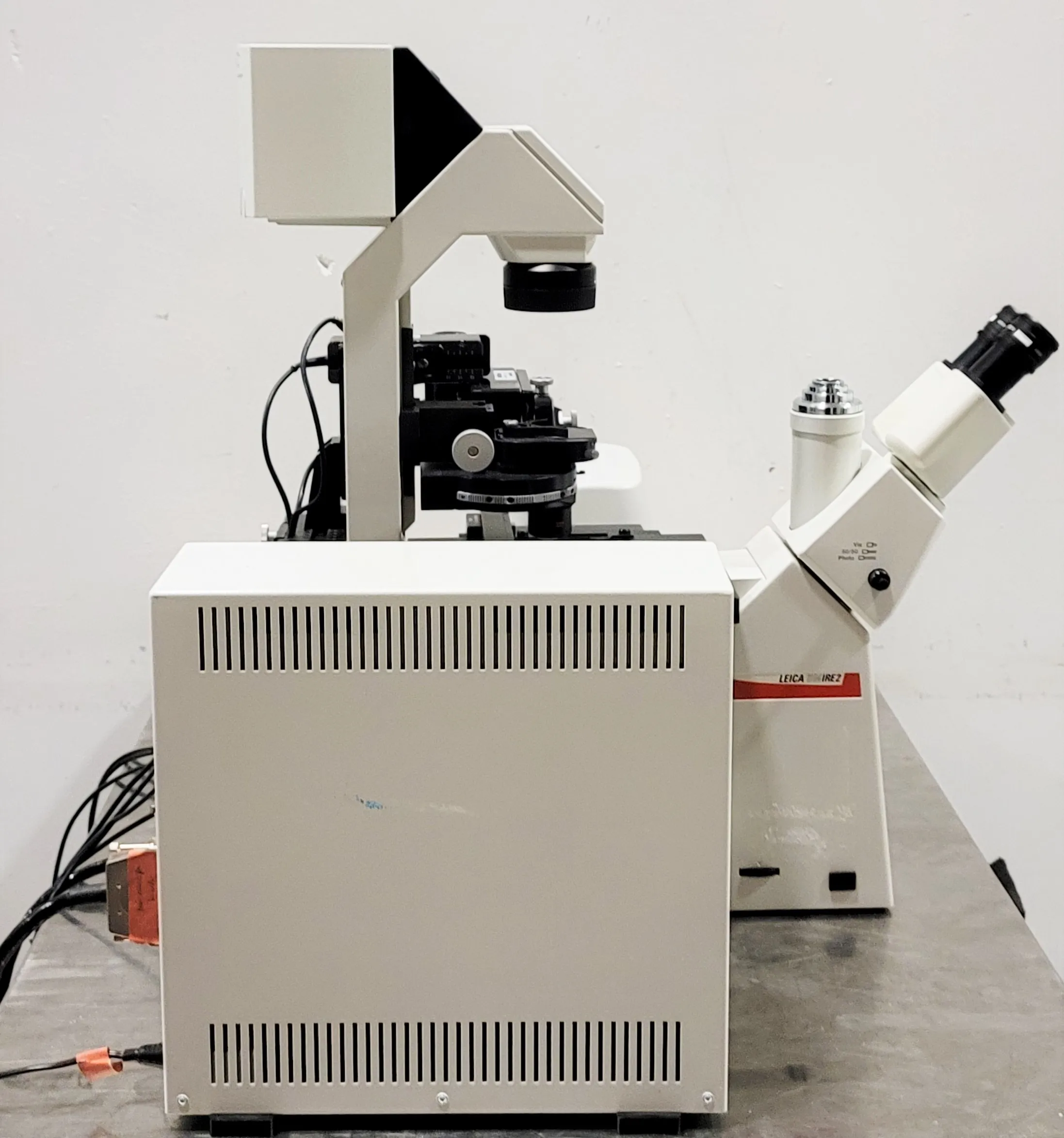

• Used Leica DM IRE2 microscope

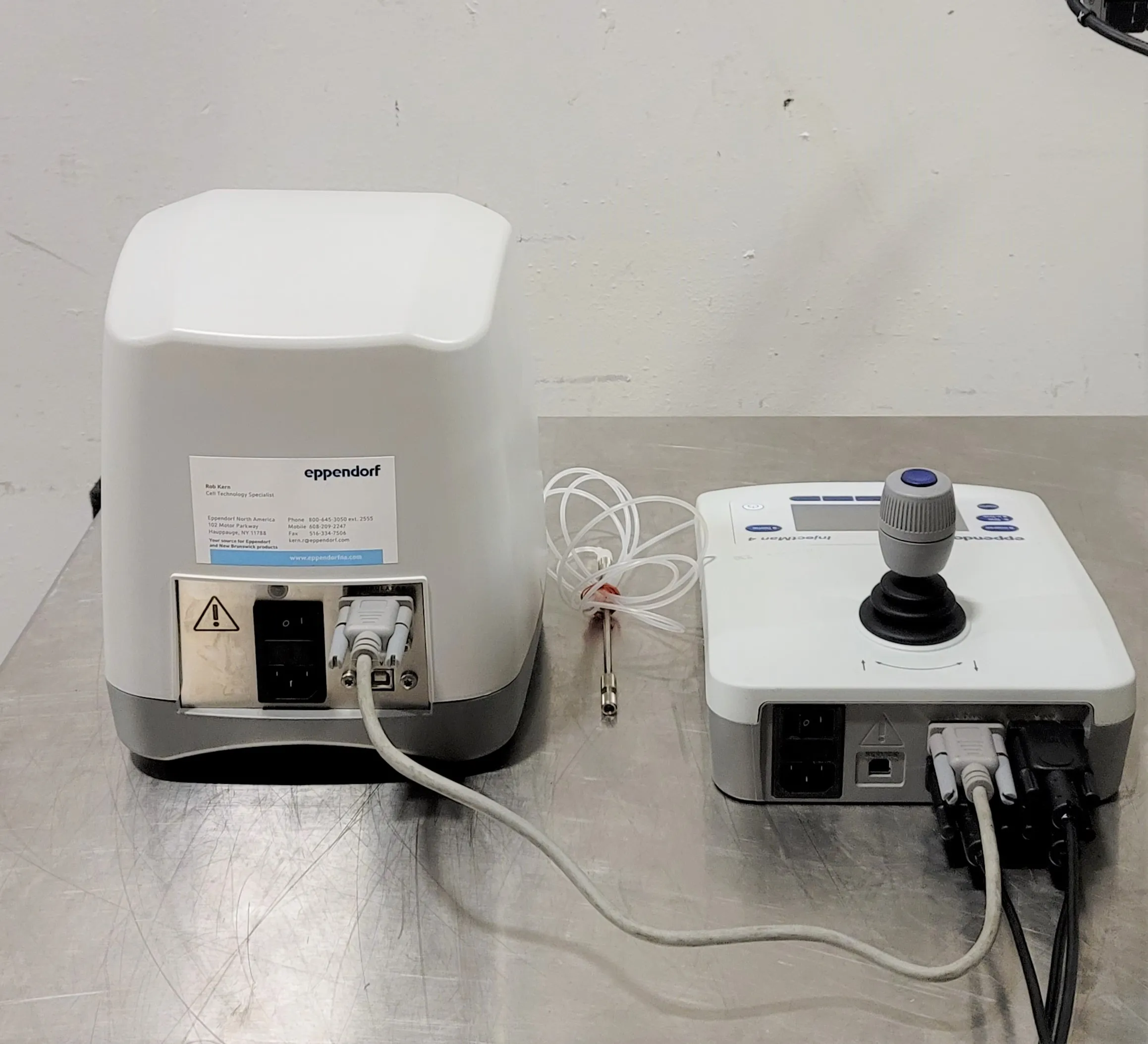

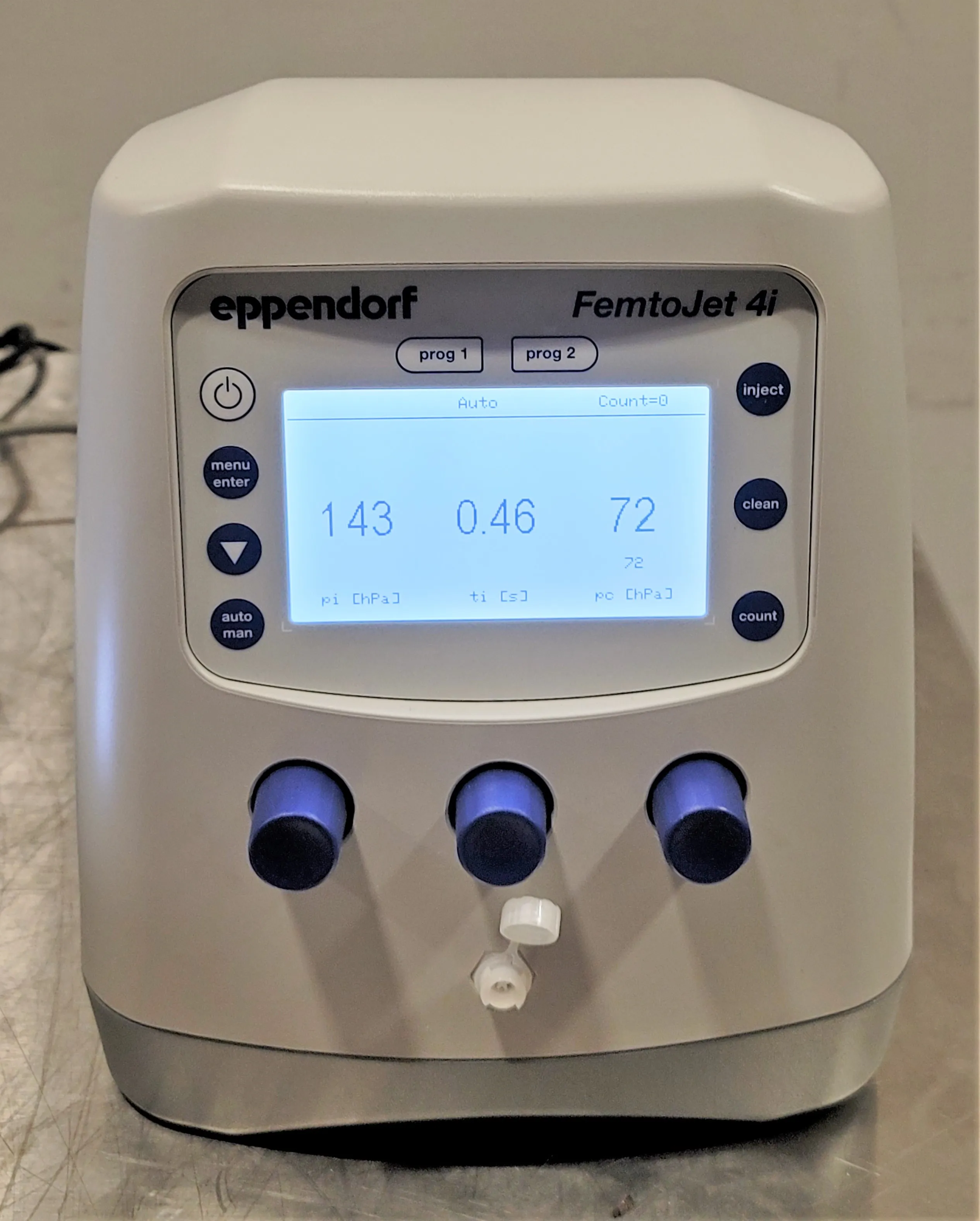

• Eppendorf FemtoJet 4i with integrated compressor

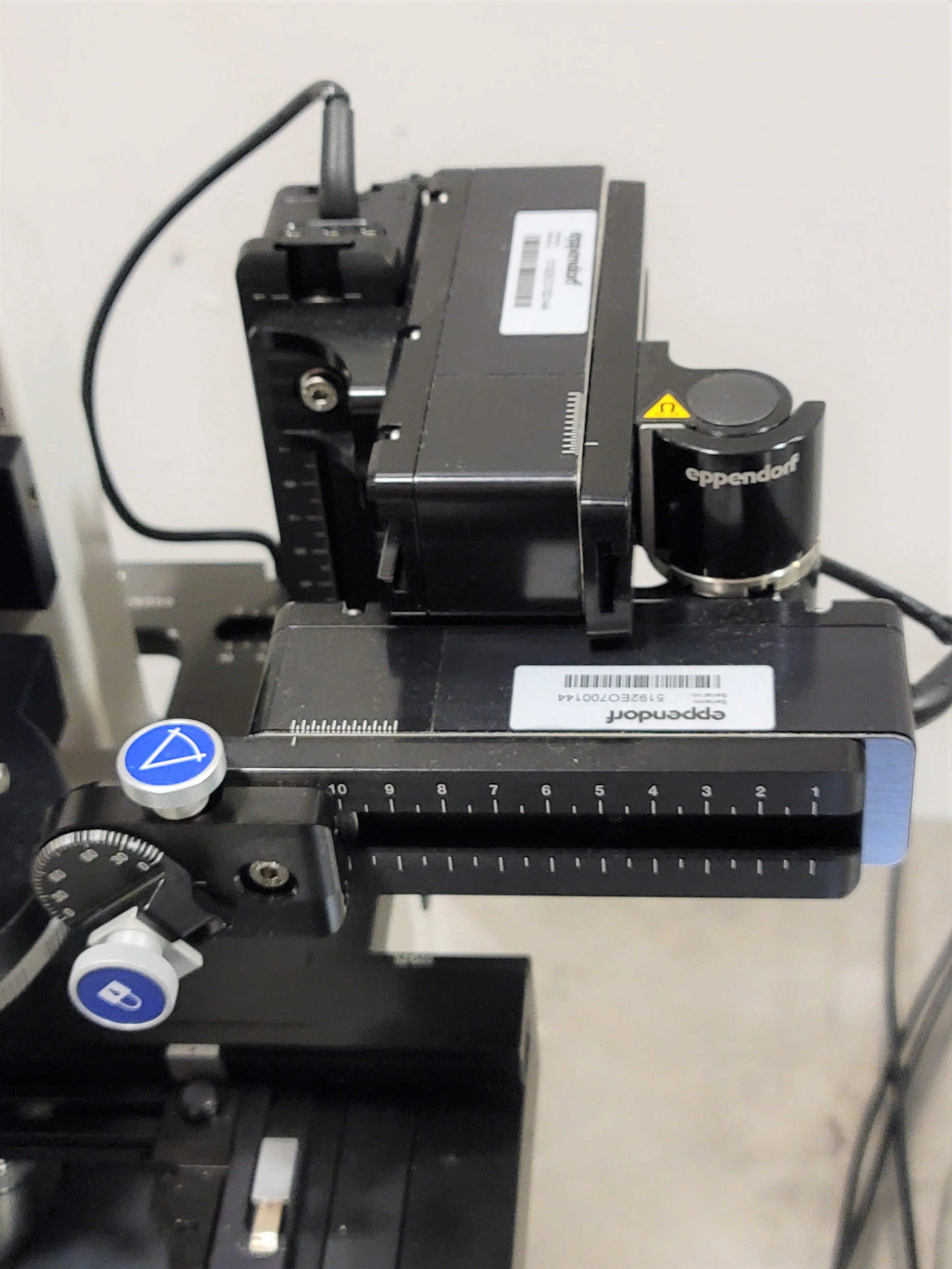

• InjectMan 4 with dynamic movement control

• Eyepieces: (2)x HC Plan S 10x/22
• Illumination: Brightfield, Phase Contrast, Polarizer, Analyzer, Fluorescence (TI2-F-FLT-E)

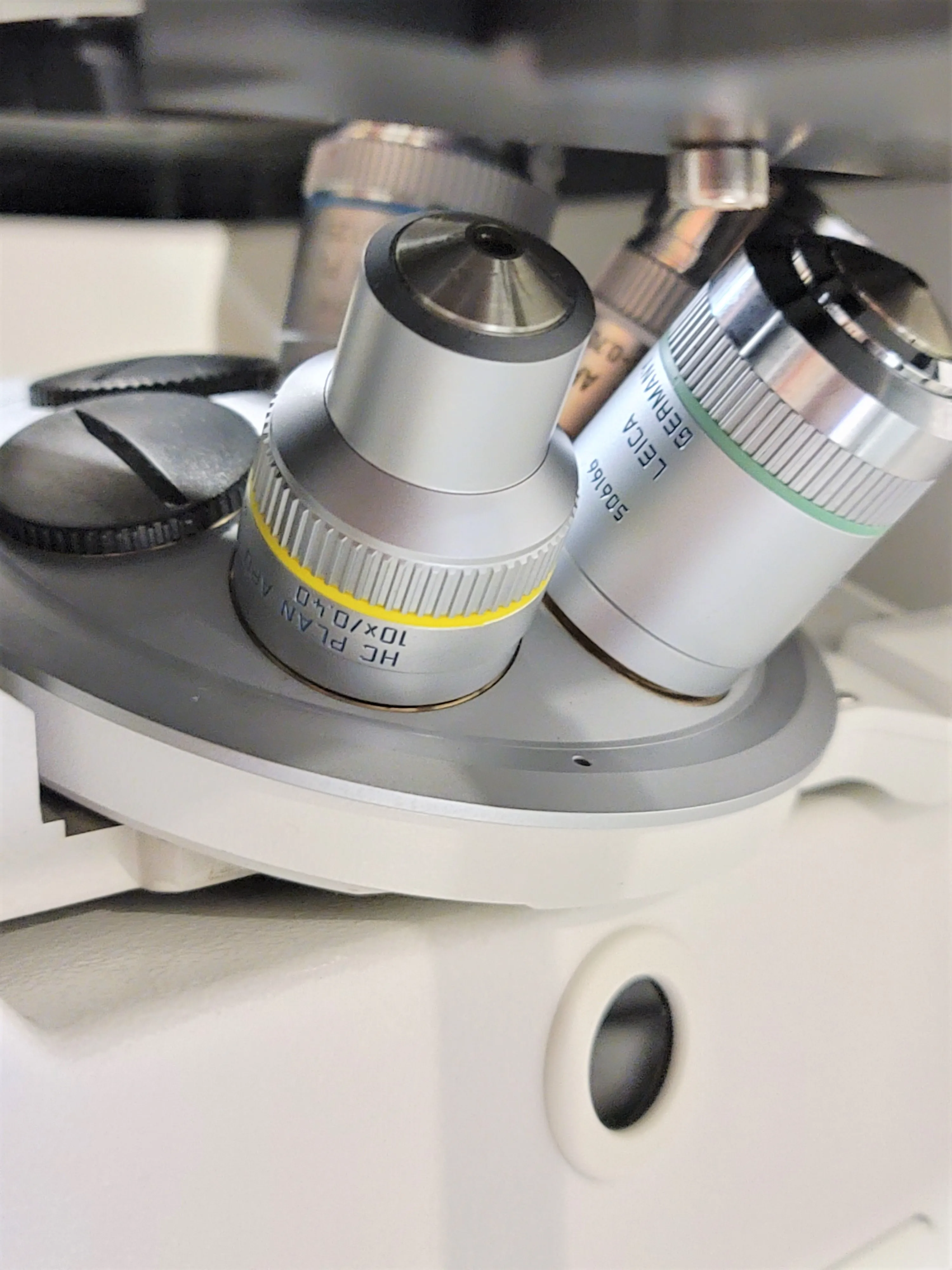

• Objectives: 10x/.40, 20x/.70, 40x/1.25-0.75, 100x/1.40-0.70
• Type of Stage: Manual Stage
• Pressure Supply: Integrated Compressor with maximum rinsing pressure 6,000 hPa (87 psi)
• Control: One joystick for movement control in X-,Y-,Z- and X/Z- dimensions, Speed Control: Dynamic Kinetics, Working Mode: Coarse, fine, x-fine

Metric: 42.64 kg
Imperial: 93.8 lbs

Metric: 42 cm x 34 cm x 37 cm
Imperial: 16.54 in x 13.39 in x 14.57 in

9011800000

The chosen harmonized code is 9011800000 for Microscopes, other than optical microscopes, and diffraction apparatus. This is due to the primary function of the Leica DM IRE2 as an inverted research microscope.
