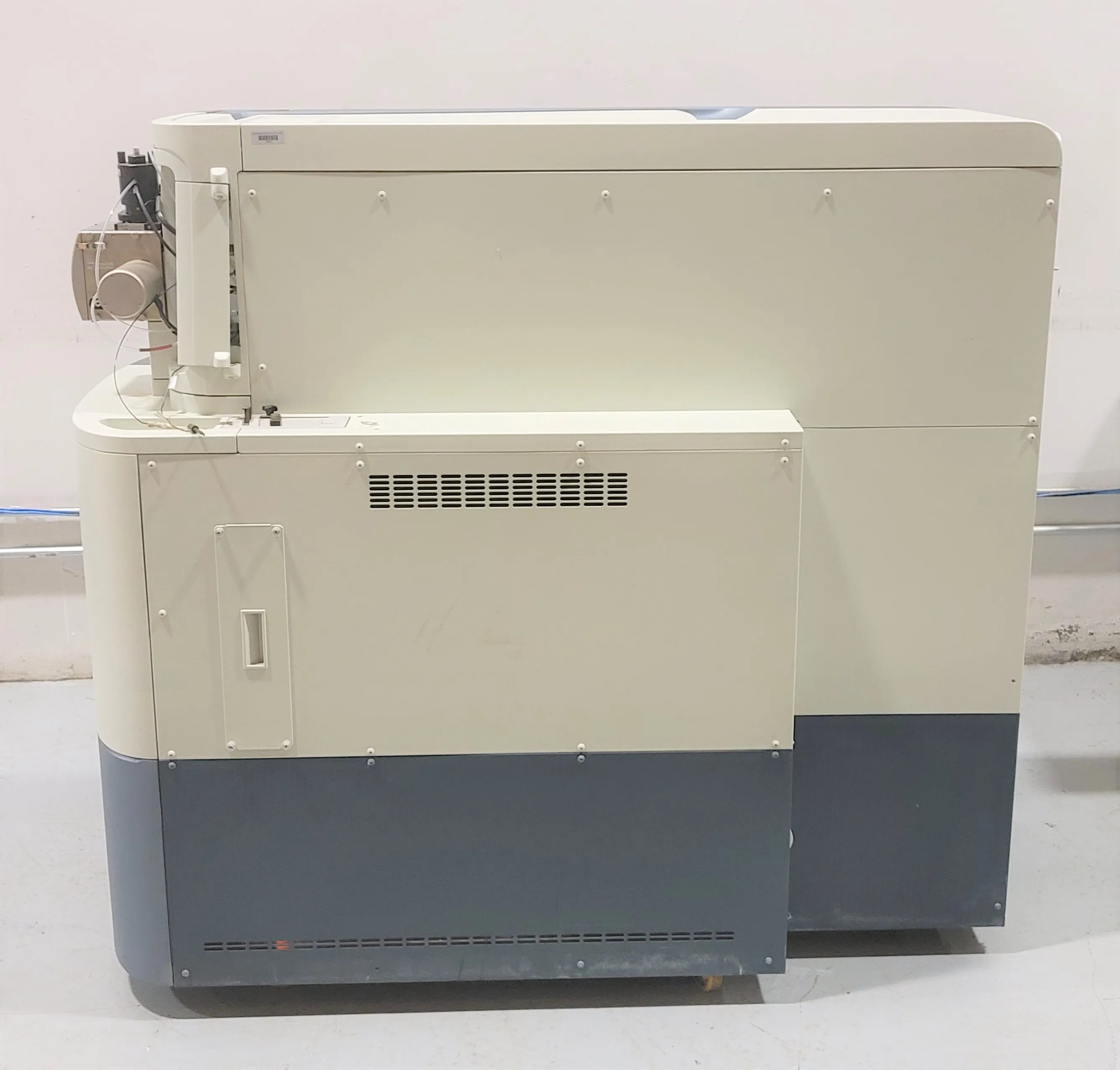

Waters Synapt Q-TOF Mass Spectrometer

Product Information

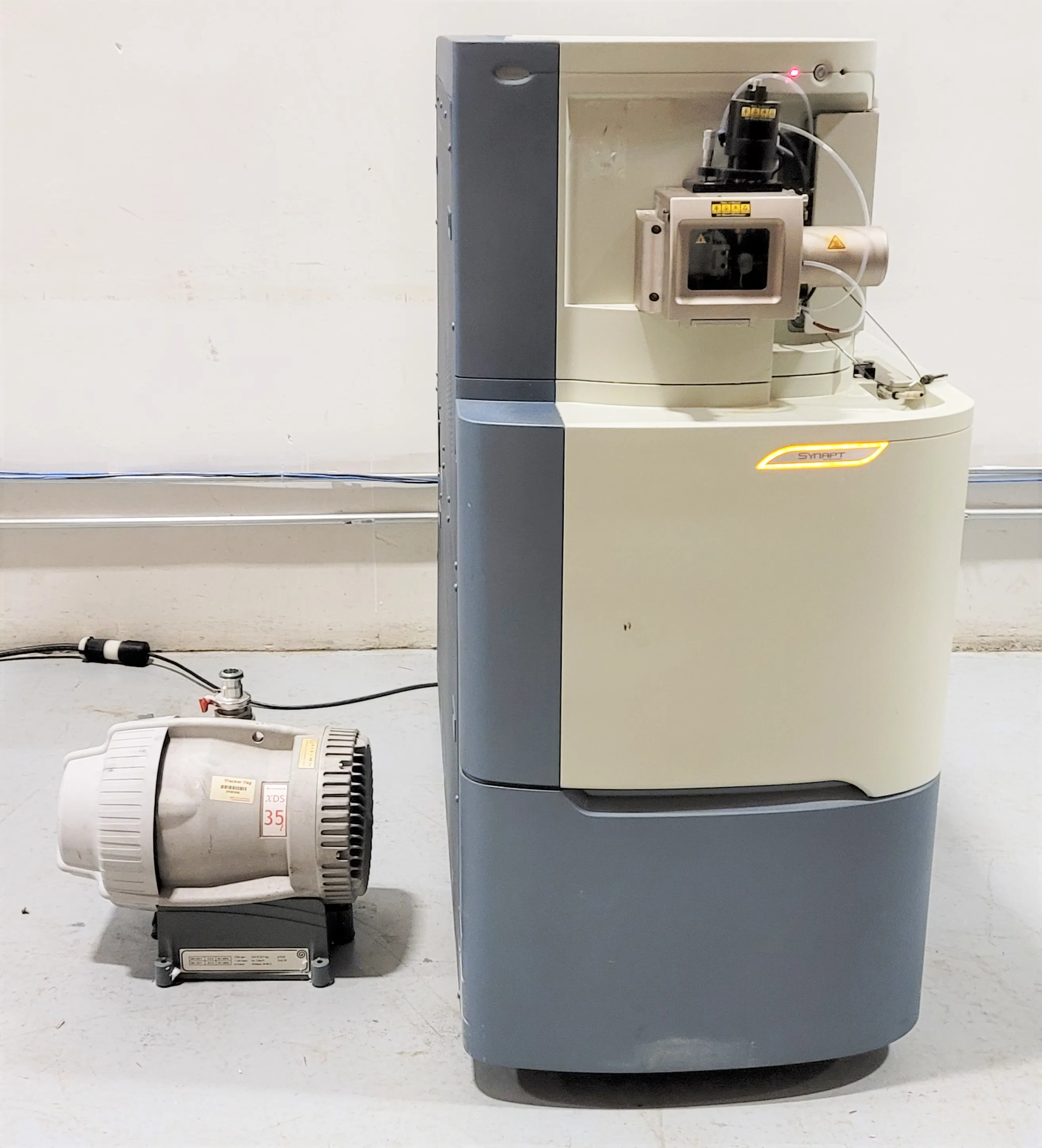

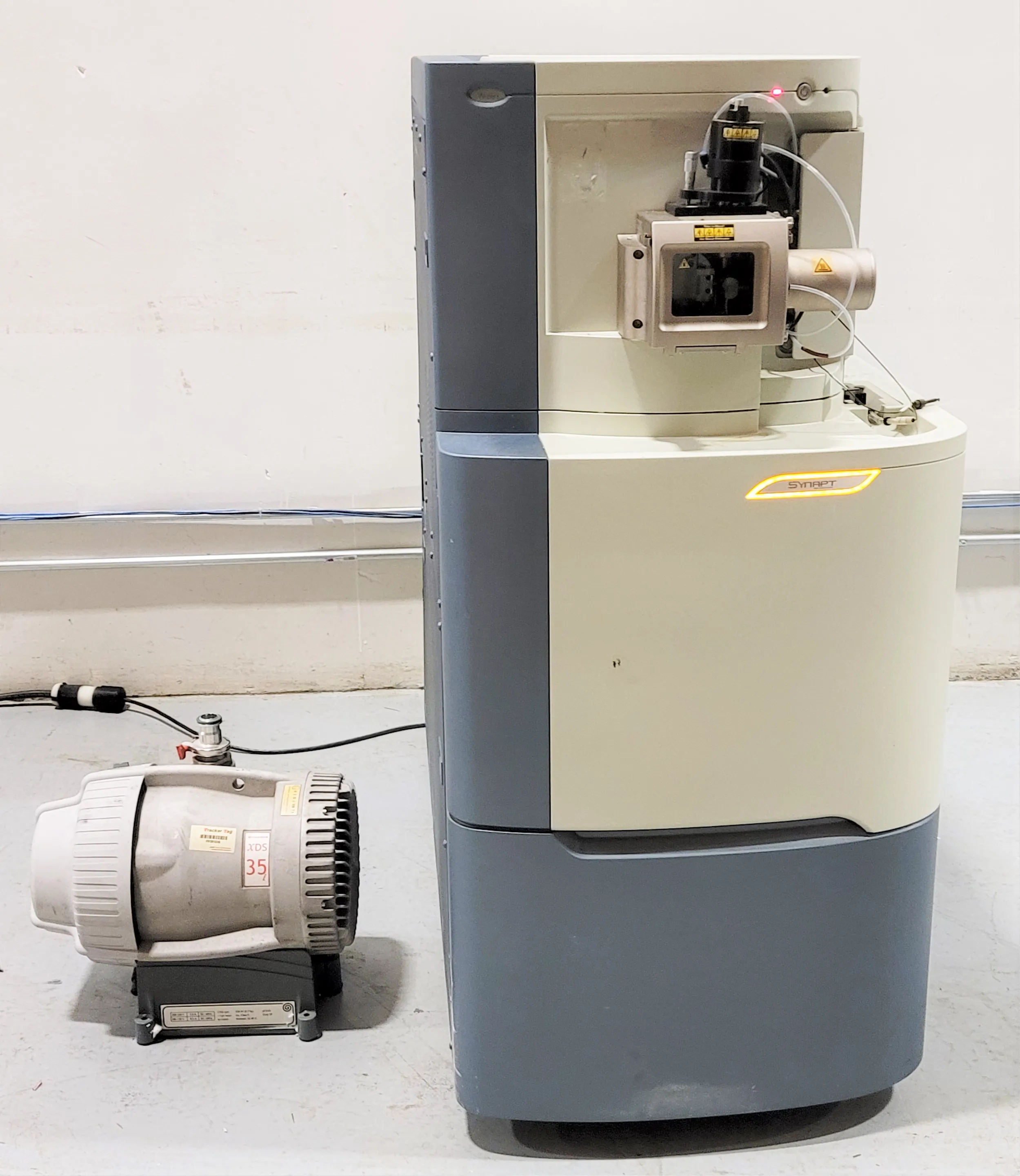

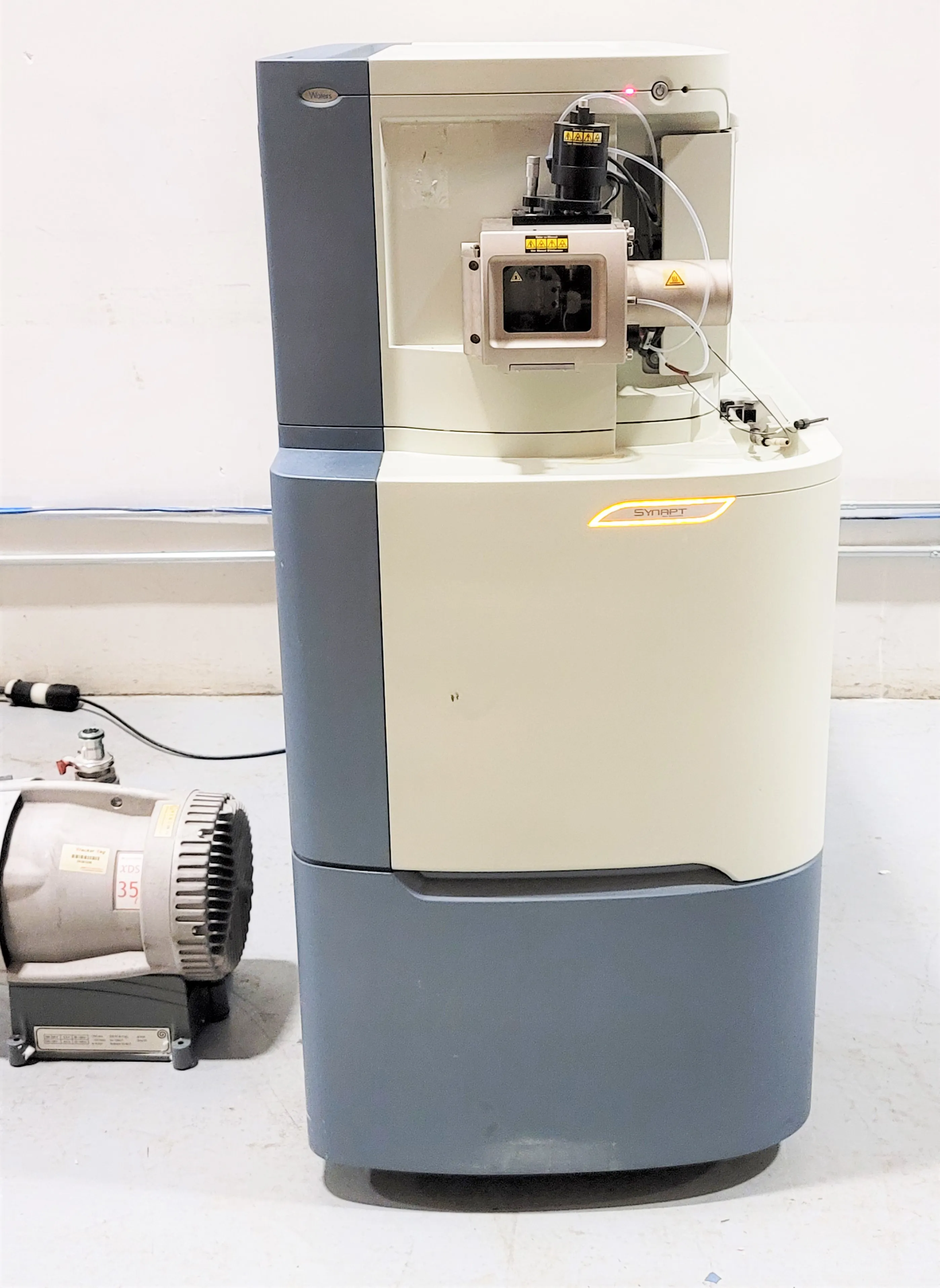

Let's get right into the details of this sophisticated piece of equipment. The Waters Synapt Q-TOF is a tandem mass spectrometer that couples a conventional quadrupole front end with an orthogonal time-of-flight (TOF) final stage, offering electrospray and nanoelectrospray ionization modes. It can achieve exact mass measurement capabilities (3 ppm) for the determination of elemental composition and increased specificity for the identification of unknowns. This powerful technology is utilized for a variety of applications in laboratories including comparative metabolomic global profiling where maximum information is required from a sample. The high sensitivity and high mass measurement capability make it a valuable asset for researchers striving for the highest level of specificity and resolution in their analyses.

• High sensitivity for detailed analysis
• Exact mass measurement capabilities (3 ppm) for increased specificity

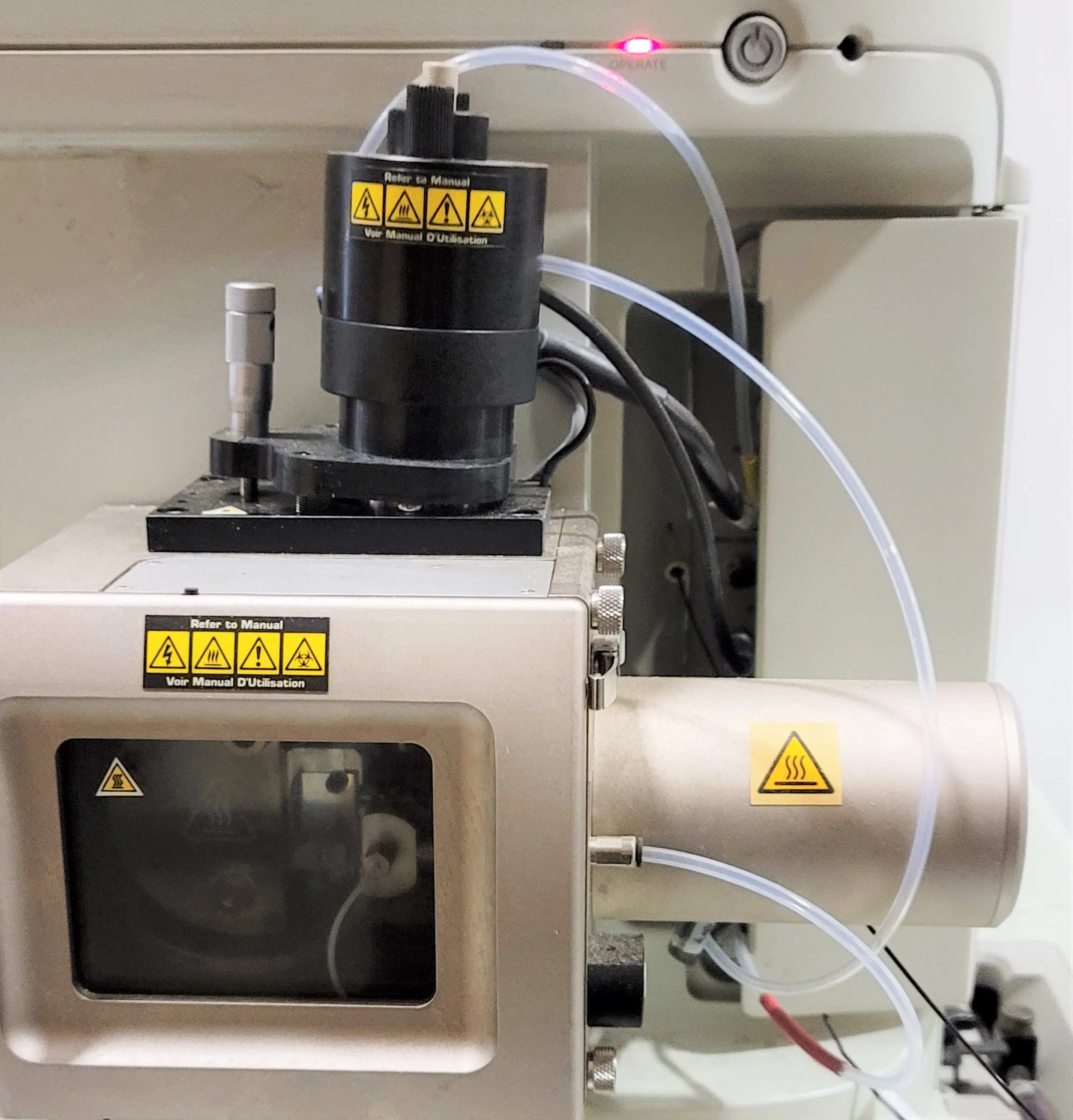

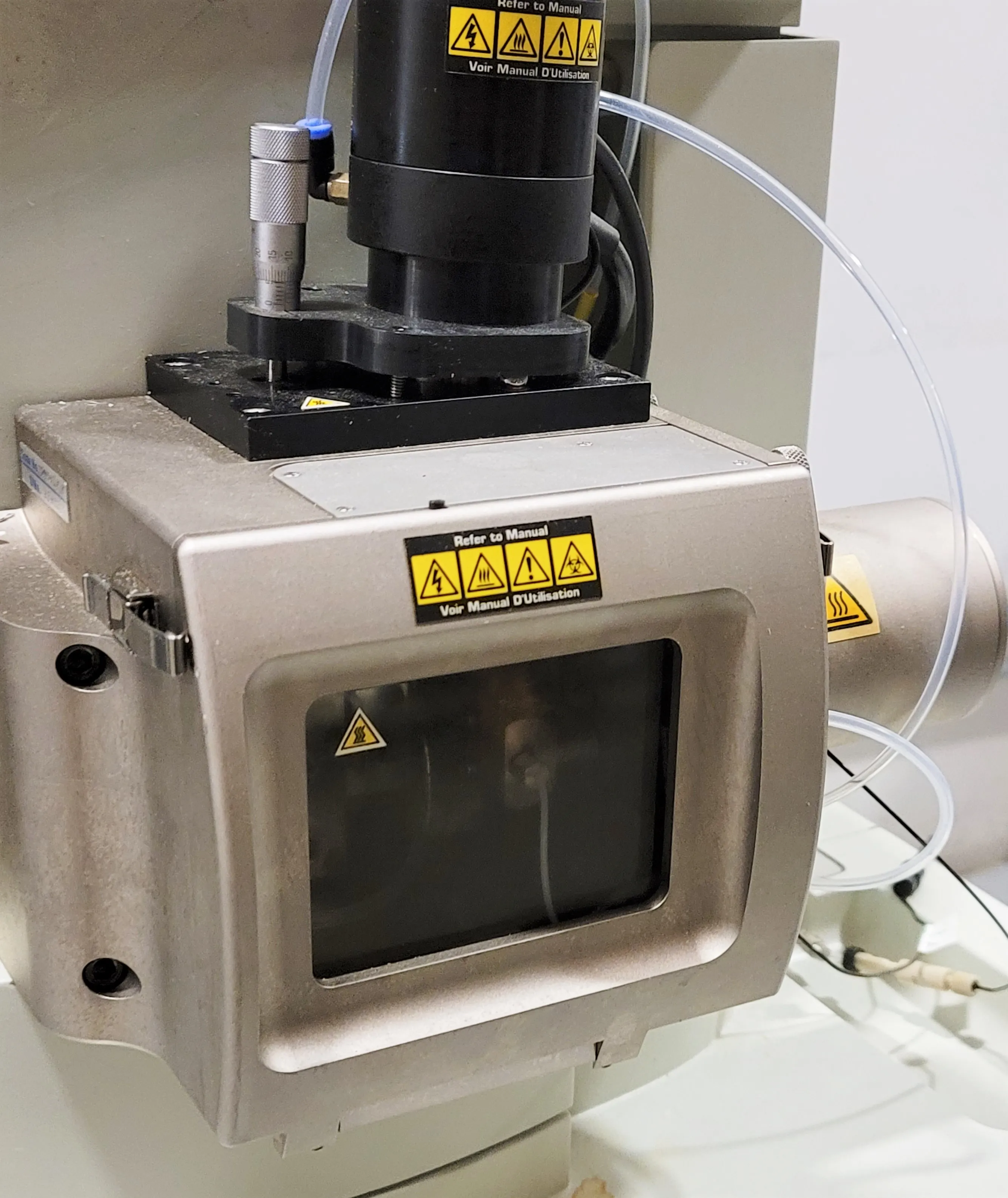

• Electrospray and nanoelectrospray ionization modes
• High-quality resolution with up to 17,500 FWHM
• Enhanced speed, dynamic range enhancement, and duty cycle for efficient and sensitive quantitation

• High sensitivity with high transmission efficiency of ZSpray source technology, T-Wave ion optics, T-Wave collision cell, and oa-Tof transmission
• Routine exact mass measurement (3 ppm RMS) in MS and MS/MS with LockSpray and NanoLockSpray
• Faster TDC (4 GHz) delivers acquisition speeds of up to 20 spectra per second, compatible with UPLC-based separations
• Equipped with programmable DRE function, enabling quantitation and exact mass measurement over 4 orders of magnitude
• Exchangeable vacuum MALDI source enabling large scale MALDI MS and MS/MS analyses, compatible with 96- and 384-spot target plates
• Resolving quadrupole options of 4, 8, and 32k Da
• m/z range up to 100,000 in V-Optics
• Intelligent, automated MS/MS acquisition with Data Directed Analysis (DDA) and Precursor Ion Discovery

Metric: 272.16 kg
Imperial: 600 lbs

Metric: 68.0 cm x 36.0 cm x 65.0 cm
Imperial: 26.772 in x 14.173 in x 25.591 in

90272000

This code represents spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR). The Q-TOF mass spectrometer falls under this category due to its use of time-of-flight (TOF) technology for mass analysis.
