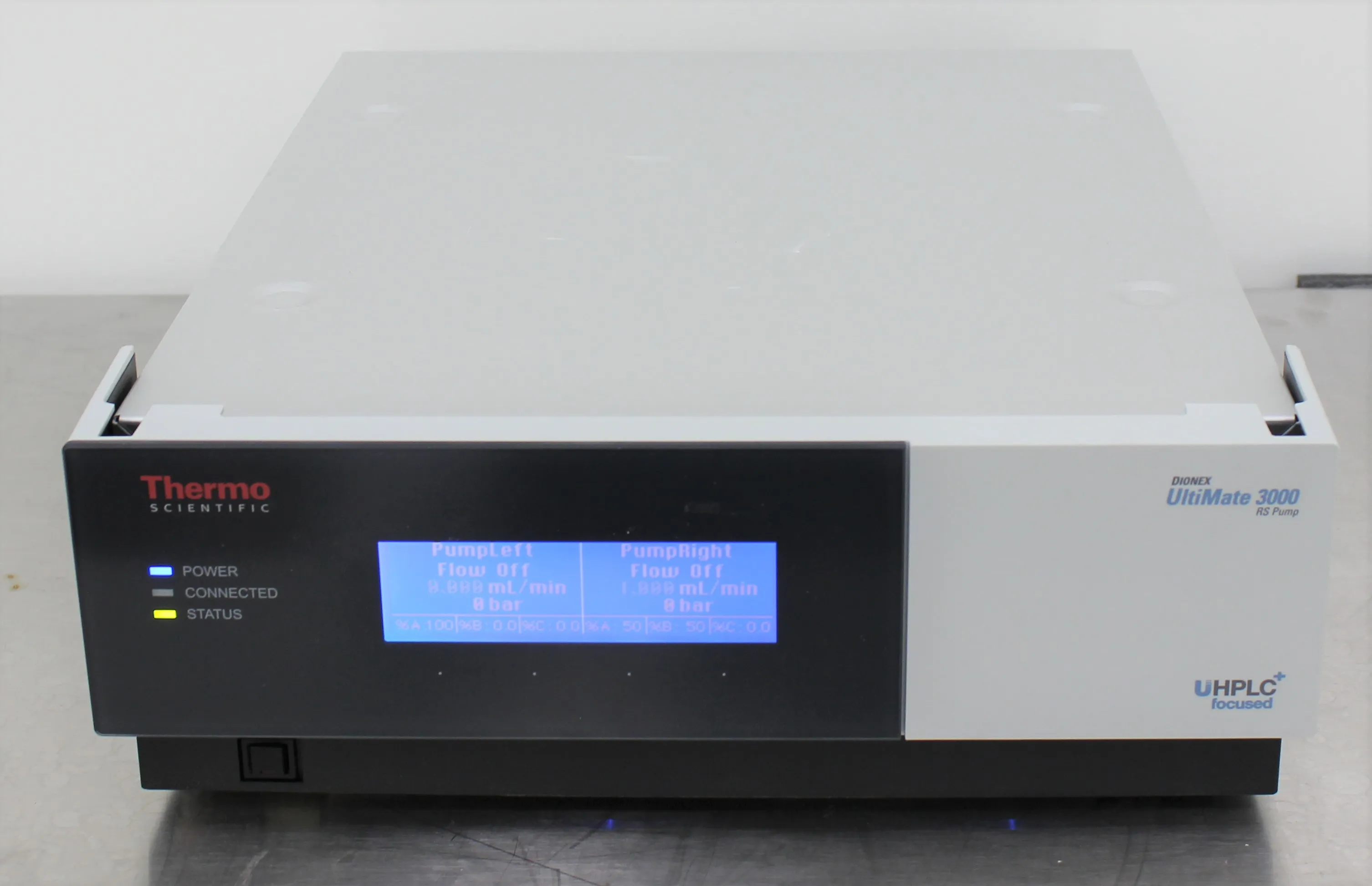

Thermo Scientific Dionex UltiMate DGP-3600RS Dual-Gradient Rapid Separation Pump

Product Information

Welcome to the world of cutting-edge scientific equipment! Meet the Thermo Scientific Dionex UltiMate DGP-3600RS Dual-Gradient Rapid Separation Pump; your gateway to the fascinating realm of online SPE, parallel, tandem, and two-dimensional LC. This innovative pump opens the doors to increased sample throughput, higher resolution, and automated sample preparation - all while ensuring the utmost speed and efficiency. Crafted with the scientistaive insights into their specialized equipment.

• Dual-Gradient Rapid Separation Pump
• Ultrahigh-speed operation
• Resolution of UltiMate 3000 RS systems
• Supports parallel, tandem, and 2-dimensional LC
• Ideal for conventional/ultrahigh-speed applications
• Automated sample preparation

• Flow Accuracy: 0.1%
• GLP Features: Full support of Thermo Scientific Dionex AutoQ instrument qualification
• Flow Precision: <0.05% RSD or <0.01 min SD
• Gradient Delay Volume: 325-1840 L (Default: 690 L)
• Pressure Range: 2 to 103.4 MPa up to 5 mL/min
• I/O Interfaces: 2 digital inputs, 2 relay outputs
• Proportioning Accuracy: 0.5% (full scale)
• Proportioning Precision: <0.15% SD
• PC Connection: USB for PC connection, USB hub with 3 sockets integrated
• Voltage: 100-120 V, 60 Hz; 200-240 V, 50 Hz
• Emission Sound Pressure Level: <70 dB(A) in 1-m-distance
• Max. Flow Rate: 8.0 mL/min
• Min. Flow Rate: 0.001 mL/min (Recommended: 0.1 mL/min)
• Operating Principle: Serial dual-piston
• Overall Depth: 51 cm
• Overall Height: 16 cm
• Overall Width: 42 cm

Metric: 16.5 kg
Imperial: 36.4 lbs

Metric: 51 cm x 42 cm x 16 cm
Imperial: 20 in x 16.5 in x 6.3 in

9027200000

9027200000: Instruments and apparatus For physical or chemical analysis; For measuring or checking viscosity, porosity, expansion, surface tension or quantities heat, sound or light
