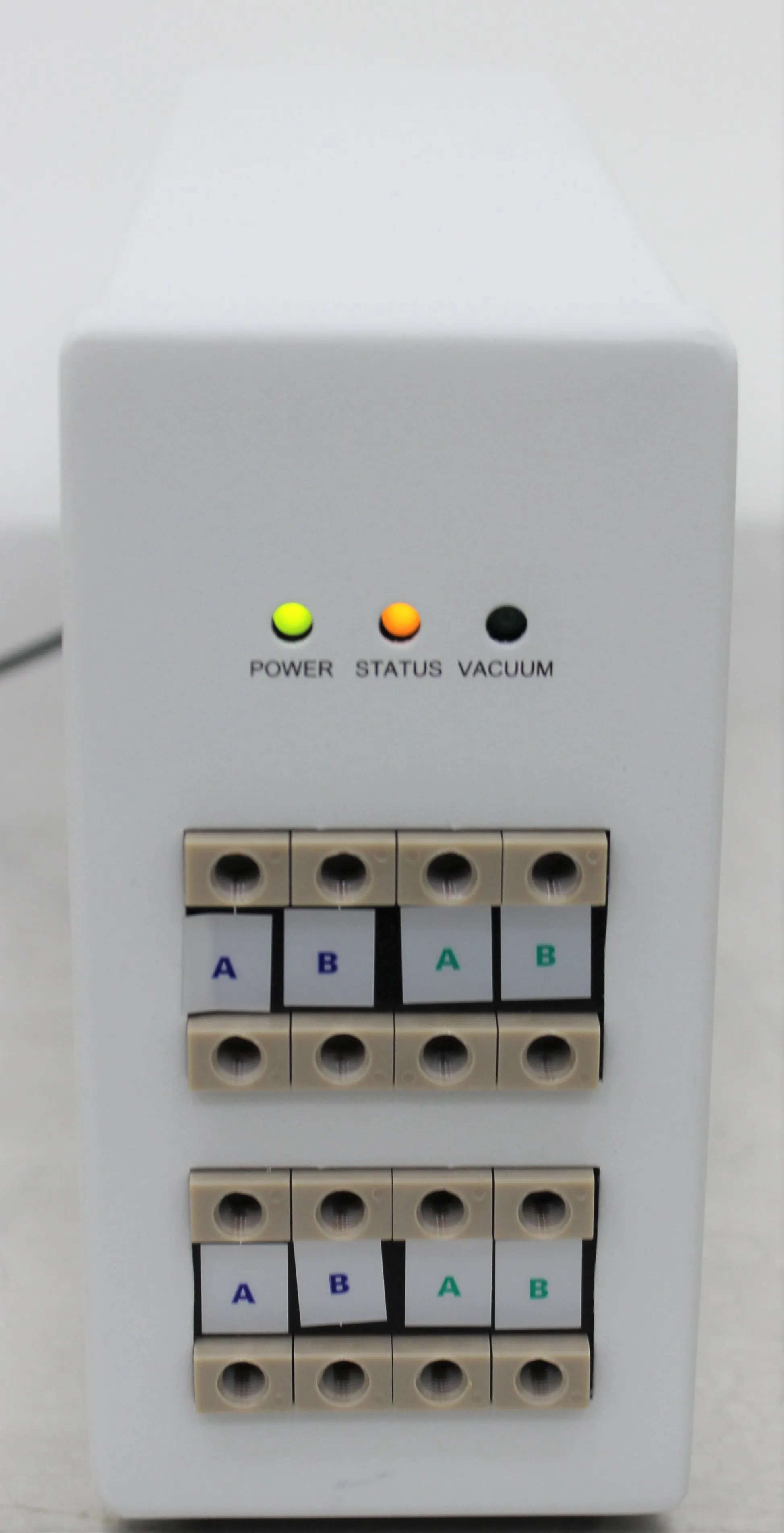

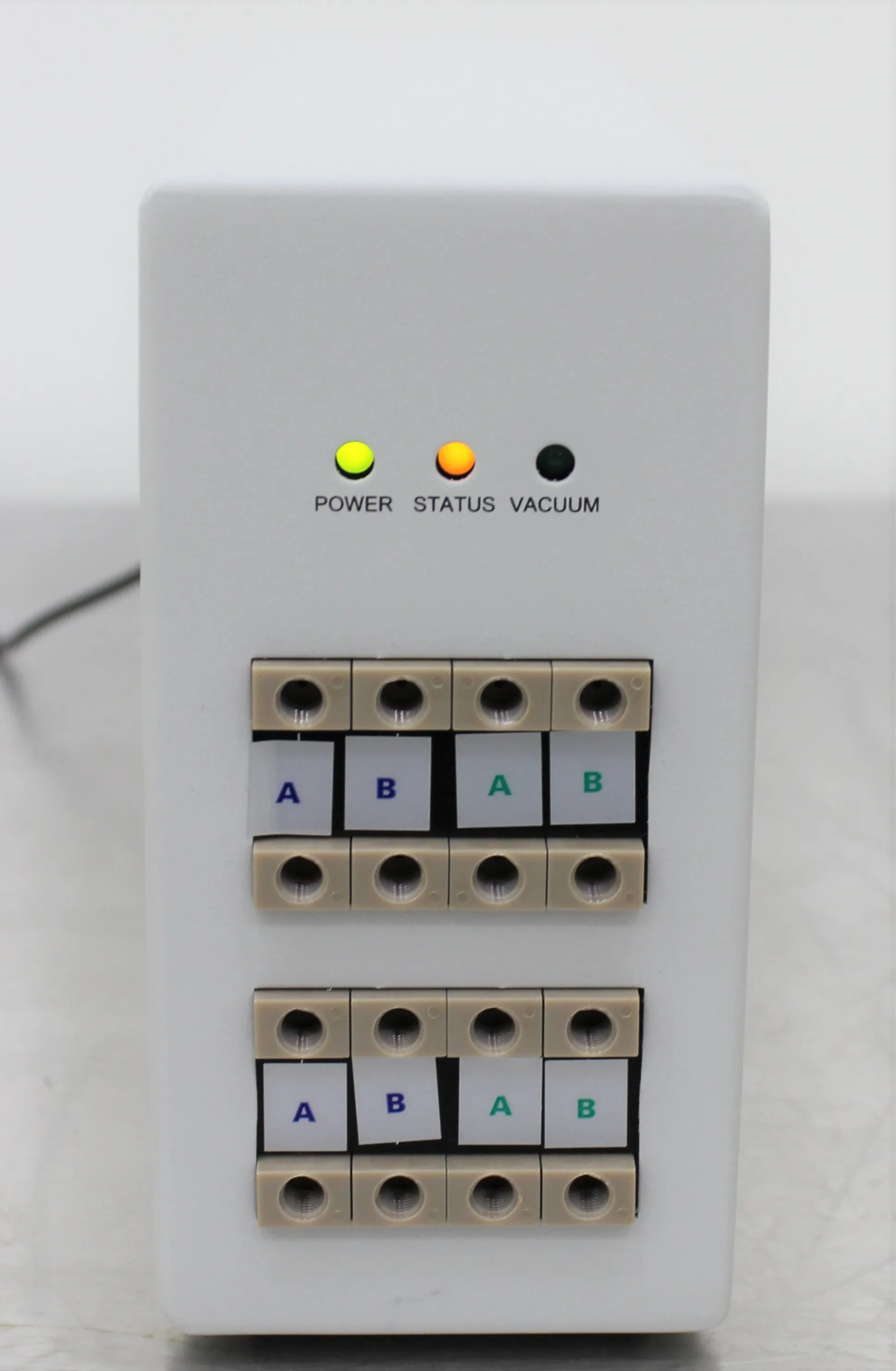

Systec 8 channel-alone mini degasser
- Make Systec
- Hertz 50Hz/60Hz
- Model 8 channel-alone mini degasser
- Serial 1000294
- Weight 10.0 Lb
- Voltage 120V/220V
- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 16.0in x 8.0in x 11.0in
- Shipping Type FedEx Ground
- Item Condition Excellent
- Manufacturing Date Does Not Apply
Product Information
The Systec 8 channel-alone mini degasser by Systec is a high-efficiency inline module used to remove dissolved gases from HPLC mobile phases. Its flow-through vacuum degassing chamber features a single, inert, amorphous perfluorinated copolymer (Systec AF) degassing membrane, enabling degassing efficiency 50 times that of PTFE. This equipment excels in degassing efficiency (>70% O2 removal at 1mL/min MeOH), with adjustable optimization based on flow rate and fluid type. However, it's not compatible with fluorinated solvents. The degassing line path internal diameter is 1.14 mm (0.045") and has a pressure drop of 0.18 kPa/mL/min. The maximum pressure is 0.5 MPa (70 psi) at 25°C, and it provides validation output signals with an accuracy of 1.0% of reading 0.010VDC from 2.7 to 106.7 kPa (20 to 80 mmHg). The Systec 8 channel-alone mini degasser is used to enhance the efficiency of High-Performance Liquid Chromatography (HPLC) processes and is a valuable addition to any laboratory.
Key Features- High-efficiency inline module
- Single, inert, perfluorinated copolymer degassing membrane
- Adjustable degassing efficiency based on flow rate and fluid type
- Not compatible with fluorinated solvents
- Maximum pressure of 0.5 MPa (70 psi) at 25°C
- Validation output with 1.0% accuracy
- Degassing Efficiency: >70% O2 removal at 1mL/min MeOH
- Solvent Compatibility: Not compatible with fluorinated solvents
- Degassing Line Path Int.: 1.14 mm (0.045")
- Pressure Drop: 0.18 kPa/mL/min
- Max. Pressure: 0.5 MPa (70 psi) at 25°C
- Validation Output: Signal: 5mV DC, 0.13 kPa (1 mmHg)/absolute from 2.7 to 106.7 kPa (20 to 800 mmHg) (0.100 DC at 2.7 kPa (20 mmHg); 4.000V DC at 1.067 kPa (800 mmHg)); Accuracy: 1.0% of reading 0.010V DC from 2.7 to 106.7 kPa (20 to 80 mmHg)
Metric: 4.53592 kg
Imperial: 10.0 lbs
Metric: 28.0 cm x 20.32 cm x 15.24 cm
Imperial: 11.0236 in x 8.0 in x 6.0 in
902780
Harmonized Code Details902780 - Laboratory or Industrial Instrumets and Apparatus: Other instruments and apparatus, n.e.c., for measuring or checking viscosity, porosity, expansion, surface tension or the like, other than optical instruments, machines and appliances of heading 90.31.
