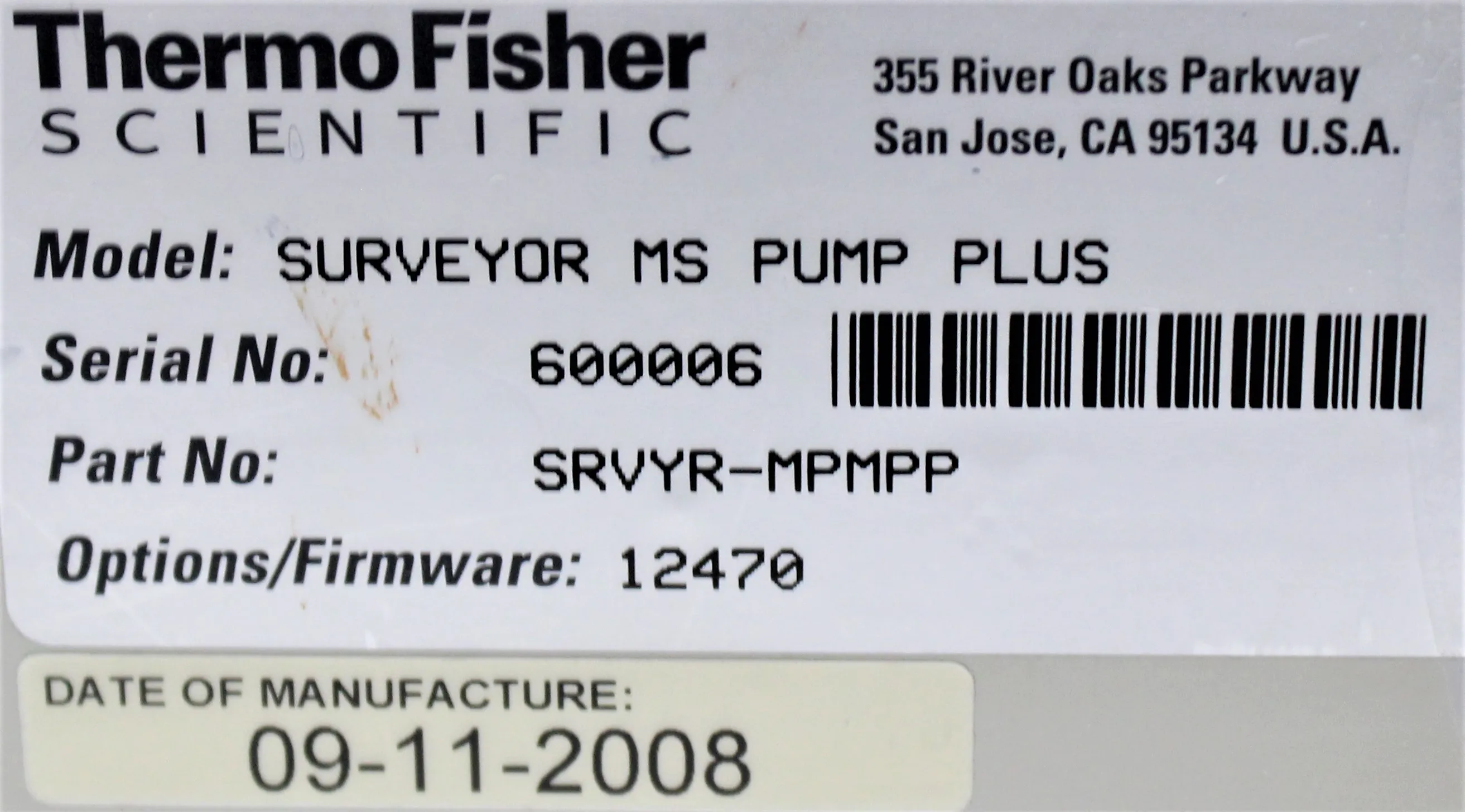

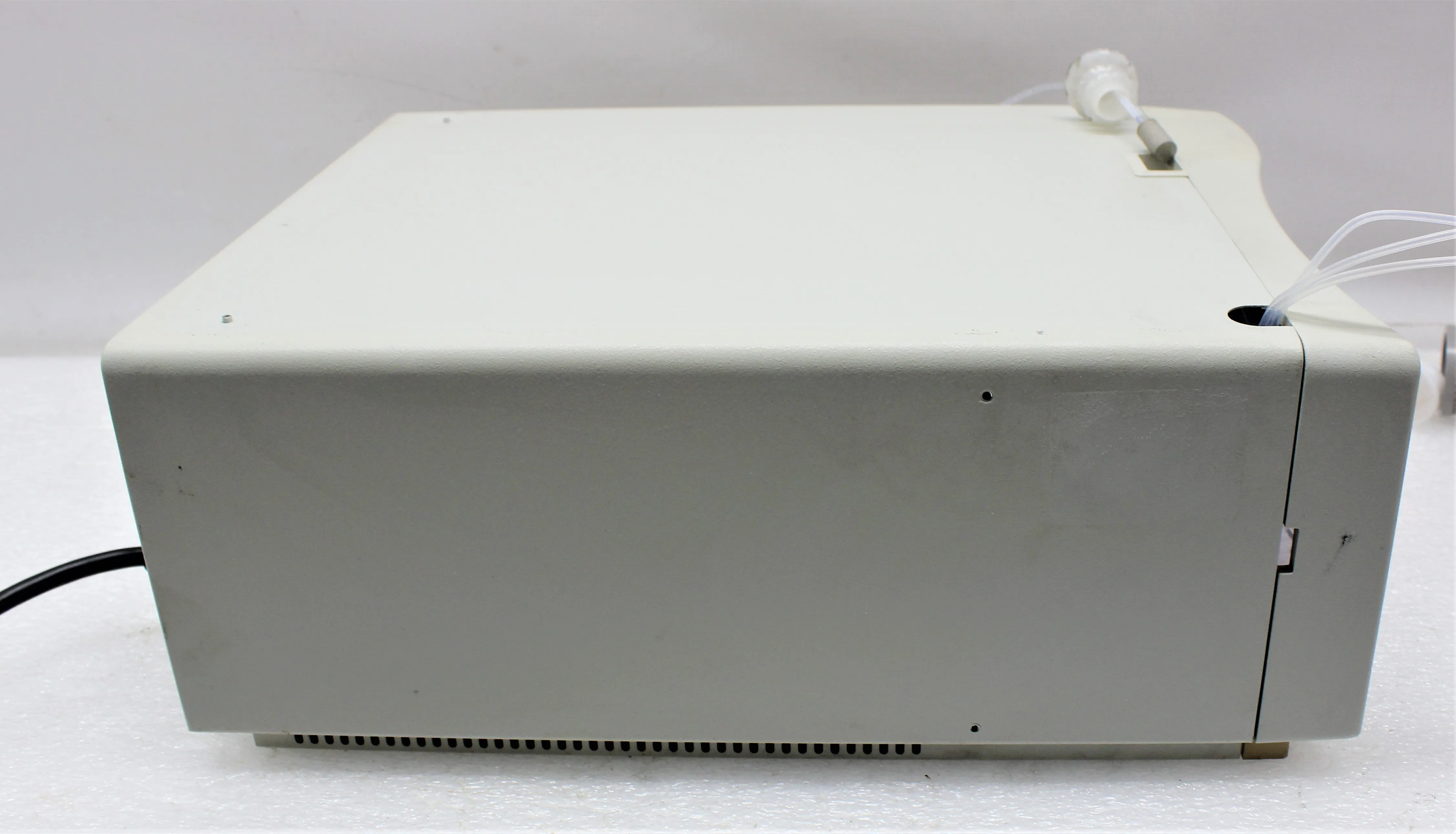

Thermo Fisher Surveyor MS Pump Plus HPLC Accessory Used Mass Spectrometry Liquid Chromatograph Pump

Product Information

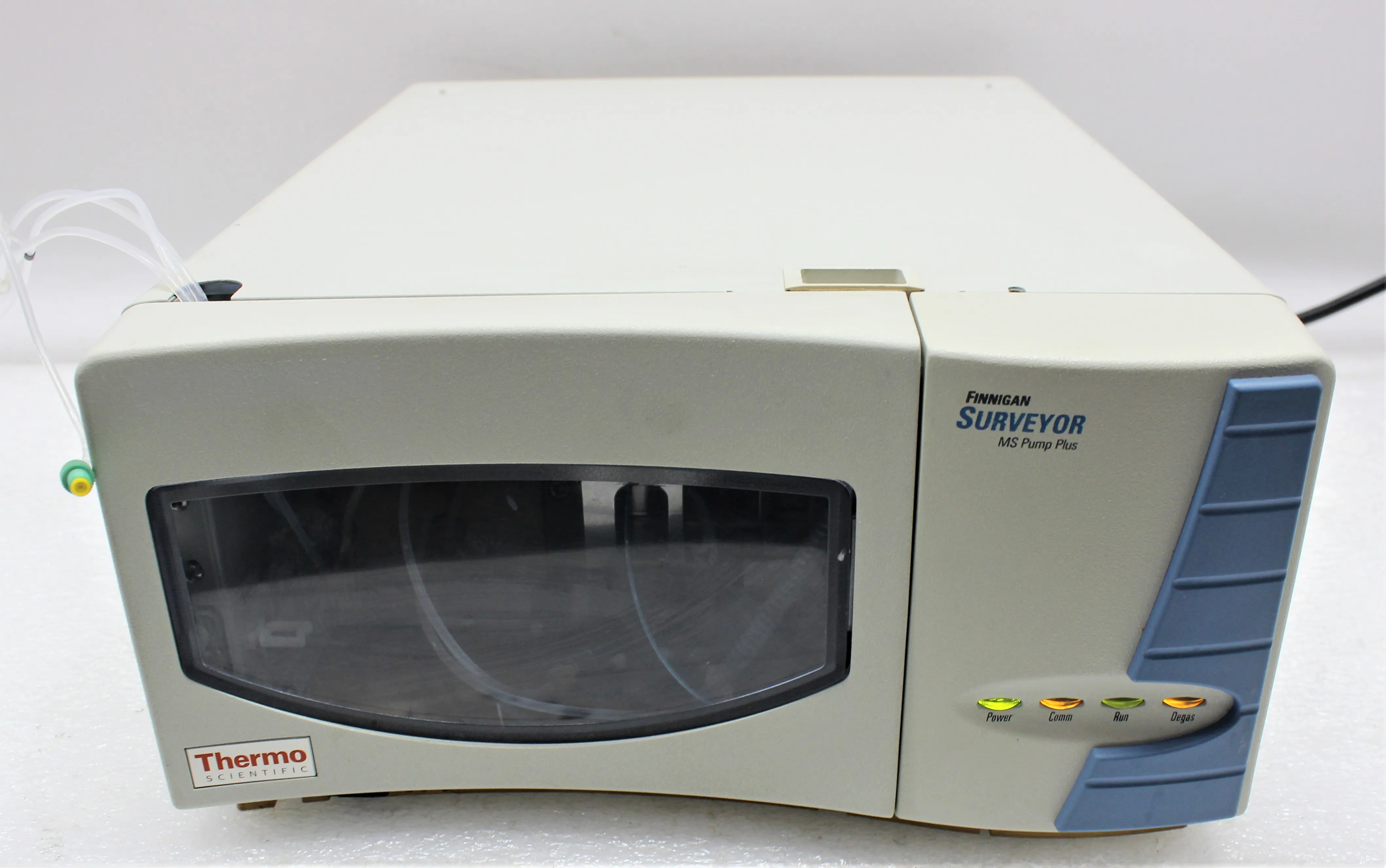

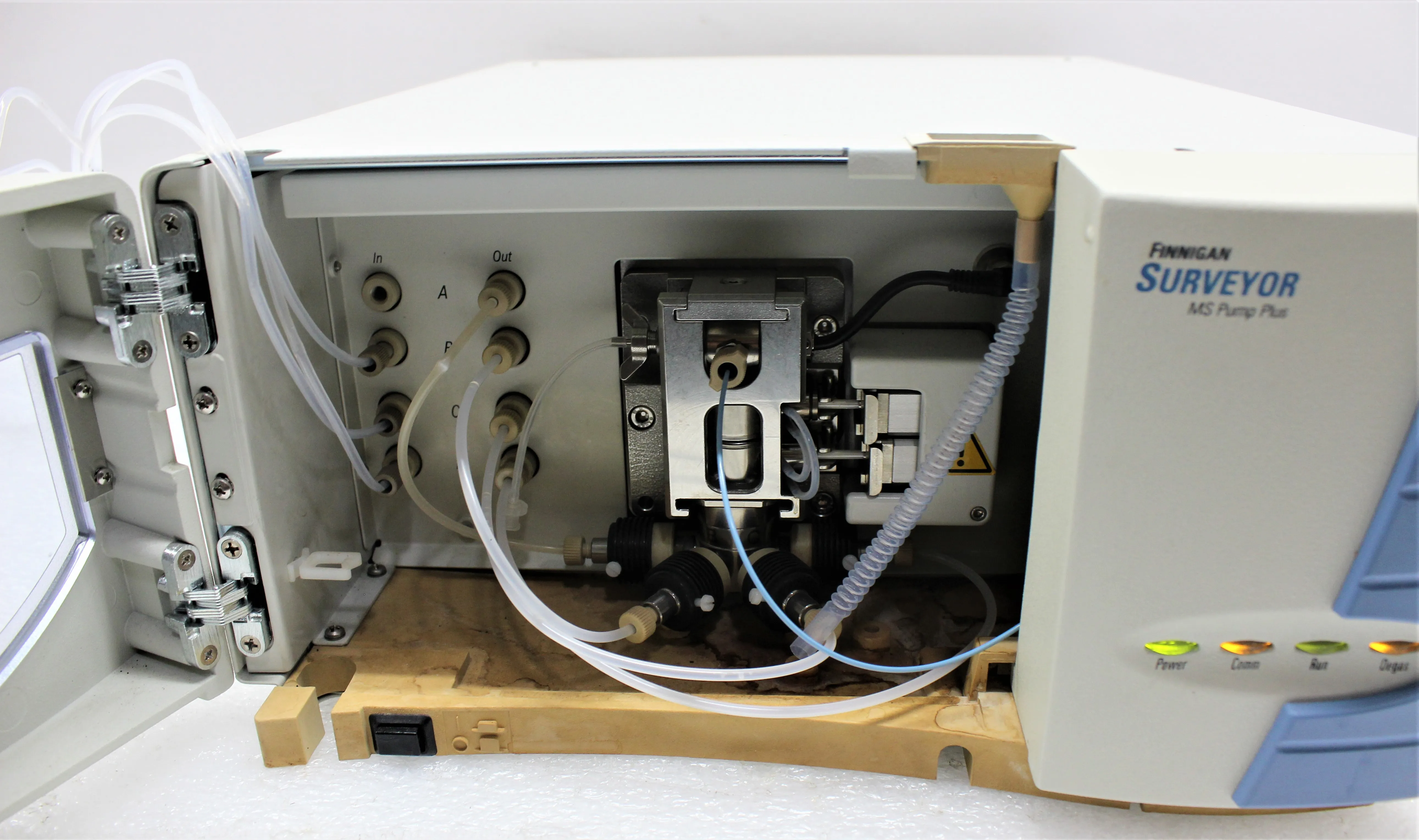

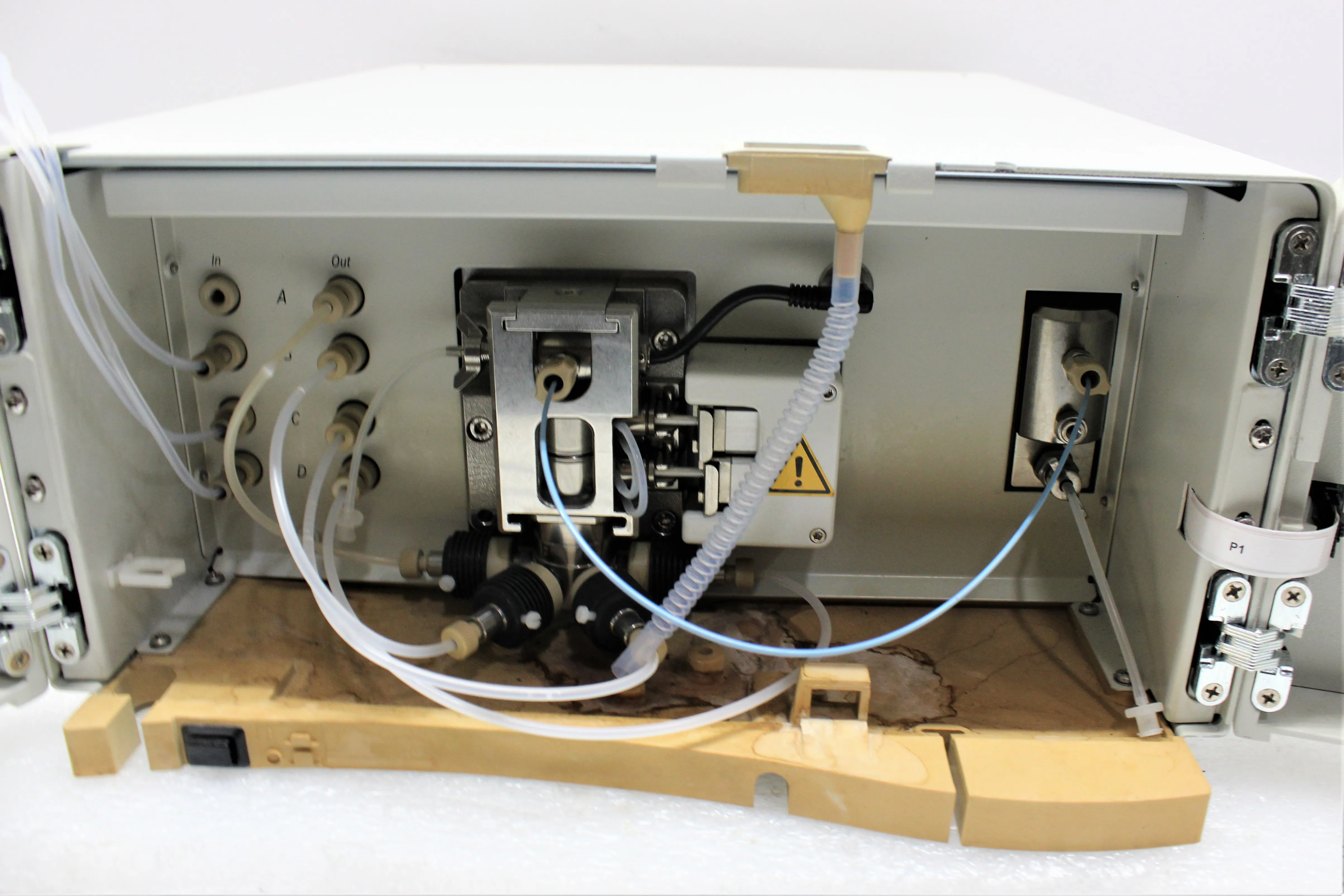

The Thermo Fisher Surveyor MS Pump Plus is a quaternary, low-pressure mixing pump with built-in solvent degassing and pulse dampening systems, delivering optimum performance in the lower flow rate ranges needed for mass spectrometry. It is a bench-top accessory for the Surveyor HPLC system, remotely controlled using RS232 serial communication link from a computer. This used unit offers a 30-Day Warranty, 100% Parts and Labor, and is considered to be in Class 2 condition.

• Quaternary low-pressure mixing pump
• Built-in solvent degassing and pulse dampening systems
• Integral vacuum degasser with less than 500 L volume
• Pulse dampener produces stable flow rates with only 3 L delay volume
• RS232 serial communication link control

• Minimum Flow Rate: 0.2 L/min isocratic, 25 L/min gradient
• Maximum Flow Rate: 2000 L/min
• Flow Rate Resolution: 0.1 L/min
• Pressure Range: 0 to 400 bar (0 to 5800 psi)
• Operating Range: 40 to 400 bar (588 to 5800 psi)
• Solvent Capacity: Quaternary
• Composition Accuracy: 1% at a flow rate of 200 L/min
• Piston Volume: 24 L
• Delay Volume: 80 L
• Degasser Type: Vacuum membrane
• Degasser Capacity: 4 channels
• Degasser Volume: < 500 L per channel
• Pulse Dampener: 3 L, dynamic
• Wetted Parts: 316 stainless steel, titanium, PEEK, sapphire, TZP-ceramic, FEP, GFP, ruby
• Remote Controls: Start, RS232 serial interface for Xcalibur software
• Operating Temp: +10°C to +40°C
• Storage Temp: -40°C to +70°C
• Operating Humidity: 5 to 95% relative, non-condensing

Metric: 16.33 kg
Imperial: 36 lbs

Metric: 45.72 cm x 35.56 cm x 20.32 cm
Imperial: 18 in x 14 in x 8 in

9027200000

9027 Instruments and apparatus for physical or chemical analysis, liquid pumps, Harmonized System (HS) code used for Liquid Chromatograph Pump based on product characteristics.
