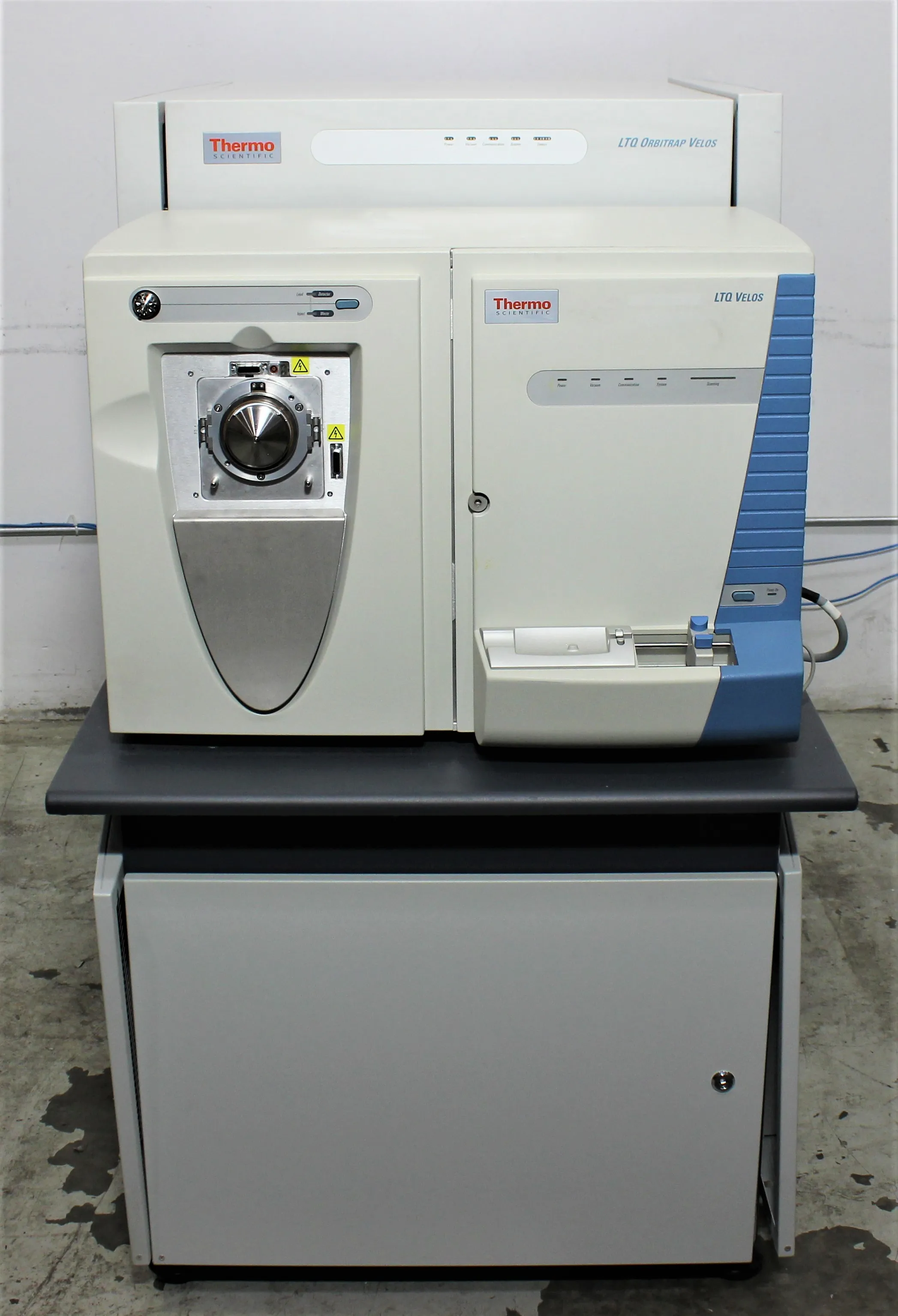

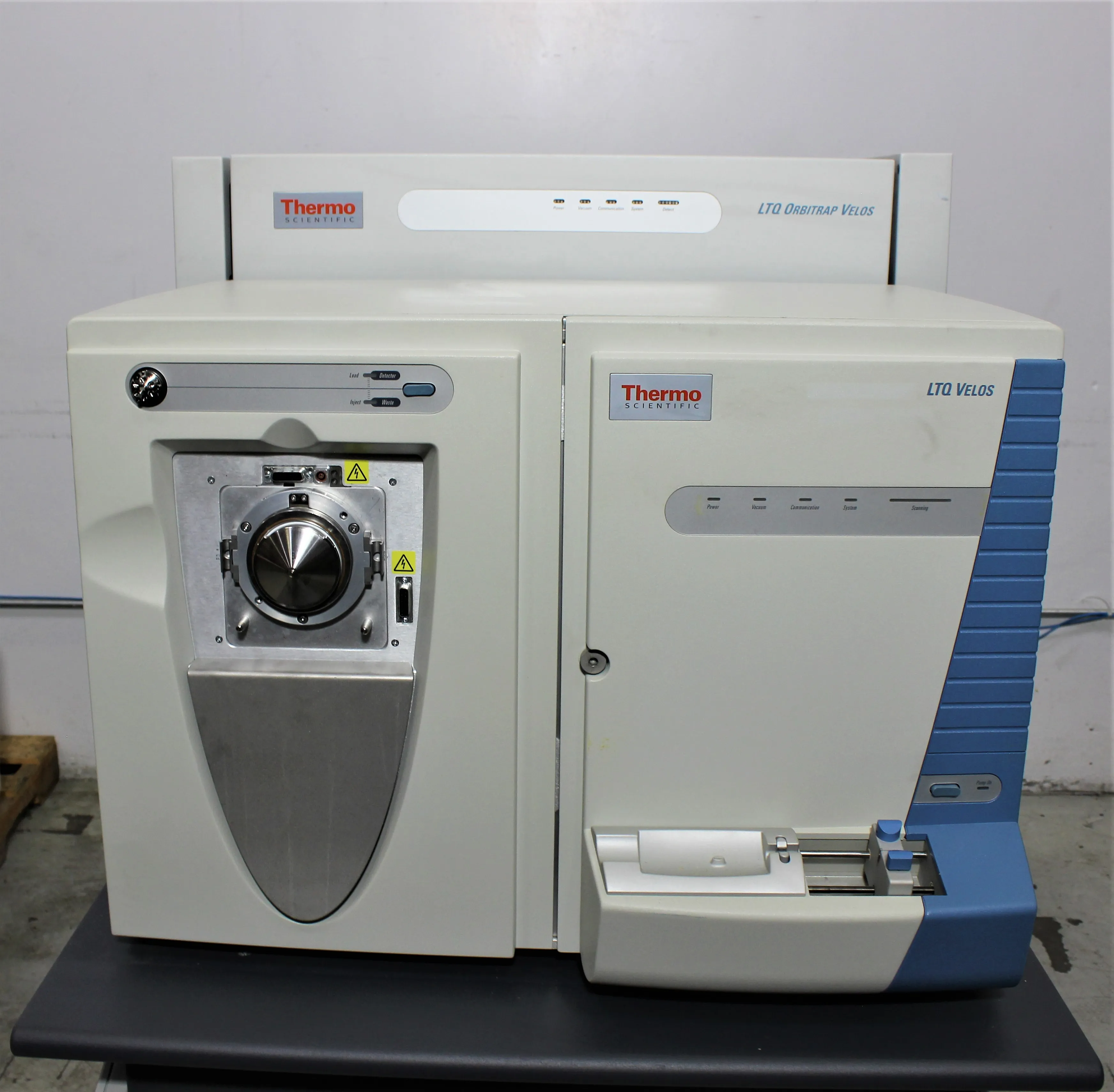

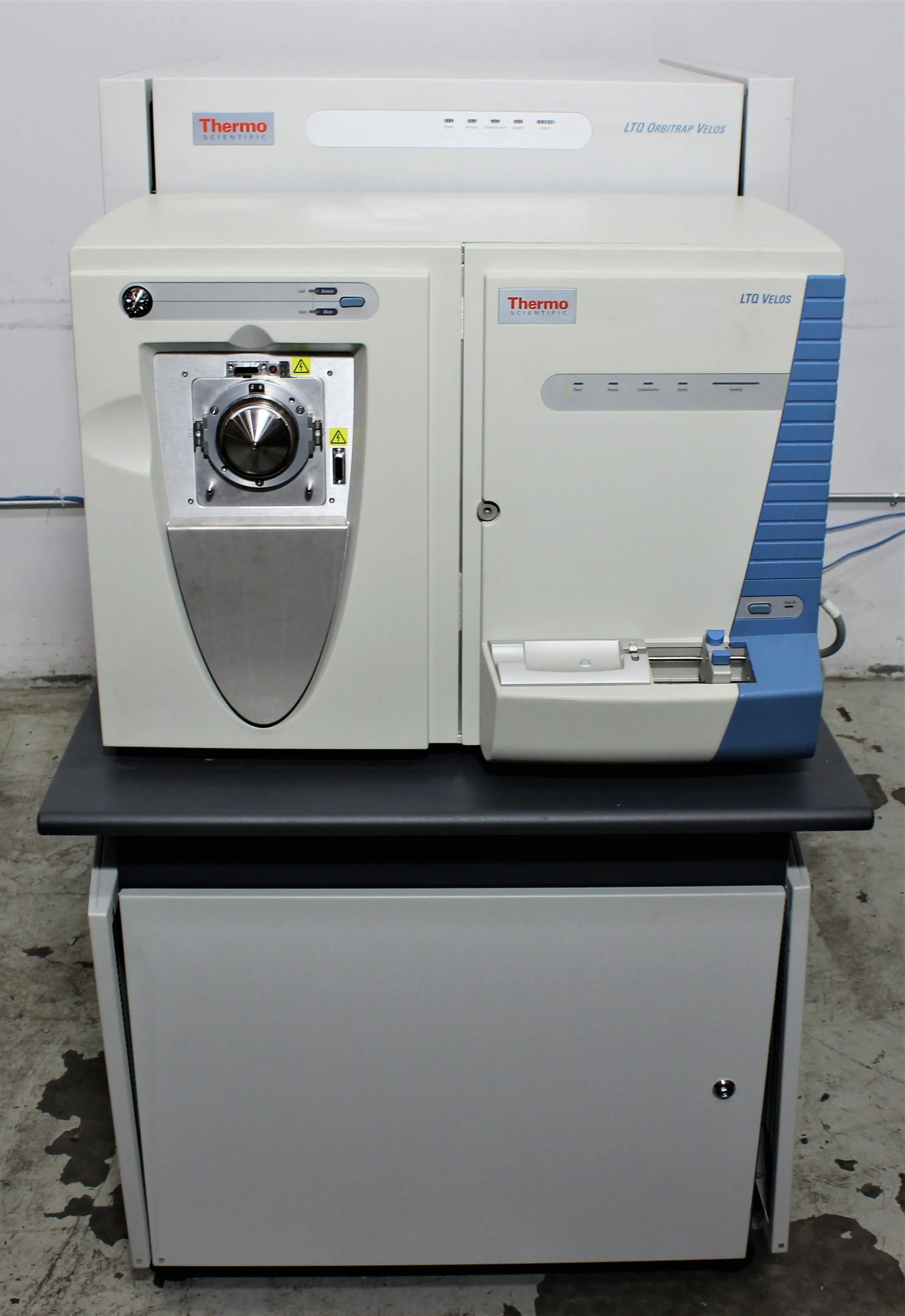

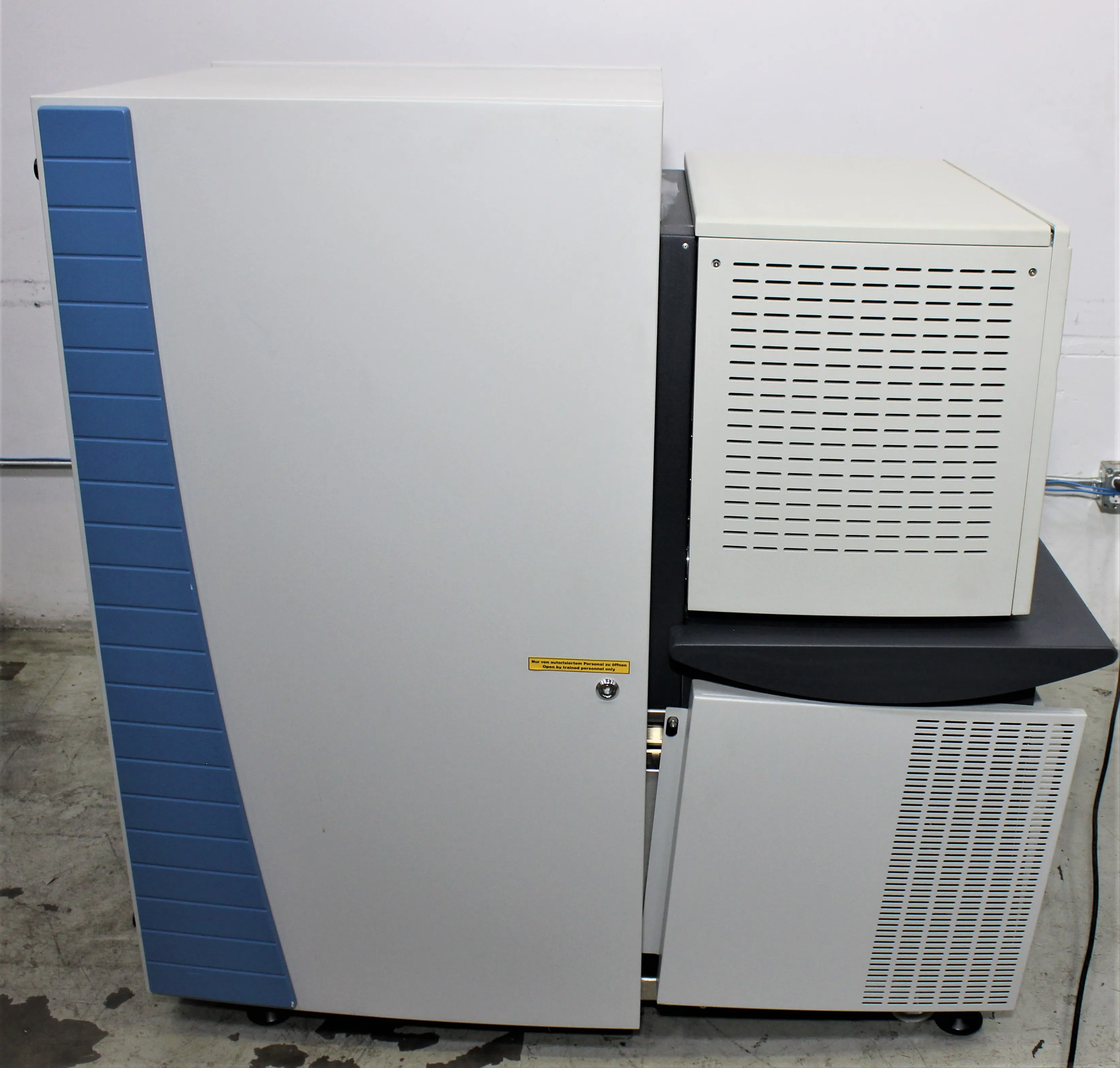

Thermo Scientific LTQ Orbitrap Velos Mass Spectrometer

Product Information

Step into the world of high-precision mass spectrometry with the Thermo Scientific LTQ Orbitrap Velos. This powerful machine combines the proven mass accuracy and ultra-high resolution of the Orbitrap mass analyzer with the increased sensitivity and improved cycle time of the LTQ Velos. Perfect for highly sensitive PTM analyses, de novo sequencing, and providing molecular weight determination for intact proteins. With a mass range of m/z 50-2000 and m/z 200-4000, this mass spectrometer minimizes false positive identification and guarantees specified mass accuracy. Although AS-IS missing components, it provides industry-leading performance with a sensitivity of parts per trillion and sub-ppm resolution.

• Mass Range: m/z 50-2000, m/z 200-4000
• Resolution: 60,000 at m/z 400 at a scan rate of 1 Hz, minimum resolution 7,500, maximum resolution >100,000 at m/z 400
• Mass Accuracy: < 3 ppm with external calibration, < 1 ppm using internal calibration
• Sensitivity: Parts per trillion, sub-ppm
• MS/MS: Electrospray Ionization (ESI)
• Dynamic Range: >5,000 within a single scan, guaranteeing specified mass accuracy
• MS Scan Power: MS n, for n = 1 through 10
• ETD: 3 L/min infusion of a 1 pmol/L solution of Angiotensin I will produce an electron transfer dissociation fragmentation efficiency of >15%
• Analog Inputs: One (1) analog input (0-1 V), One (1) analog (0-10 V)

Metric: 692 kg
Imperial: 1525 lbs

Metric: 66 cm x 44 cm x 66 cm
Imperial: 26 in x 17.3 in x 26 in

9027200000

The chosen harmonized code 9027200000 is for Mass Spectrometers. This product falls under this category due to its specifications and intended use for precise and accurate mass analysis in a laboratory setting.
