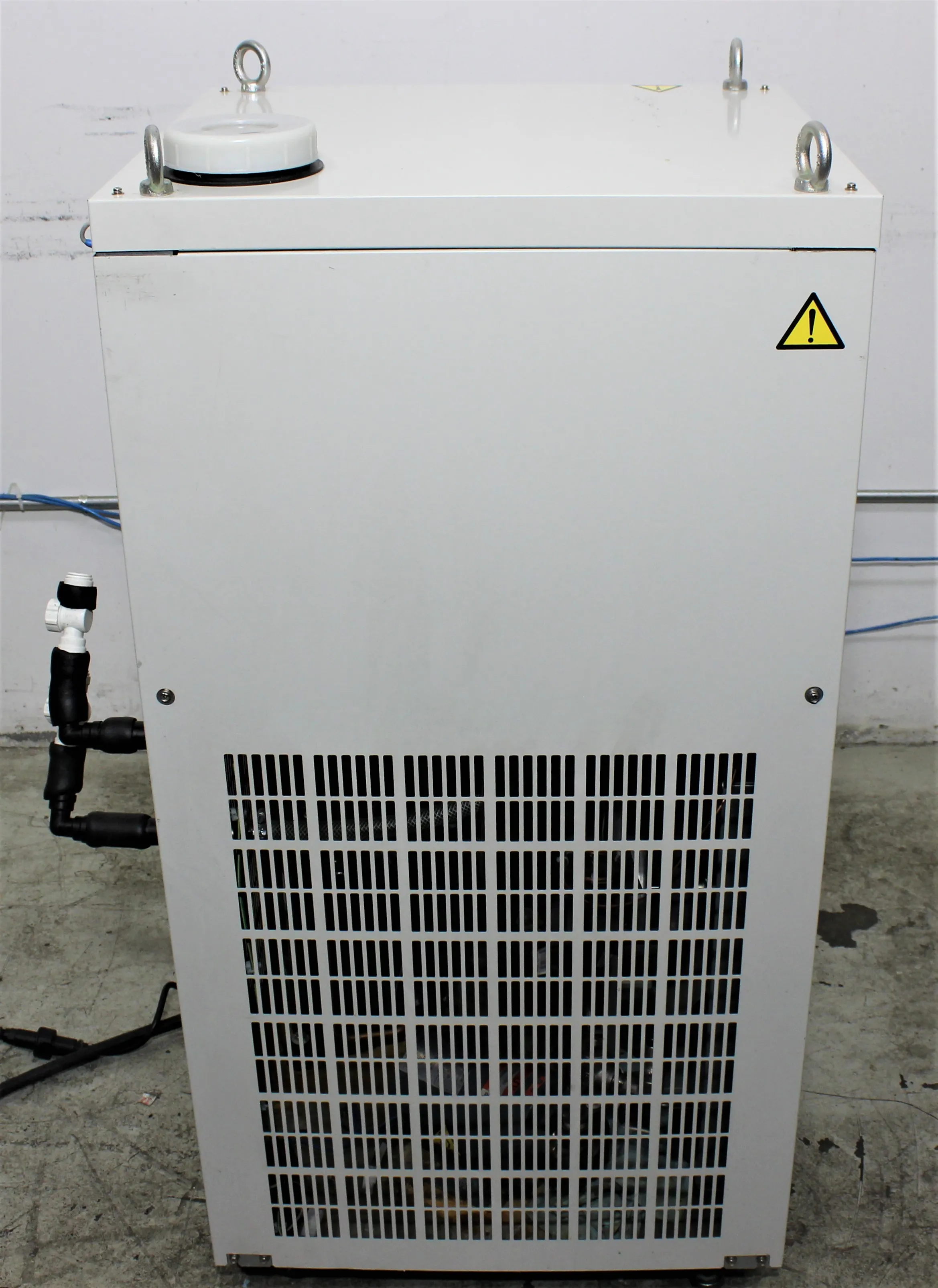

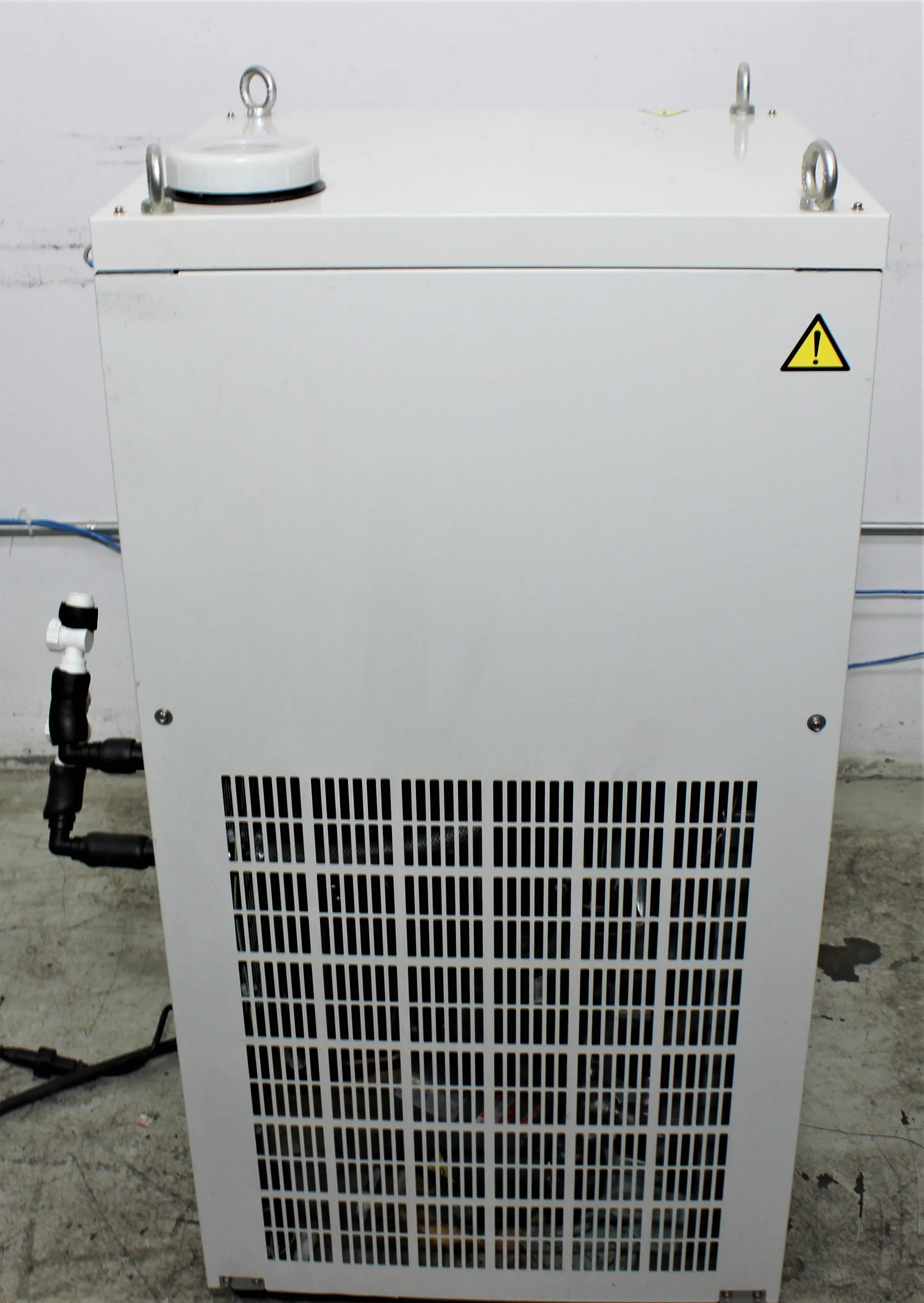

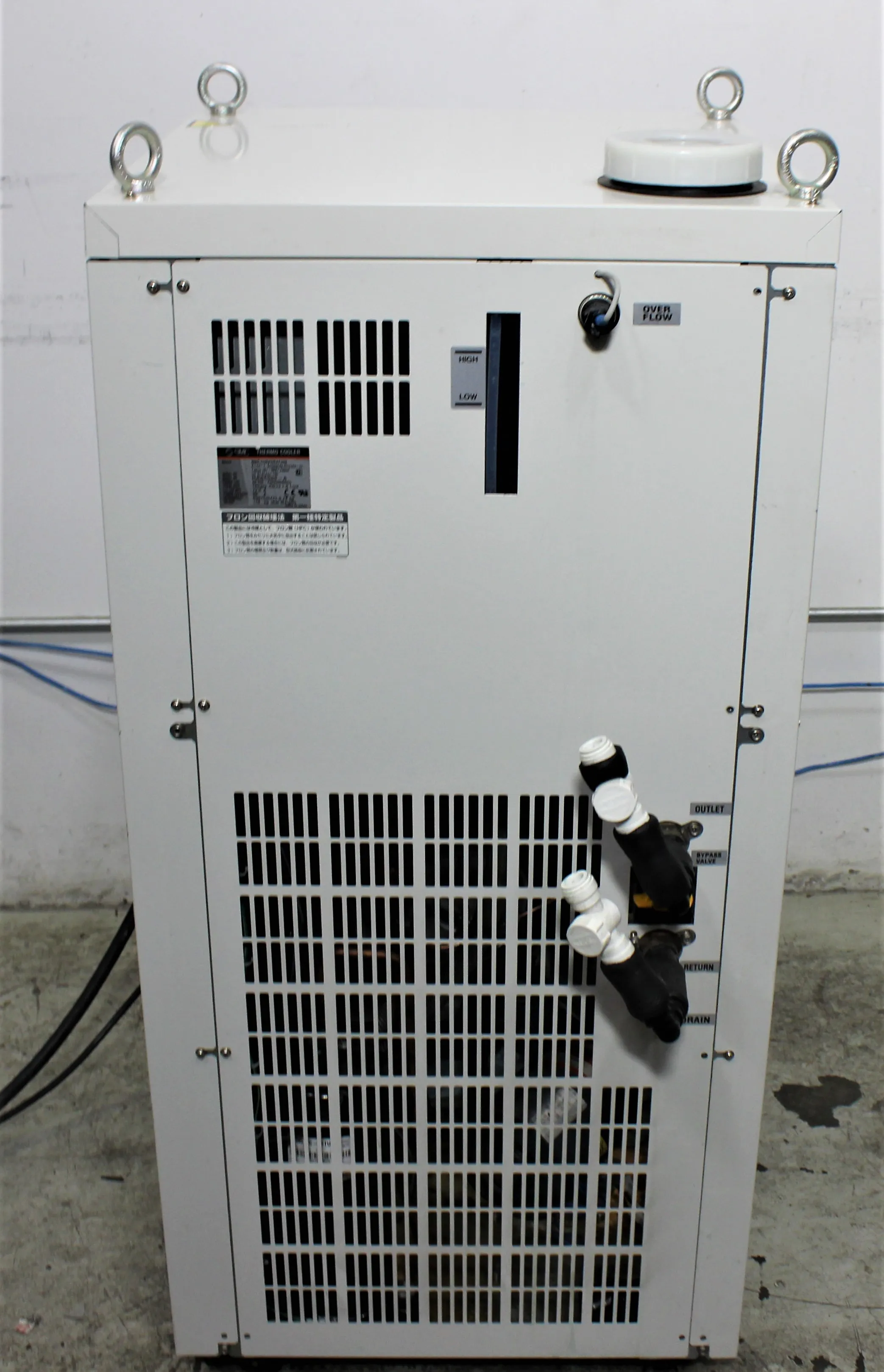

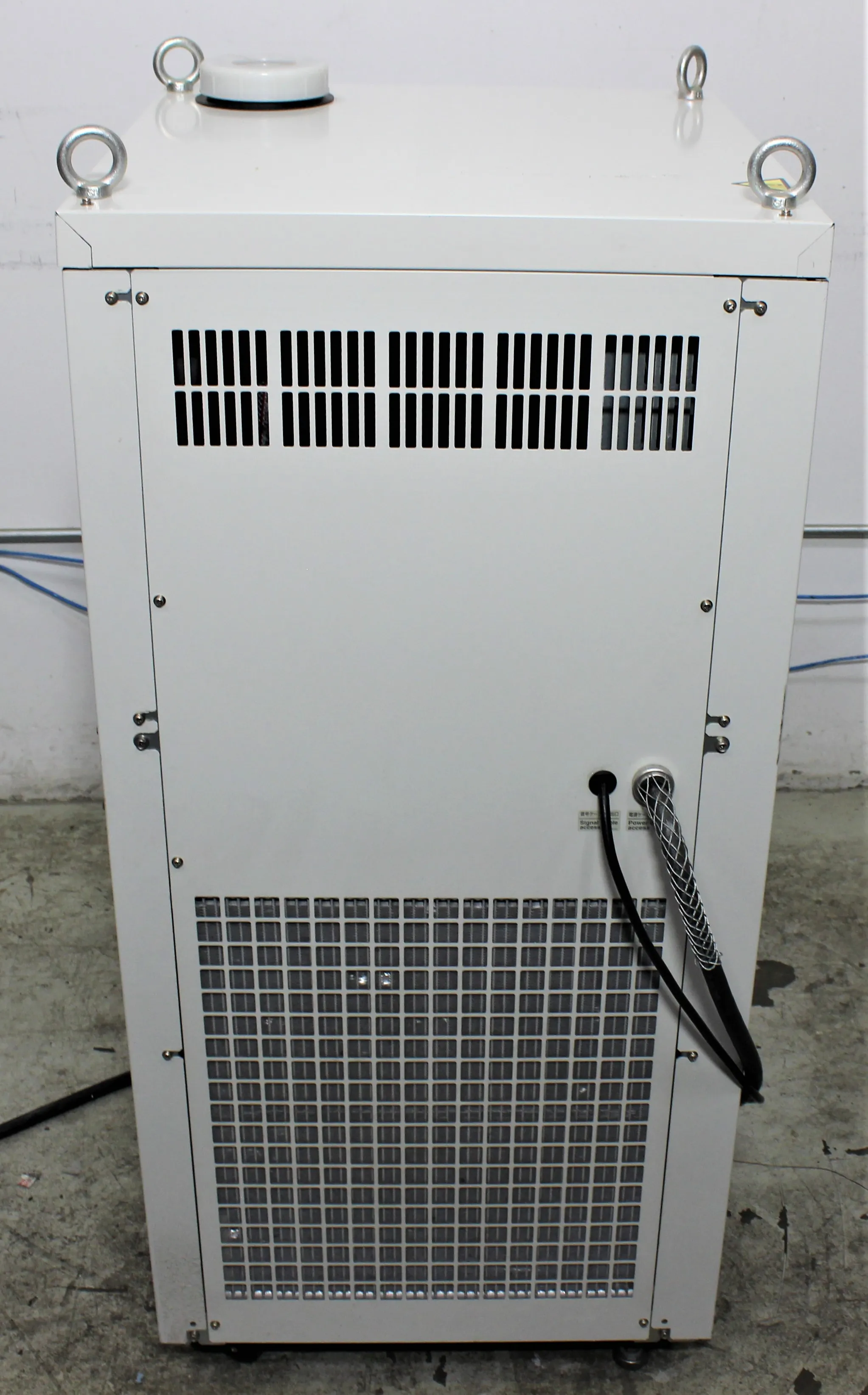

SMC HRG Circulator - Needs Repair - AS-IS Sale

Product Information

SMC's series HRG thermo-coolers control circulatingfluid at a constant temperature. Top panel access of the HRG makes maintenance easy. Various options include earth leakage breaker, and communications function (RS-485). **Unit powers on but will need a new pump. Sold AS/IS. Temperature stability:1.0C Cooling capacity: 9.0/9.5kW, 10.0/11.0kW, 13.0/14.5kW, 14.5/16.5kW(at 60Hz) Set temperature: 5~35C. SMC HRG Circulator is used for controlling circulating fluid at a constant temperature and is ideal for laboratory and pharmaceutical applications.

• Temperature stability of 1.0C
• Cooling capacity: 9.0/9.5kW, 10.0/11.0kW, 13.0/14.5kW, 14.5/16.5kW(at 60Hz)
• Set temperature range: 5~35C

• Model: HRGC005
• Cooling method: Air-cooled refrigeration
• Refrigerant: R407C (HFC)
• Control method: Refrigerator ON/OFF control or Proportional valve PID control
• Ambient temperature/humidity: 5 to 40C, Humidity: 30 to 70%RH
• Circulating fluid system: Clear water, Deionized water, Aqueous solution of 15% ethylene glycol
• Electrical system: Single-phase 200 to 230 VAC 50/60 Hz
• Temperature stability: 1.0C
• Pump capacity: 0.21/0.32 MPa (at 23 l/28 l/min)
• Tank capacity: Approx. 20 l
• Port size: Rc1/2
• Power supply: 200 to 230 VAC 50/60 Hz

Metric: 132.9 kg
Imperial: 293 lb

Metric: 56.0 cm x 58.42 cm x 142.24 cm
Imperial: 22.05 in x 23.0 in x 55.98 in

8418690040

This code represents ancillary equipment utilized for refrigeration, combining the functionality of both condenser and evaporator, designed to maintain stable temperatures for industrial processes and machines. It is used in laboratory, pharmaceutical and industrial equipment for various applications.
